Antenna

AOA-2458M-9

AOA-2458M-9

Frequency Range
2400 –2500 MHz / 4900 – 5800 MHz
Gain(MeasuredPeak)
9 dBi
Connector
N female x 2
Horizontal Beamwidth
360°
Technical details

Specifications

AOA-2458M-9

 Outdoor Dual-Band MIMO Omni Antenna
2.4 GHz / 5.8 GHz | 9 dBi


Specifications

Model

AOA-2458M-9

 Product Type

 Outdoor Dual-Band MIMO Omni Antenna

   Frequency Range

   2400 –2500 MHz / 4900 – 5800 MHz

 Gain(MeasuredPeak)

9 dBi

Connector

N female x 2

Horizontal Beamwidth

360°

 Vertical Beamwidth

21°

 V.S.W.R

≤ 2.0

Radiation

Omni-Direction

 Polarization

Vertical

 Impedance

 50 Ω

 Maximum Input Power

 100 W

Dimensions

Ø 75 x 1100 mm

Weight

2 Kg

Operating Temp.

-40 °C to 80 °C

Rated Wind Velocity

 60 m/s

DiameterofInstallationPole

Ø 30-50 mm

V.S.W.R & Radiation Pattern Test Data

V.S.W.R

Port 1

AOA-2458M-9

Port 2

AOA-2458M-9

Radiation Pattern

AOA-2458M-9

Here to help

Downloads & support

Visit our official support resources for available files and setup guidance.

Let’s connect

Find your next connection.

AOA-2458M-9

Contact ALFA ↗
FIND YOUR CONNECTION

Search ALFA products

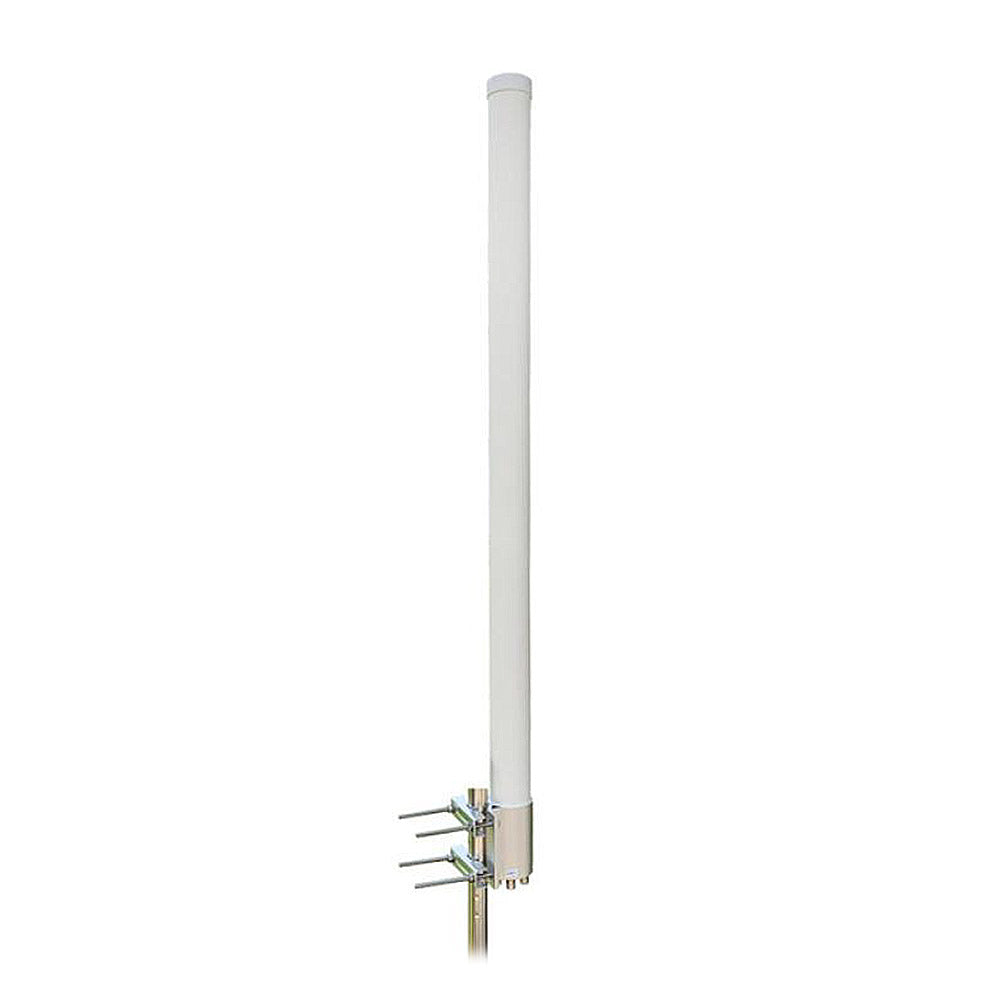

Product photograph
