AOA-4G-5MGN

A Wideband permanent mount antenna with low cost high performance magnetic mount.

Frequency: 698 - 960 MHz 1710 - 3500 MHz
Gain: 2.15 dBi@ 698-960 MHz 5 dBi@ 1710 – 2170 MHz 4 dBi@ 2400 – 2700 MHz 3 dBi@ 2800 – 3500 MHz
RF Connector: N male
V.S.W.R: ≦ 2.5

Downloads & support ↓Ask about this product ↗

Product details

Overview

AOA-4G-5MGN

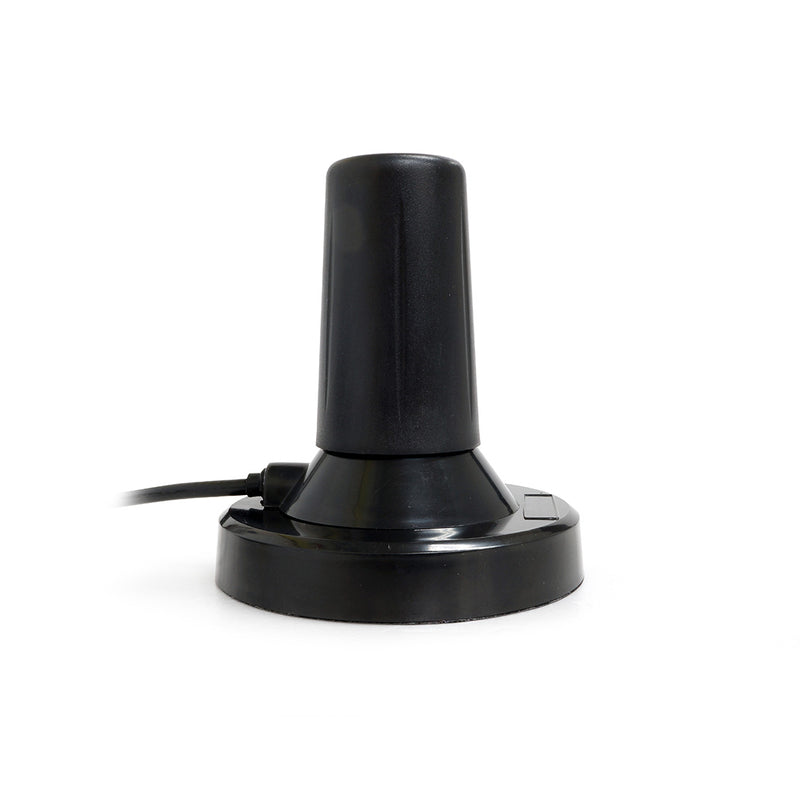

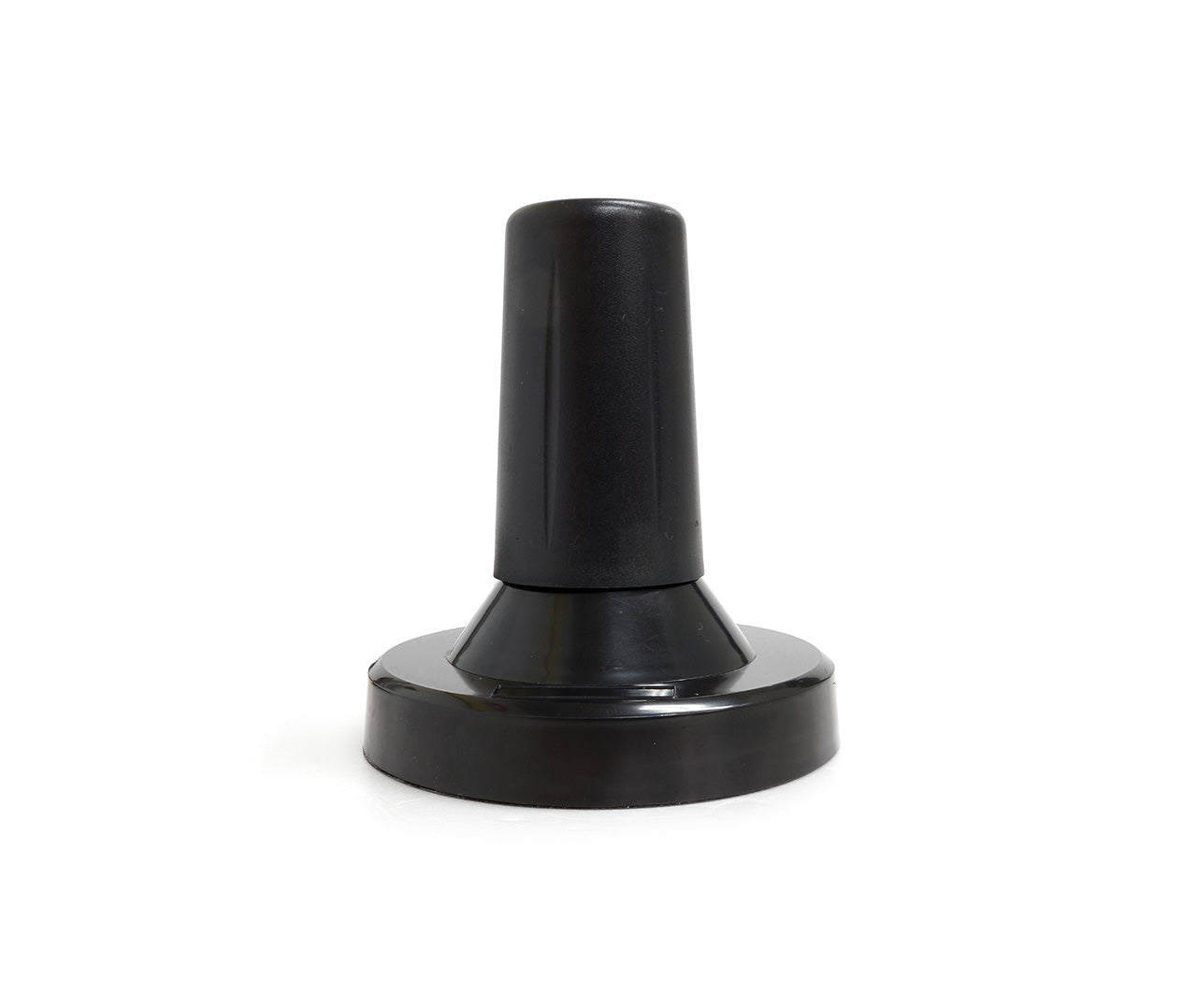

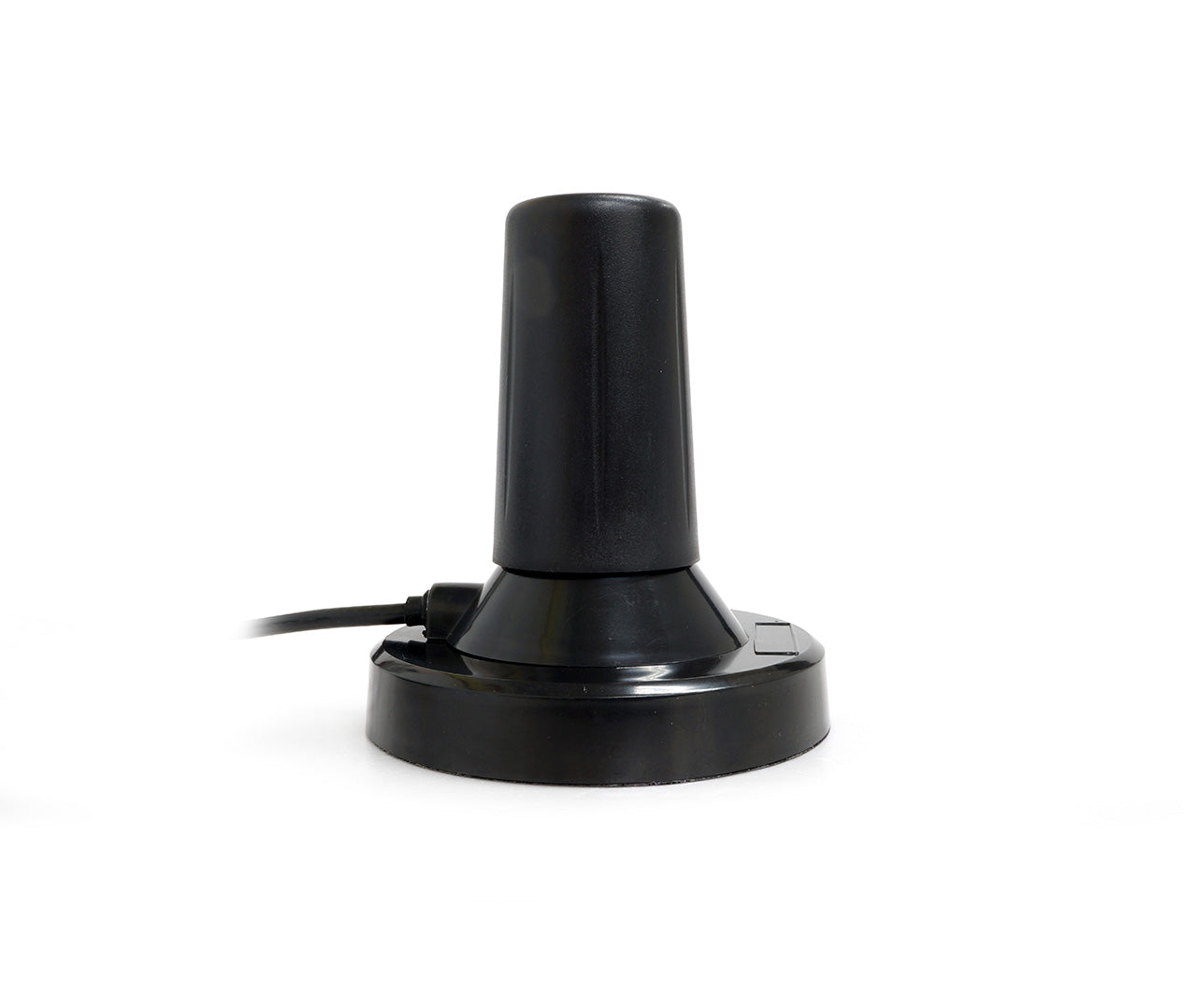

AOA-4G-5MGN is a compact wideband magnetic-mount antenna for 2G/3G/4G/5G LTE (698–960 / 1710–3800 MHz). It ensures durability and stable performance on a conductive ground plane, with acceptable results even on a desk. It provides wideband coverage, consistent low-angle radiation, and strong horizontal-plane gain, making it ideal for mobile and fixed applications, including public safety, utilities, fleet systems, smart cities, and industrial applications.

Key features

Design for 2G/3G/4G/5G cellular

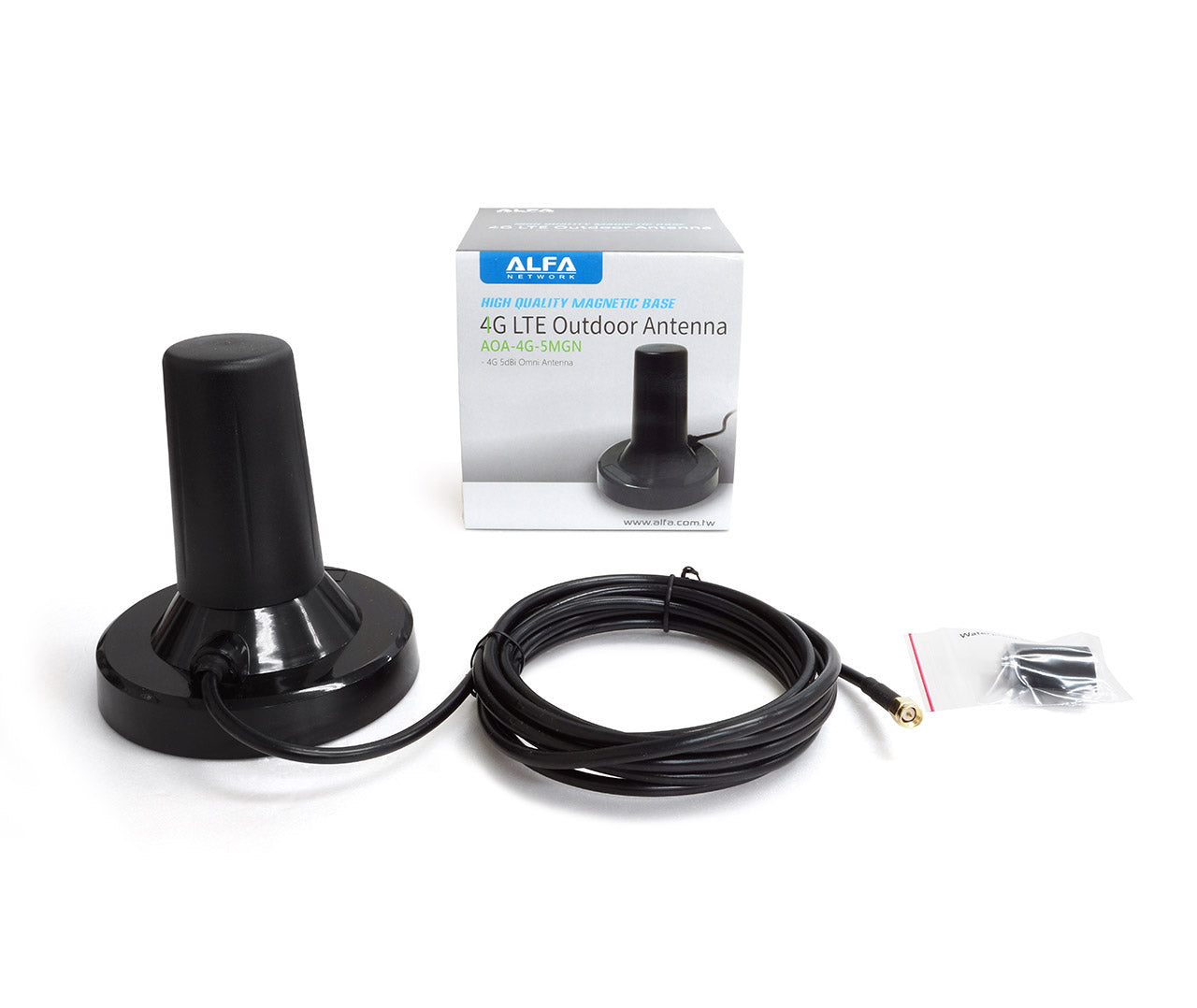

RF cable length: 3 M (9.8 ft)
AOA-4G-5MGN-NM: N male connector
AOA-4G-5MGN-SMA: SMA male connector
Robust Magnetic mounting for car, RV, vending machine, surveillance, IoT

Specifications

Order Information

2D Drawing Dimension

AOA-4G-5MGN product detail

VSWR

AOA-4G-5MGN product detail

Pattern

AOA-4G-5MGN product detail

Technical details

Specifications

AOA-4G-5MGN

Frequency	698 - 960 MHz 1710 - 3500 MHz
Gain	2.15 dBi@ 698-960 MHz 5 dBi@ 1710 – 2170 MHz 4 dBi@ 2400 – 2700 MHz 3 dBi@ 2800 – 3500 MHz
V.S.W.R	≦ 2.5
Radiation	Omni
Polarization	Vertical
Maximum Input Power	50 W
Impedance	50 Ω
RF Connector	N male
Cable Type	RG58U
Cable Length	3 M (9.8 ft)
Mounting	Magnetic mount
Dimensions	Ø 110 x 120 mm
Weight	900 g
Operating Temperature	-40°C to 70°C
Rated Wind Velocity	80 m/s
