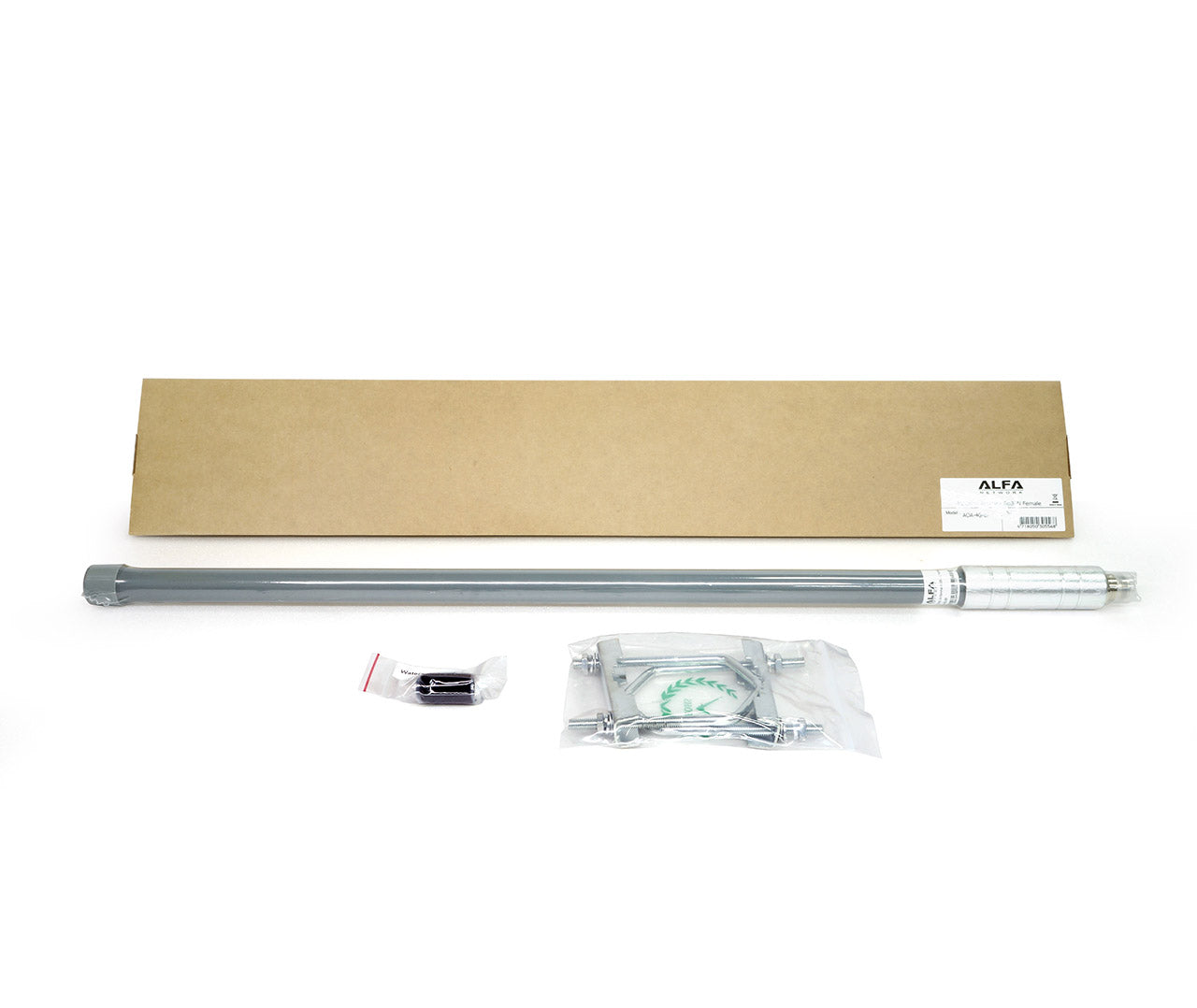

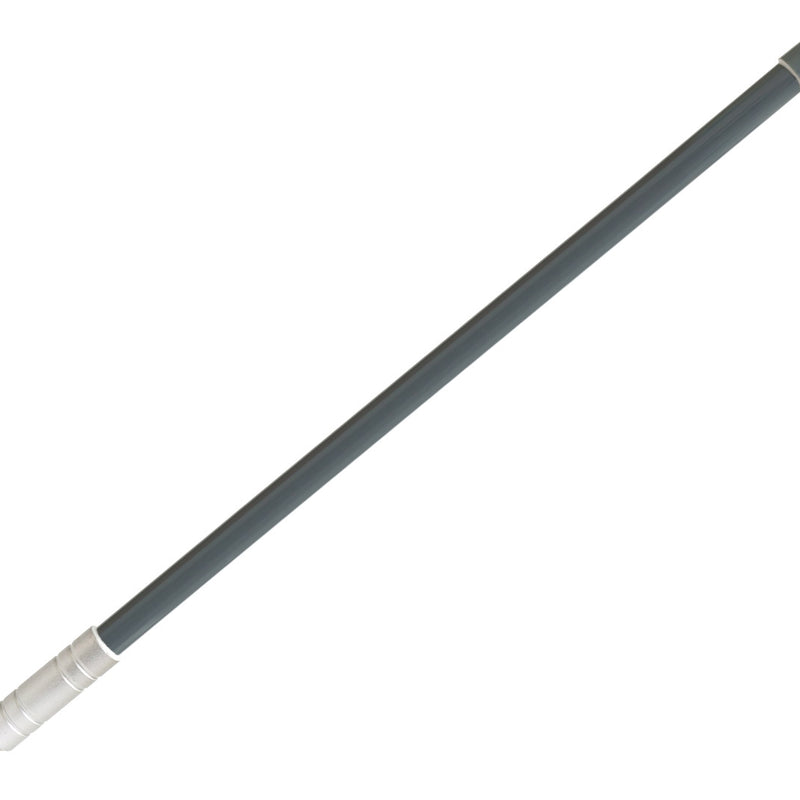

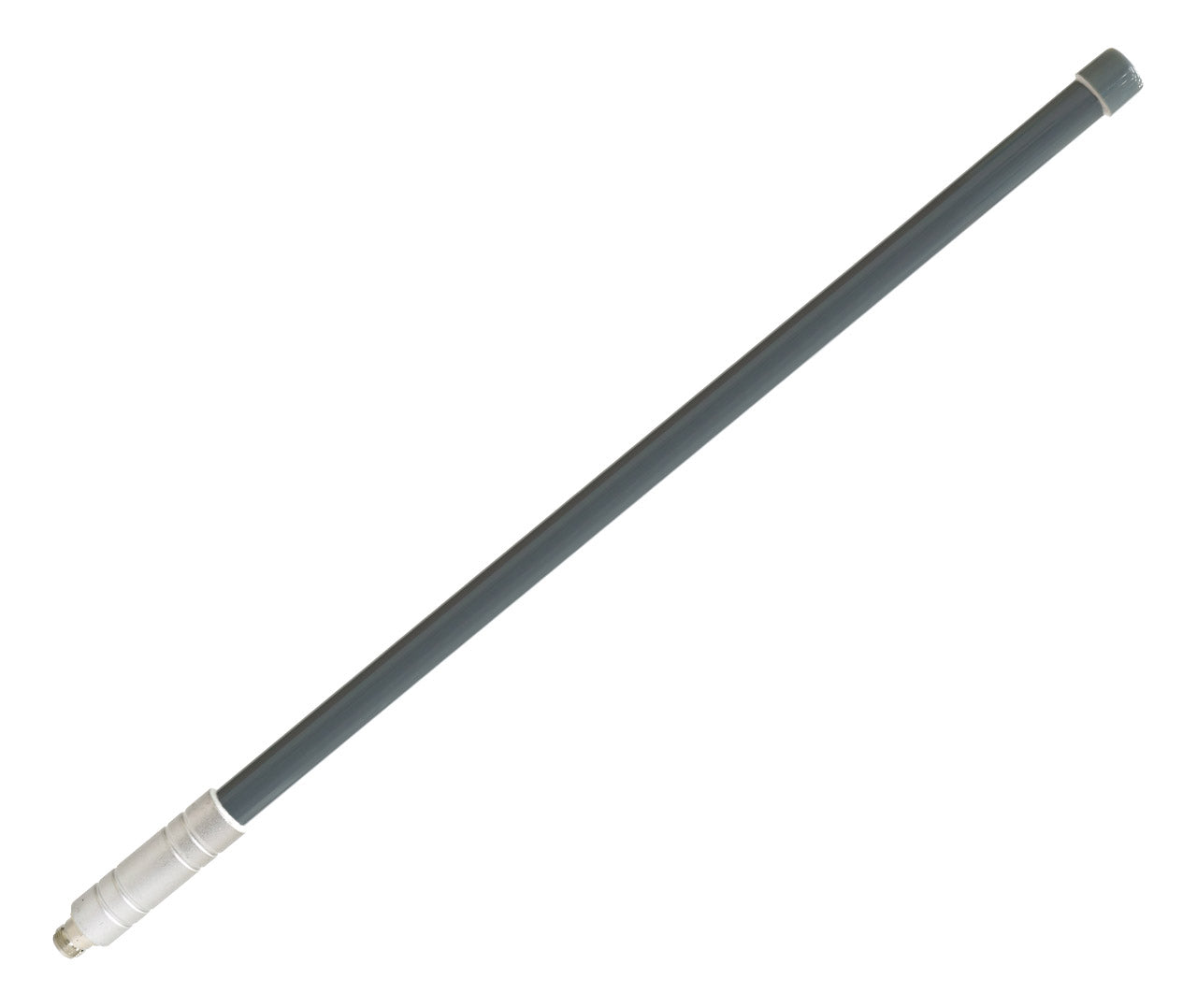

AOA-4G-8F 4G LTE Outdoor Omni Antenna



Radiation Pattern

Frequency Range 698-960 MHz
1710-2700MHz
Gain 6/8 dBi
VSWR <1.5
Radiation Omni Direction
Horizontal Beam width 360º
Vertical Beam width 16º
Polarization Vertical
Maximum Input Power 100W
Impedance 50 ohm
Connector N female
Antenna Material Fiberglass
Mount type Pole
Diameter of Installation Pole Ø30-Ø50 mm
Dimensions Ø20x600 mm
Weight 650g
Operating Temperatur -40 ºC - 70 ºC
Rated wind velocity 60m/s
