APA-L2414A
Antenna
APA-L2414A

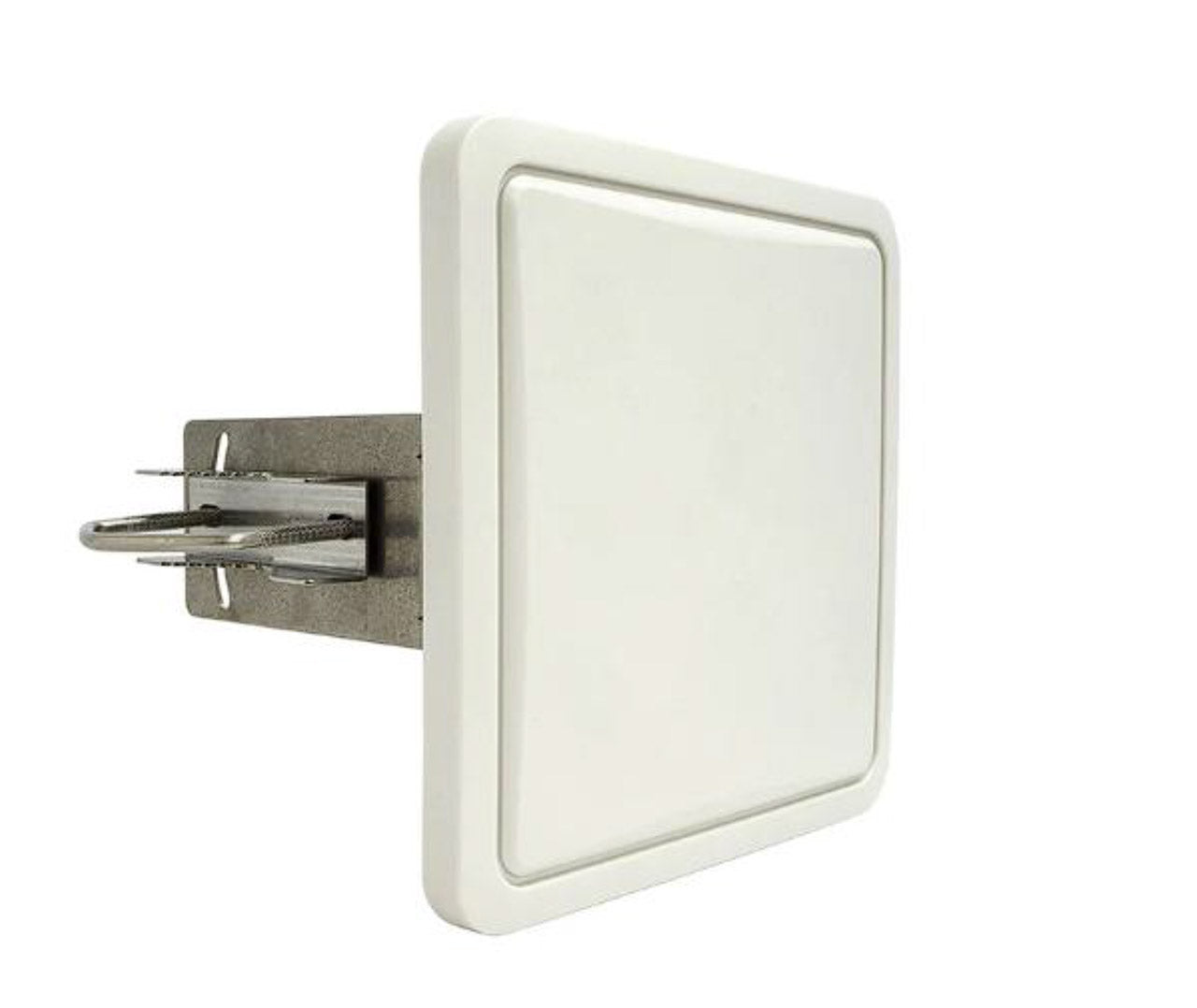

Panel Antenna2.4 GHz 14dBi
- Frequency
- 2400 MHz ~ 2500 MHz
- Gain
- 14 dBi
- V.S.W.R
- ≦ 1.5
- Antenna Radiation
- Direction
Product details
Overview
APA-L2414A
Panel Antenna 2.4 GHz 14dBi
Specifications
Radiation Pattern Test Report
Technical details
Specifications
APA-L2414A
|
Frequency |
2400 MHz ~ 2500 MHz |
|
Gain |
14 dBi |
|
V.S.W.R |
≦ 1.5 |
|
Antenna Radiation |
Direction |
|
Polarization |
Vertical |
|
Horizontal Beamwidth |
15° |
|
Vertical Beamwidth |
30° |
|
Impedance |
50 ohm |
|
Connecto |
N female |
|
Maximum Input Power |
100 W |
|
Dimensions |
230 x 230 mm |
|
Mount Style |
Pole mount |
|
Mounting Material |
Stainless Steel |
|
Rated Wind Velocity |
60 m/s |
