  • High Switching Speed
  • Power Gain Controller
  • High Gain and Low Noise
  • Powered through DC Power
  • Injector
  • Low Power Consumption
  • Low Heat Generation
  • Light Weight

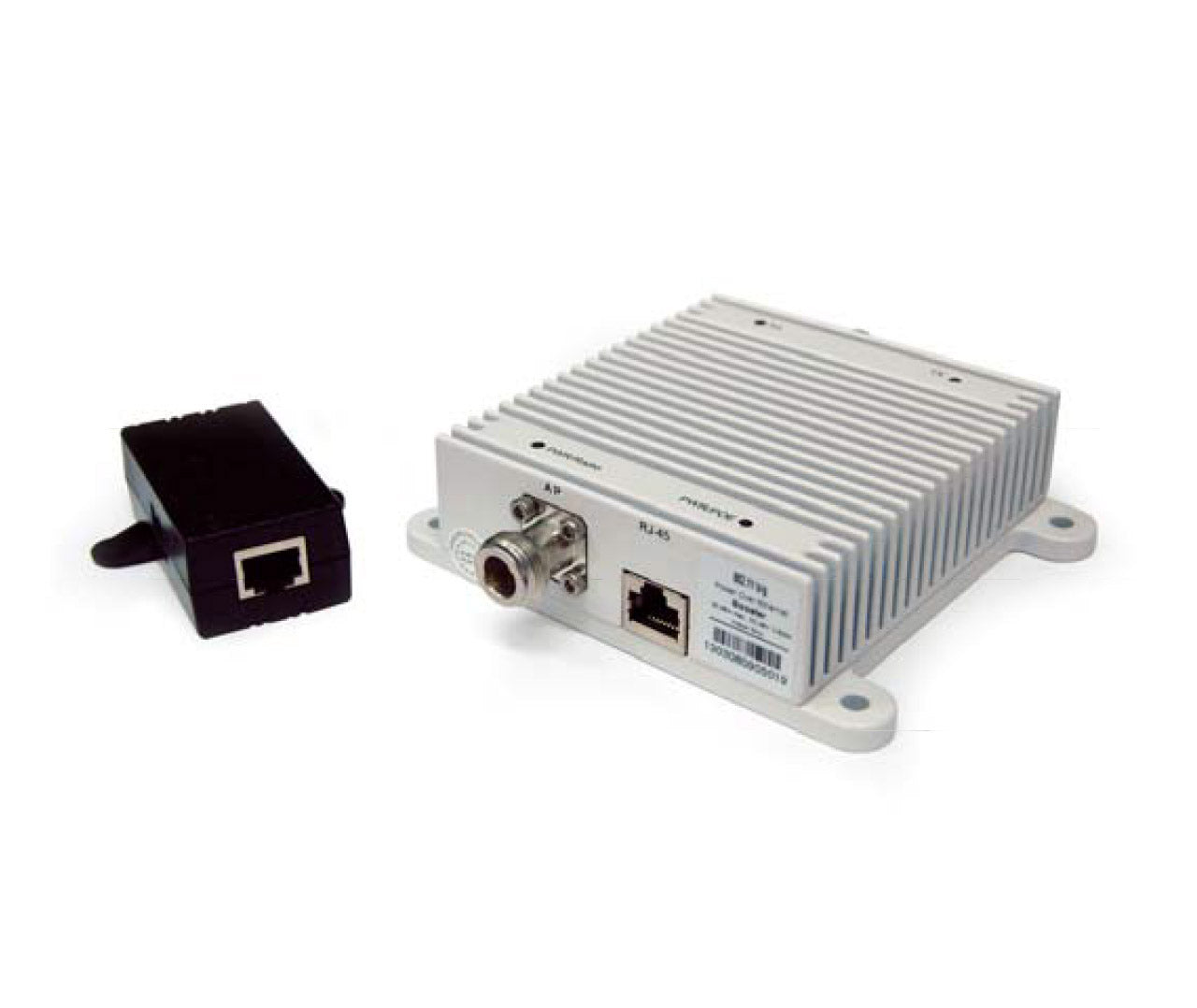

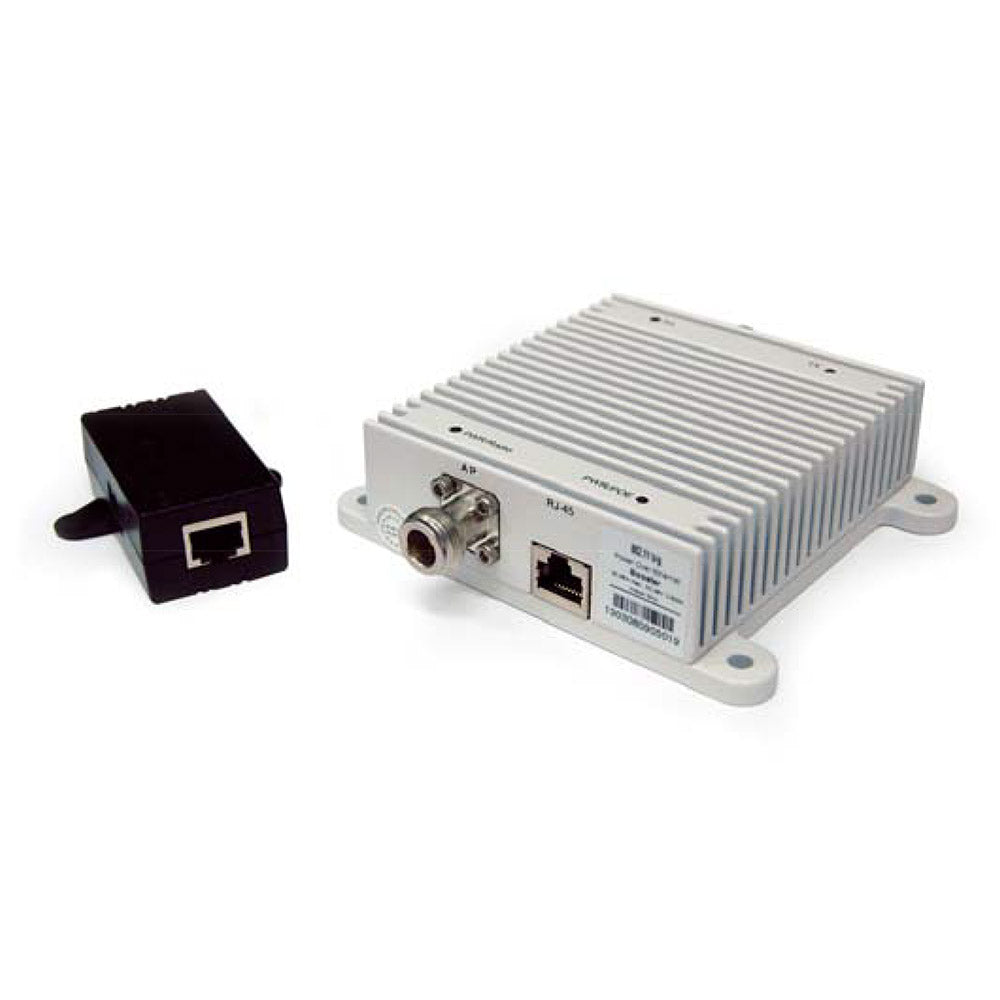

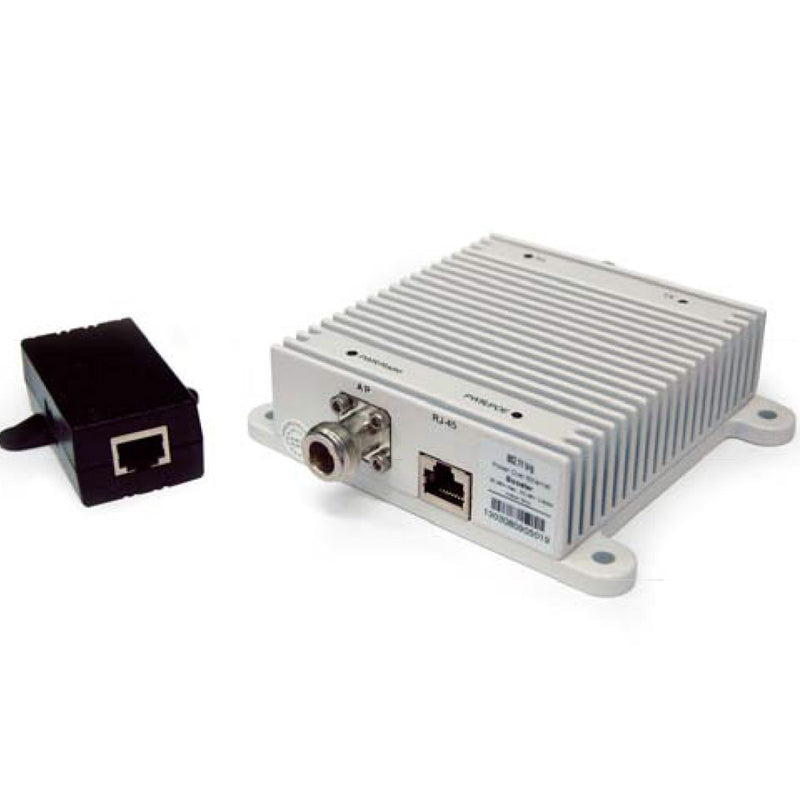

The APAG05PoE is a unique approach to the RF Power Amplifier. This unit is designed to function as an amplifier as well as transferring data over the same CAT-5e line that carries the DC power supply. This flexibility allows the APAG05PoE to be mounted in a very tight space.

This module uses the Time Division Duplex (TDD) technology designed for high power 2.4 GHz ISM band. The applications in this band include WLAN, Bluetooth, Point to Point (P2P), and Point to Multi-Point (P2MP) systems. The Booster Module enhances the coverage and stabilizes the transmitted data rate of Direct Sequence Spread Spectrum (DSSS) in both indoor and outdoor applications.

For Tx, we use a proprietary high-power, high-efficiency, linear amplifier MMIC which is manufactured on an advanced Gallium Arsenide Heterojunction Bipolar Transistor (HBT) to get low current consumption and better heat effect.

Applications

  • WLAN 802.11b/g/n
  • Bluetooth
  • Digital Spread Spectrum on the ISM Band

Absolute Maximum Ratings

  • Supply Voltage: 72 V
  • Rx Input Power: -10 dBm
  • Tx Input Power: +23 dBm
  • Operating Temperature: -10 ~ +50°C
  • Storage Temperature: -40 ~ +90 °C

Installation

  1. The "ANT" Port: connects to the antenna.
  2. The "AP" Port: co-axial cable to connect to AP
  3. The "RJ45" Port of "AP": connect to PoE AP
  4. The "RJ45" Port of "ANT": connect to PoE adapter


Frequency Band 2.4 GHz ~ 2.5 GHz
Signal Type OFDM&DSSS
TR Switch Time < 1µ sec
Rx. Max Input Power -10 dBm
Rx Power Gain 23 dB max
Tx Input Power 5~20 dBm
Tx Linear Output Power 2W
DC Supply Voltage DC 48V
RF Connector Type N Female
Operating Temperature -10 ~ +40 °C
Storage Temperature -40 ~ +90 °C
