APIMB

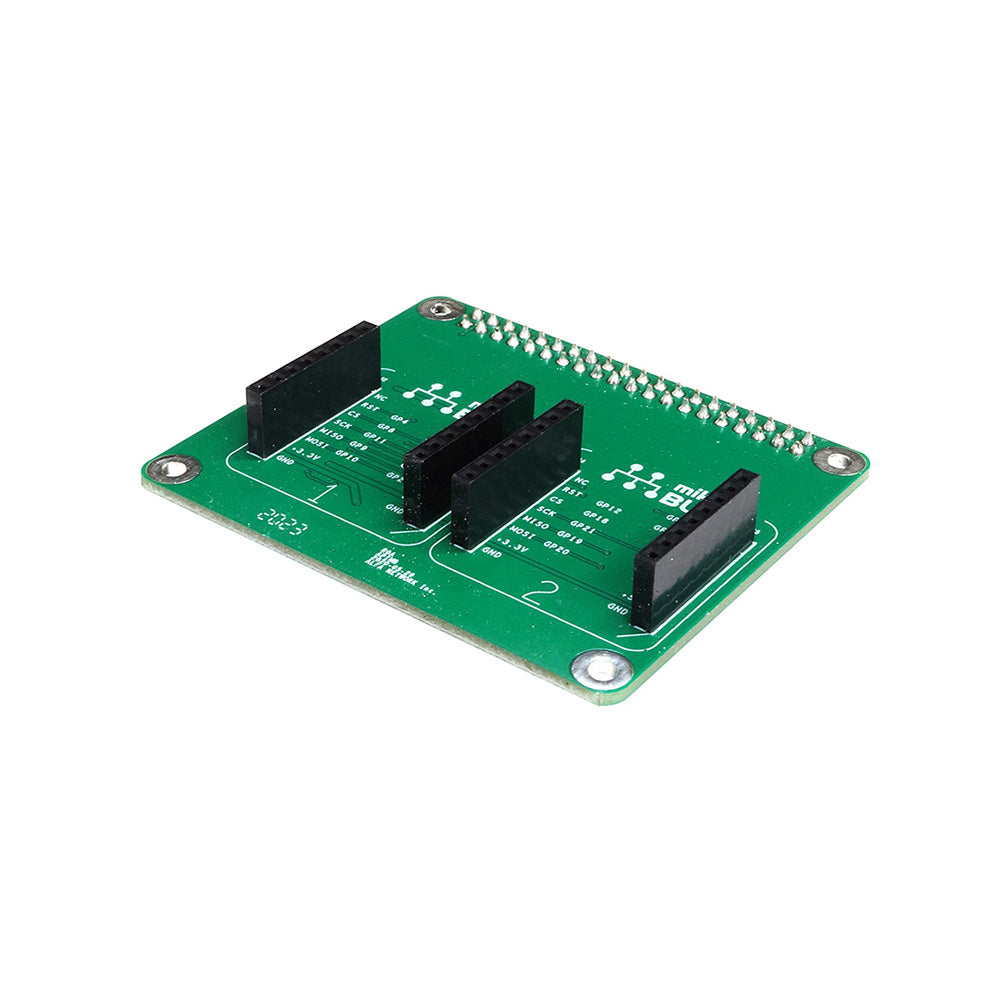

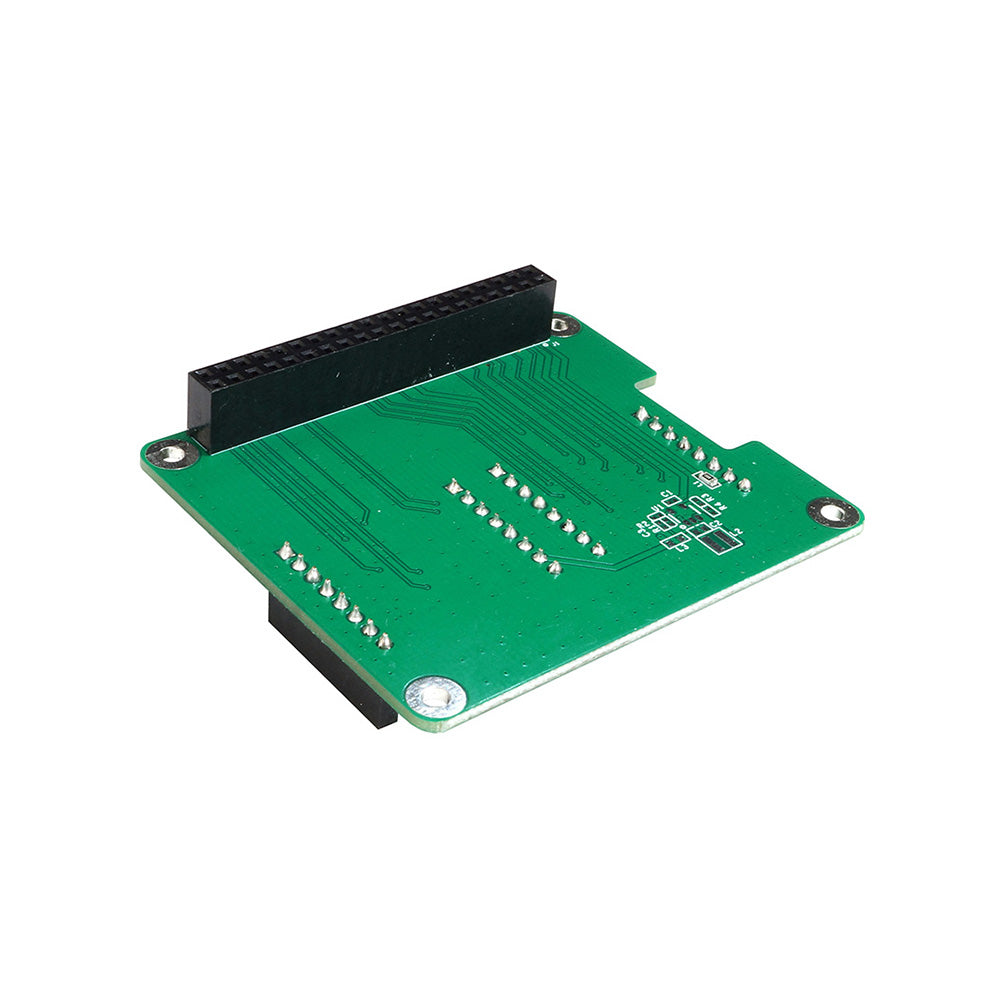

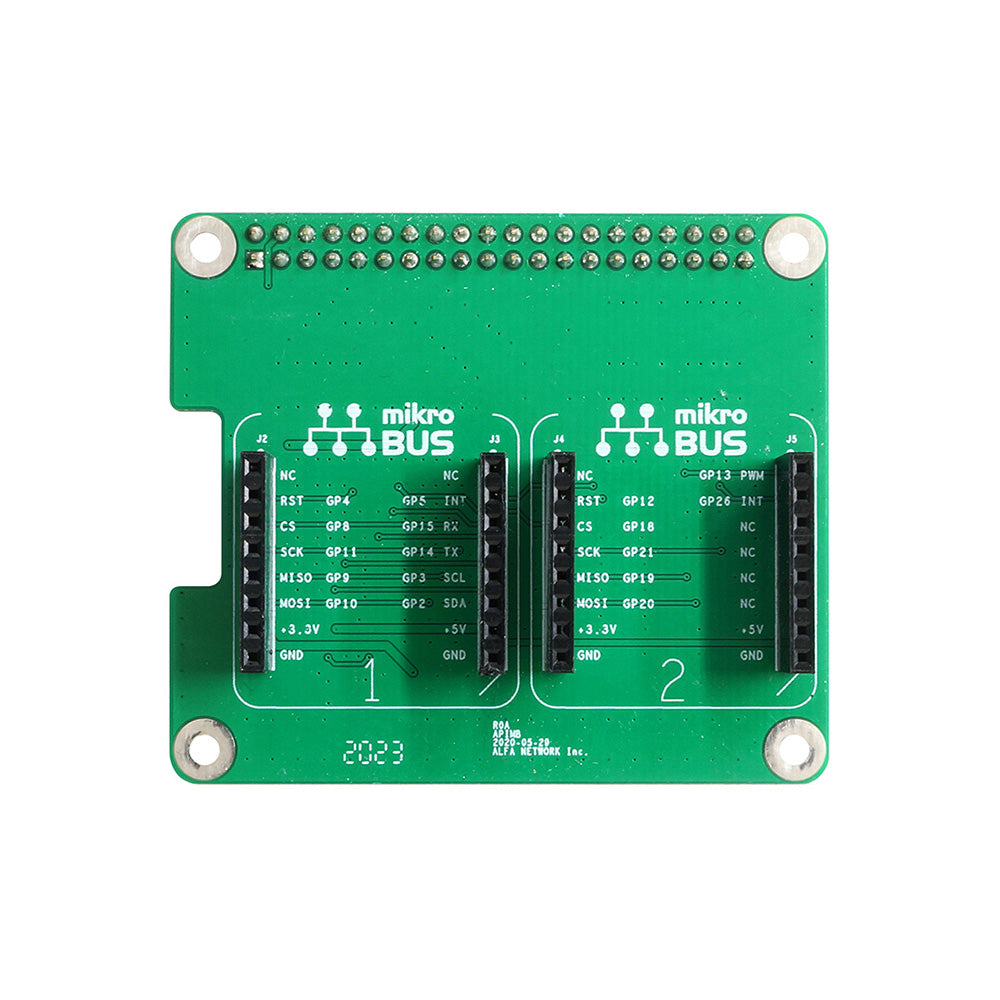

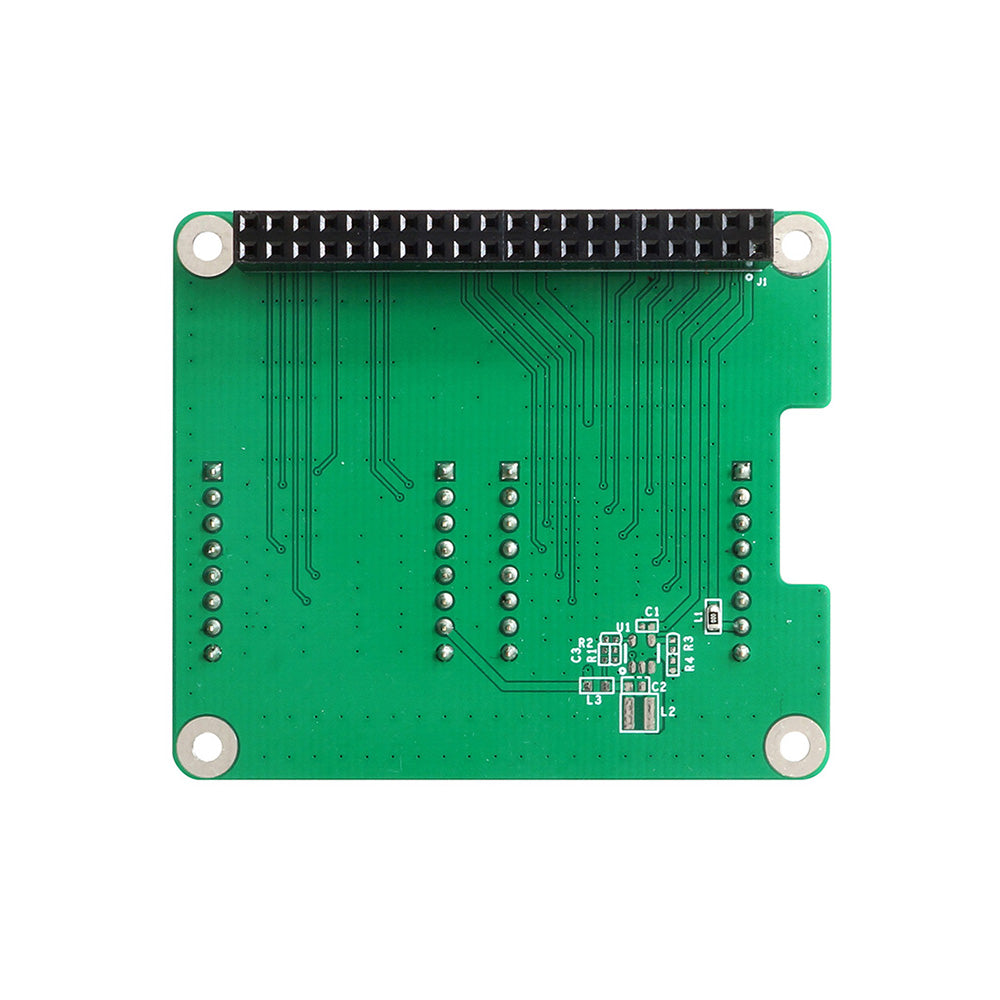

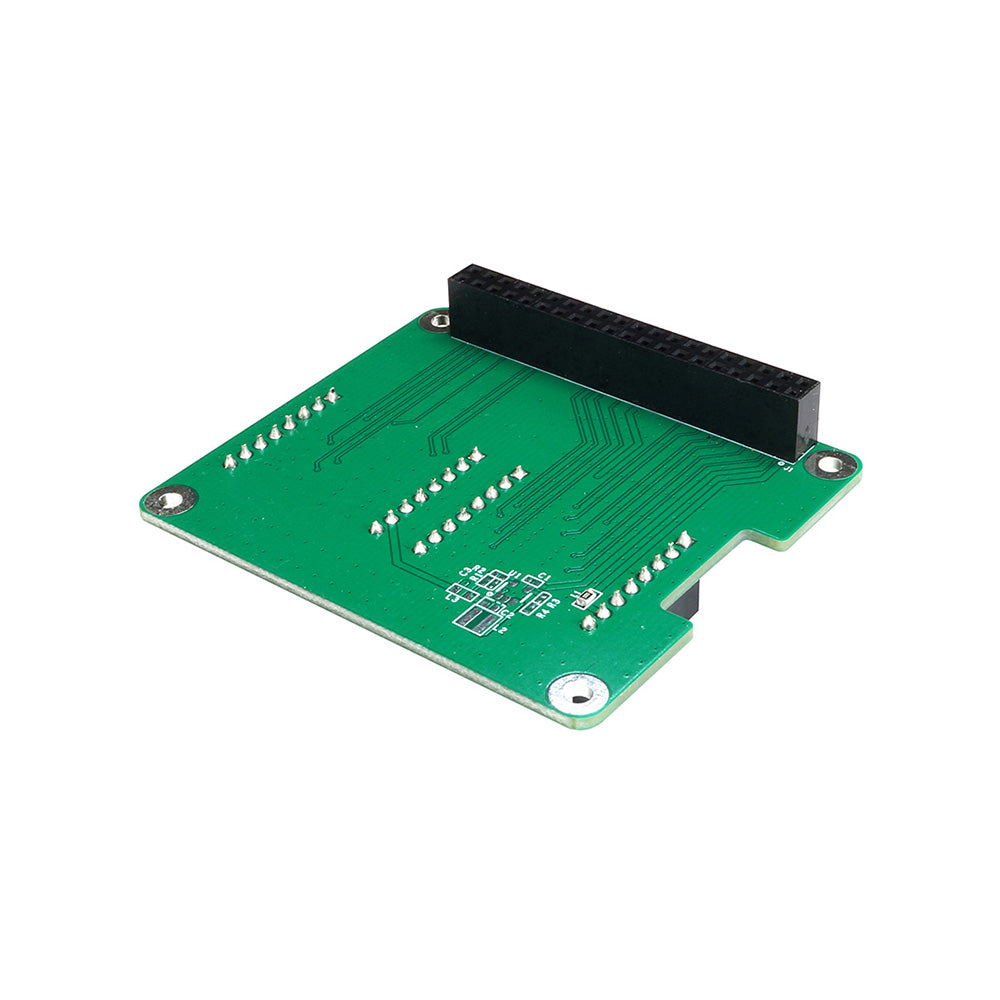

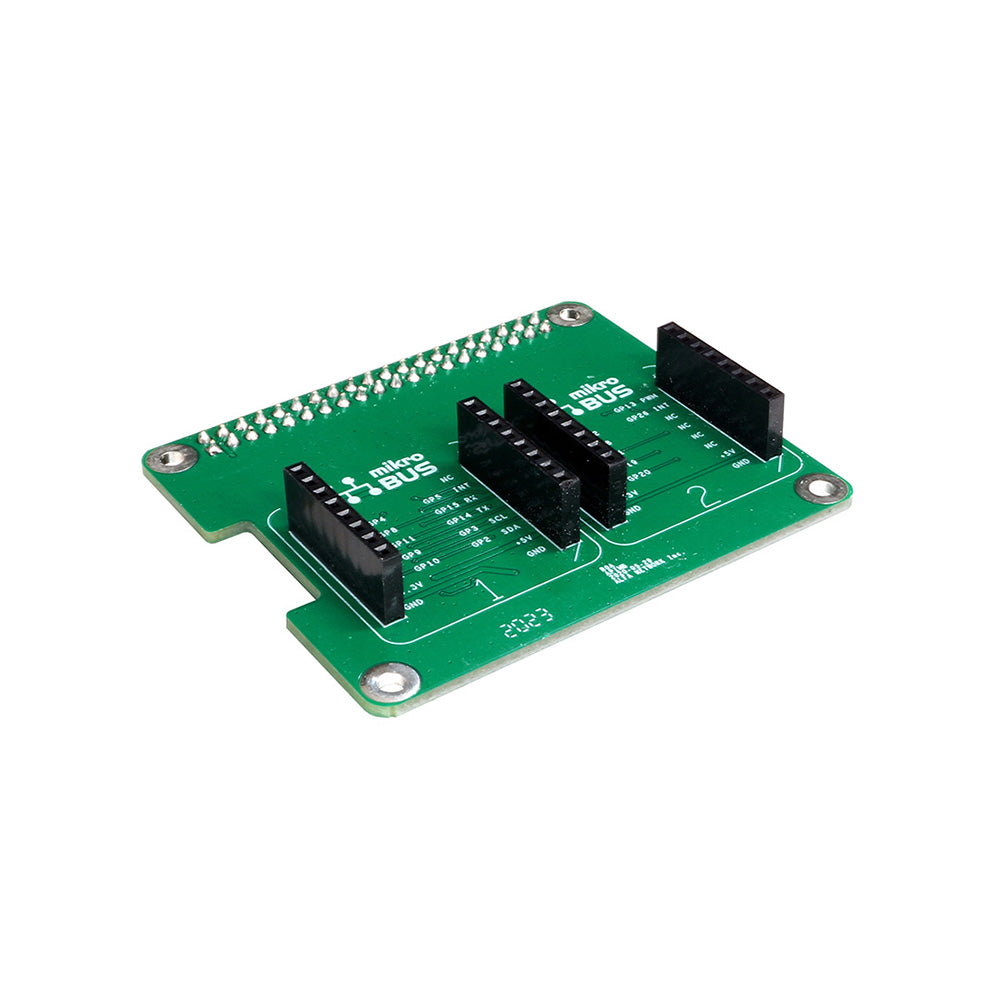

Easy to use Raspberry Pi™ to dual mikroBUS™ sockets adapter for click boards™ modules

Raspberry Pi™ 40-pin expansion connector
mikroBUS™ socket with SPI, I2C and UART support
mikroBUS™ socket with SPI and PWM support
4× mounting hole

Description

APIMB is a simple mikroBUS™ sockets adapter for Raspberry Pi™

Dedicated for ALFA Network's 802.11ah WiFi module, the AHMB7292S, can be used also with many other click boards™ modules on Raspberry Pi™ single board computer family

Specifications

Parameter	Value
Compatibility	Raspberry Pi™ 3 model B, 2 B, 1 A+ and B+
Bus support in mikroBUS™ socket #1	SPI I2C UART
Bus support in mikroBUS™ socket #2	SPI PWM
Dimensions	65 × 56 × 19 mm
