APOE03GS

APOE03GS

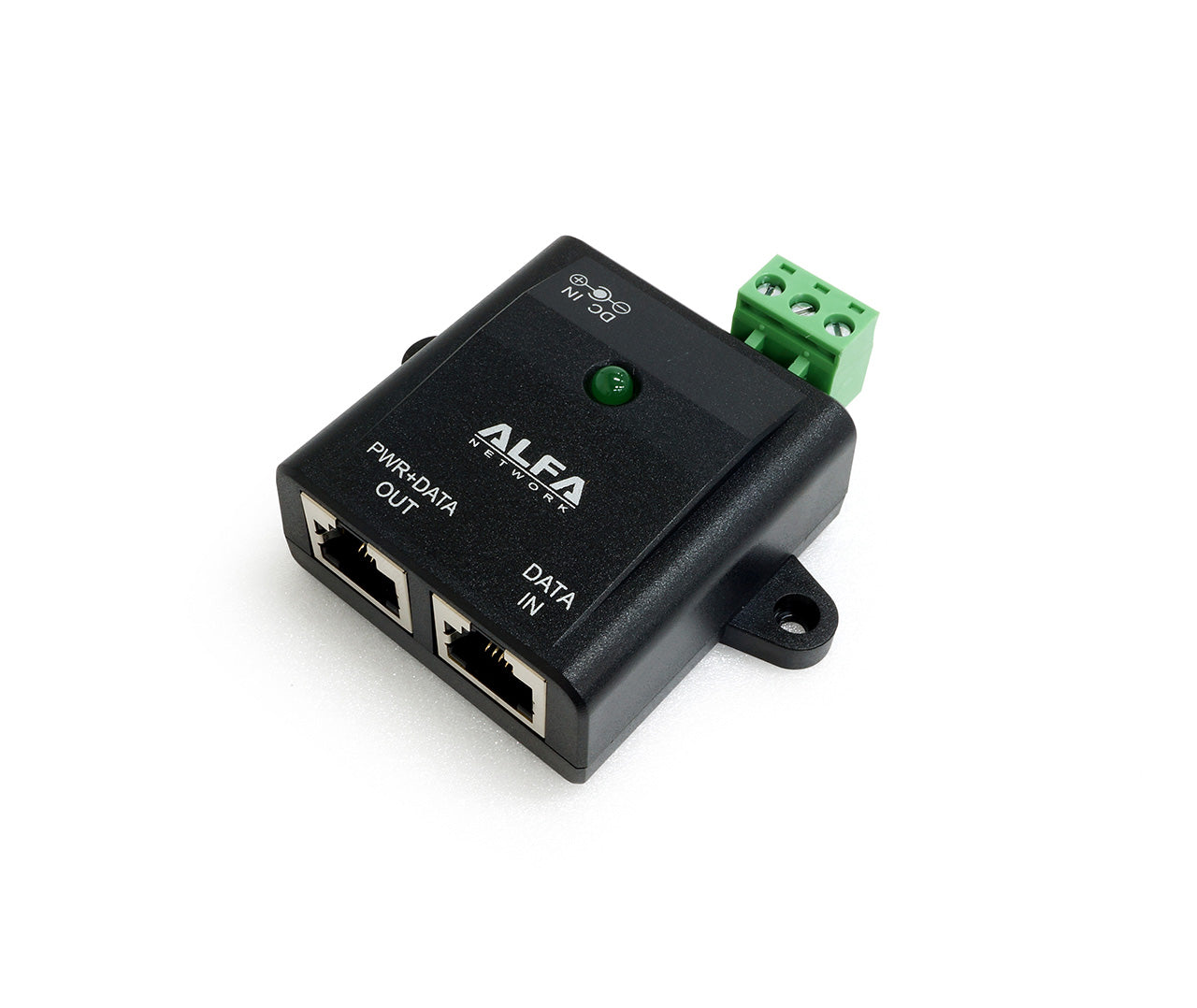

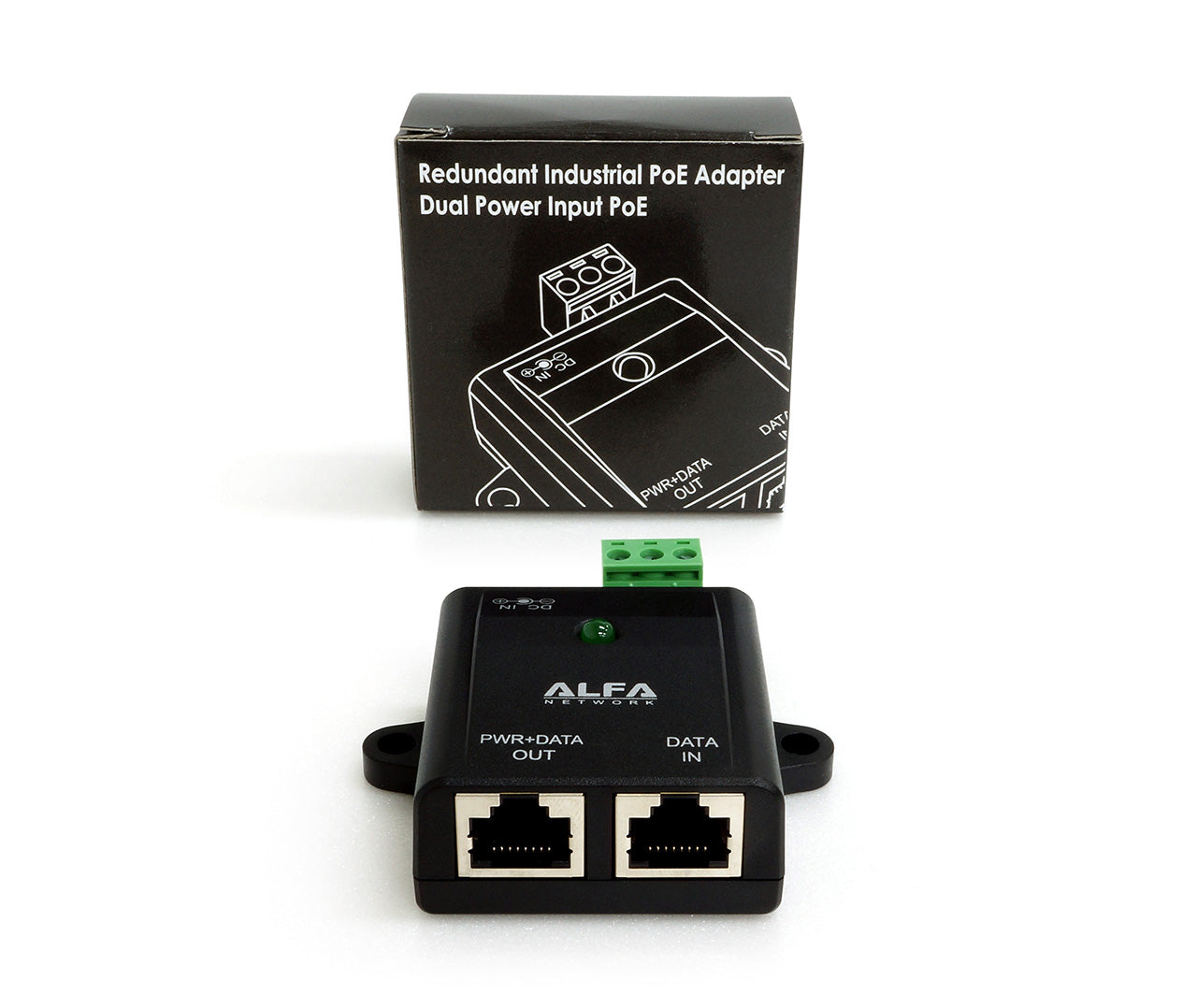

Single-Port Passive Gigabit Redundant PoE Midspan/Injector with Reset Button Feature and Surge Protection



The APOE03GS is the Single-Port Gigabit ( 10/100/1000 Base-T) redundant PoE Midspan/Injector that provides DC power for PoE equipped Network Appliance device. It is compatible with devices that support the IEEE 802.3af/at standard PoE power feed using Mode B (Pins 4/5 and 7/8).

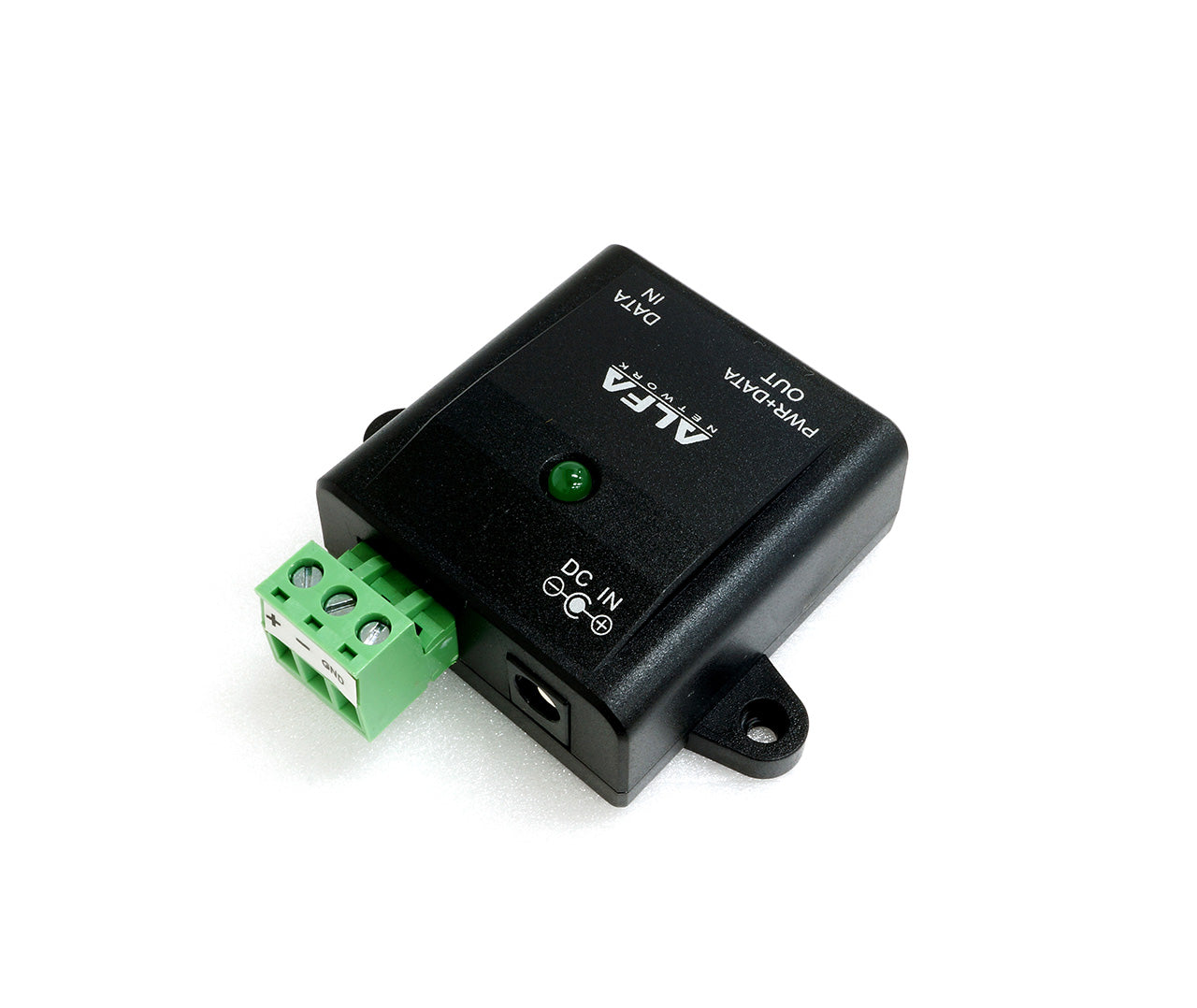

The APOE03GS features terminal block for Power redundancy, the power redundancy ensures that vital network capabilities are always available when needed, and also makes life easier for any IT Administrator who just doesn't want to have his sleep, or his weekend interrupted by an untimely service call caused by a finicky power supply.


Function

Transform DC through RJ-45 cable PIN# 4,5,7,8, into remote devices such as Wireless AP, IP Phone, IP surveillance Camera, etc. With the terminal block connector can be connected to the UPS allowing redundancy in the power source.


Dimension


PD-side Reset Circuit


Input - Input Voltage: 5Vdc to 57Vdc, Nominal = 48Vdc
- Maximum 1.7A
Output - Output Voltage based on input Voltage
- Maximum 1.7A
General Description - Operation Temperature: -0 ~ 40
- Storage Temperature: -20 ~ 60
- Operation Humidity: 10% ~ 80% Non-Condensing
- RJ-45 ConnectorPinOut
- DC Power Plug Diameter: 2.1⌀ / 5.5⌀ , Length: 12 ± 0.5mm
- DC Power Plug Polarity: Inside (+), Outside (-)
Mechanical - Plastic Case Material: ABS
- Plastic Case Finish: Texture
- Plastic Case Color: Black
- Plastic Case Dimension: 67x67x24mm
- Weight: 40g

PIN Define:

RJ-45 Input ( Data ) RJ-45 Output ( Data & Power )
PIN Symbol Symbol
1 TXRX A+ TXRX A+
2 TXRX A- TXRX A-
3 TXRX B+ TXRX B+
4 TXRX C+ TXRX C+ DC+
5 TXRX C- TXRX C- DC+
6 TXRX B- TXRX B-
7 TXRX D+ TXRX D+ DC-
8 TXRX D- TXRX D- DC-
