ALFA Network
Antenna

ASA-4G-990NF2

4G Sector Antenna800 – 2700 MHz 2x2 9 dBi 90°

Frequency Range
806 - 960 MHz 1710 – 2700 MHz
Gain
8 dBi@ 806 – 960 MHz 9 dBi@ 1710 – 2700 MHz
Connector
2x N Female
V.S.W.R
≤ 2.0
Product details

Overview

ASA-4G-990NF2

4G Sector Antenna 800 – 2700 MHz 2x2 9 dBi 90°

Specifications

V.S.W.R Port 1

ASA-4G-990NF2 product detail

Pattern Port 1

 ASA-4G-990NF2 product detail

V.S.W.R Port 2

ASA-4G-990NF2 product detail

Pattern Port 2

ASA-4G-990NF2 product detail

Technical details

Specifications

ASA-4G-990NF2

Frequency Range

806 - 960 MHz

1710 – 2700 MHz

Gain

8 dBi@ 806 – 960 MHz

9 dBi@ 1710 – 2700 MHz

V.S.W.R

≤ 2.0

Radiation

Direction

Polarization

Vertical & Horizontal

Horizontal Beamwidth

80° - 90°

Vertical Beamwidth

28° - 30°

Impedance

50 Ω

Connector

2x N Female

Mounting

ϕ30 – ϕ50 mm (ϕ1.18 – ϕ1.96 in) Masts

Dimensions

450 x 180 x 90 mm

Weight

2kg

Temperature

40 °C to 60 °C

Rated Wind Velocity

60m/s

Here to help

Downloads & support

Visit our official support resources for available files and setup guidance.

Let’s connect

Find your next connection.

ASA-4G-990NF2

Contact ALFA ↗
FIND YOUR CONNECTION

Search ALFA products

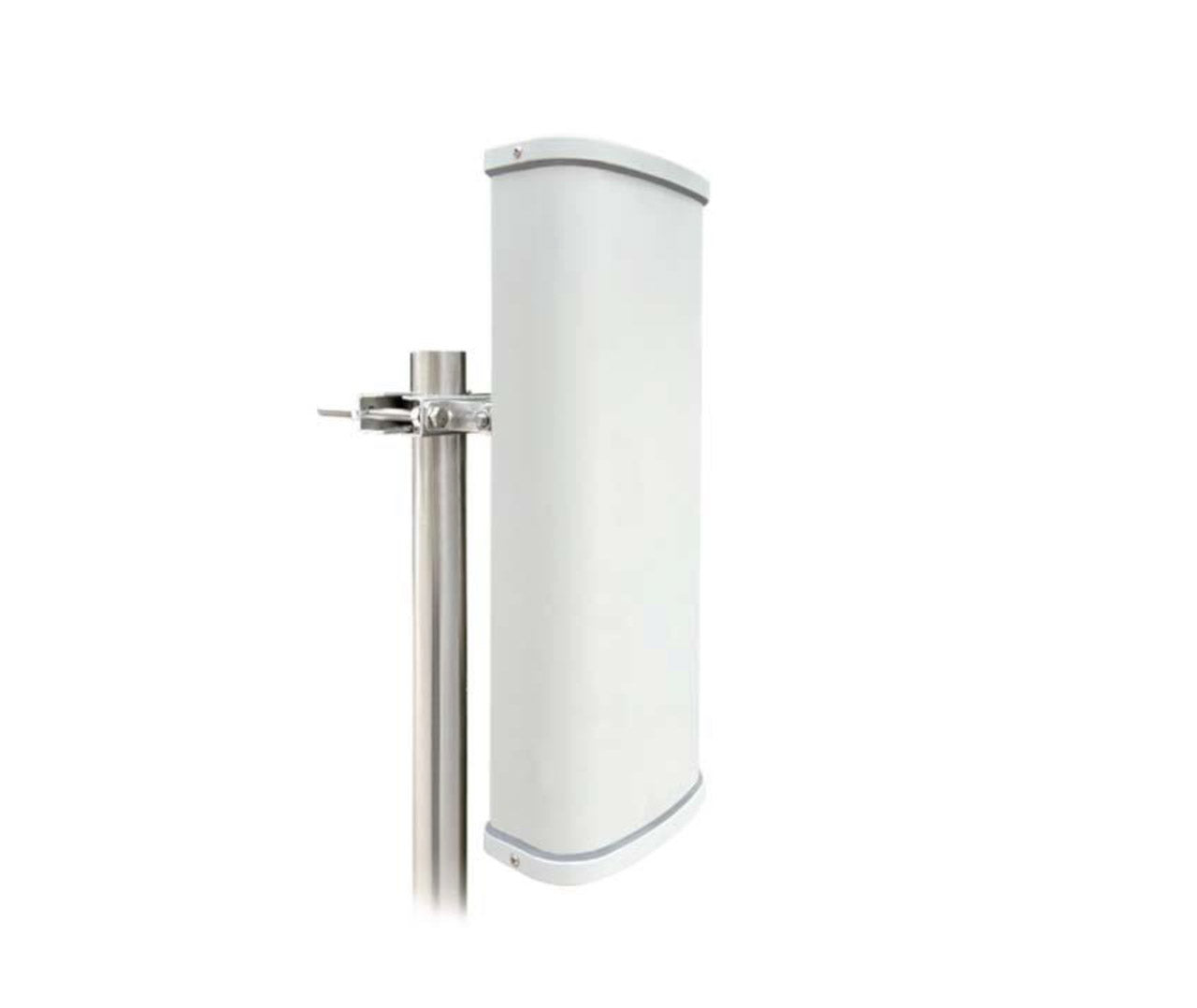

Product photograph
