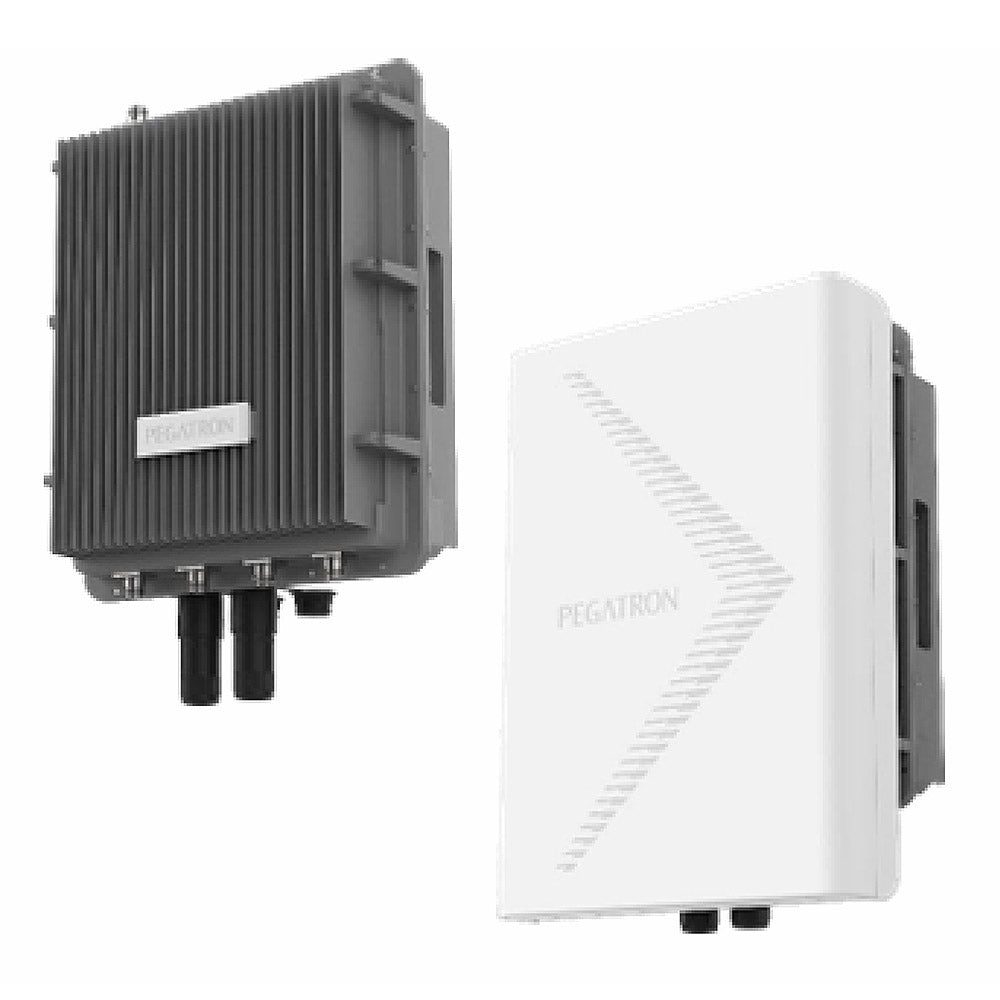

ATAYA OUTDOOR CHORUS 5G AP

Product type: Private 5G Access Point
Deployment: Outdoor

Downloads & support ↓Ask about this product ↗

Product details

Overview

ATAYA OUTDOOR CHORUS 5G AP

Ataya Chorus, the industry’s first standalone 5G access point solution with integrated network data plane core processing, delivers “plug and play” private 5G wireless connectivity that supports low latency use cases, reduces total cost of ownership, and dramatically simplifies enterprise deployment and management. With Pegatron’s manufacturing excellence and global reach, the new Chorus access points bring carrier-grade reliability to enterprise environments, enabling IT/OT professionals to deploy sophisticated private 5G networks with the same simplicity as Wi-Fi.

Chorus-Simplest, Fastest, Most Cost Effective P5G Solution

ATAYA OUTDOOR CHORUS 5G AP

Private 5G with Cloud 5G Core & Edge Data plane

Zero Touch onboarding

Scale from small to large deployments

Technical details

Specifications

ATAYA OUTDOOR CHORUS 5G AP

Model / country certificate — N48	PS2400-48 (United States)
Model / country certificate — N78	PS2400-78Q (United States) PS2400-78O (United States) PS2400-78CE (Europe / India / Taiwan)
Model / country certificate — N79	PS2400-79L (Specific SKU) PS2400-79U (Japan / Taiwan)
Standard	3GPP Rel. 16
Chipset	Qualcomm FSM20056 Sub-6 5G Modem Chipset NXP LX2160A 16-Core NPU Processor
RAN architecture	SA, AIO
Connected UE	128
5G NR band — N48 / CBRS	3.55–3.7 GHz; bandwidth: 10 / 20 / 40 MHz
5G NR band — N78Q	3.45–3.55 GHz; bandwidth: up to 100 MHz
5G NR band — N78O	3.7–3.8 GHz; bandwidth: up to 100 MHz
5G NR band — N78CE	3.4–3.8 GHz; bandwidth: up to 100 MHz
5G NR band — N79L	4.5–4.7 GHz; bandwidth: up to 100 MHz
5G NR band — N79U	4.6–4.9 GHz; bandwidth: up to 100 MHz
Planned bands	N77 (3.7–4.2 GHz) and n41 (2.5 GHz) — under planning
OBW / IBW — N78 / N79 / N77	OBW: 100 MHz; IBW: 200 MHz
OBW / IBW — N48	OBW: 10 / 20 / 40 MHz; IBW: 150 MHz
MIMO	4T4R, 4 layers
Maximum output power	5 W (37 dBm) per chain × 4
Modulation	Maximum 256QAM DL / 256QAM UL
Ethernet connection	1 × 10 GbE backhaul 1 × SFP+ 10 GbE (cage) backhaul
Antenna ports	4 × external MIMO antenna ports Optional SKU with integrated 4×4 antenna module 1 × external GPS antenna port
Synchronization	IEEE 1588 v2 / PTP or GPS ITU G.8275.1 and G.8275.2 profiles supported
Ingress protection	IP65
Mounting	Wall and pole mount
Dimensions	385 × 310 × 159 mm
Weight	Approximately 12 kg
Power input	DC −48 V
Power consumption	< 180 W
Operating temperature	−40 to 55 °C
