USB Type-C adapter for 4G/LTE and 5G modems in a travel ready case, equipped with screen clip

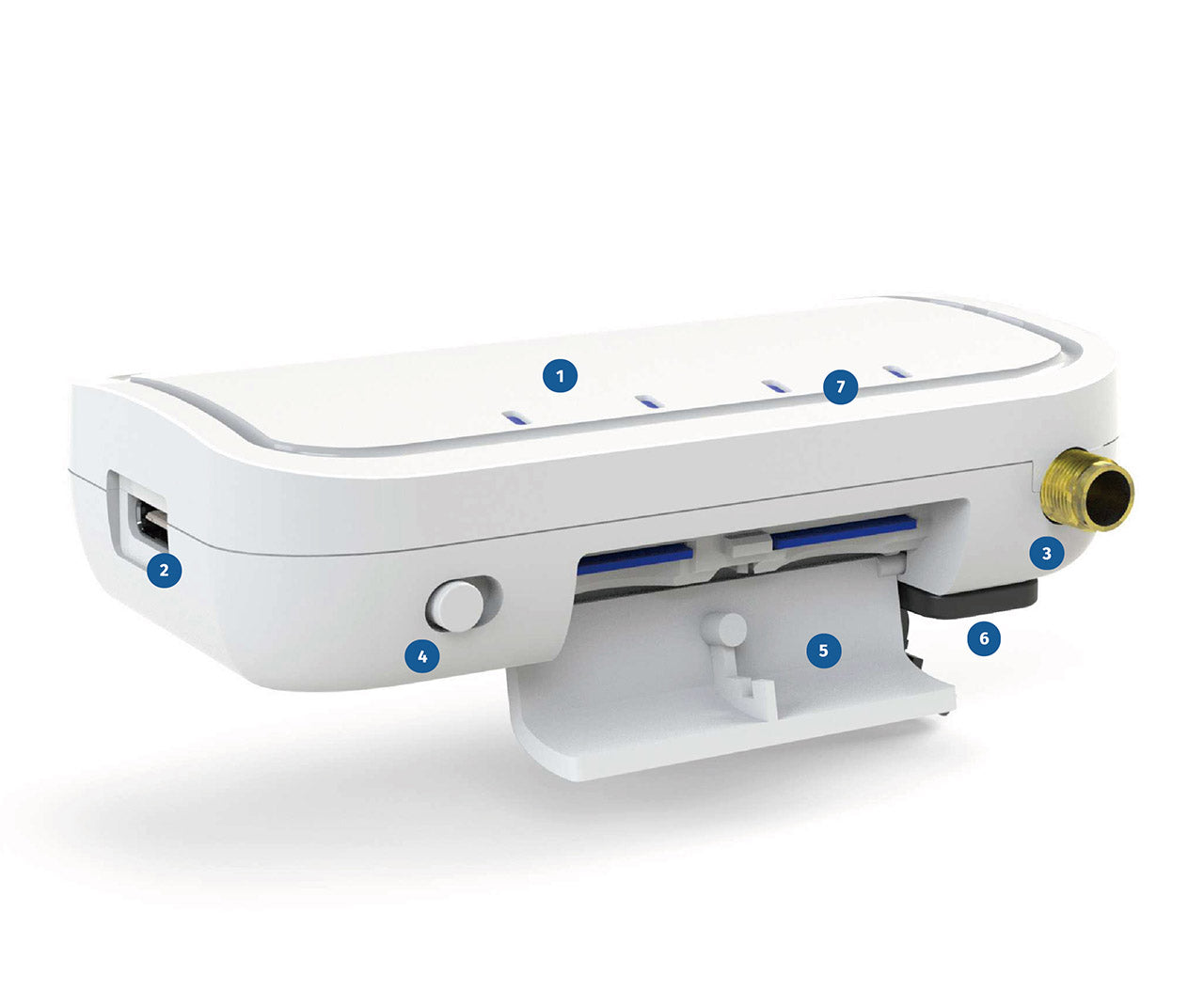

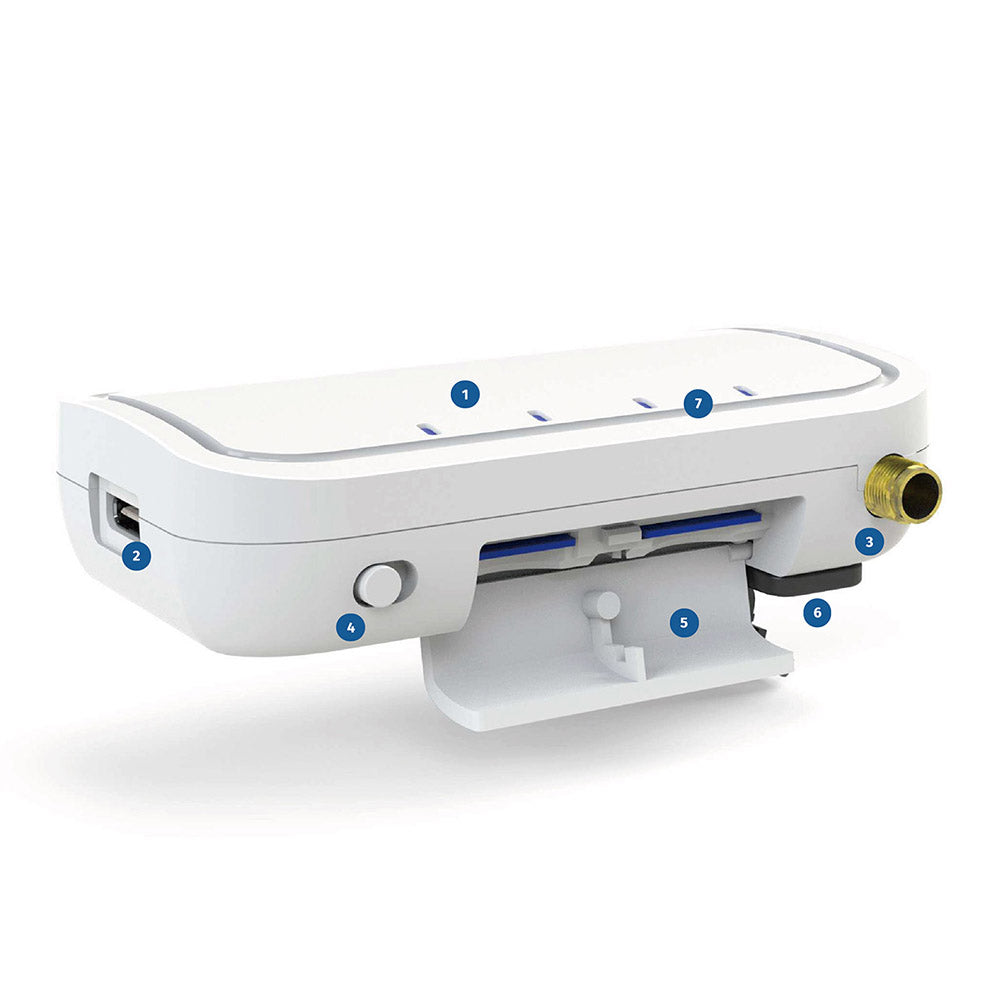

  1. (1) Mini PCIe slot for 4G/LTE and 5G modems
  2. (2) Type-C SuperSpeed USB 10 Gbps receptacle
  3. (3) 2x external and 2x internal antennas
  4. (4) Mechanical switch for SIM selection
  5. (5) mini SIM and micro SIM slots

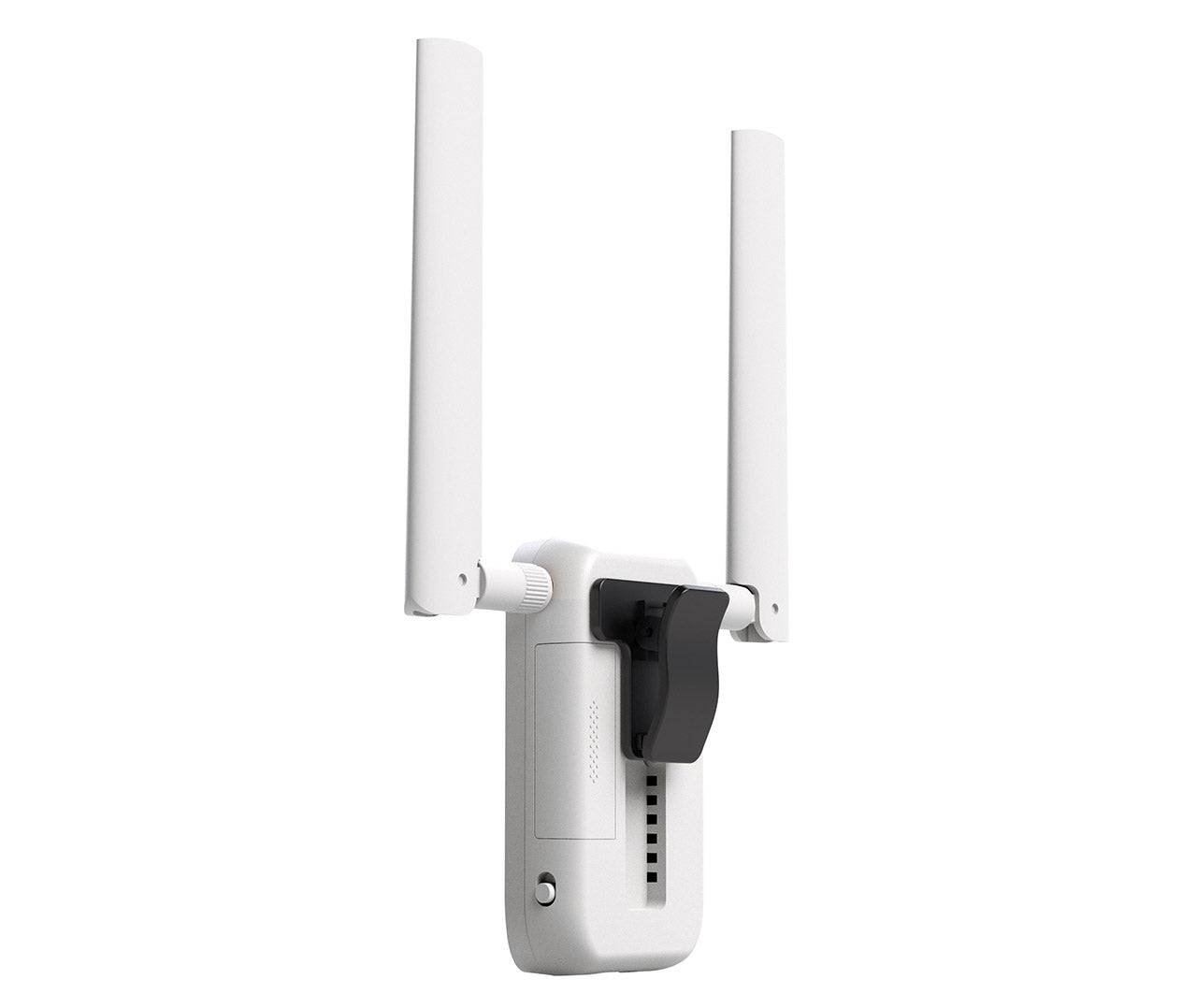

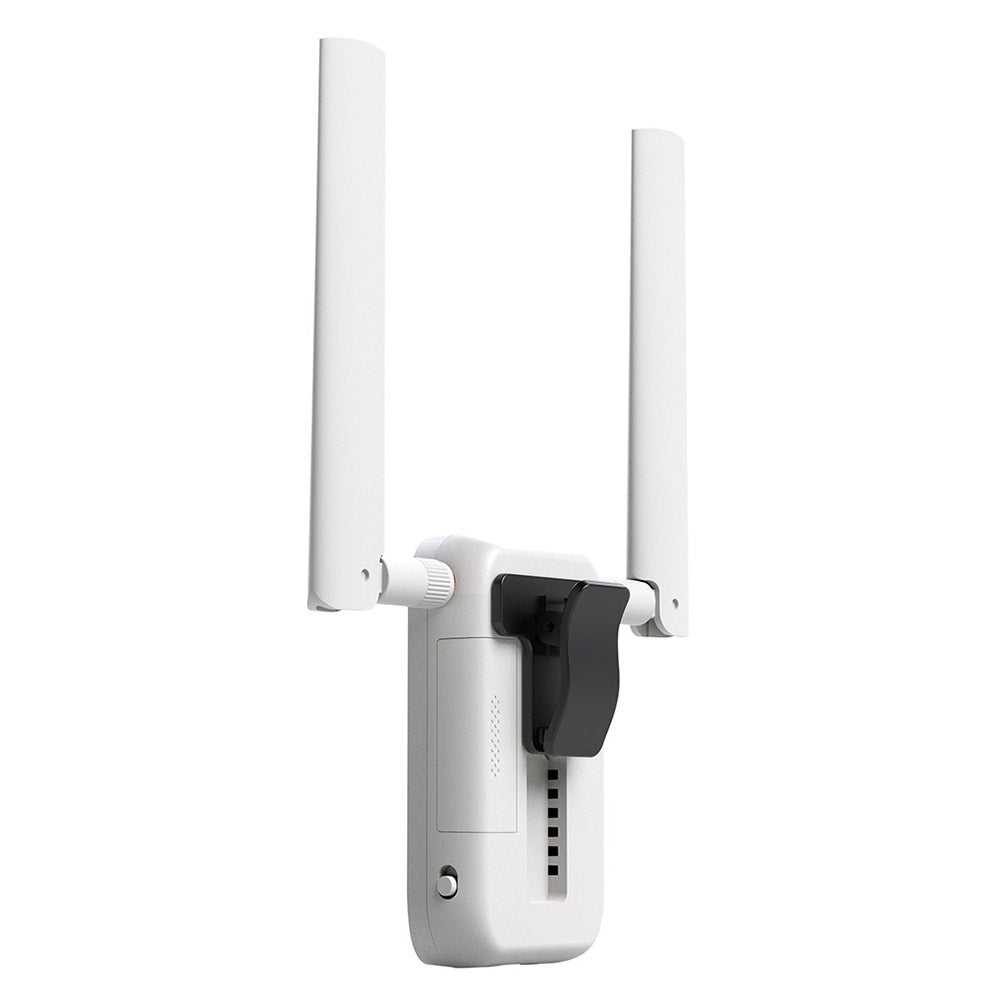

  6. (6) Screen clip included
  7. (7) 4x LED

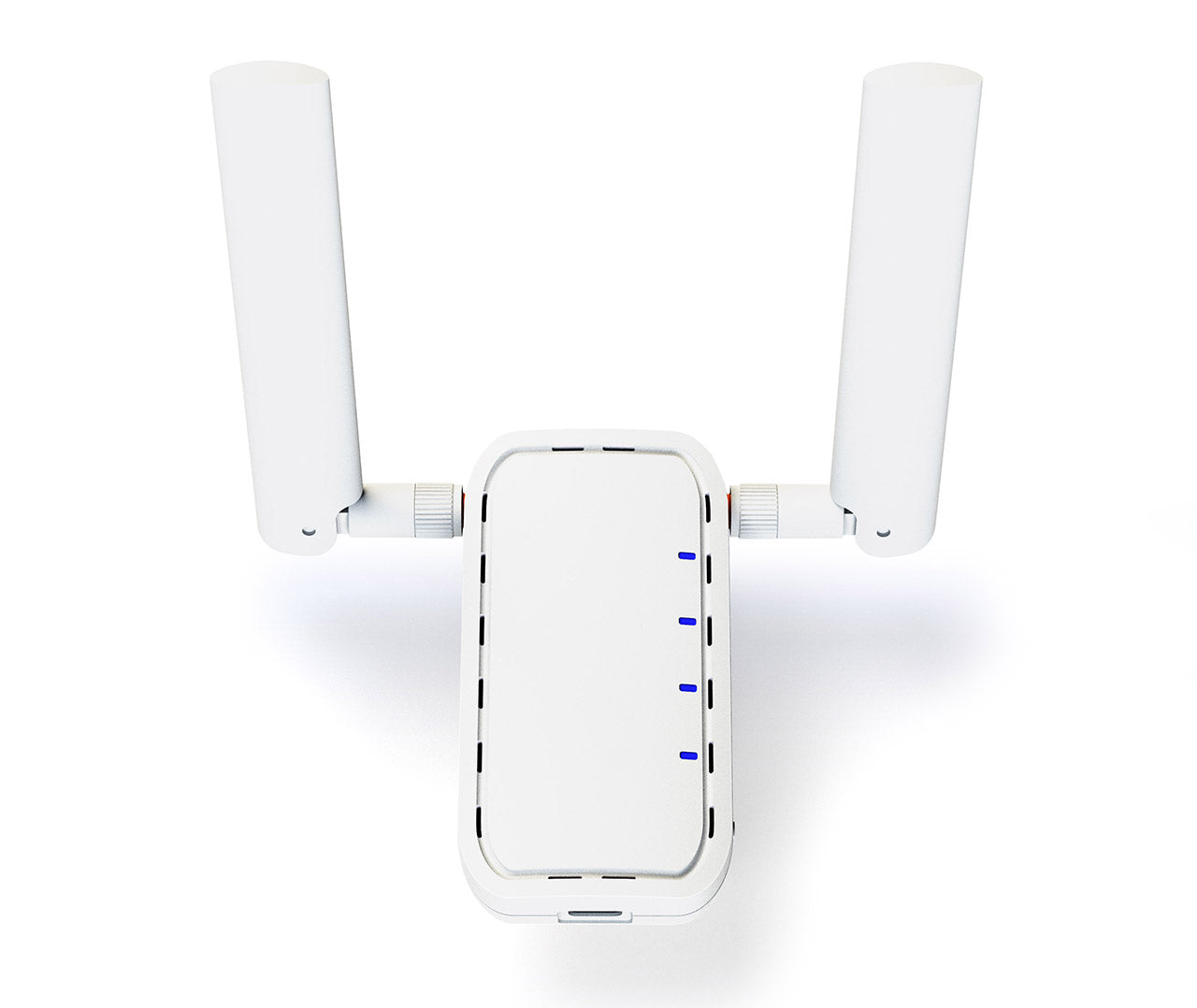

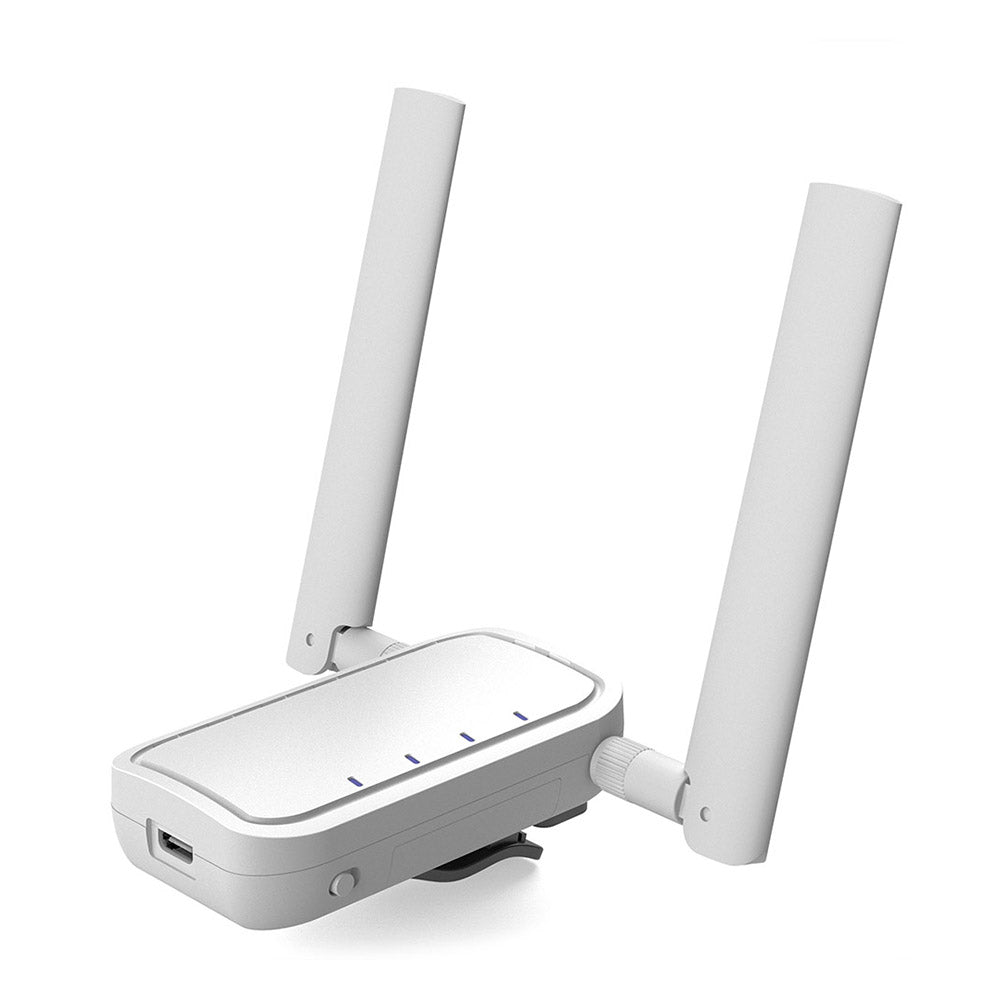

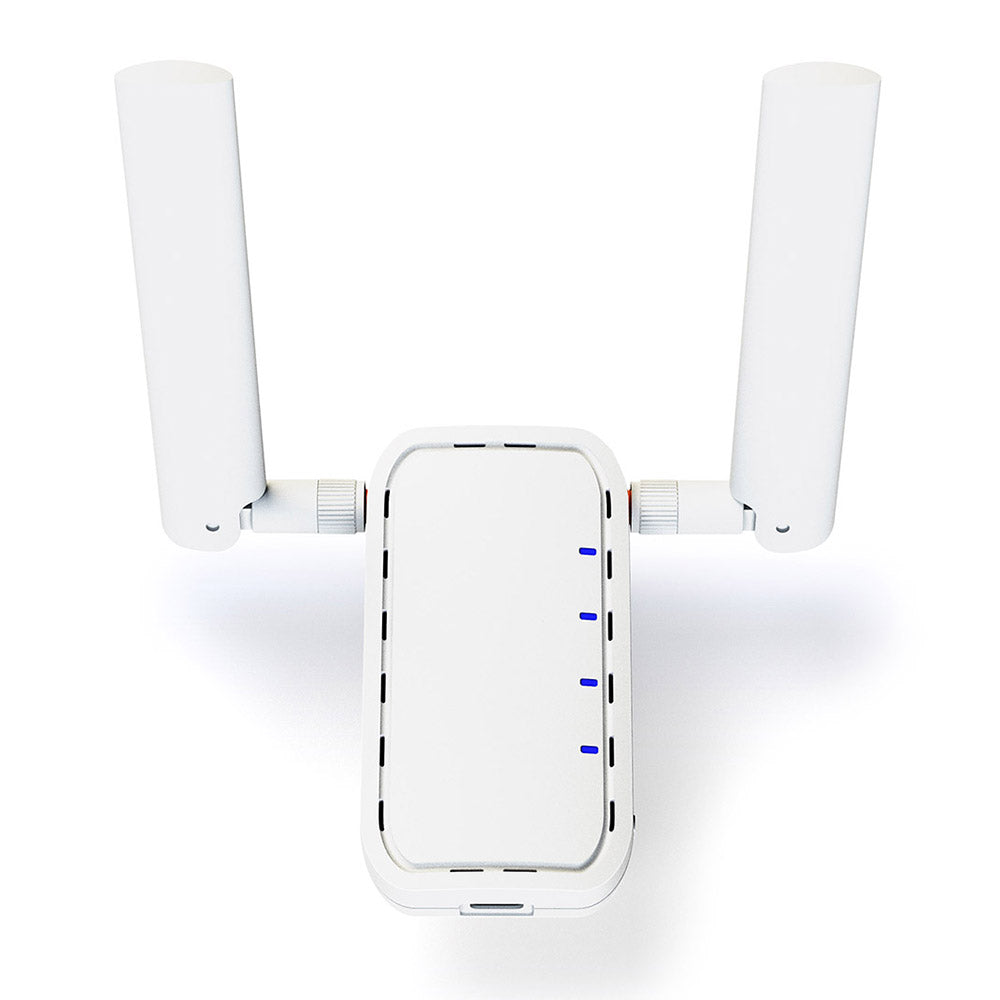

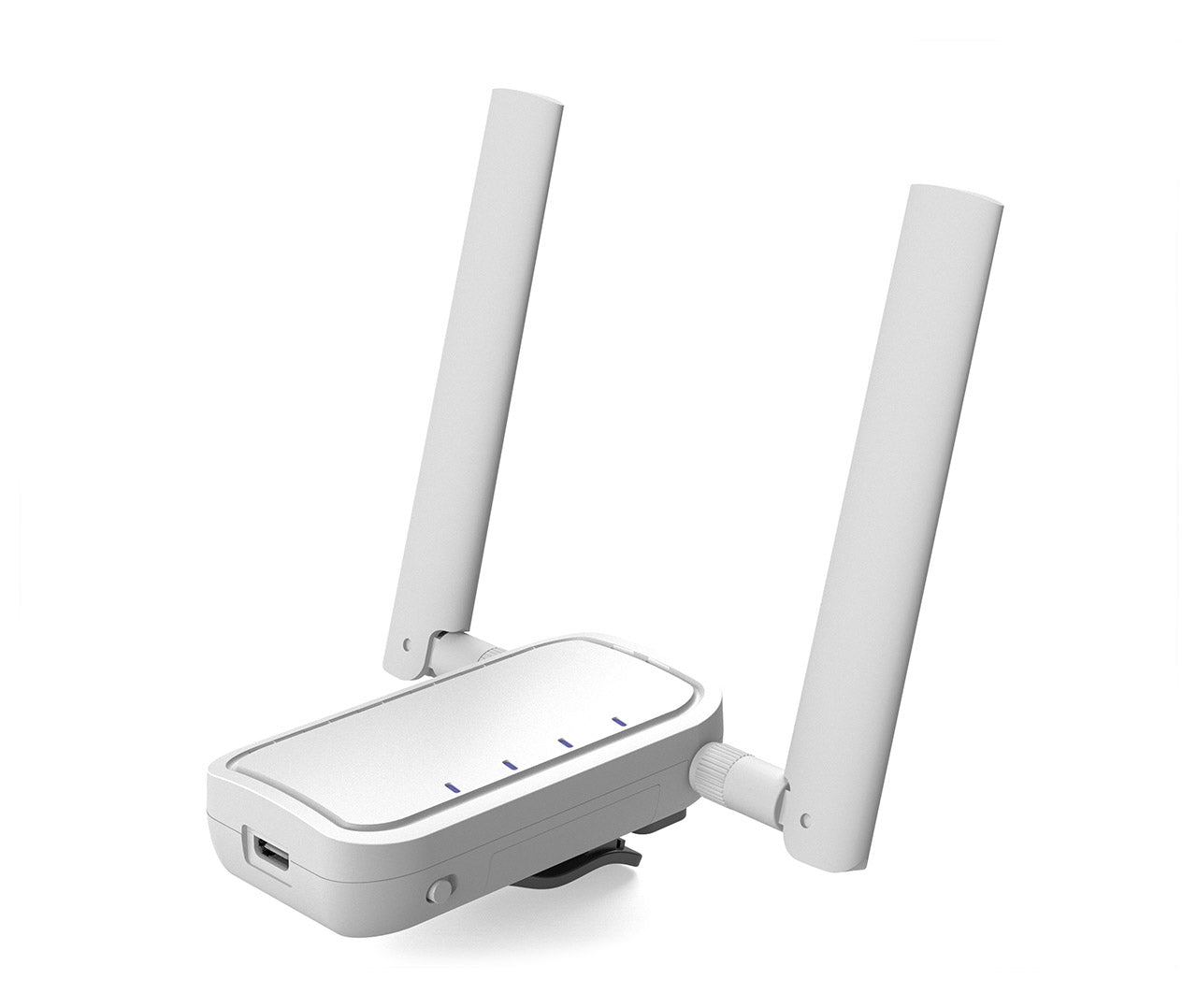

AUCMC-S2 is a USB Type-C travel ready adapter for modems

AUCMC-S2 offers a quick and easy way to use a regular full-size Mini Card 4G/LTE and 5G module on desktop or notebook PC equipped with USB connectivity.

Dual (mini and micro) SIM feature with sophisticated reset logic circuit, mechanical SIM select switch and modem reset button complement rich functionality of the adapter.

Adapter includes two female SMA connectors for antennas and the bundle contains required jumper RF cables (IPEX/U.FL to IPEX/U.FL).


mini PCIe slot pinout


Assembly instructions

Specifications

Parameter Value
Adapter interface Type-C SuperSpeed USB 10 Gbps
(with USB 2.0 backward compatibility)
Modem interface SuperSpeed USB 10 Gbps (shared with PCIe signal lines)
USB 2.0
SIM card
Modem form factor Full-size Mini Card
Antenna 2× external (female SMA connectors)
2× internal
SIM 1× micro SIM
1× mini SIM
Button 1× push-button (modem reset)
Switch 1× slide switch (SIM select)
LED 1× modem status (blue)
1× micro SIM (blue)
1× mini SIM (blue)
1× power (blue)
Operating systems Microsoft Windows 7, 8 and 10
Linux
Android
Operating humidity 10 % ~ 90 % RH, non-condensing
Operating temperature -30 ° ~ 70 ° C
Dimensions TBA
