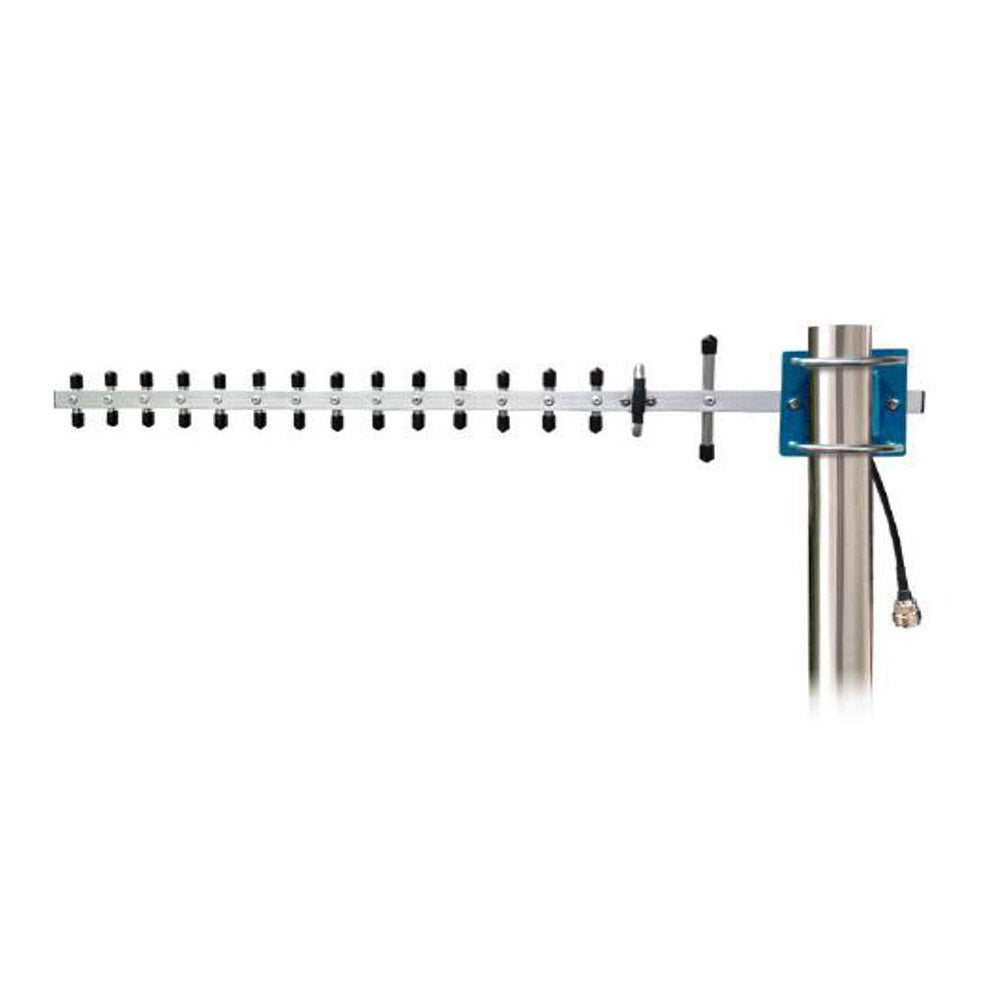

AYA-2411
Outdoor Yagi Antenna2.4 GHz | 11 dBi
- Frequency Range
- 2400 – 2483 MHz
- Gain(MeasuredPeak)
- 11 dBi
- V.S.W.R
- ≤ 1.5
- Radiation
- Directional
Overview
AYA-2411
Outdoor Yagi Antenna
2.4 GHz | 11 dBi
Specifications
AYA-2411
|
Model |
AYA-2411 |
|
Product Type |
Outdoor Yagi Antenna |
|
Frequency Range |
2400 – 2483 MHz |
|
Gain(MeasuredPeak) |
11 dBi |
|
V.S.W.R |
≤ 1.5 |
|
Radiation |
Directional |
|
HorizontalBeamwidth |
36° |
|
Vertical Beamwidth |
35° |
|
Polarization |
Vertical |
|
Impedance |
50 Ω |
|
Connector |
N female |
|
Dimensions |
650 × 95 x 45 mm |
|
Weight |
340 g |
|
Operating Temp. |
-40 °C to 70 °C |
|
Humidity |
95% @ 25 °C |
|
DiameterofInstallationPole |
Ø 30 - 50 mm |
V.S.W.R & Radiation Pattern Test Data
V.S.W.R
Radiation Pattern
|
Frequency (MHz) |
2400 |
2410 |
2420 |
2430 |
2440 |
2450 |
2460 |
2470 |
2480 |
2490 |
2500 |
|
Efficiency (dBi) |
-1.02 |
-0.96 |
-0.86 |
-0.89 |
-0.94 |
-0.86 |
-0.89 |
-1.04 |
-1.10 |
-1.03 |
-1.00 |
|
Gain (dBi) |
11.08 |
11.16 |
11.29 |
11.30 |
11.24 |
11.30 |
11.25 |
11.12 |
11.12 |
11.28 |
11.42 |
|
Efficiency (%) |
79.15 |
80.18 |
81.96 |
81.49 |
80.61 |
82.08 |
81.48 |
78.74 |
77.63 |
78.87 |
79.42 |
