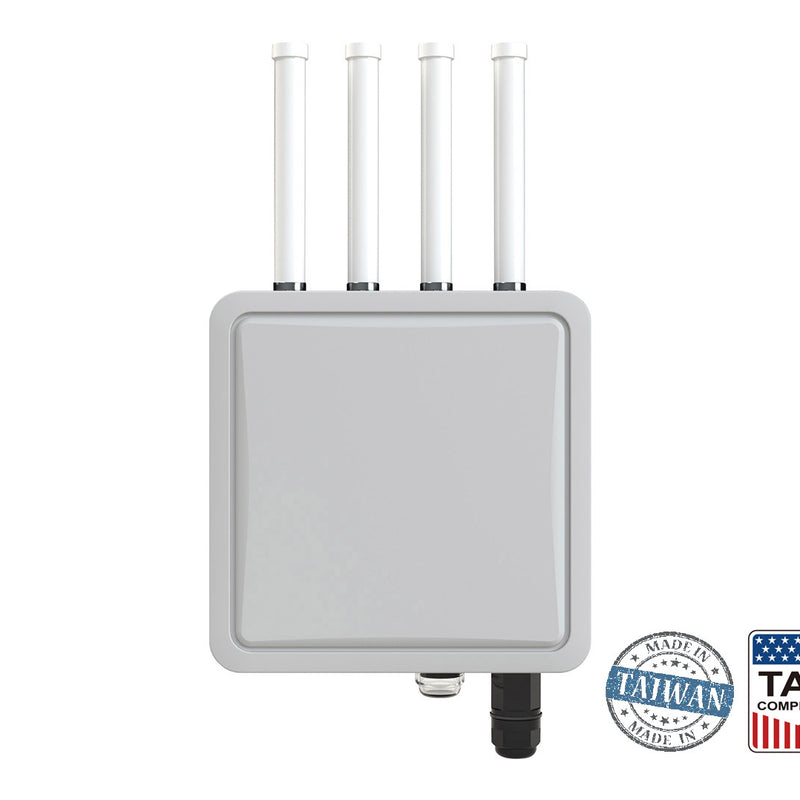

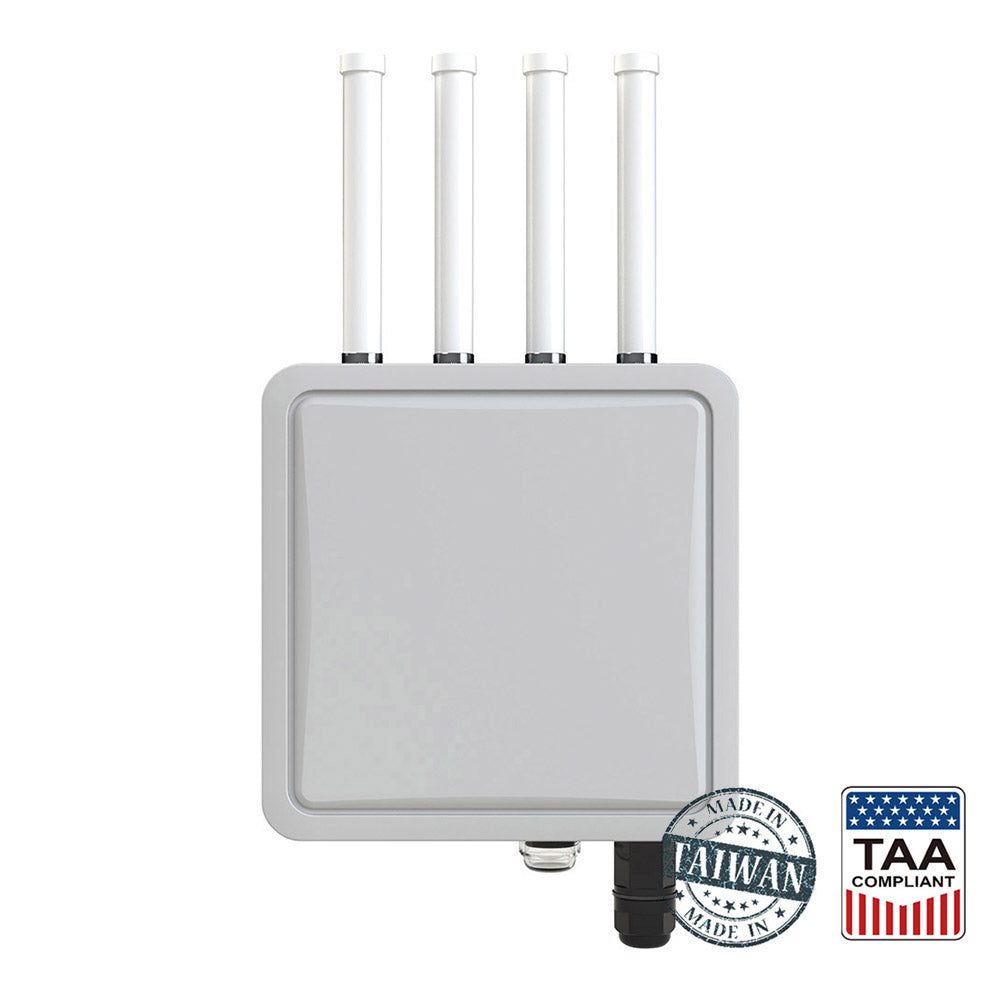

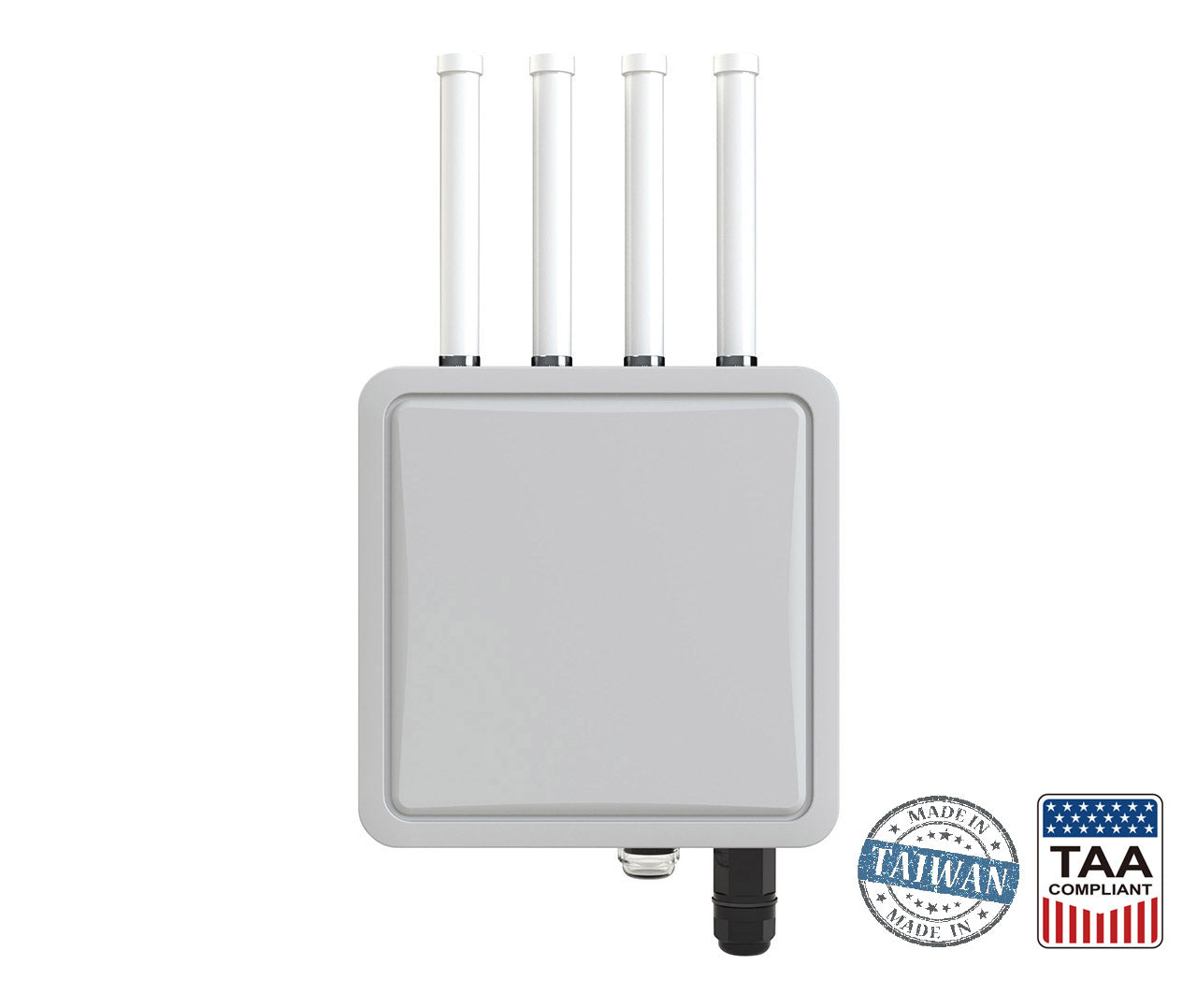

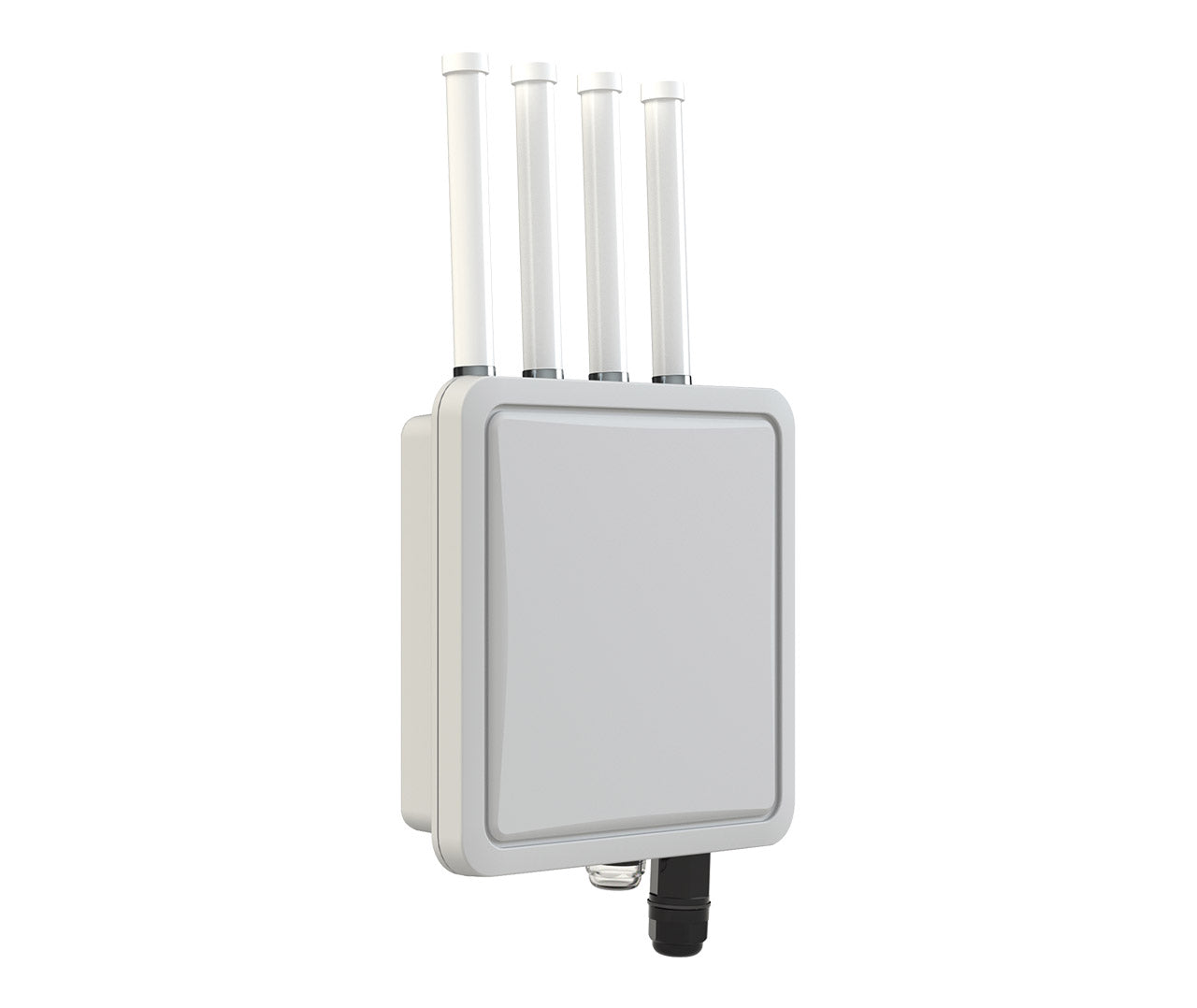

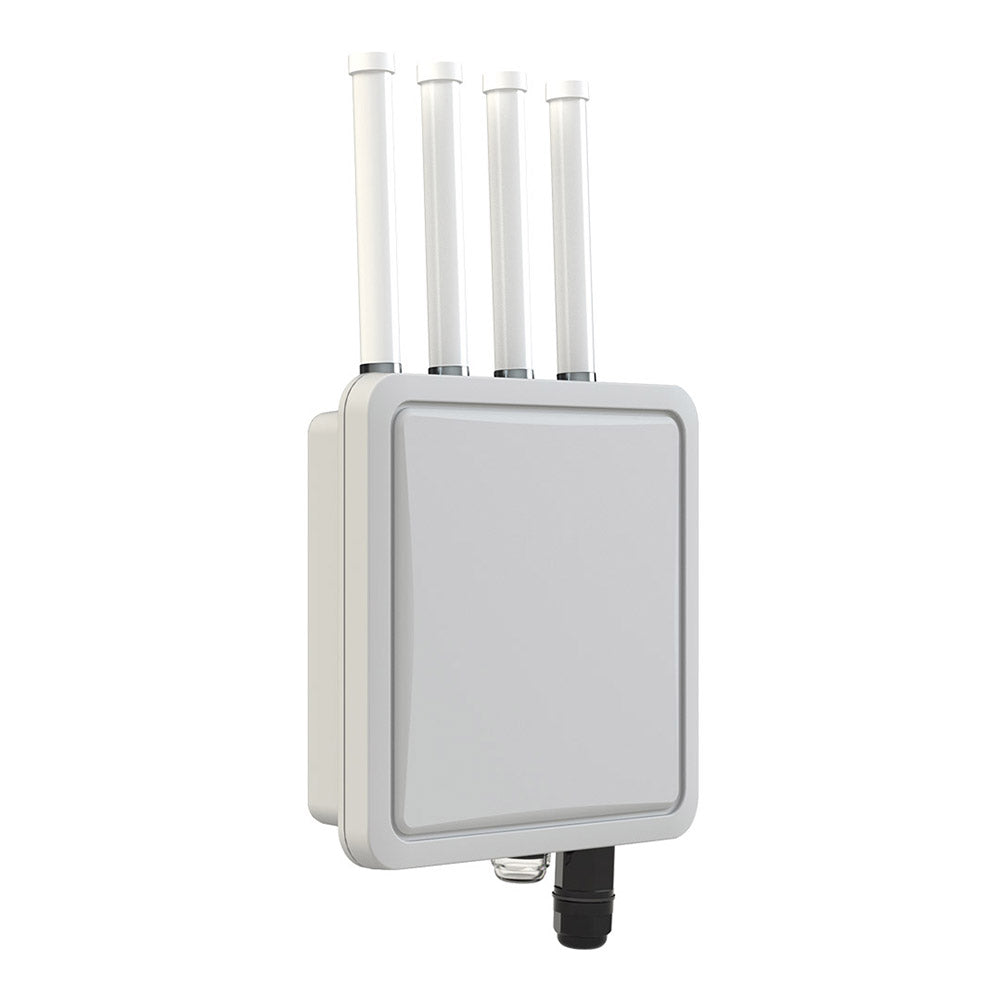

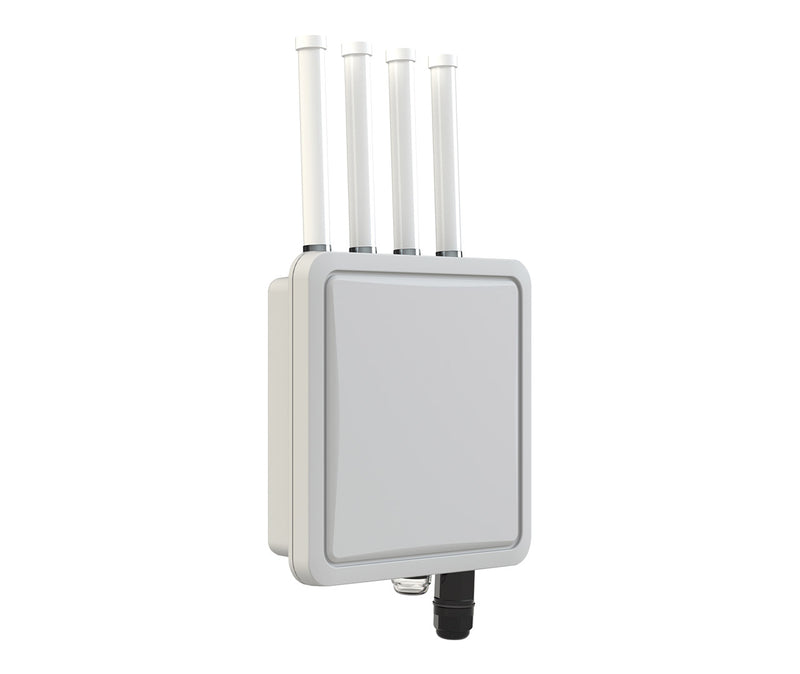

Matrix-5GAX

Matrix-5GAX sets a new standard for outdoor connectivity, integrating a global band 5G NR CPE with a powerful Wi-Fi 6. It goes beyond the other 5G CPE only 5G-to-LAN offerings, delivering Wi-Fi 6 capabilities to broadcast high-speed internet to devices like laptops, smartphones, and tablets. For rural areas, using high-gain directional Wi-Fi antenna, bring robust longrange Wi-Fi connectivity that harnesses high-speed 5G internet even in the most remote locations.

Key features

Global 5G NR band
Wi-Fi 6 data rate up to 1800 Mbps
Nano SIM slot
2.5 Gbps PoE LAN
Built-in 5G high-gain directional antenna
External N-type Wi-Fi 6 antenna
connector

Application Diagram

Specifications

General Hardware

Chipset	MT6890 SoC: Arm Cortex-A55 2GHz quad-core + 5G NR Wi-Fi 6: MT7915 + MT7975
Flash	32 Gb eMMC
RAM	8 Gb DDR4
5G NR Antenna	Built-in directional antenna 3 dBi @ 617 – 960 MHz 6 dBi @ 1452 – 1496 MHz 9 dBi @ 1710 – 2690 MHz 9 dBi @ 3300 – 5000 MHz 7 dBi @ 5150 – 5925 MHz

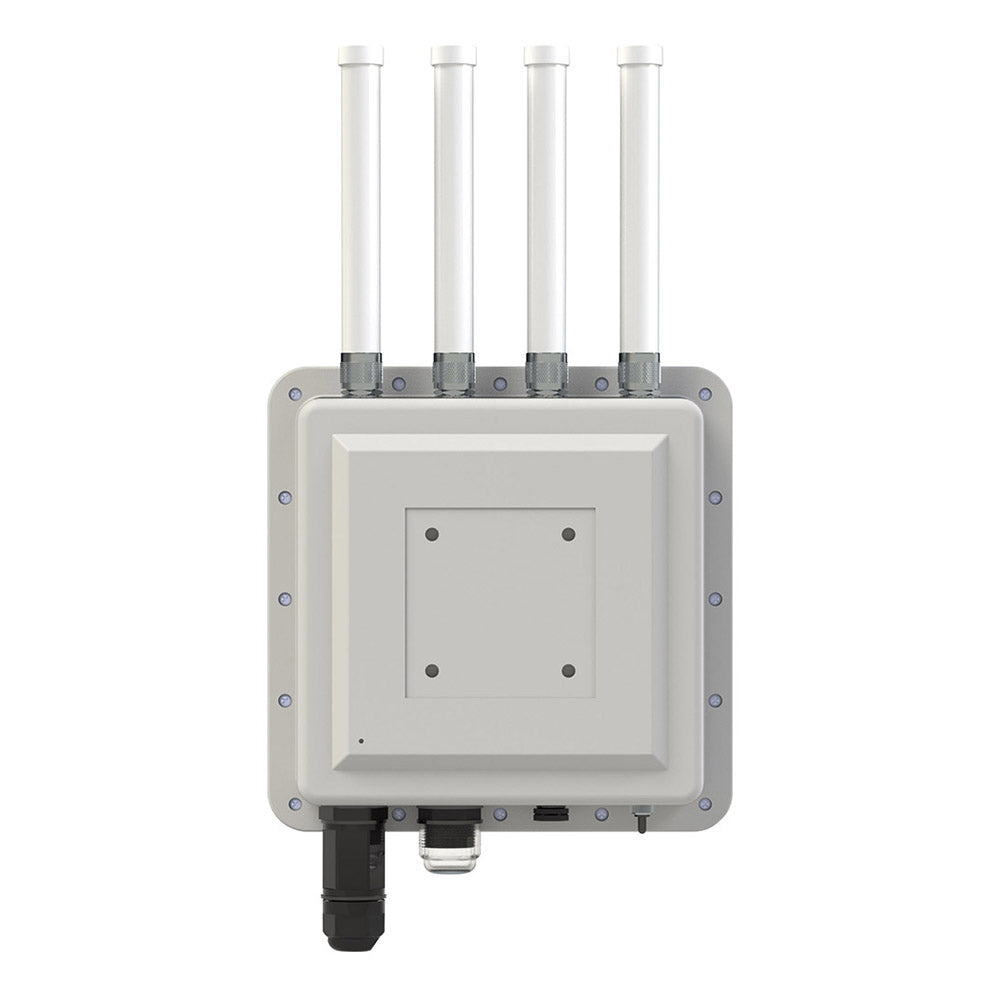

Wi-Fi 6 Antenna	4x N-type antenna connector * Package included 4x AOA-2458-46ACM

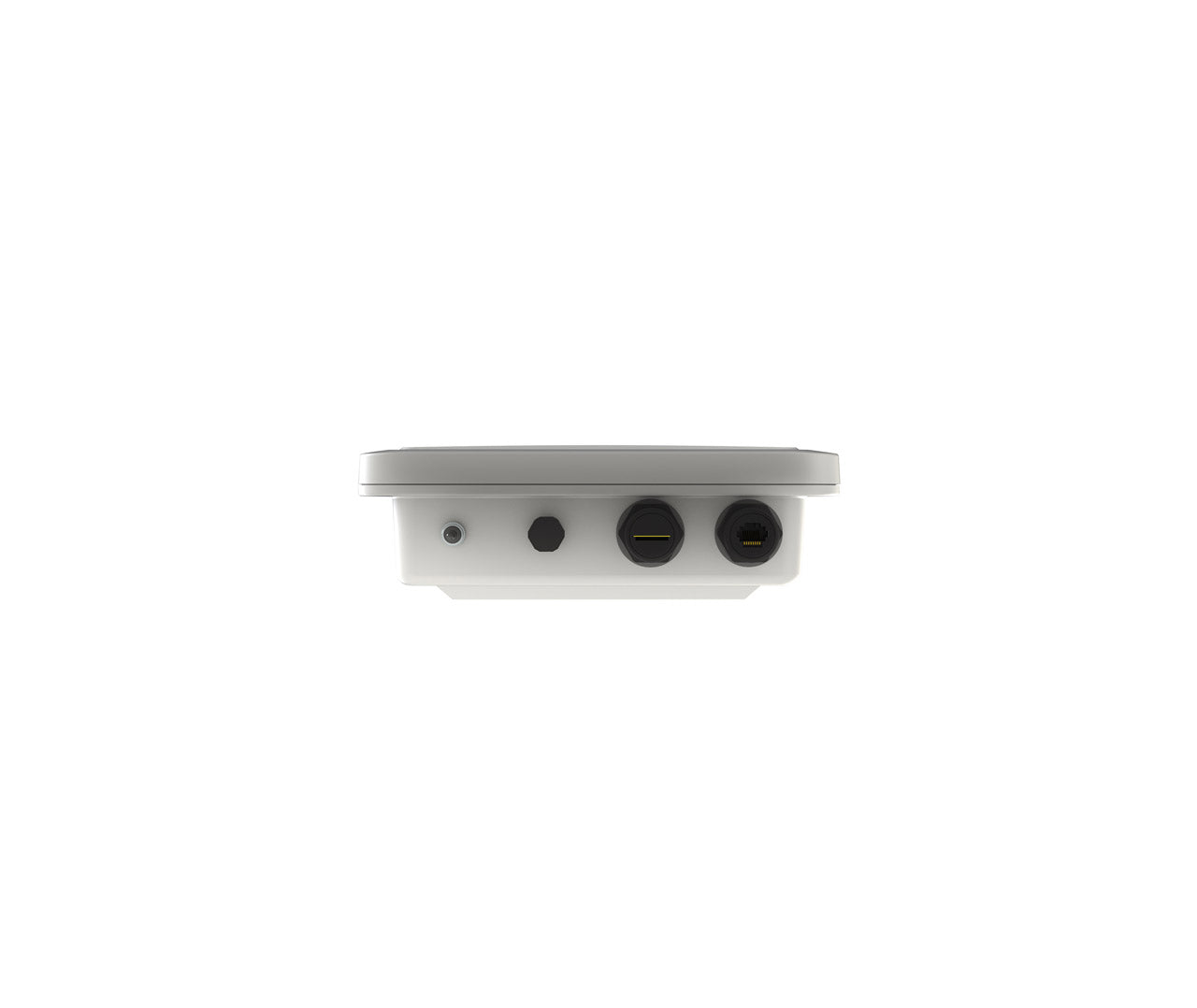

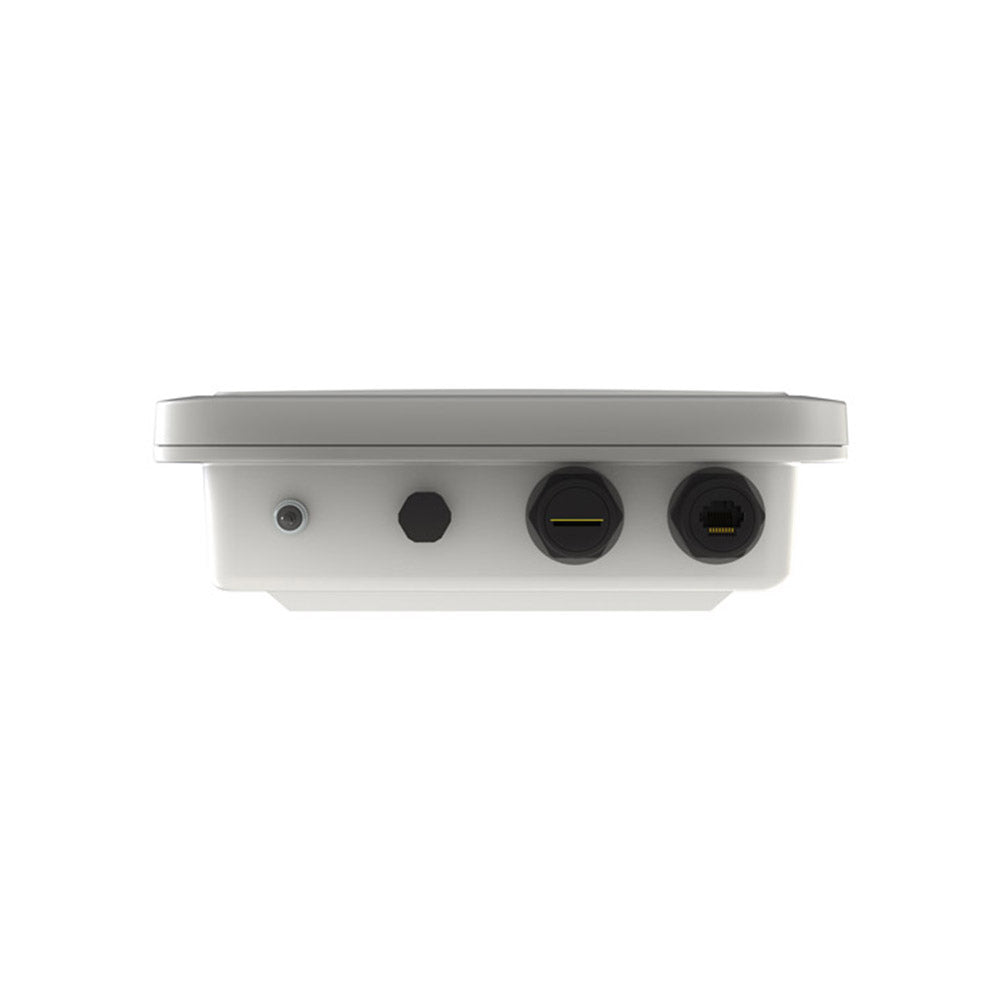

Interface	1x waterproof 2.5 Gbps PoE LAN 1x waterproof nano SIM slot 1x reset button 1x waterproof vent
Input Voltage	PoE: IEEE 802.3at PD 25.5 W
Power Consumption	Max. 24 W
Dimensions	230 x 230 x 77.3 mm (9 x 9 x 3 inches)
Operating Temperature	-20°C ~ 60°C ( -4°F ~ 140°F )
Waterproof Rate	IP66
Material	ABS UV resistant plastic

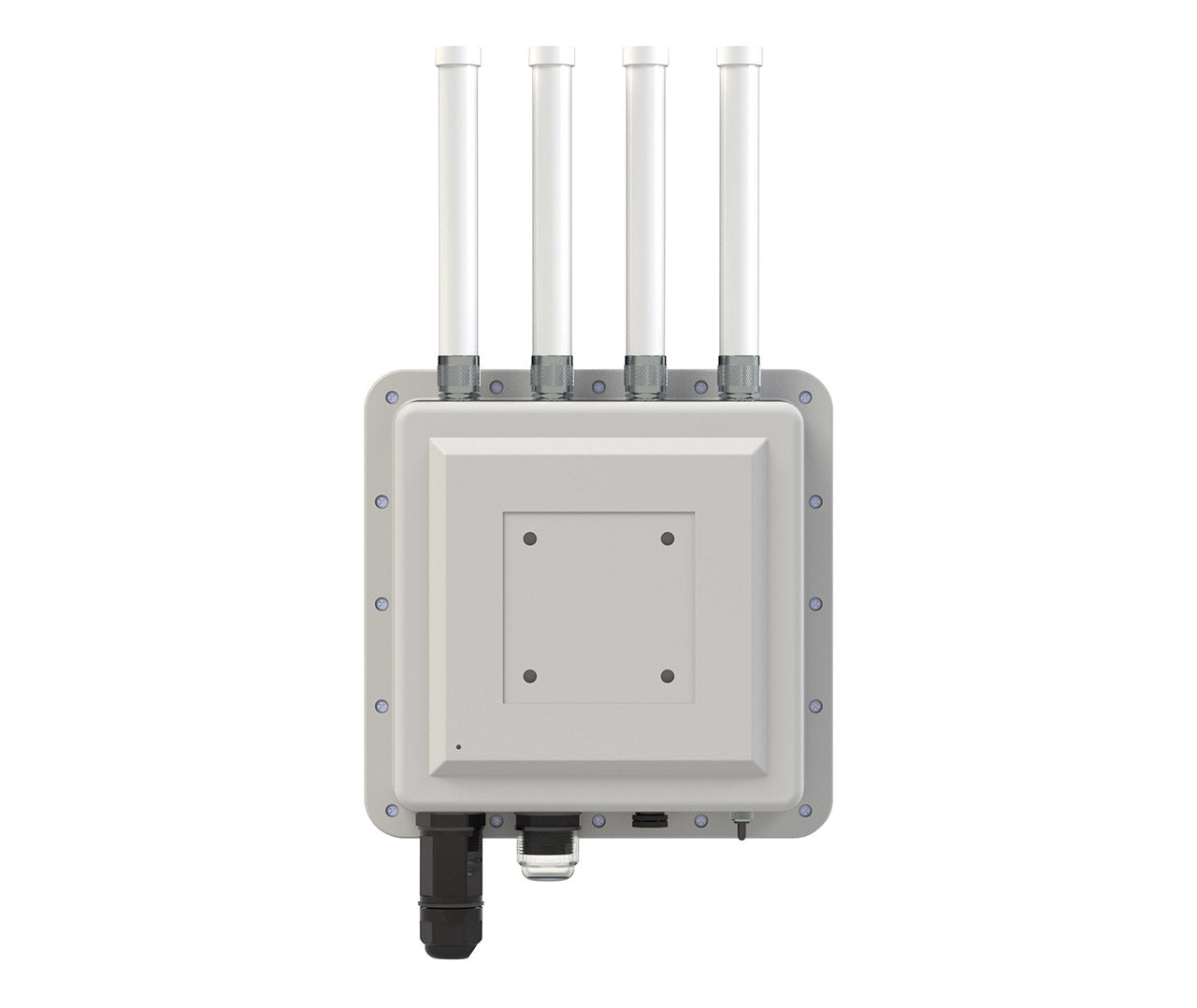

Mounting Type	Pole mount

5G/4G Standard

5G NR	Supports most main features in 3GPP Release 15 3GPP EN-DC option 3/3A/3X 3GPP SA option 2 Support downlink/uplink 256 QAM Support downlink 4x4 MIMO and uplink 2x2 MIMO
5G NR Bands	N1/n2/n3/n5/n7/n8/n20/n28/n30/n38/n40/ n41/n66/n71/ n77/n78/n79
LTE-FDD Bands	B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/ B19/B20/B25/B26/B28/B29/B30/B32/B66
LTE-TDD Bands	B34/B38/B39/B40/B41/B42/B46/B48
WCDMA	B1/B2/B4/B5/B6/B11
Data Rate	Peak download speed: 4.09 Gbps Peak upload speed: 978 Mbps
	* Option GNSS: GPS/Glonass/Beidou/Galileo

Wi-Fi Standard

Standard	IEEE 802.11 a/b/g/n/ac/ax (W-Fi 6)
Frequency	2401 - 2483 MHz 5150 - 5835 MHz
Data Rate	2.4 GHz: 574 Mbps 5 GHz: 1201 Mbps
TX Power	2.4 GHz: 21 dBm 5GHz: 21 dBm
RX Sensitivity	2.4 GHz: -96 dBm 5 GHz: -80 dBm
Security	WEP, WPA, WPA2, WPA3
Advanced Feature	MU-MIMO, Beamforming, OFDMA
