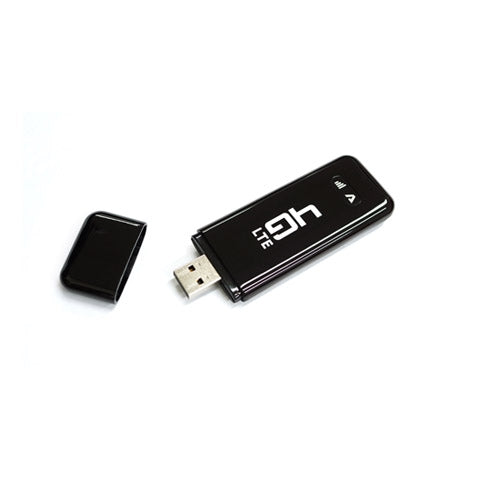

Onyx4G


  • LTE High-Speed
  • Plug-n-Play Simplicity
  • Large capacity storage
  • Sensitivity Antenna

LTE High-Speed Max. 100Mbps downstream
Max 50Mbps upstream
Backward compatible
with UMTS/WCDMA, EDGE/GPRS

Plug-n-Play Simplicity

Windows Driver & Utility Built-in
CD-free, auto-installation on your
laptop ordesktop computers

Large capacity storage

Built-in micro-SD card slot, Onyx4G performs
as a memory stick (Max.32GB support.)

Sensitivity Antenna

Field-Proven , High-Sensitivity Quad-Band,
3-Dimension Antenna Design

Note: Actual mobile data performance may vary due to signal strength, coverage, operation
frequencies, base station status, network congestion, and the network management services
over 4G LTE network .

  • Plug-n-Play Driver/ Utility Auto-Installation on Windows OS platform

  • 4G Mobile Internet Sharing via R36
  • (Ideal solution for multiple-user Internet access, perfect for Mac OSX, Linux,
    tablet and smart phone users)

Broadband Wireless LTE/HSPA+/HSPA/WCDMA (UMTS)
GSM/GPRS/EDGE
Frequency FDD-LTE:
B1 (2100MHz)/B3 (1800)/B7 (2600)/B20 (800)
WCDMA/UMTS:
B1(2100MHz)/B8(900MHz)
GSM:
Quad Band(850/900/1800/1900MHz)
Data-Rate FDD-LTE:
R8 Cat.3 100 Mbps DL /50Mbps UL
WCDMA/UMTS:
R99 384kbps DL/UL
R5 HSDPA 7.2 Mbps DL
R6 HSUPA 5.76Mbps UL
R7 HSPA+ 21Mbps DL/5.76Mbps UL
R8 HSPA+42Mbps DL/5.76Mbps UL
Interface Hi-Speed USB 2.0
Standard 6 PIN SIM card
micro-SD card slot:Max. 32GB support
Antenna Integrated antenna
System LED Tri-Color LED indicator
LED
Definitions		 Purple (solid ): LTE network registered
Purple (blinking): LTE network activities
Blue (solid): UMTS/2G network registered
Blue (blinking): UMTS network activities
Red (solid): no service, no SIM card or incompatible service
Operation System Support Windows Vista, 7, 8, 10 32/64bit support Auto-install utility driver
* Mac & Linux users: please install Onyx4G with R36(sell separated),
and perform Internet access through wireless signal from R36
Operating Temperature 0°C ~ 45°C
Storage Humidity 5% ~ 98% (Non-condensing)
Dimension 95 x 32 x 9 mm
Weight 12g
