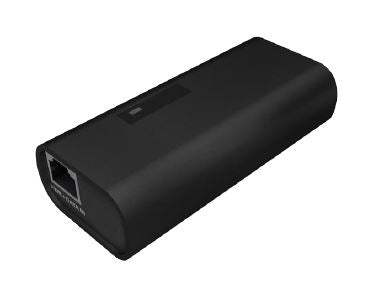

PD-1000TR-24 802.3at Gigabit 24V 30W PoE PD


  • Automatically detects PoE terminals and supplies inline power
  • Auto-sensing power drawn from 802.3at/af power source equipment device
  • Support up to 30 watts
  • Safeguards network device with short circuit protection
  • Converts Non-PoE devices to PoE support
  • Ethernet isolation with ESD protection

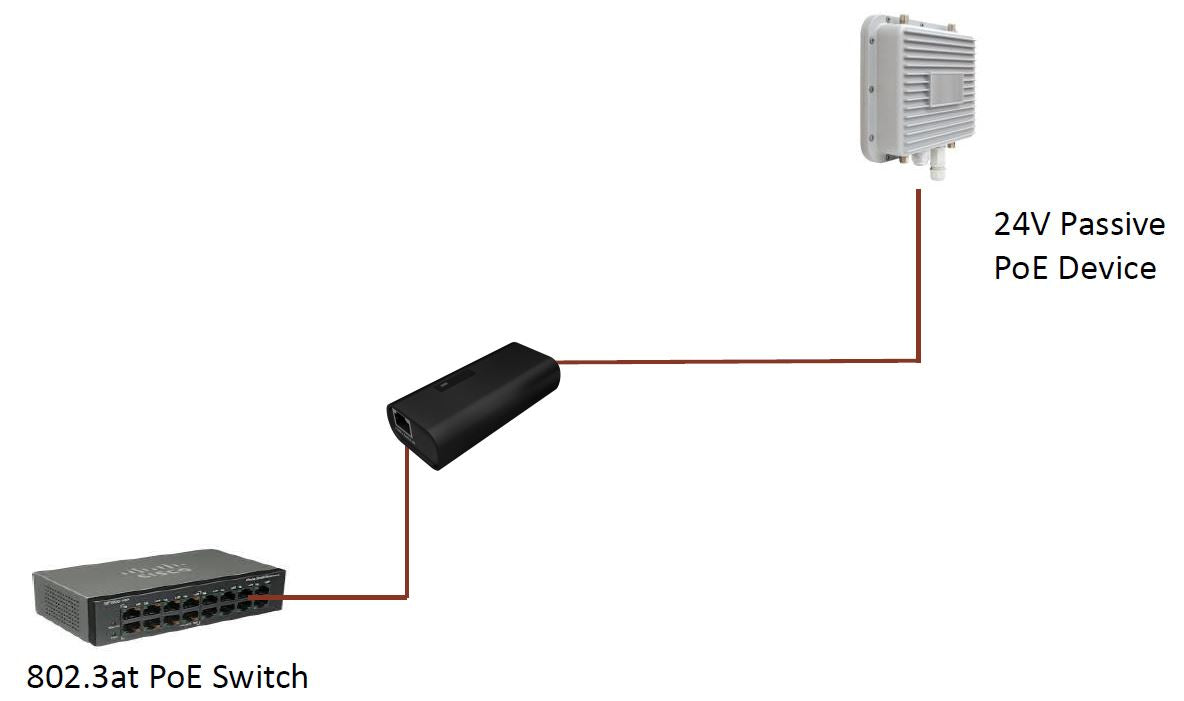

PD-1000TR-24 is the PoE (Power Over Ethernet) PD device which support DC output 24V with 30 watt. It is a revolutionary technology for powering ethernet terminals such as POS computing sytem, wireless access point and IP camera. The technology incorporates electrical power onto a LAN data line enabling the delivery of operating power in addition allowing data communication to terminals over standard cabling infrastructure.

Standard IEEE 802.3
IEEE 802.3u
IEEE 802.3at
IEEE 802.3af
Input Data+Power:RJ45
Output Data+Power: RJ45
Input Voltage 48 VDC
Output Voltage 24 VDC
Max. Power Output 30W
DC Jack Diameter 5.5 x 2.1 mm
LED Power on/off
ESD/Surge Protection +/- 15 KV
Dimension 100 x 47 x 27 mm
Weight 50g
