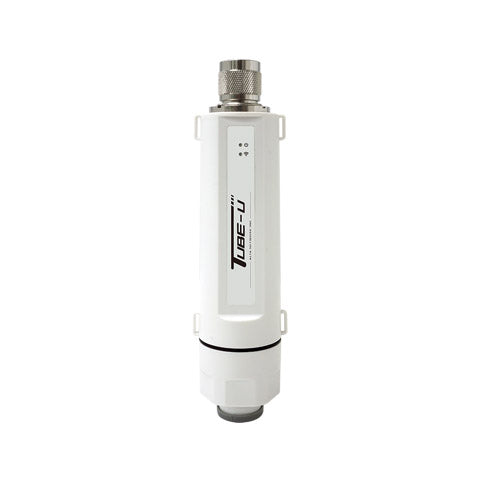

Tube-UNA

Tube-UNA



Tube-UNA is the IEEE 802.11n 2.4 GHz high speed 150 Mbps outdoor USB CPE which also compatible with IEEE 802.11 b/g. Tube-UNA use Qualcomm Atheros AR9271 chipset which is the best RF performance chipset in the market.

Superior Wi-Fi Performance

Equipped with wide-coverage wireless capability, and years of field-proven experiences, ALFA Tube-UNA provides 2.4 GHz 150 Mbps Wi-Fi data transfer speeds for outstanding performance.


Reliable 802.11n Wireless, Better Range & Coverage

Tube-UNA comes with lastest 802.11n standards with hardware-based WiFi optimization, plus high gain antennas, resulting in extra-ordinary signal range.


Increased Bandwidth, More Applications

Tube-UNA supports Max. 150 Mbps 2.4 GHz wireless access, making it ideal for large traffic and lag-free HD video streaming for more devices in your living space.


Increased Wireless Signal Penetration

With unmatched Wi-Fi signal strength and coverage, Tube-UNA not only has maximum WiFi range, it helps to penetrate walls, and eliminate Wi-Fi dead spots in your living space easily.


Parameter Value
Chipset AR9271
Interface USB type A Jack
Antenna Connector N male
LED Indicators Power / WLAN
Power Consumption 500 mA @ 5V
Operating Temperature -40 °C – 70 °C
Storage Humidity 5 % - 98 % (Non-condensing)
Dimension 165 mm x ⌀46 mm
Weight 126.5 g
Standard IEEE 802.11 b/g/n
Frequency 2.4 GHz
Data Rate 802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: up to 150 Mbps
Amplifier Built-in Amplifier
Sensitivity -96 dBm @ 11b
-91 dBm @ 11g
-91 dBm @ HT20
-87 dBm @ HT40
Wireless Security WEP, WPA, WPA2, WPA Mixed, WPS
OS Supported Windows XP, Vista, 7, 8 and 8.1, 10
Linux
