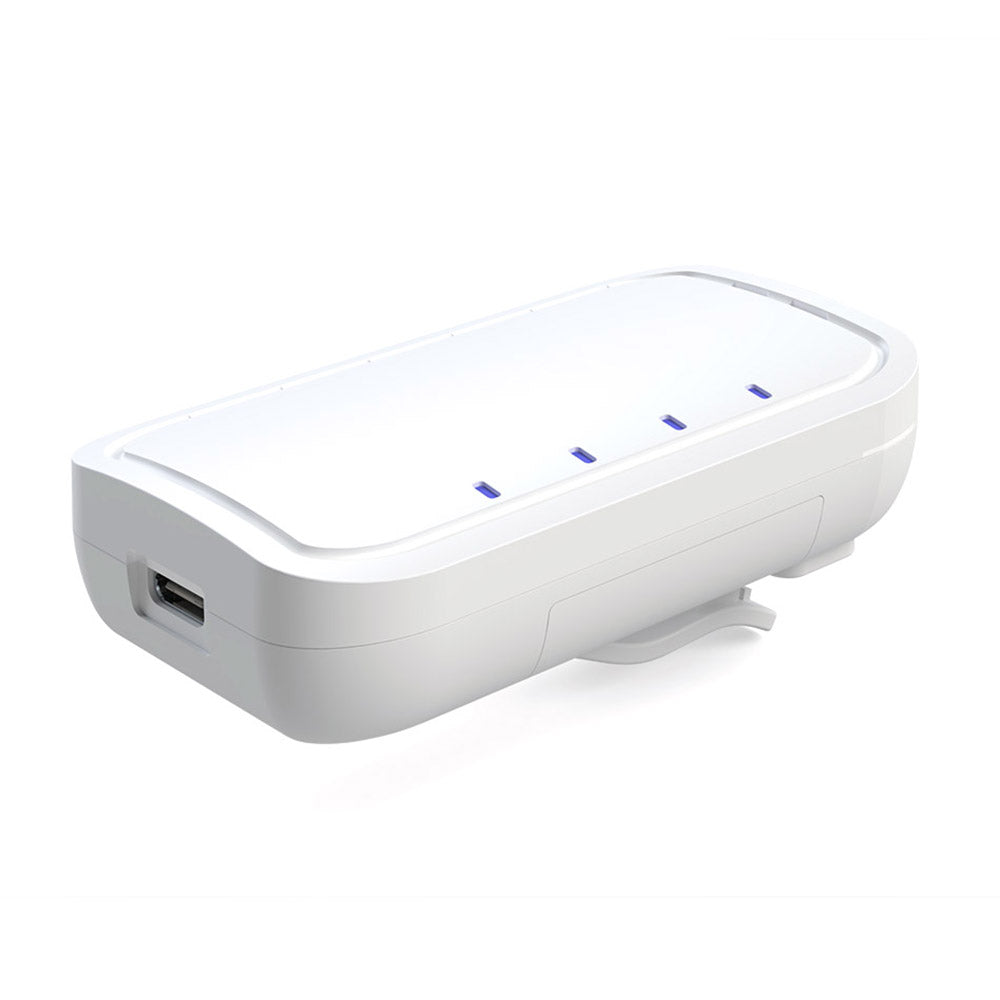

UC5G-8230E – The RedCap USB Modem Others Don’t Offer
UC5G-8230E supports 5G NR RedCap with full LTE-FDD and LTE-TDD. Powered by the SIMCom SIM8230E module and equipped with a high-gain internal antenna, it keeps your system connected even in areas with weak signal strength. It also features dual SIM slots (Mini + Micro), giving you flexibility. No more worrying about which SIM type to prepare. It’s ready for both.

Key features

  1. Built-in SIMCOM SIM8230E-M2 5G modem
  2. USB Type-C interface
  3. LED Indicator
  4. Integrated high-gain 5G antenna
  5. Dual SIM slots (Mini + Micro)
  6. Screen clip





Specifications

Embedded module

SIMcom SIM8230E-M2

Cellular network





5G NR SA

LTE-FDD

LTE-TDD

Data transfer



5G NR SA: 220 Mbps (Downlink) / 120 Mbps (Uplink)

LTE: 200 Mbps (Downlink) / 75 Mbps (Uplink)

Frequency bands





5G SA: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78

LTE-FDD: B1/B3/B5/B7/B8/B20/B28

LTE-TDD: B38/B40/B41/B42/B43

Interface

USB Type-C with USB 2.0 backward compatibility

Antenna

Internal Antenna

Button

1x push-button (modem reset)

Switch

1x slide switch (SIM select)

LED







1x modem status

1x micro SIM

1x mini SIM

1x power

Power consumption



Standby mode: 4.2 mA

Connected mode: avg. 400 mA; max. 615 mA

Operating temperature

-25° C ~ 75° C

Dimensions

90 x 48 x 21 mm

Weight

60 g

Supported OS



Microsoft Win7/ Win8/ Win10/ Win11

Linux/ Android

Package

1x UC5G-8230E

1x QIG

1x USB-C to USB-A cable (Cable Length: 500 mm)
