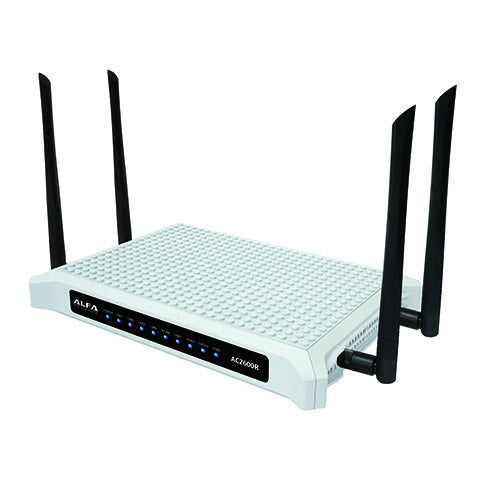

AC2600R

AC2600R


  • Qualcomm IPQ8064 Dual-Core 1.4 GHz
  • MU-MIMO boosts performance
  • WiFi AC 1733 Mbps + N 800 Mbps
  • 1+4 all Gigabit LAN RJ45
  • 2x USB 3.0
  • All interfaces LED indicator
  • Power On/Off button
  • WPS button
  • WiFi On/Off button
  • LED On/Off button
  • Reset button
  • OpenWrt support

Technical Specifications

Chipset CPU: IPQ8064
Switch: QCA8337
RF 5 GHz 4x4: QCA9980
RF 2.4 GHz 4x4: QCA9980
Standard 802.11a/ac/b/g/n
Flash 256 MB
RF Speed 5 GHz 11ac: 1733 Mbps
2.4 GHz 11n: 800 Mbps
Interface 1x WAN; 4x LAN; 2x USB 3.0
Power Source 12 VDC, 3A
Environment Temperature perating: -20 °C to +55 °C
Storage: -40 °C to + 80 °C0
Environment Humidity Operating: 10 % to 90 %
Storage: 5 % to 95 %

RF Specifications

Data Rate FCC ETSI IC RX
Sensitivity
2.4 GHz
802.11b
11 Mbps 27 dBm 14 dBm 27 dBm -83 dBm
2.4 GHz
802.11g
54 Mbps 29 dBm 16 dBm 29 dBm -70 dBm
2.4 GHz
802.11n
800 Mbps 29 dBm 16 dBm 29 dBm -64 dBm
5 GHz
802.11a
54 Mbps 26 dBm 29 dBm 26 dBm -68 dBm
5 GHz
802.11an
800 Mbps 27 dBm 28 dBm 26 dBm -68 dBm
5 GHz
802.11ac
1733 Mbps 27 dBm 28 dBm 26 dBm -55 dBm
