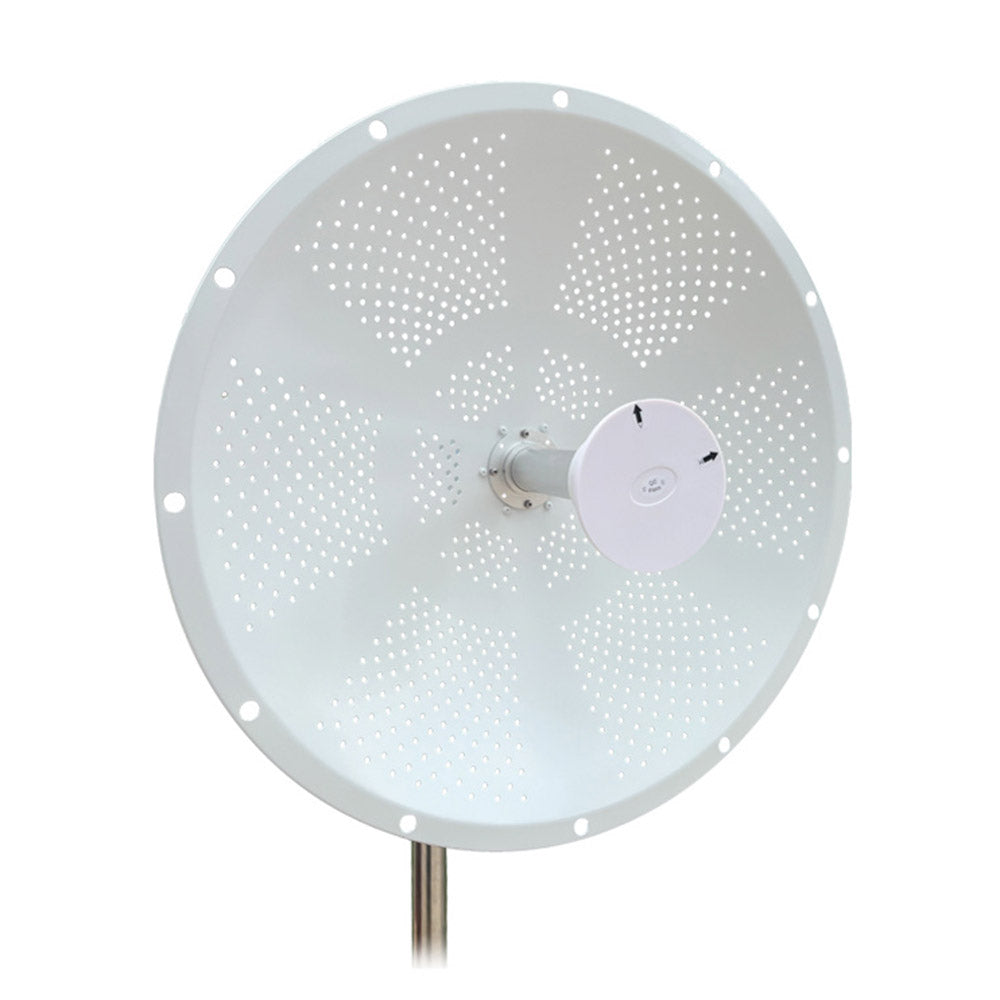

Dish Antenna
7.125 GHz ~ 8.5 GHz 28dBi
Key features
-
7125 ~ 8500 MHz 28 dBi
-
Aluminum alloy
-
UV stable coat finish
- N female connector
Specifications
|
Frequency |
7125 MHz ~ 8500 MHz |
|
Gain |
28 dBi |
|
V.S.W.R |
≦ 2.0 |
|
F/B Ratio |
≥ 35 Db |
|
Radiation |
Direction |
|
Polarization |
Vertical |
|
Horizontal Beamwidth |
5° |
|
Vertical Beamwidth |
5° |
|
Impedance |
50 ohm |
|
Connector |
2x N female |
|
Maximum Input Power |
100 W |
|
Mount type |
Pole Mount |
|
Mounting Pole Size |
Ø 50 ~ Ø 115 mm |
|
Lightning Protection |
DC Grounded |
|
Antenna Dimension |
600 mm |
|
Weight |
6.5 kg |
|
Operating Temperature |
-40°C ~ 70°C |
|
Rated Wind Velocity |
60 m/s |
Radiation Pattern
Installation Drawing
