Passive, bidirectional diplexer module for dual-band 2x2 to 2× 2x2 single-band WiFi

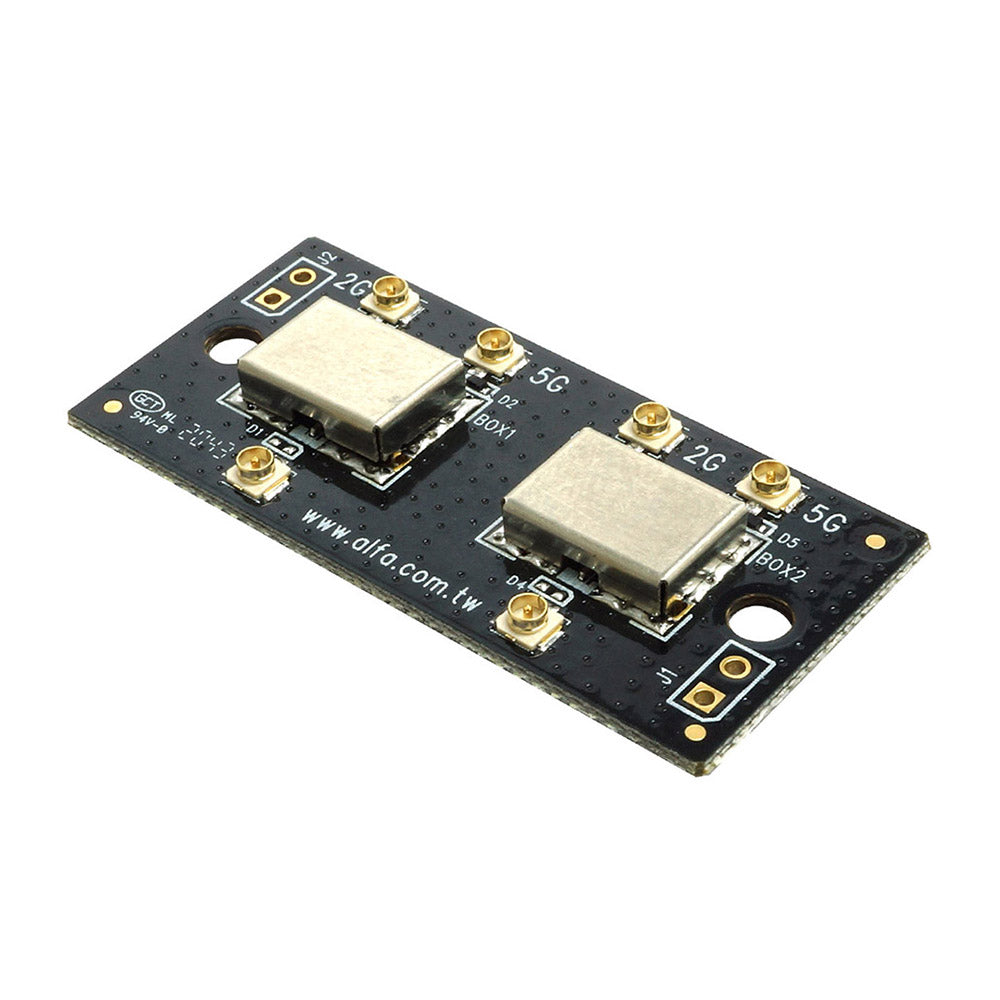

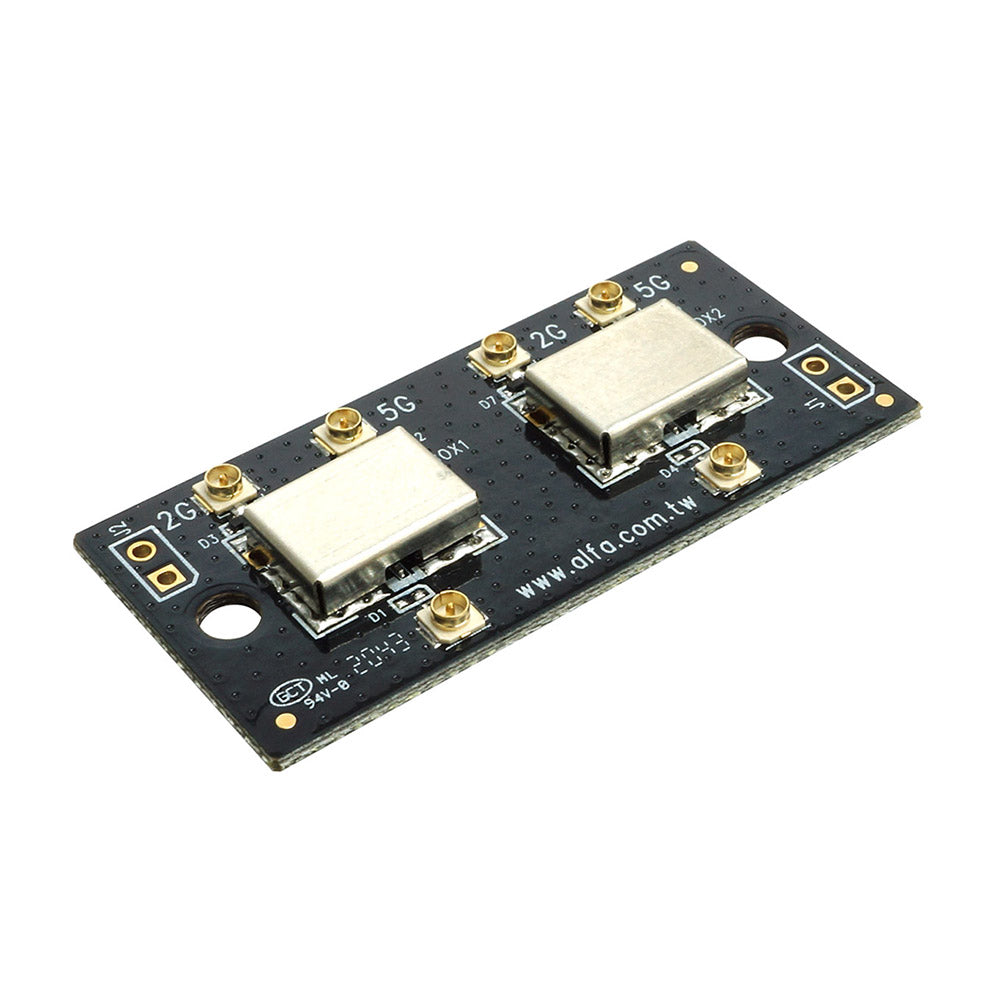

ADPX-WiFi-2UFL is a bidirectional diplexer module for WiFi systems
The ADPX-WiFi-2UFL allows splitting of dual-band (2.4 and 5 GHz) WiFi signal from a single 2x2 radio into separated single-band 2.4 and 5 GHz antennas. The module is bidirectional thus a reversed operation is also possible.
Low signal insertion loss, passive operation, without additional power supply and compact size simplify integration with any WiFi system.
|Antenna connectors||6× IPEX/U.FL|
|Maximum input power per port||33 dBm|
|Insertion loss |
(common ↔ single-band port)
|< 1.0 dB (2.4 GHz) |
< 2.0 dB (5 GHz)
|Common port return loss||< -20 dB (2.4 GHz) |
< -10 dB (5 GHz)
|Isolation between 2.4 and 5 GHz ports||> 20 dB|
|Mounting holes||∅ 3.2 mm, spacing 35.8 mm|
|Dimensions||43 × 20.3 × 3.6 mm|
