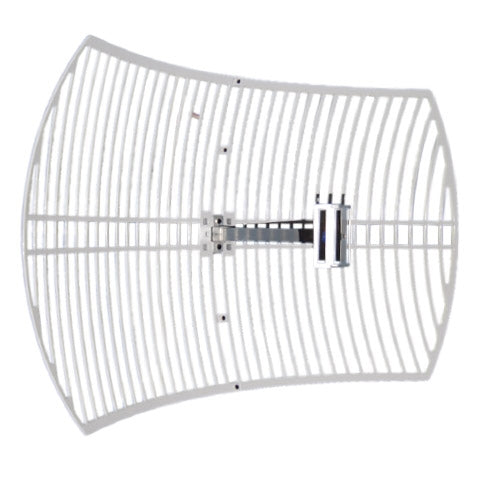

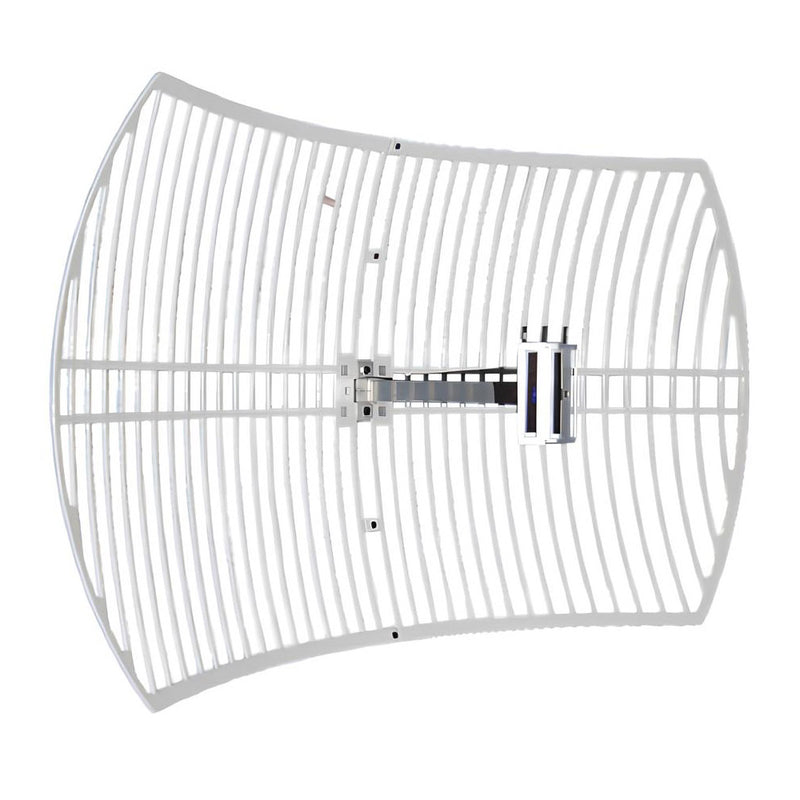

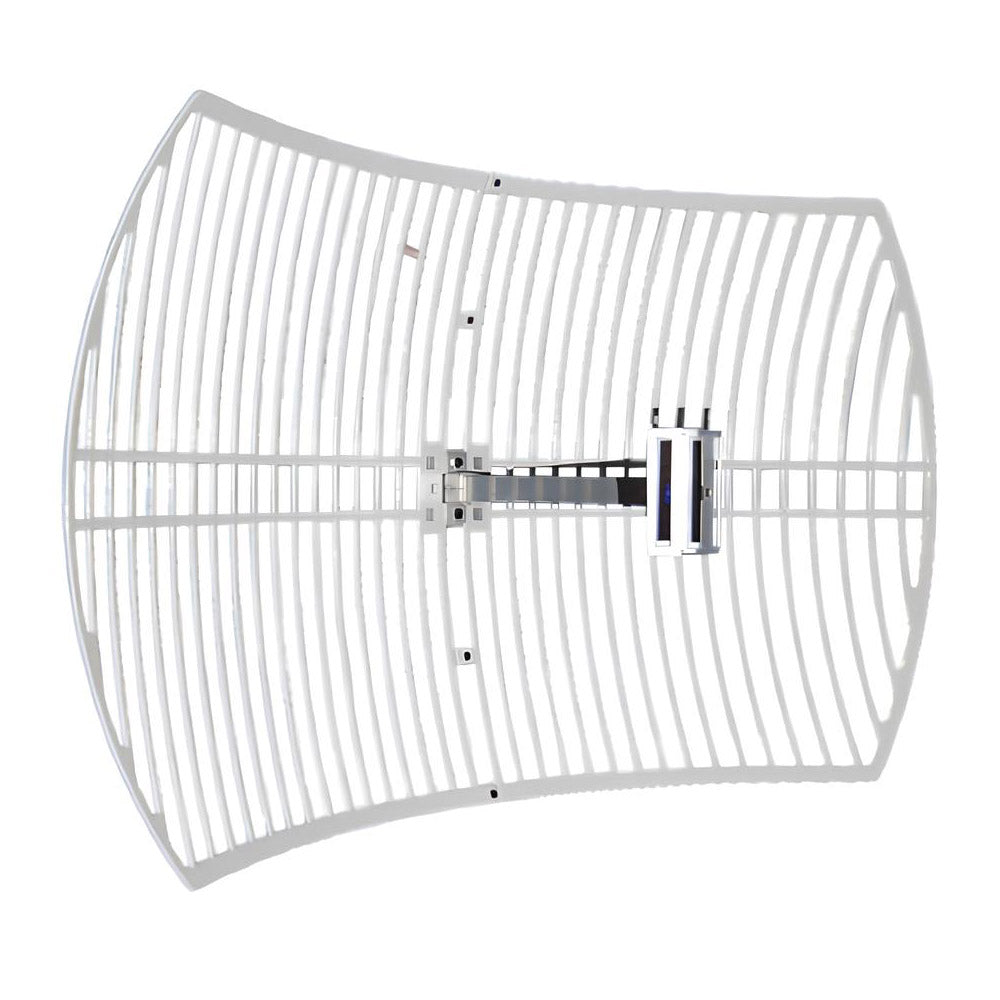

AGA-2424T

AGA-2424T

Applications

AGA-2424T


  • Superior Performance
  • Aluminum Die Cast Grid
  • UV stable light gray powder coat finish
  • All Weather Operation

• 2.4GHz Wireless LAN system
• 2.4GHz UNII/ISM Application
• Long-Range Direction Applications

  • Point to Point
  • Point to Multi-Point
  • Wireless Bridge
  • Backhaul / Client Antenna

Pattern

H-Plane E-Plane

Network Analyzer Test

requency Range 2400~2483MHz
Gain 24dBi
VSWR ≤ 1.5
Horizontal Beamwidth 14°
Vertical Beamwidth 10°
Impedance 50Ω
Maximum Input Power 200W
Connector N Female
Dimension 600 x 900 mm
Mounting Mast Diameter 30⌀ ~50⌀
Weight 2.8kg
Operating Temperature -40°C~80°C
