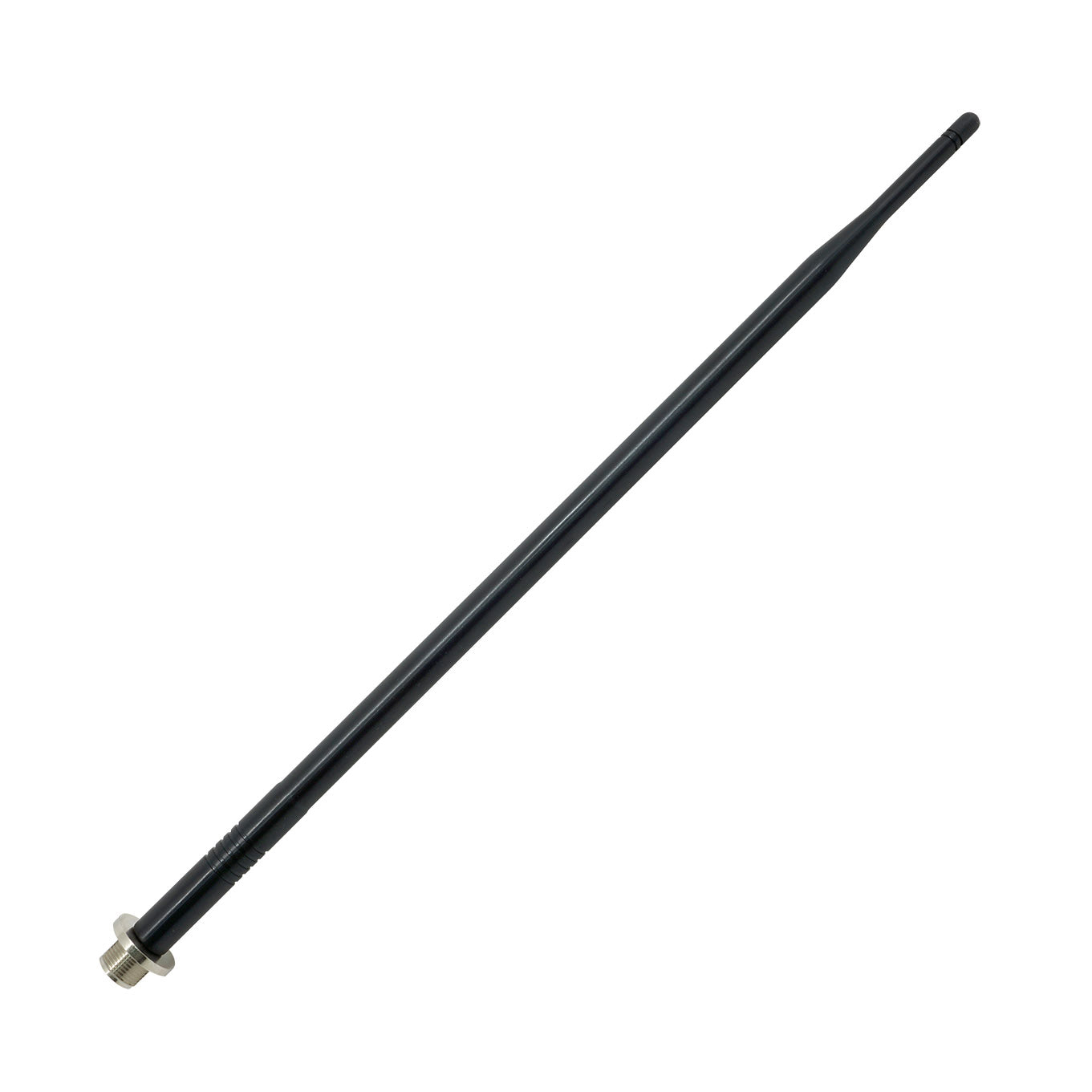

AOA-2409MF

AOA-2409MF

AOA-2409MF

AOA-2409MF

RoHS Compliant
Low VSWR / Low Loss Design
High Efficiency and Sensitivity
Low Loss RF Coaxial Connector Cable Feed
Matching Free Design

Analyzer Test Report

Pattern Test Report

Model	AOA-2409MF
Frequency	2400~2500 MHz
Impedance	50 Ω
VSWR	<=1.5
Gain	9 dBi
Radiation	Omni
Connector	N Female
Operation Temperature	-40 ˚C ~ 65 ˚C
Storage Temperature	-40 ˚C ~ 80 ˚C
Length	387.5 ± 5.0 mm
