VSWR
Radiation Pattern
2D Drawing Dimension
| Frequency Range | 2400 - 2483 MHz 5150 - 5875 MHz |
| Gain | 4 dBi @ 2400 – 2483 MHz 6 dBi @ 5150 – 5875 MHz |
| VSWR | 2.0 : 1 Max. |
| Radiation | Omni Direction |
| Impedance | 50 Ω |

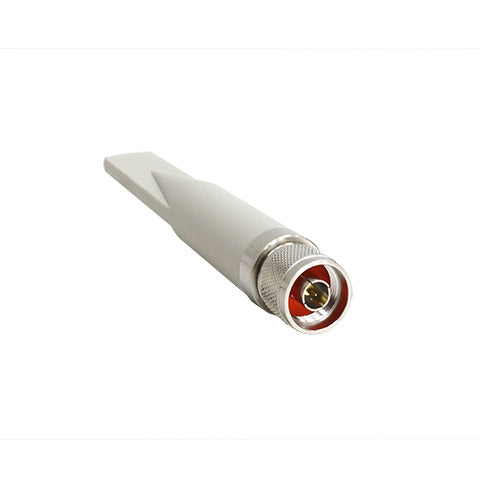

| Connector | N male |
| Dimensions | ⌀22x180 mm |
| Weight | 70 g |
| Temperature | -40°C to 85°C |
| Humidity | 95% @ 25°C |
