AOA-850-2BM

AOA-850-2BM

AOA-850-2BM

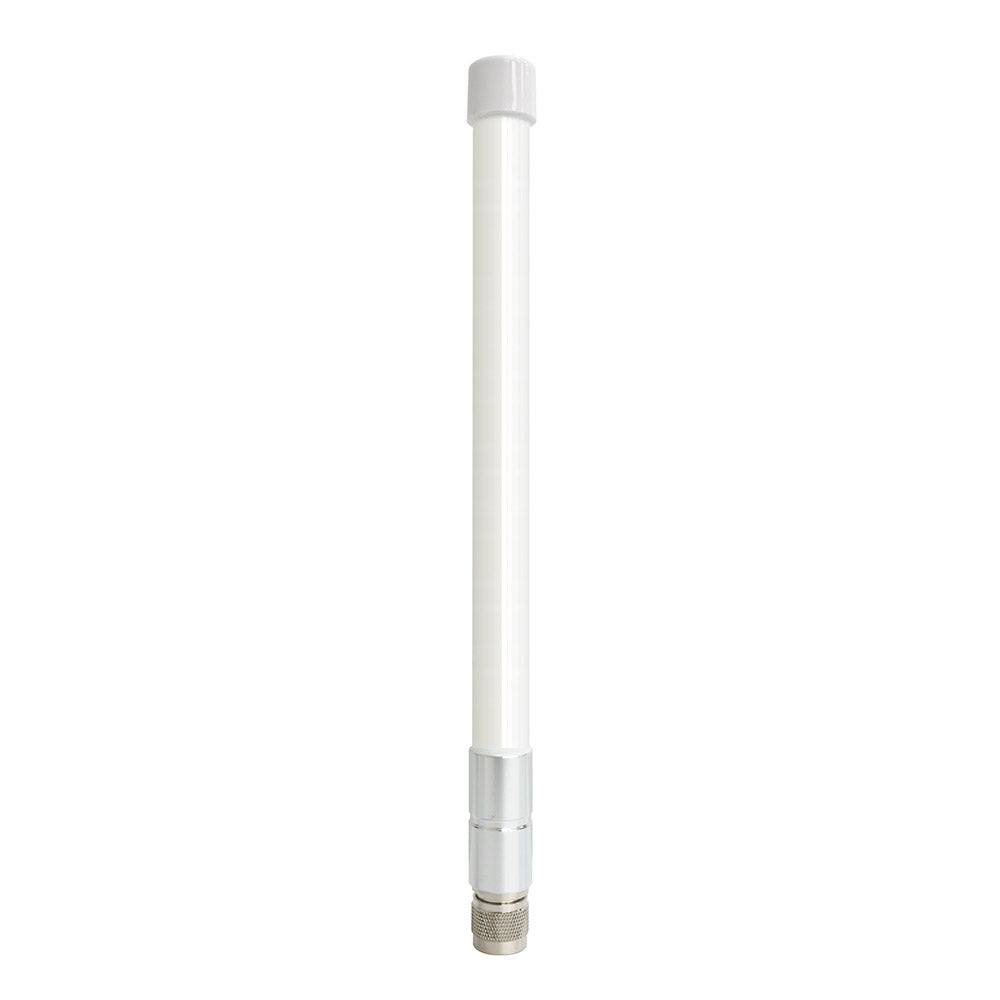

Outdoor Omni Antenna
850 MHz | 2 dBi

Product Specifications

Model	AOA-850-2BM
Product Type	Outdoor Omni Antenna
Frequency Range	845–855 MHz
Gain (Measured Peak)	2 dBi
V.S.W.R	≤ 1.5
Radiation	Omni directional
Horizontal Beamwidth	360°
Vertical Beamwidth	45°
Polarization	Vertical
Impedance	50 Ω

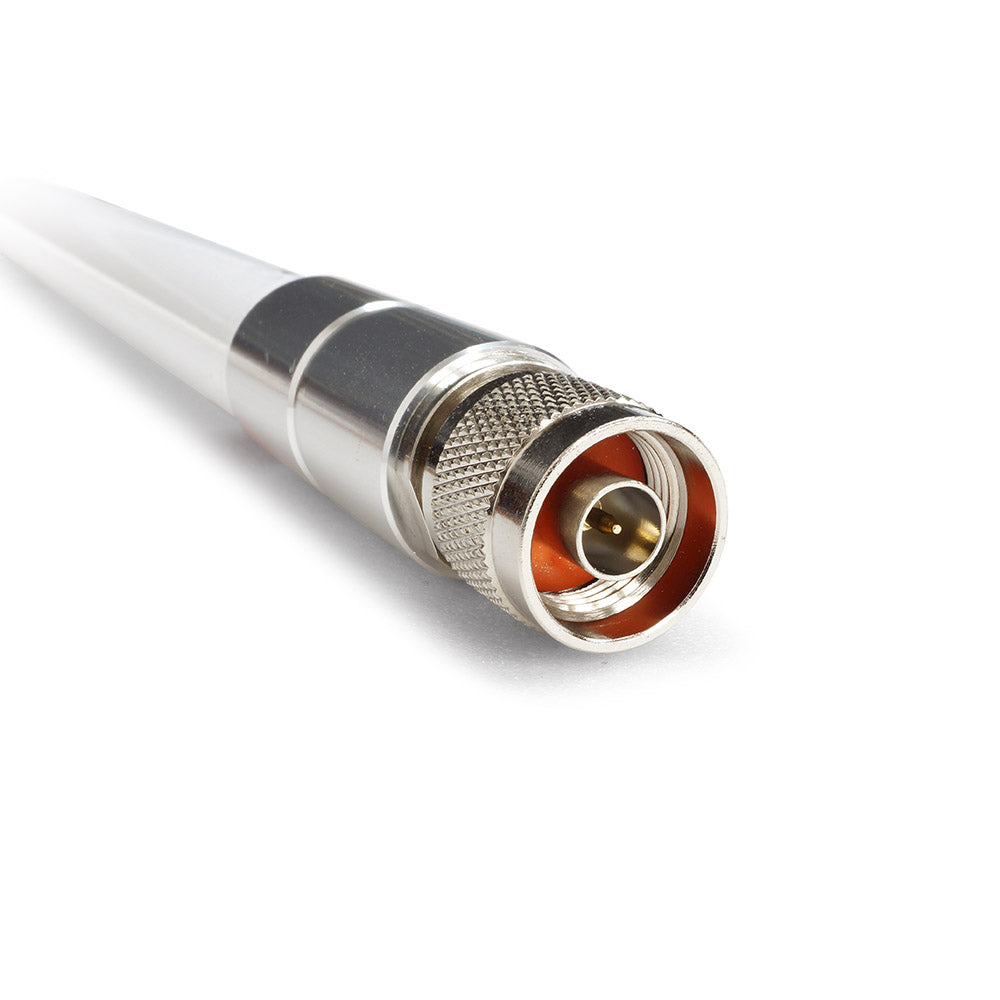

Connector	N male
Dimensions	Ø 20 × 305 mm
Weight	100 g
Operating Temp.	-40 °C to 85 °C
Humidity	95% @ 25 °C

V.S.W.R & Radiation Pattern Test Data

V.S.W.R

Radiation Pattern
