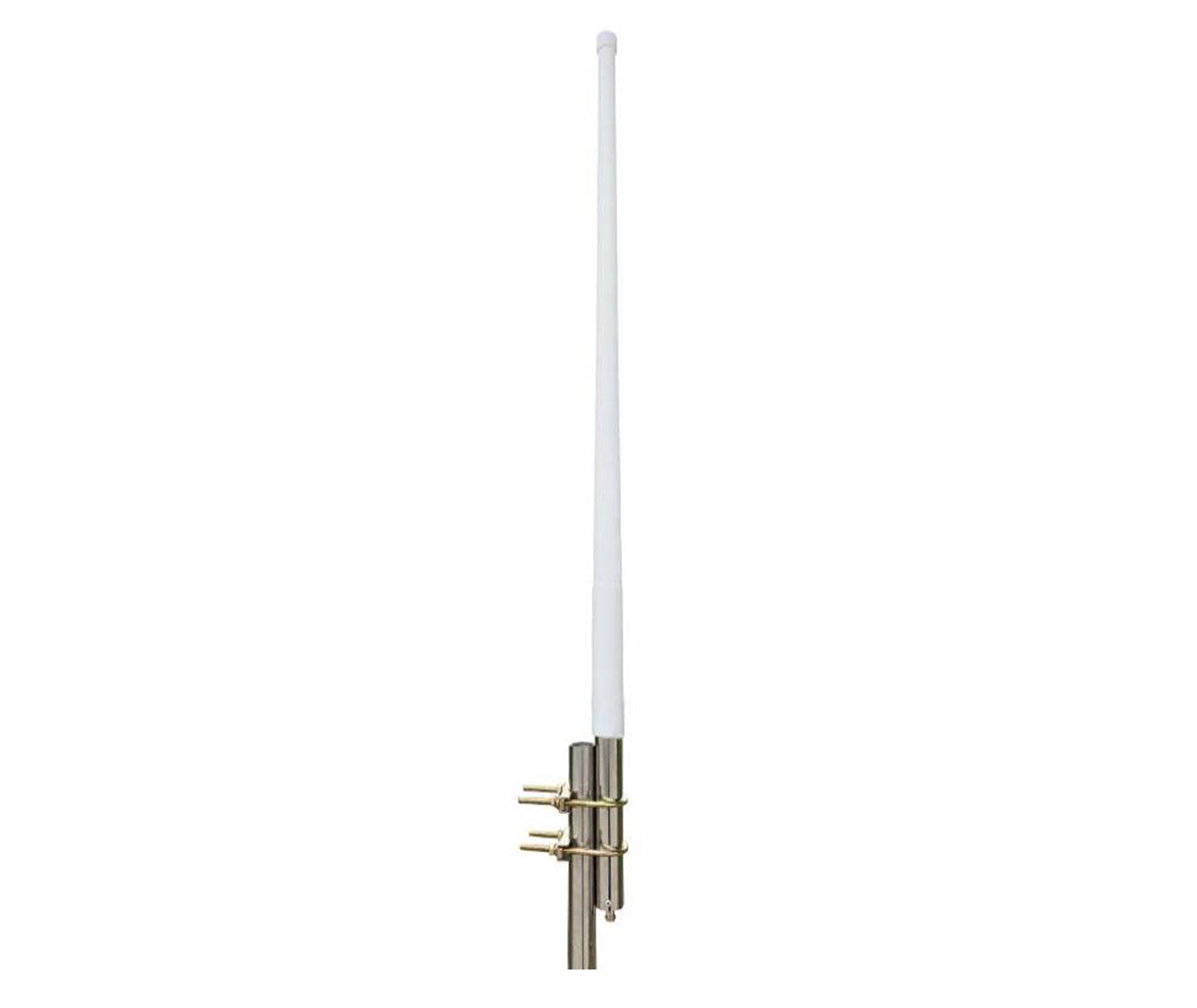

AOA-868-10ACF

868 MHz 10 dBi Omni Antenna N female

Specifications

Frequency	865 – 868 MHz
Gain	10 dBi
V.S.W.R	≦ 2.0
Radiation	Omni
Connector	N female
Horizontal Beam-width	360°
Vertical Beam-width	15°
Polarization	Vertical
Impedance	50Ω
Radome Material	Fiberglass
Dimensions	Ø 38 x 1600 mm
Weight	1.2 kg
Diameter of Installation Pole	Ø 30 ~ Ø 50 mm
Operating Temperature	-40°C ~ 80°C
Rated Wind Velocity	60 m/s
Waterproof rating	IP67
