AOA-868-5BF

AOA-868-5BF

AOA-868-5BF

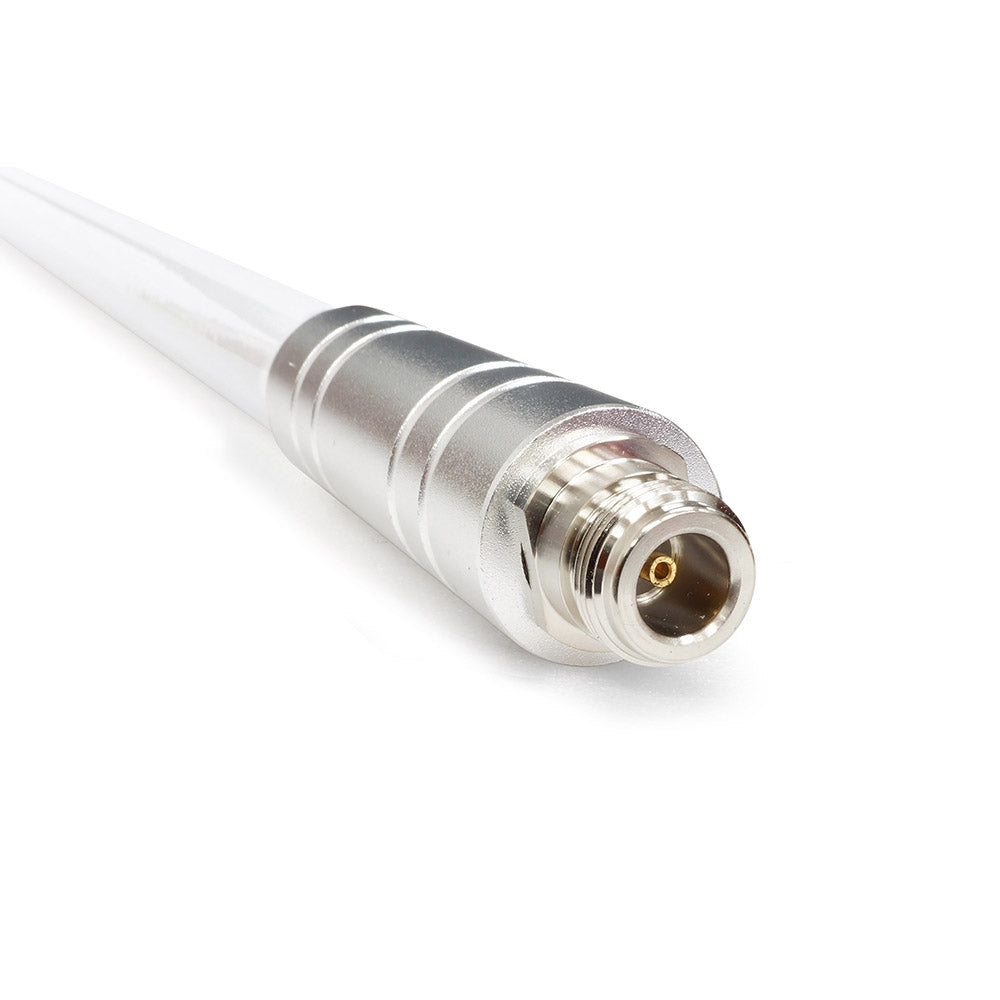

Outdoor Omni Antenna
868 MHz | 5 dBi

Product Specifications

Model	AOA-868-5BF
Product Type	Outdoor Omni Antenna
Frequency Range	863–868MHz
Gain (Measured Peak)	5 dBi
V.S.W.R	≤ 1.5
Radiation	Omni directional
Horizontal Beamwidth	360°
Vertical Beamwidth	25°
Polarization	Vertical
Impedance	50 Ω
Connector	N Female
Dimensions	Ø 20 × 1000 mm
Weight	200 g
Operating Temp.	-40 °C to 85 °C
Humidity	95% @ 25 °C

V.S.W.R & Radiation Pattern Test Data

V.S.W.R

Radiation Pattern
