APA-L2412

APA-L2412

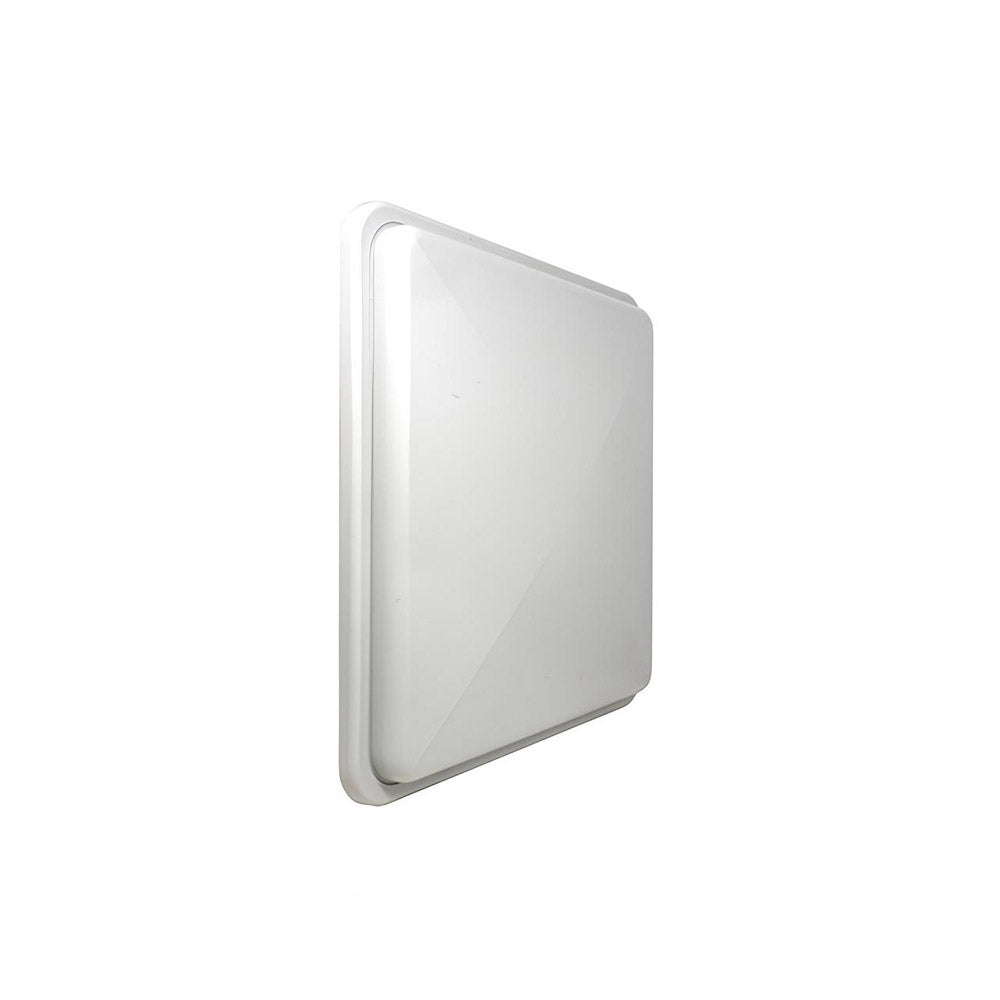

APA-L2412 is the 2.4GHz 12dBi Panel Antenna with N-female connector. It suitable for all kind of outdoor 2.4GHz device.



Applications

  • Directional and multipoint applications
  • Bluetooth
  • Public Wireless Hotspot
  • WiFi, RFID
  • Wireless Video Systems
Return Loss VSWR
Antenna Pattern Antenna Pattern

Electrical

Frequency: 2.4 ~ 2.5GHz
VSWR: 1.3:1
Antenna Type: Patch Directional
Gain: 12dBi
Polarization: Vertical
Vertical Beam-with: 38 degree
Horizontal Beam-with: 42 degree
Connector: N Female

Mechanical

Dimension 180*150mm
Antenna Weight 220g
Accessories Weight 400g
Mount Style Pole mount
Mounting Stainless Steel
Wind Survival Greater then 150MPH
