APA-L2419

APA-L2419

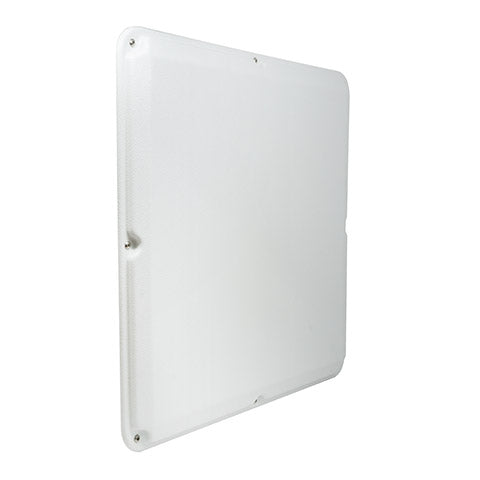

APA-L2419 antennas are professionally engineered and manufactured with the highest industry quality at the lowest possible price providing extreme value


  • Superior performance
  • The weight is light
  • Good appearance designs
  • Installed for vertical or horizontal polarization
  • Support Pan and Tilt adjustable antenna direction - mast mount bracket
  • Outdoor antenna for public hot-spots
  • RoHS Compliant

APA-L2419 is designed for the 2.4GHz ISM band, supporting 2.4 to 2.5 GHz and provides superb performance in IEEE 802.11b/g WiFi and Bluetooth applications. APA-L2419 includes mounting bracket for Max. 2” mast and N Female connector.

Applications

2.4 - 2.5 GHz ISM Band IEEE 802.11b, 802.11g, 802.11n Wireless LAN Directional and multipoint applications Bluetooth Public Wireless Hotspot WiFi, RFID Wireless Video Systems

Network Analyzer Test Report

Antenna Pattern Test Report

Mounting Kits Install Guide

Model APA-L2419
Frequency 2.4-2.5GHz
VSWR ≦ 1.5
Gain 19dBi
Polarization Vertical or Horizontal
Power Handling 50 Watts
Impedance 50 Ω
Beam Width H: 17° / V: 17°
Connector N Female
Operation Temp -40°C ~ +80°C
Dimension 370*370 mm
Mounting 32 ~ 45 mm ( 1.2 ~1.75 inch )
Weight (&Mounting Bracket max 1030g
