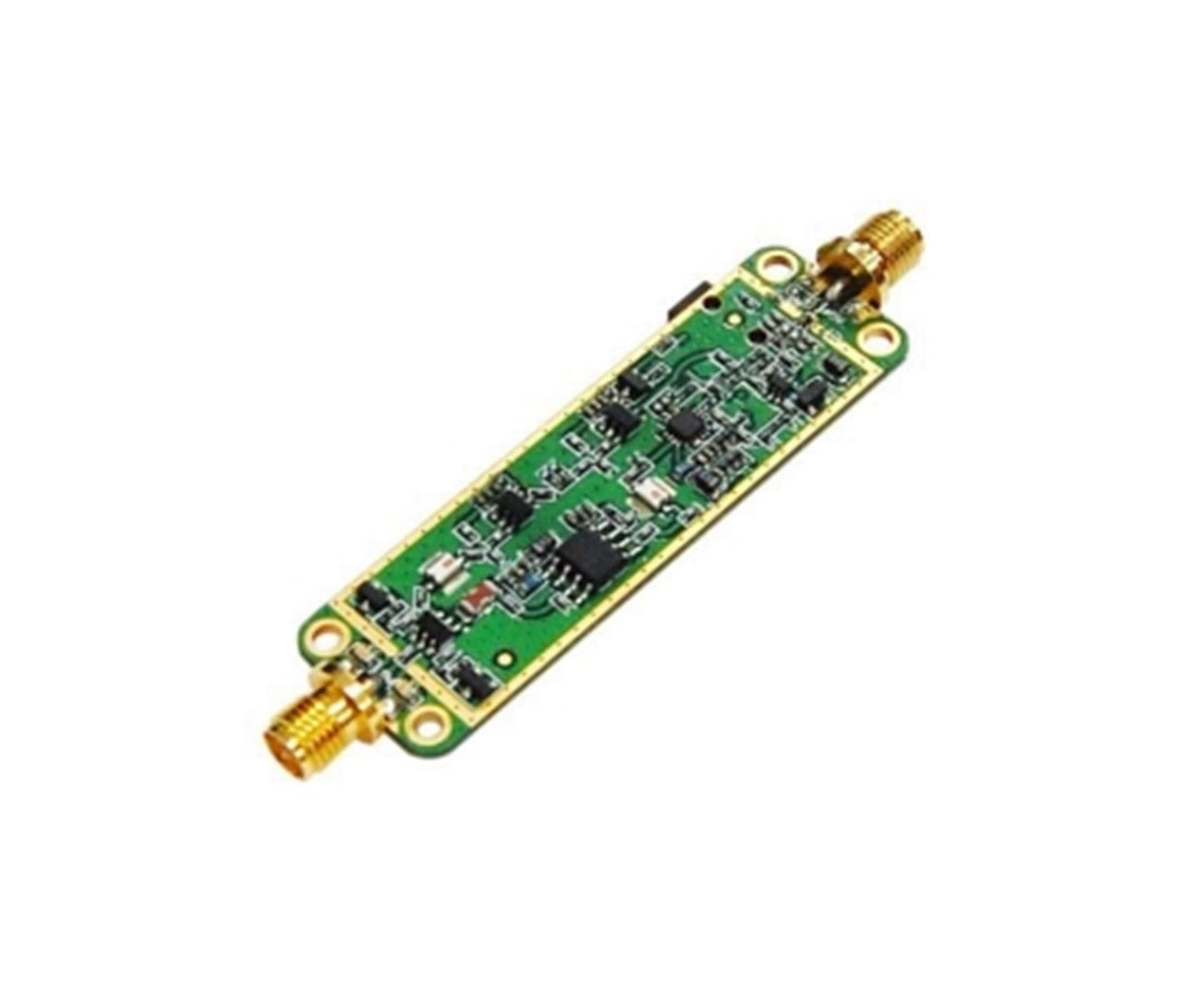

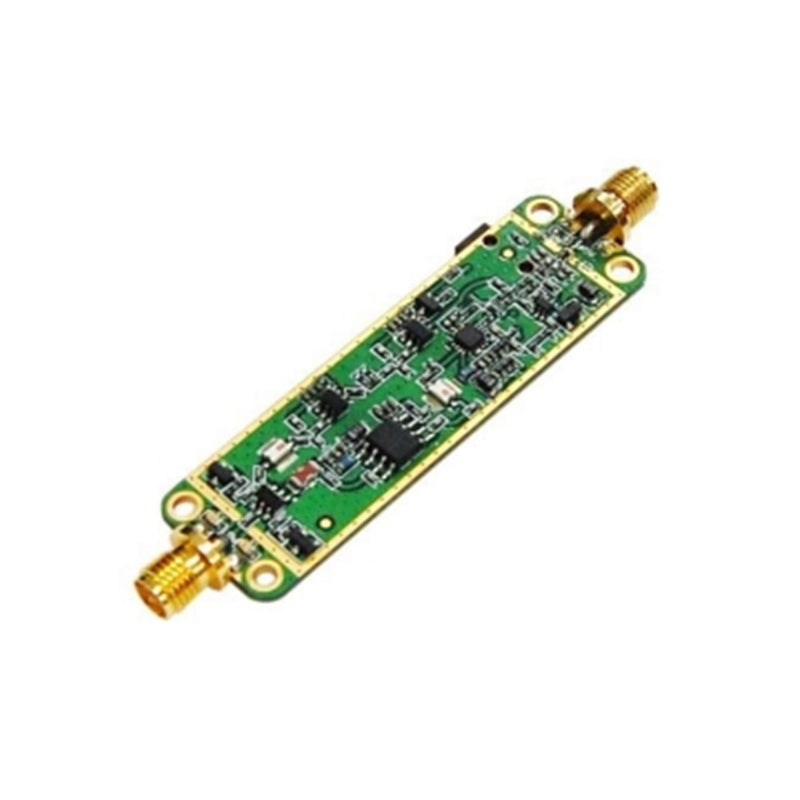

2.4GHz 500mW Booster Amplifier Module

  • 4x the area coverage
  • Suitable for WiFi Enthusiast / Developer
  • Maximizes Weak Signals
  • Gold Plated SMA Connector
  • Power Source required
  • Application

4x the area coverage

APA05MD increases the coverage by 4x times compared to a standard wireless access point.

Suitable for WiFi Enthusiast / Developer

Status indicators & RP-SMA Female connectors on both sides of the pcb giving diversity for developers.

Maximizes Weak Signals

Not only boosts output signal but also has a receive gain of 20dBm.

Gold Plated SMA Connector

Allowing you to connect to a 2.4-2.5GHz source, and fits most WiFi antenna.

Power Source required

Requires a 5VDC 500mA max regulated power supply.


WiFi, Drone, Video transmission, BT

Dimension Specifications:

Frequency 2.4~2.5 GHz
Signal Type DSSS/OFDM
TR Switch Time < 1µ sec
RX Max. Input Power -10 dBm
RX Max. Power Gain 13 dB
TX Max.Linear Output 500 mW / +27 dBm
TX Max. Power Gain 13 dB
TX Input Power 20 dB
DC Supply 5V/500 mA
DC Jack Dimension ⌀2.7 x ⌀0.65 x 8.5 mm (± 0.5 mm )
Status LED PWR@Green
RF Input Connector Type RP-SMA Female
RF Output Connector Type RP-SMA Female
Operating Temperature -20~+50 ℃
Dimensions L x W x H 60 x 17.77 x 8 mm (± 0.5 mm )
Weight 7.30 g
