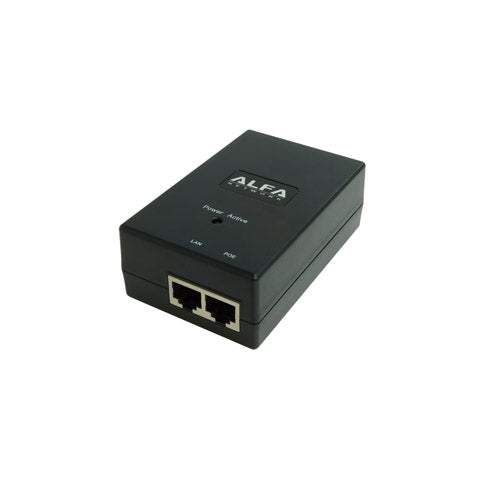

APOE2410G

APOE2410G

APOE2410G

APOE2410G

Output Voltage	24V
Output Current	1.25A
Input Voltage	90~264Vac Maximum
Input Frequency	47~63Hz
Input Current	0.55A Maximum
Inrush Current	30A Maximum
Ripple	240mV Maximum
Hold-Up Time	10ms
Over Current Protection	Auto Recovery
MTBF	50,000H(at 25°C)
Short-circuit Protection	Auto Recovery
Operating Temperature	0~40°C
Storage Temperature	-20~+85°C
Relative Humidity	5%-90%

RJ45PoE-Out Pin Define

Pin	Power	Data
1	None	Transmit Data +
2	None	Transmit Data -
3	None	Receive Data +
4	+ Vdc	Bi-directional Data +
5	+ Vdc	Bi-directional Data -
6	None	Receive Data -
7	- Vdc	Bi-directional Data +
8	- Vdc	Bi-directional Data -
