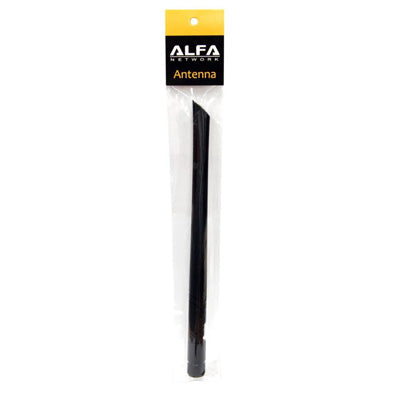

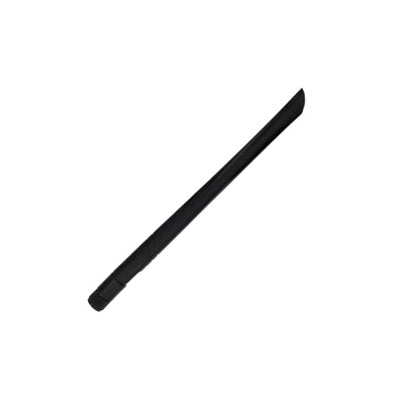

ARS-NT5B

ARS-NT5B

ARS-NT5B



Analyzer Test Report


Pattern Test Report

image2 image3

2D Drawing Dimension

image4 image5 image6 image7

Frequency 2400 ~ 2500MHz
VSWR ≦ 1.5:1 Max
Antenna Gain 5dBi ± 0.5dBi @ 2400 ~ 2500MHz
5dBi ± 0.5dBi @ 5150 ~ 5850MHz
Efficiency >81% @ 2400 ~ 2500MHz
>73% @ 5150 ~ 5850MHz
Polarization Linear
Impedance 50 Ohm
Connector RP-SMA male
Environmental Operation Temperature: -40 ˚C ~ +65 ˚C
Storage Temperature: -40 ˚C ~ +80 ˚C
