AWPCIE-AX200

AWPCIE-AX200

High-efficiency Intel AX200 mini PCIe WiFi6 and BT5 card


  1. Intel AX200 WiFi6 and BT5 module
  2. half-size mini PCIe form factor
  3. PCIe x1 (WiFi) and USB 2.0 (BT) interfaces
  4. 2× IPEX4 (MHF4) antenna connectors (IPEX4 to IPEX pigtails sold separately)

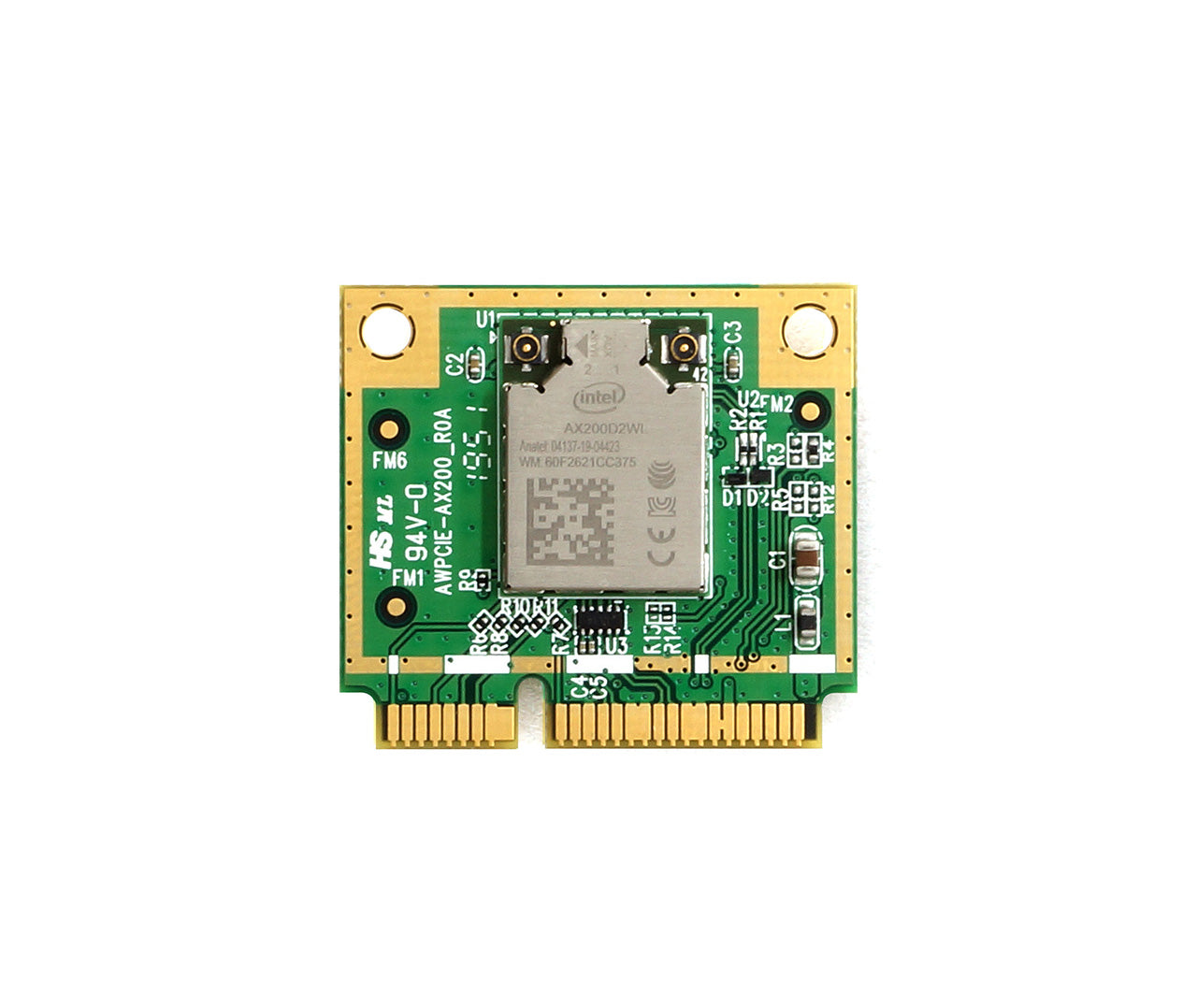

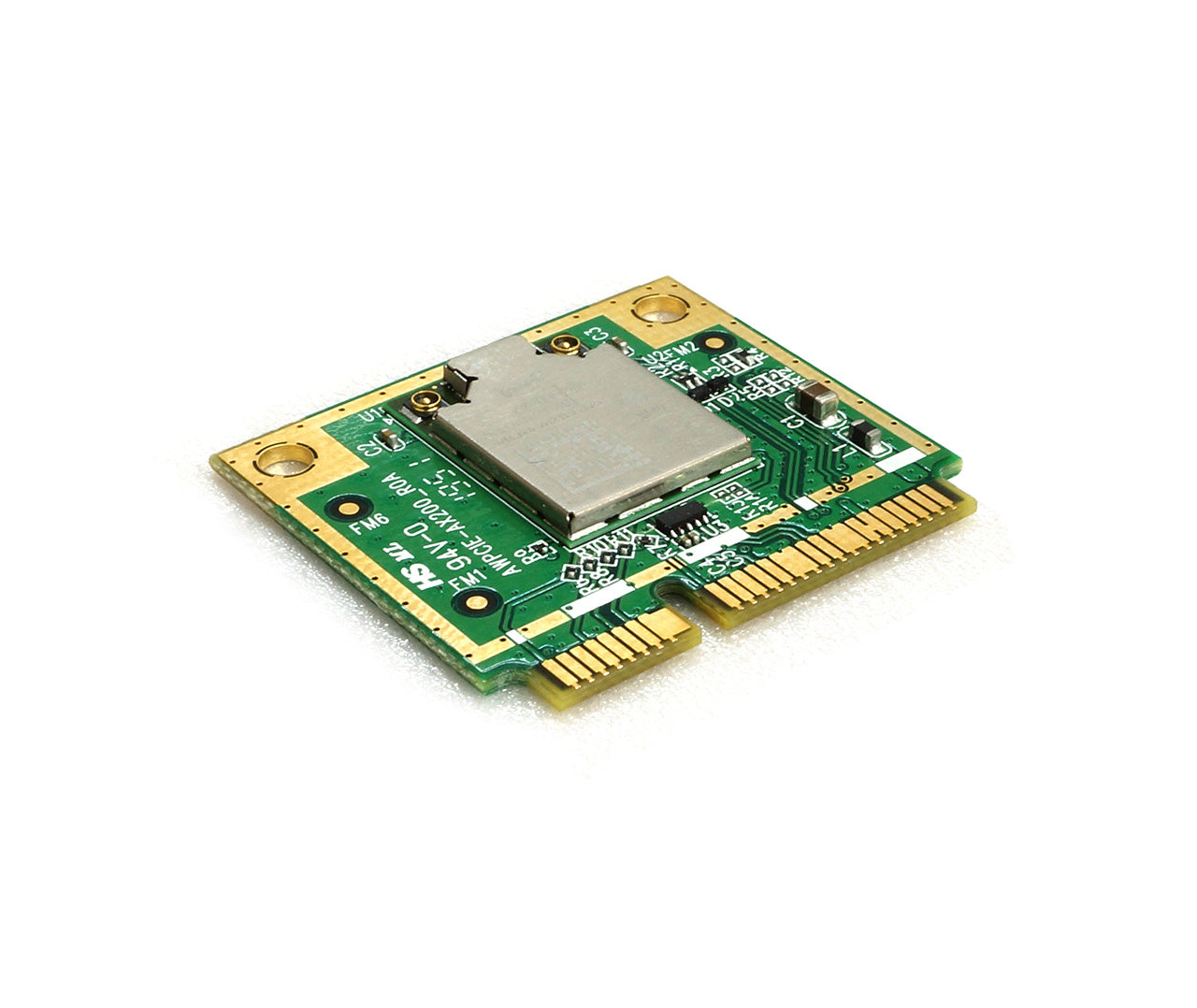

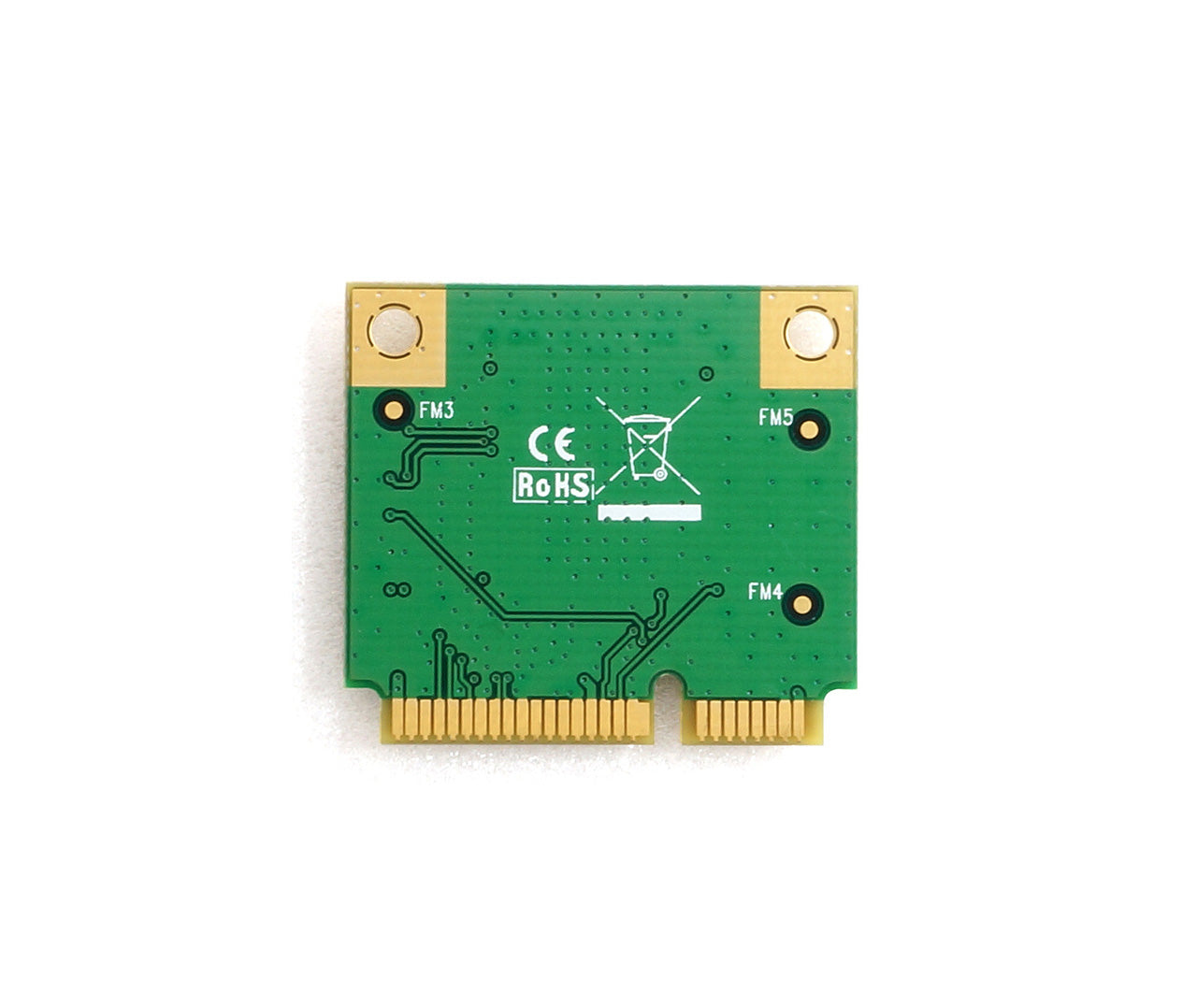

AWPCIE-AX200 is a half-size mini PCIe WiFi6 (802.11ax) card, based on high-efficiency Intel AX200

AWPCIE-AX200 supports the latest WiFi6 (IEEE 802.11ax) with special features like OFDMA, 1024QAM and MU-MIMO. Module includes also Bluetooth 5.0 radio, is backward compatible (IEEE 802.11a/b/g/n/ac) and operates in 2.4 and 5 GHz bands.

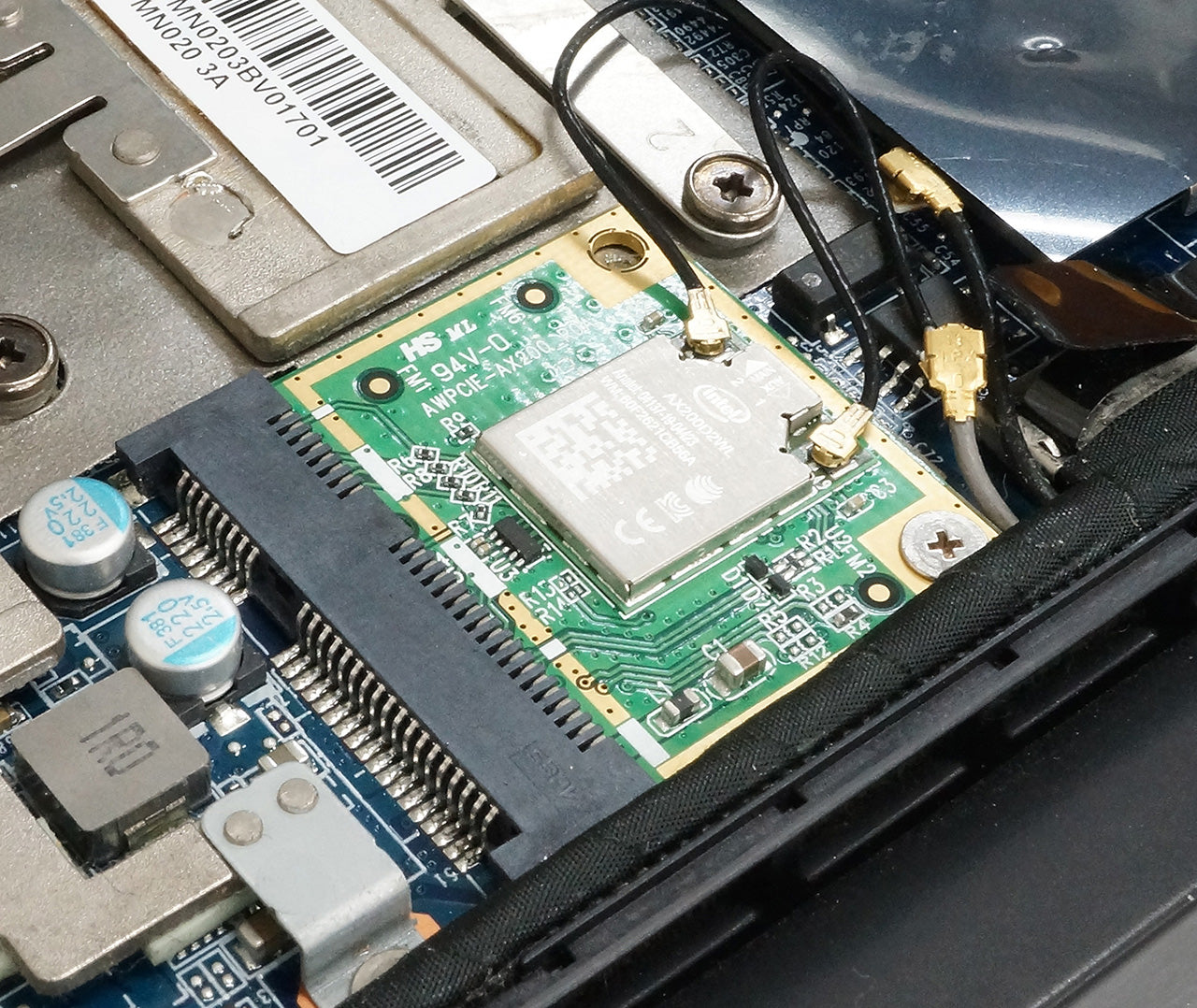

Thanks to its mini PCIe form factor (half-size) and optional IPEX4 to IPEX pigtails, owners of legacy products can use the latest wireless technologies with a maximum 2.4 Gbps data rate.

Wide support in modern operating systems (Microsoft Windows 10, Linux, Chrome OS) helps with seamless module integration.

Parameter Value
Intel product code AX200D2WL (Intel AX200 Cyclone Peak 2 series)
IEEE 802.11 standards a/b/g/n/ac/ax
Special features OFDMA, 1024QAM, MU-MIMO, TPC/DFS, TWT
Frequency 2.4 GHz
5 GHz
Data rate 2.4 Gbps
Bluetooth 5.0
Antenna connectors 2× IPEX4 (MHF4)
Interface PCIe x1 (WiFi)
USB 2.0 (Bluetooth)
Operating systems Microsoft Windows 10
Linux
Chrome OS
Form factor half-size mini PCIe
Dimensions 30 × 26.8 × 2.75 mm
