USB Wi-Fi Module / Board

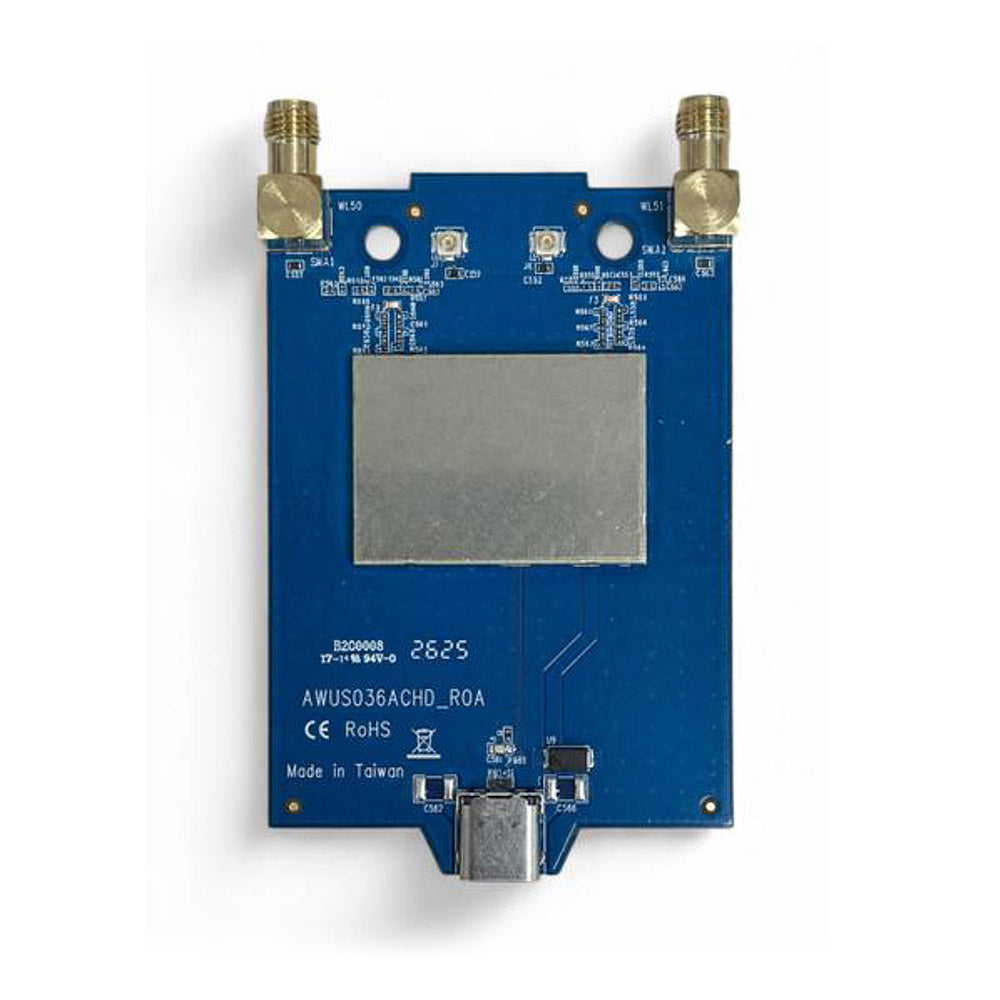

AWUS036ACHD PCBA

AWUS036ACHD PCBA is a compact dual-band wireless adapter board powered by the Realtek RTL8812EU. It combines high-power 5 GHz performance for robust long-distance links with normal-power 2.4 GHz connectivity for broad device compatibility. The board is desi...

Chipset
RTL8812EU
Wireless Standards
IEEE 802.11a/b/g/n/ac, 2x2 MIMO
Frequency Band
2.412 ~ 2.472 GHz and 5.150 ~ 5.825 GHz(subject to regional regulatory domain)
Channel Bandwidth
2.4 GHz: 20/40 MHz 5 GHz:10/20/40/80 MHz
Product details

Overview

AWUS036ACHD PCBA

AWUS036ACHD PCBA is a compact dual-band wireless adapter board powered by the Realtek RTL8812EU. It combines high-power 5 GHz performance for robust long-distance links with normal-power 2.4 GHz connectivity for broad device compatibility. The board is designed for embedded Linux platforms that need dependable 2 x 2 MIMO wireless connectivity through a standard USB interface.

Key point

AWUS036ACHD PCBA

  1. Chipset: RTL8812EU
  2. RF Connector:
    2x RP-SMA fmale or
    2x IPEX
  3. Host Interface:
  4. USB Type-C Receptacle
Technical details

Specifications

AWUS036ACHD PCBA

Chipset

RTL8812EU

Wireless Standards

IEEE 802.11a/b/g/n/ac, 2x2 MIMO

Frequency Band

2.412 ~ 2.472 GHz and 5.150 ~ 5.825 GHz
(subject to regional regulatory domain)

Channel Bandwidth

2.4 GHz: 20/40 MHz

5 GHz:10/20/40/80 MHz

Data Rate

2.4 GHz: 300 Mbps

5 GHz: 866.7 Mbps

Antenna Interface

2x RP-SMA female or 2x IPEX connectors (optional)

Host Interface

USB 2.0 through USB-C

Power Supply

5 VDC through USB-C

Operating System

Linux

RF Specifications

2.4 GHz

Data Rate

TX Power

Sensitivity

Data Rate

TX Power

Sensitivity

Date Rate

TX Power

Sensitivity

1

21

-100

18

19

-87

MCS 2

20

-90

2

21

-98

24

19

-85

MCS 3

19

-87

5.5

21

-94

36

19

-83

MCS 4

19

-84

11

21

-91

48

18

-81

MCS 5

19

-81

6

20

-96

54

18

-79

MCS 6

18

-79

9

20

-93

HT MCS 0

20

-96

MCS 7

18

-77

12

20

-90

HT MCS 1

20

-93

5 GHz

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

6

25.5

-95

24

23.5

-86

9

24.5

-93

36

22.5

-84

12

24.5

-92

48

22.5

-82

18

23.5

-88

54

21.5

-80

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

Data Rate

(Mbps)

TX Power

(per chain dBm)

Sensitivity

dBm

VHT20-MCS0

25.5

-95

VHT40-MCS0

25.5

-92

VHT20-MCS1

24.5

-93

VHT40-MCS1

24.5

-89

VHT20-MCS2

24.5

-90

VHT40-MCS2

24.5

-86

VHT20-MCS3

23.5

-87

VHT40-MCS3

23.5

-83

VHT20-MCS4

23.5

-84

VHT40-MCS4

23.5

-80

VHT20-MCS5

22.5

-81

VHT40-MCS5

22.5

-78

VHT20-MCS6

22.5

-79

VHT40-MCS6

21.5

-76

VHT20-MCS7

21.5

-77

VHT40-MCS7

20.5

-74

VHT20-MCS8

20.5

-74

VHT40-MCS8

19.5

-70

VHT40-MCS9

18.5

-67
