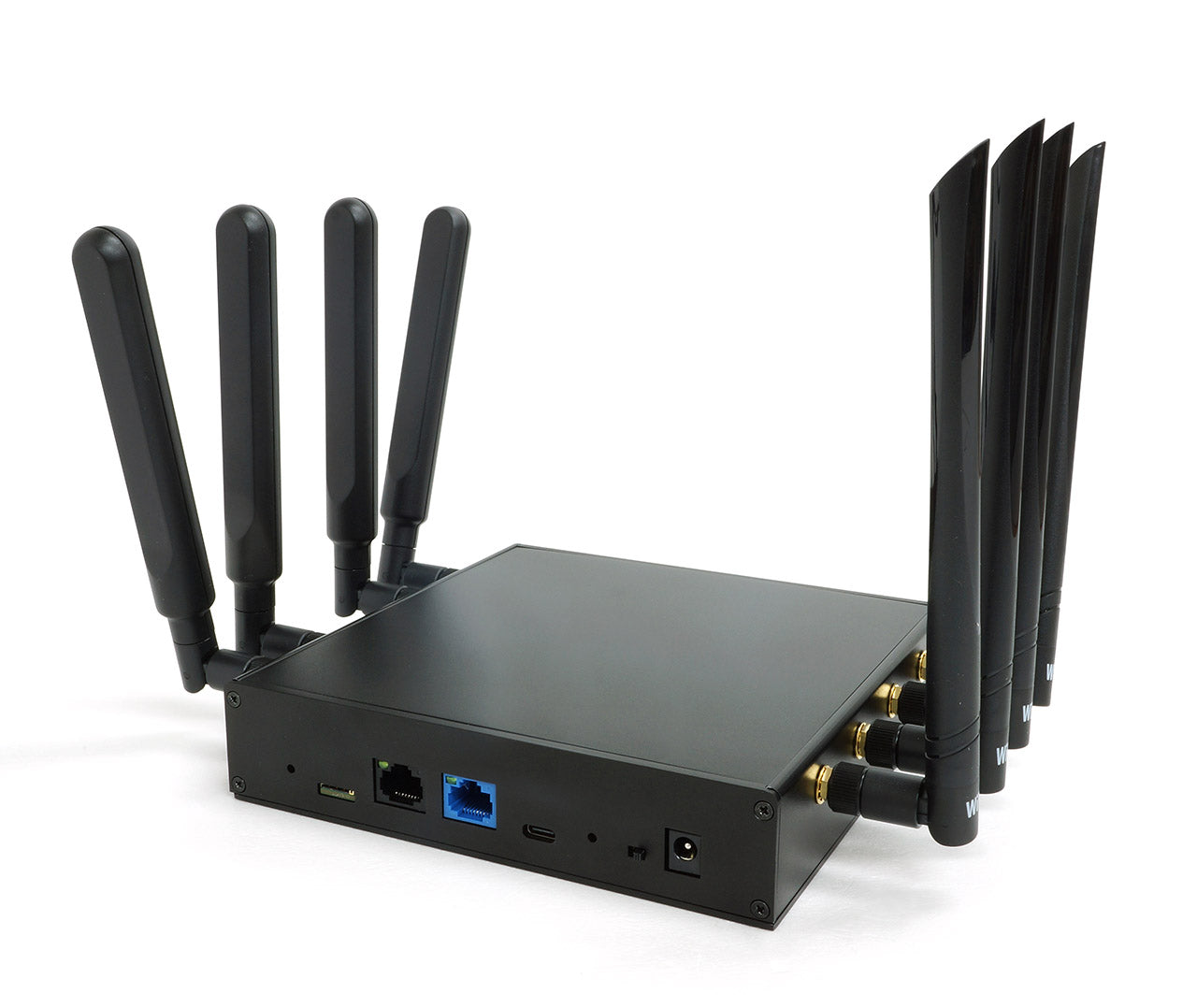

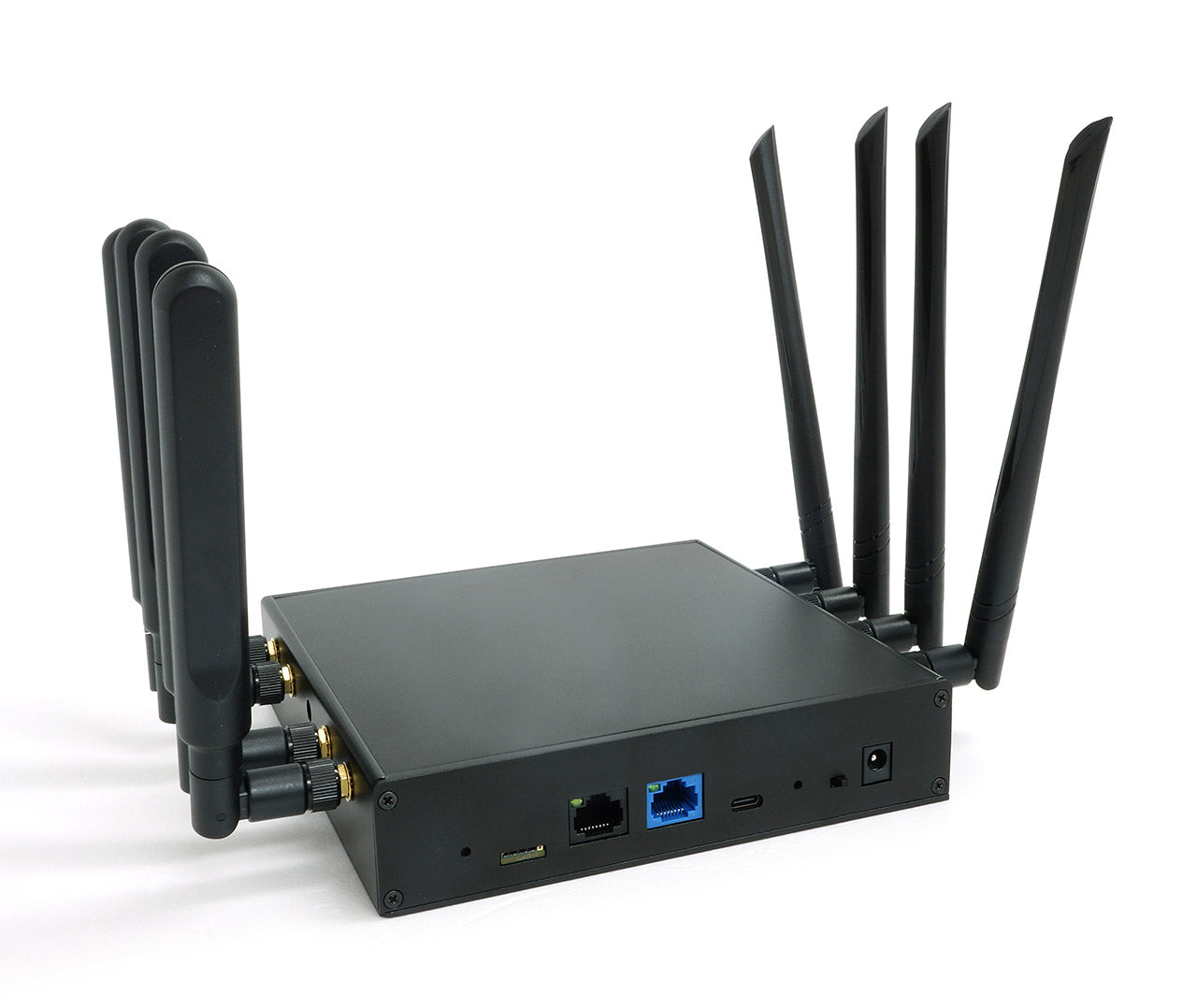

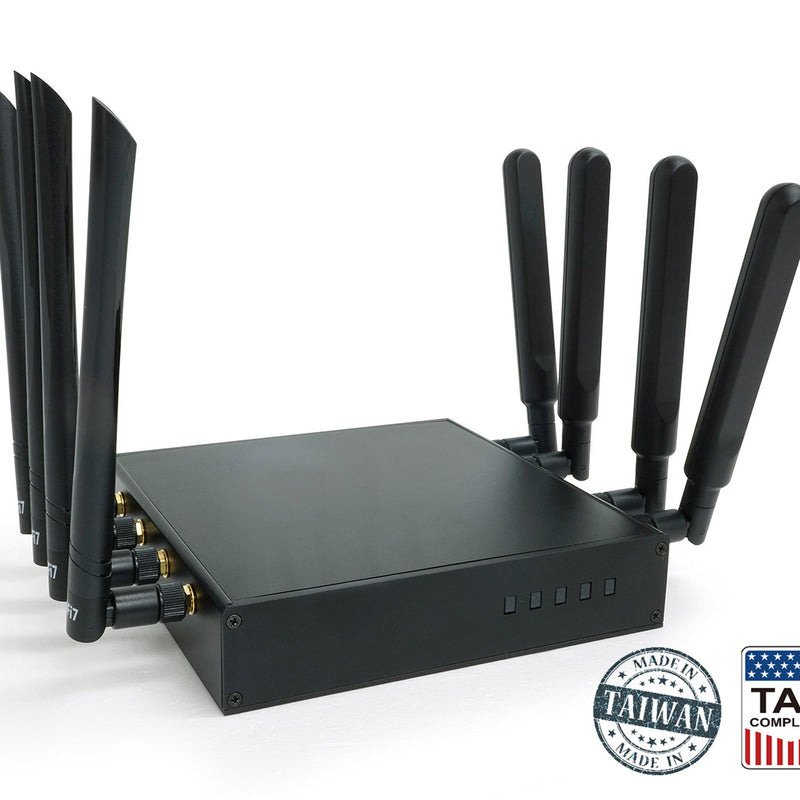

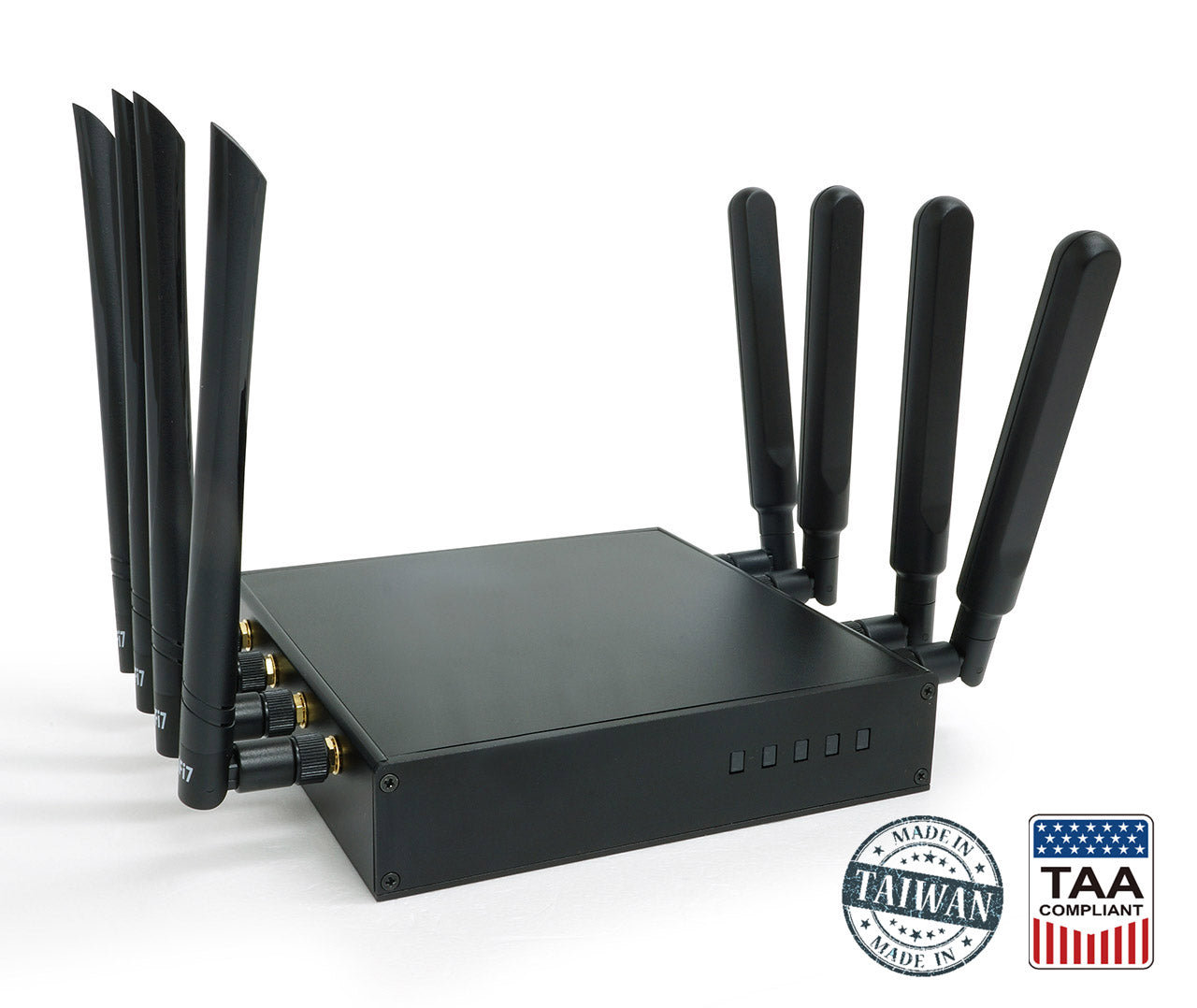

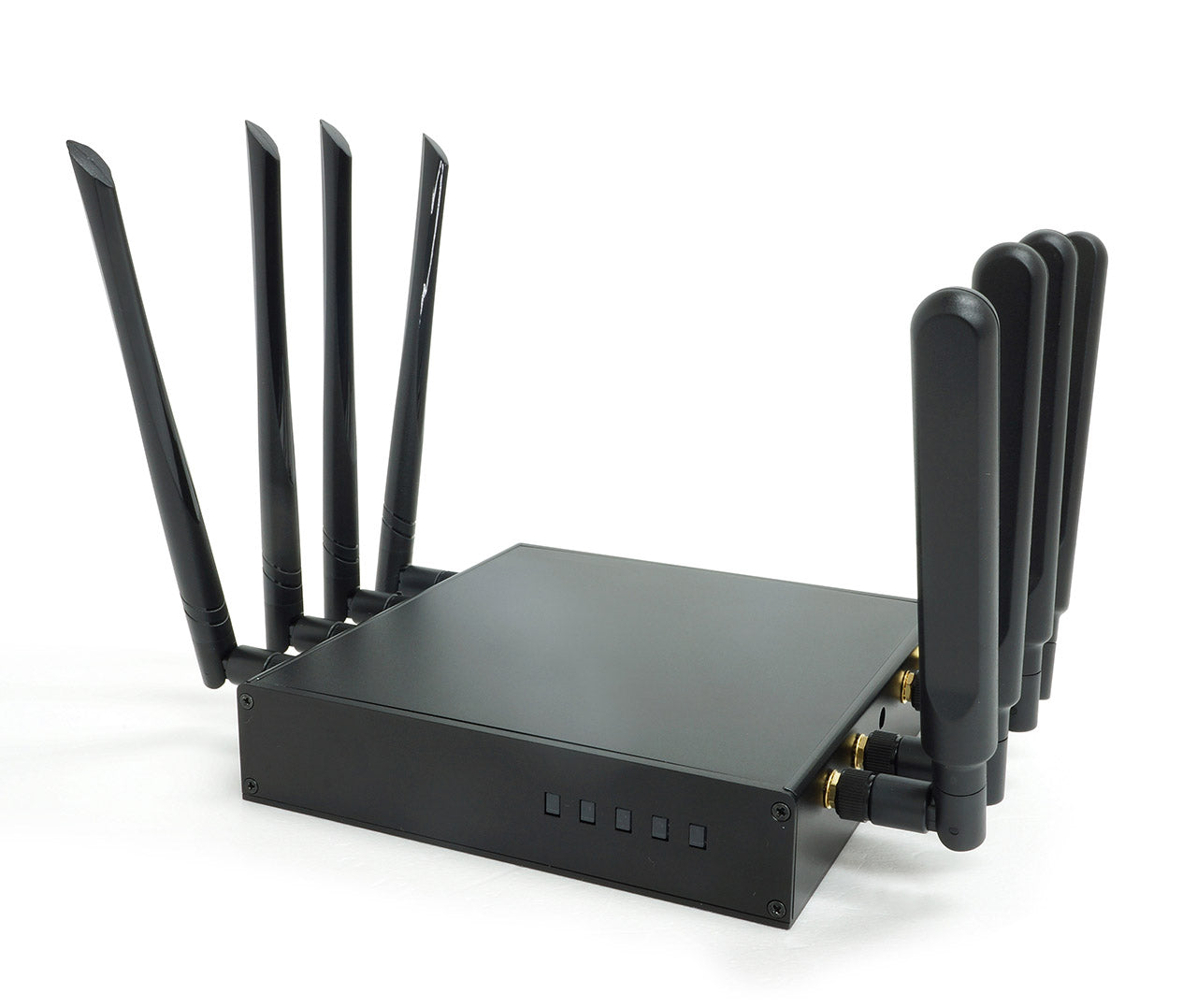

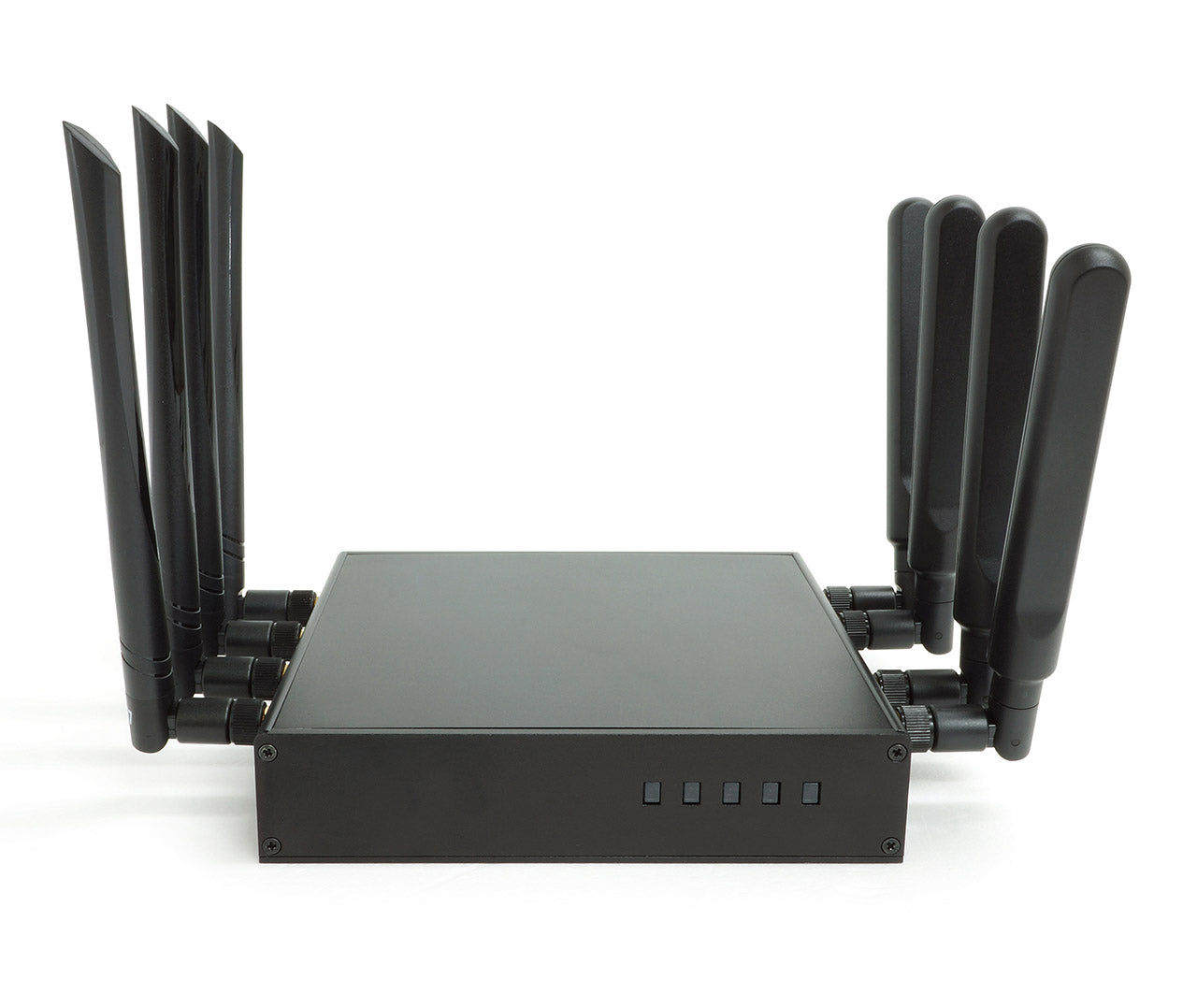

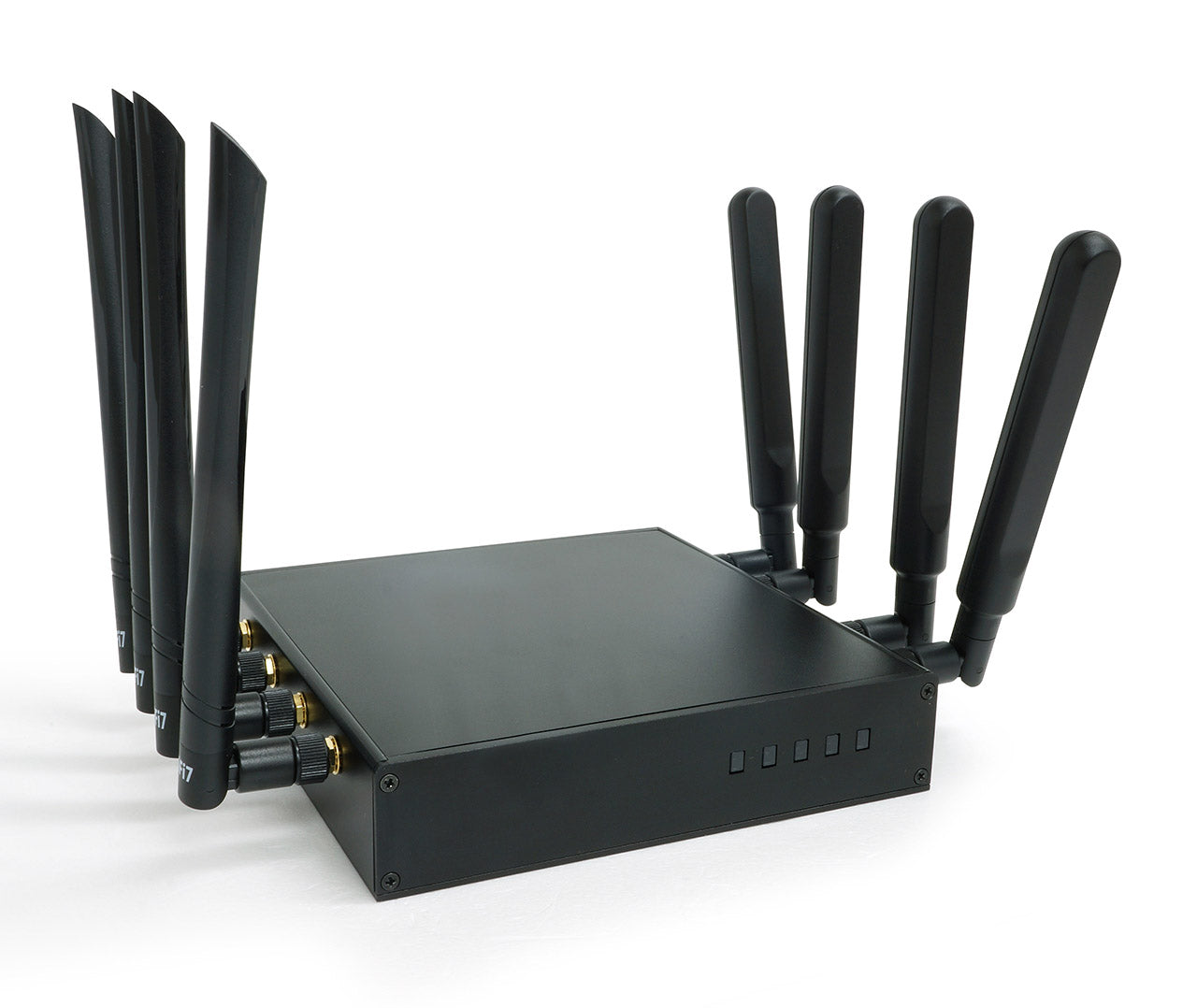

AX5GRM Metal

Chipset

MT6890 SoC: Arm Cortex-A55 2 GHz quad-core + 5G NR

Wi-Fi 6: MT7915 + MT7975

Flash

32 Gb eMMC

RAM

8 Gb DDR4

Antenna Connector

4x SMA for 5GNR

4x RP-SMA for Wi-Fi 6

Antenna Gain

5G NR: 617 – 960 MHz: 2 dBi

             1427 – 2690 MHz: 5 dBi

             3300 – 5850 MHz: 4 dBi

WiFi: 2.4 GHz: 4 dBi

          5 GHz: 4 dBi

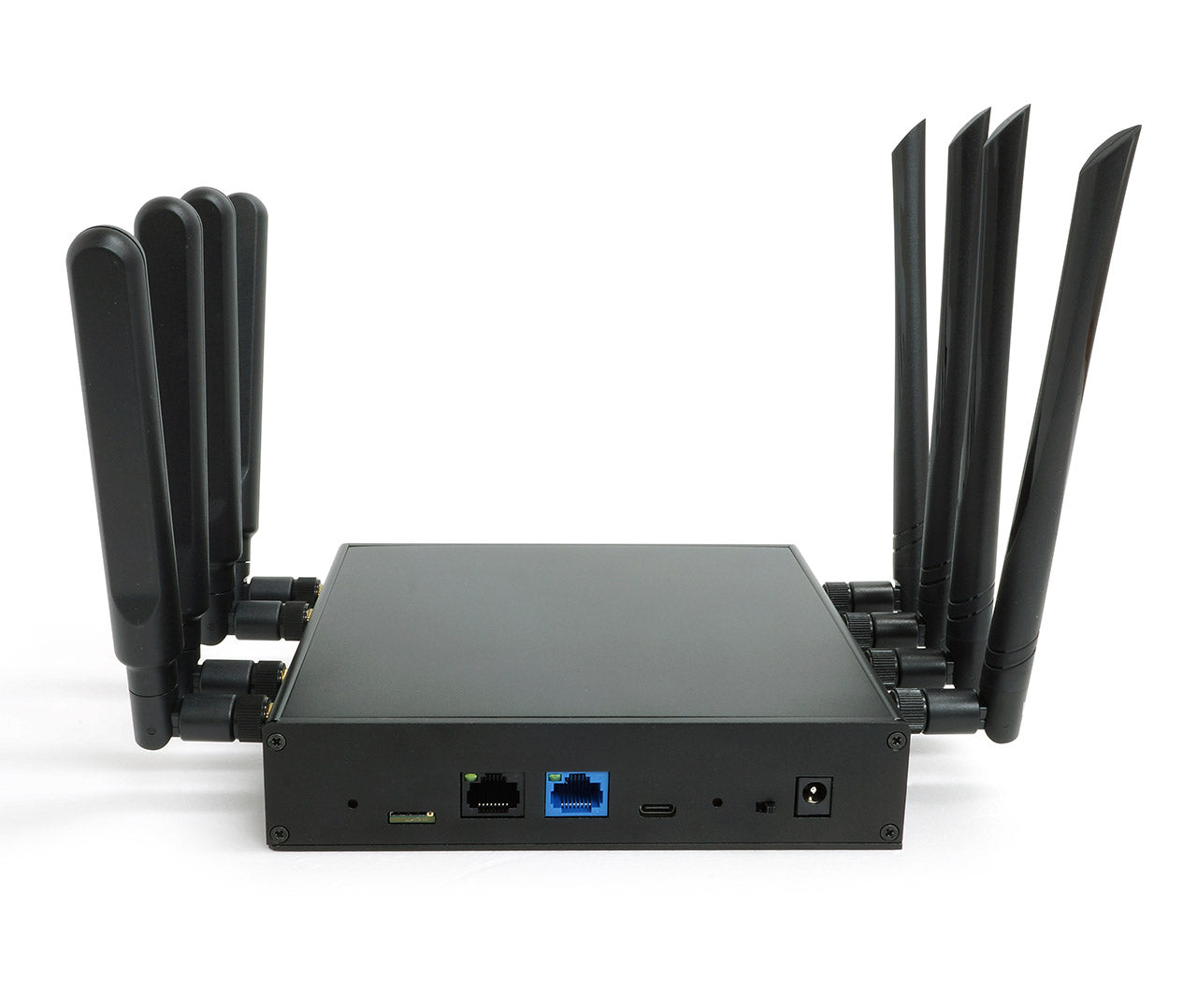

Interface

1x Nano SIM slot

1x 2.5 Gbps RJ45 PoE In (Blue)

1x 1 Gbps RJ45 (Black)

1x DC jack (Ø2.1 x Ø5.5)

1x Power on/off switch

1x WPS button

1x Reset button

LED

2x RGBW LED

3x Blue LED

Input Voltage

DC: 12V, 2A

PoE: IEEE 802.3at PD 25.5 W

Power Consumption

Max. 24 W

Dimensions

165 x 166 x 37 mm (6.5 x 6.5 x 1.5 inch)

Operating Temperature

-20° C ~ 75° C ( -4° F ~ 167° F )

Operating Humidity

10% ~ 90% (non-Condensing)

ESD

Refers to IEC 61000-4-2 criterion A

Air Electrostatic Discharge: ± 8KV

Contact Electrostatic Discharge: ± 4KV

Surge

Refers to IEC 61000-4-5 criterion A

Common mode surge immunity: ± 6KV

Differential mode surge immunity: ± 6KV

5G NR

Supports most main features in 3GPP Release 15

3GPP EN-DC option 3/3A/3X

3GPP SA option 2

Support downlink/uplink 256 QAM

Support downlink 4x4 MIMO and uplink 2x2 MIMO

5G NR Bands

N1/n2/n3/n5/n7/n8/n20/n28/n30/n38/n40/

n41/n66/n71/ n77/n78/n79

LTE-FDD Bands

B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/

B19/B20/B25/B26/B28/B29/B30/B32/B66

LTE-TDD Bands

B34/B38/B39/B40/B41/B42/B46/B48

WCDMA

B1/B2/B4/B5/B6/B11

GNSS

GPS/Glonass/Beidou/Galileo

Data Rate

Peak download speed: 4.09 Gbps

Peak upload speed: 978 Mbps

Standard

IEEE 802.11 a/b/g/n/ac/ax (W-Fi 6)

Frequency

2401 - 2483 MHz

5150 - 5835 MHz

Data Rate

2.4 GHz: 574 Mbps

5 GHz: 1201 Mbps

TX Power

2.4 GHz: 21 dBm

5GHz: 21 dBm

RX Sensitivity

2.4 GHz: -96 dBm

5 GHz: -80 dBm

Security

WEP, WPA, WPA2, WPA3

Advanced Feature

MU-MIMO, Beamforming, OFDMA
