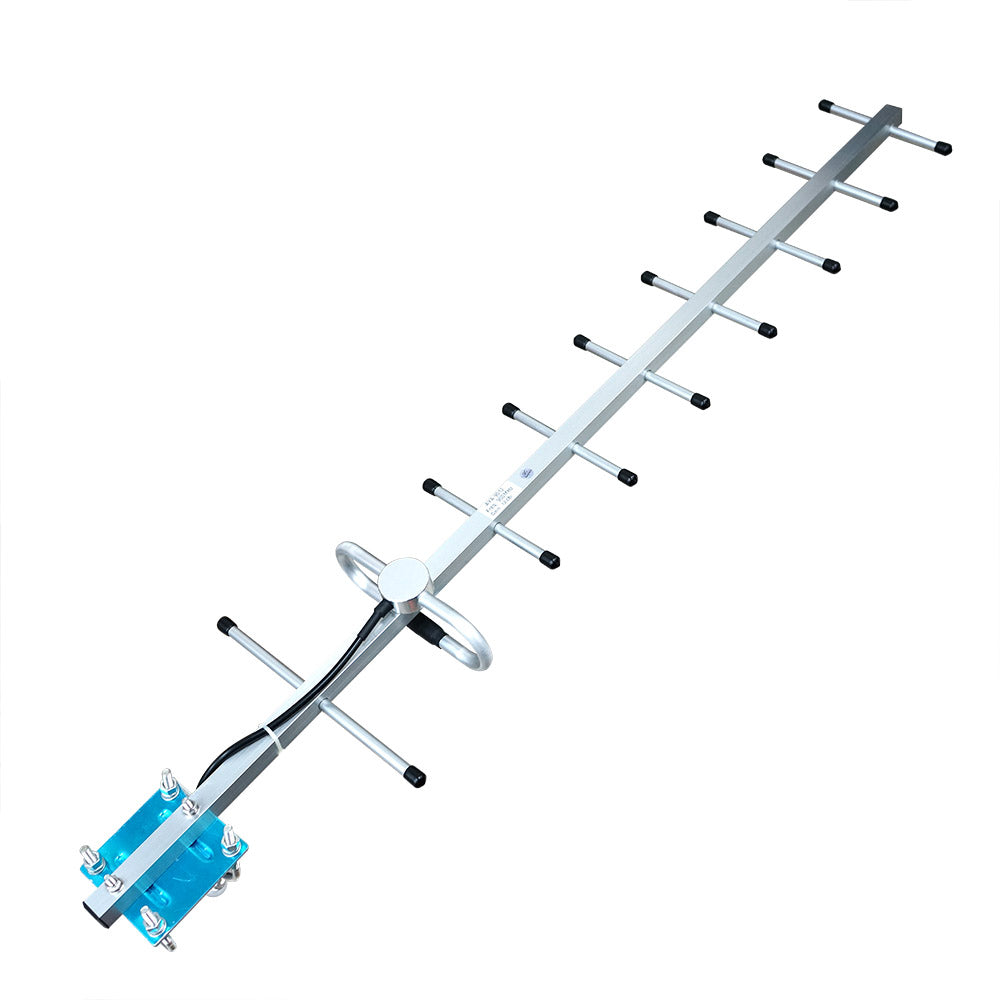

AYA-9012

AYA-9012

AYA-9012

Superior Performance
All Weather Operation
Can be installed polarization either
vertical or horizontal

Applications

900MHz ISM Band

Long-Range Direction Applications Point to Point Point to Multi-Point
Non Line of Sight ( NLOS )
GSM
RFID
SCADA
Wireless Video Links
900MHz Cellular

Pattern

Install Diagram

Model	AYA-9012
Frequency Range	824~960MHz
Gain	12dBi
VSWR	≤ 1.5
Horizontal Beamwidth	36°
Vertical Beamwidth	32°
Impedance	50Ω
Maximum Input Power	50W
Connector	N Female
Wind Survival	135 MPH
Dimension	1100 x 180 mm
Mounting Mast Diameter	30⌀ ~50⌀
Weight	1.4kg
Operating Temperature	40°C~80°C
