ALFA Network
Wi-Fi Router Board

CampPro4R PCBA

MediaTekWiFi 6 Router Board

SOC
MediaTek MT7981BA with 1.3 GHz dual-core ARMA53
RAM
256 MB of DDR3L
Flash
16 MB of SPI NOR flash 128 MB of NAND flash
WiFi standards & Data rates
802.11b/g/n/ax 2T2R 2.4 GHz (up to 574 Mbps) 802.11a/n/ac/ax 3T3R 5 GHz (up to 2402 Mbps)
Product details

Overview

CampPro4R PCBA

MediaTek
WiFi 6 Router Board

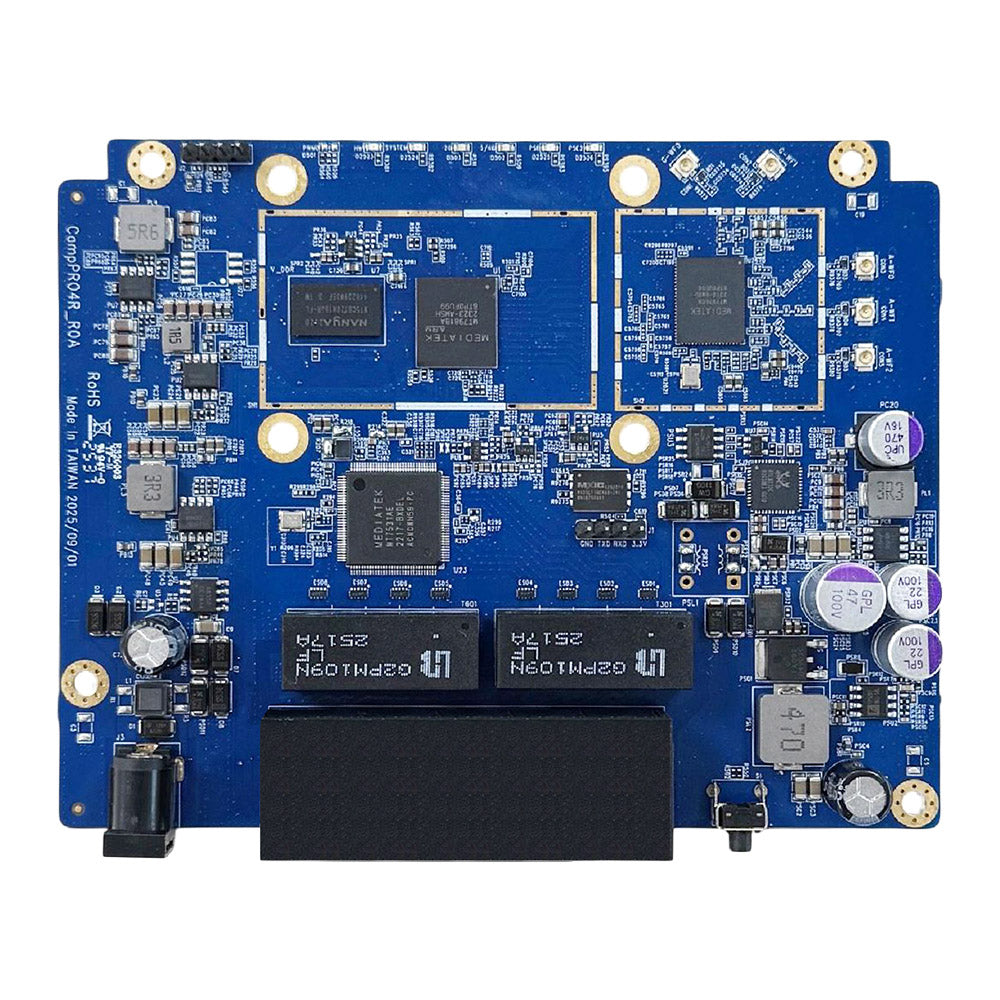

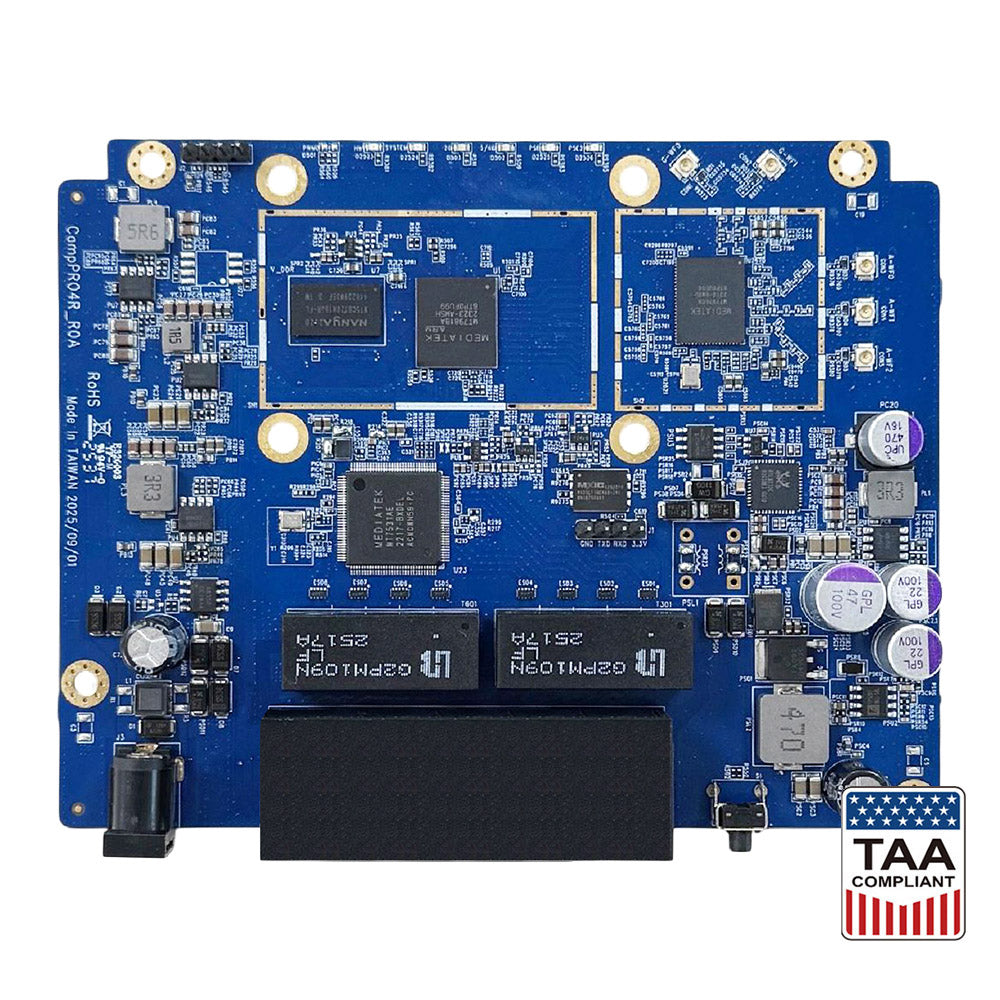

Key features

CampPro4R PCBA

  1. MT7981BA dual-core Arm Cortex-AX53 @1.3GHz processor
  2. MT7976CN 2.4 GHz + 5 GHz WLAN
  3. 5 GHz 3x3 MIMO IPEX connectors
  4. 2.4 GHz 2x2 MIMO IPEX connectors
  5. MT7531AE Gigabit switch IC
  6. 3x Gigabit LAN
  7. 1x Gigabit WAN (PoE out)
  8. Reset button
  9. DC Jack (2.1/5.5)
  10. LED Indicator
Technical details

Specifications

CampPro4R PCBA

SOC

MediaTek MT7981BA with 1.3 GHz dual-core ARMA53

RAM

256 MB of DDR3L

Flash

16 MB of SPI NOR flash

128 MB of NAND flash

WiFi standards & Data rates

802.11b/g/n/ax 2T2R 2.4 GHz (up to 574 Mbps)

802.11a/n/ac/ax 3T3R 5 GHz (up to 2402 Mbps)

Interface

3x Gigabit Ethernet (RJ-45) LAN port

1x Gigabit Ethernet (RJ-45) WAN port with IEEE802.3af PoE Out

Frequency range

2.400 – 2.483 GHz

5.150 – 5.850 GHz

TX output power

2.4 GHz up to 20 dBm per chain

5 GHz up to 20 dBm per chain

RX sensitivity

2.4 GHz up to -92 dBm per chain

5 GHz up to -89 dBm per chain

Antenna

2x IPEX 2.4 GHz

3x IPEX 5 GHz

Button

1× Push-button (reset)

LED

6x LEDs

Power supply requirement

DC jack for 12 V DC / 2.5A input

802.3af PoE output

Power consumption 13W max.

13W max.

Operating temperature

-20°C (-4°F) ~ 60°C (140°F)

Operating humidity

5% ~ 95% non-condensing

Dimensions

100 x 103 x 16.5 mm
