WiFi_CampPro_3

Universal and easy to use dual-band WiFi range extender kit for your RV and boat

Outdoor unit with WiFi5 (802.11ac) support (Tube-UAC2)
Support for dual-band (2.4 and 5 GHz) WiFi hotspots
High-gain omni-directional antenna for Tube-UAC2
Indoor unit with WiFi4 (802.11n) support (R36AH)
Wall socket and car power adapters in bundle
Up to 8 m distance between units (USB cable)
QR code based, intuitive device configuration

Description

WiFi CampPro 3 is our upgraded system designed for retrieving and extending Internet access in RV or yacht from remote WiFi hotspots

Thanks to upgraded version of the outdoor unit (Tube-UAC2), the WiFi CampPro 3 is now capable of connecting to dual-band WiFi5 (2.4 or 5 GHz, a/b/g/n/ac standards) hotspots.

With detailed printed instructions, easy to use QR code based setup, this kit can be quickly setup even by inexperienced users.

If you need to boost a 2.4 or 5 GHz WiFi signal to multiple devices at once in your RV or boat, the WiFi CampPro 3 is the perfect choice!

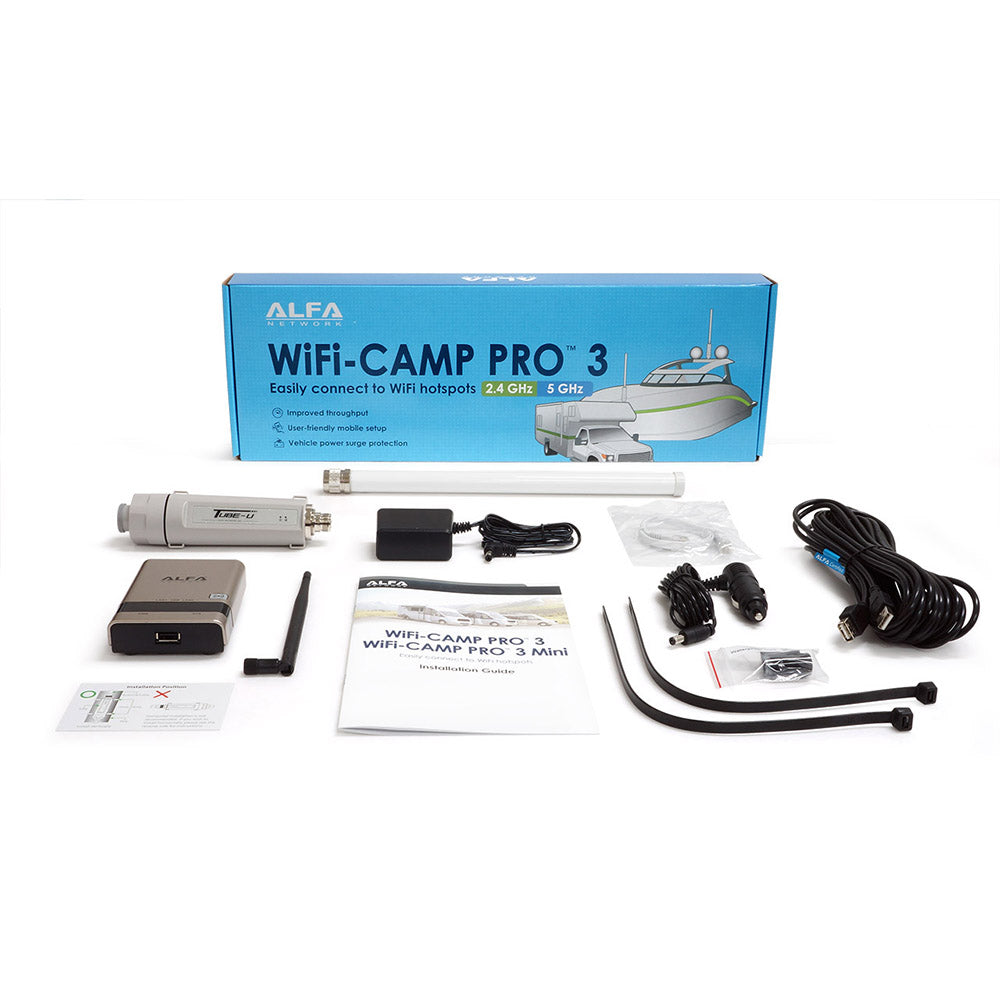

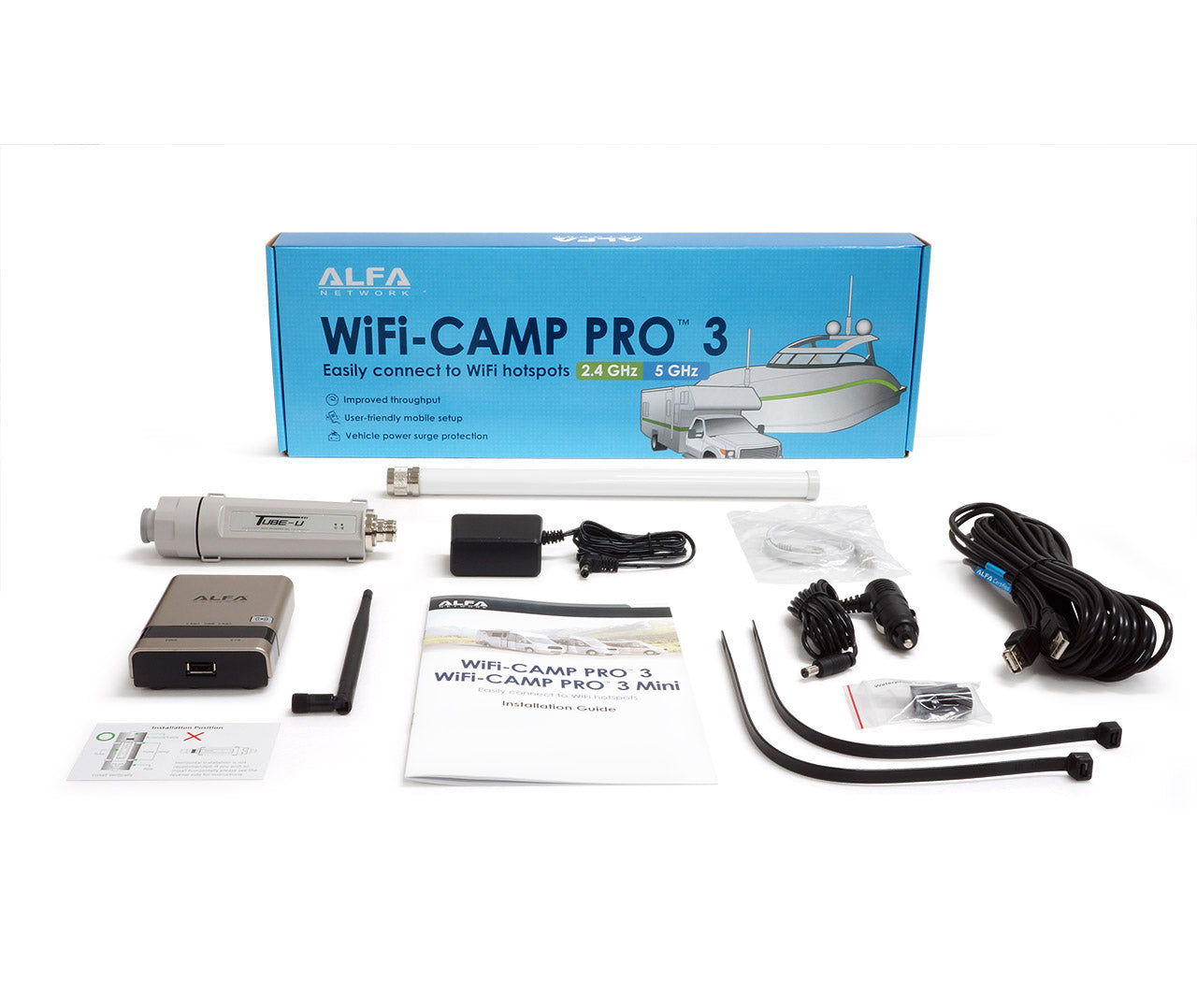

Indoor unit (R36AH) with external antenna

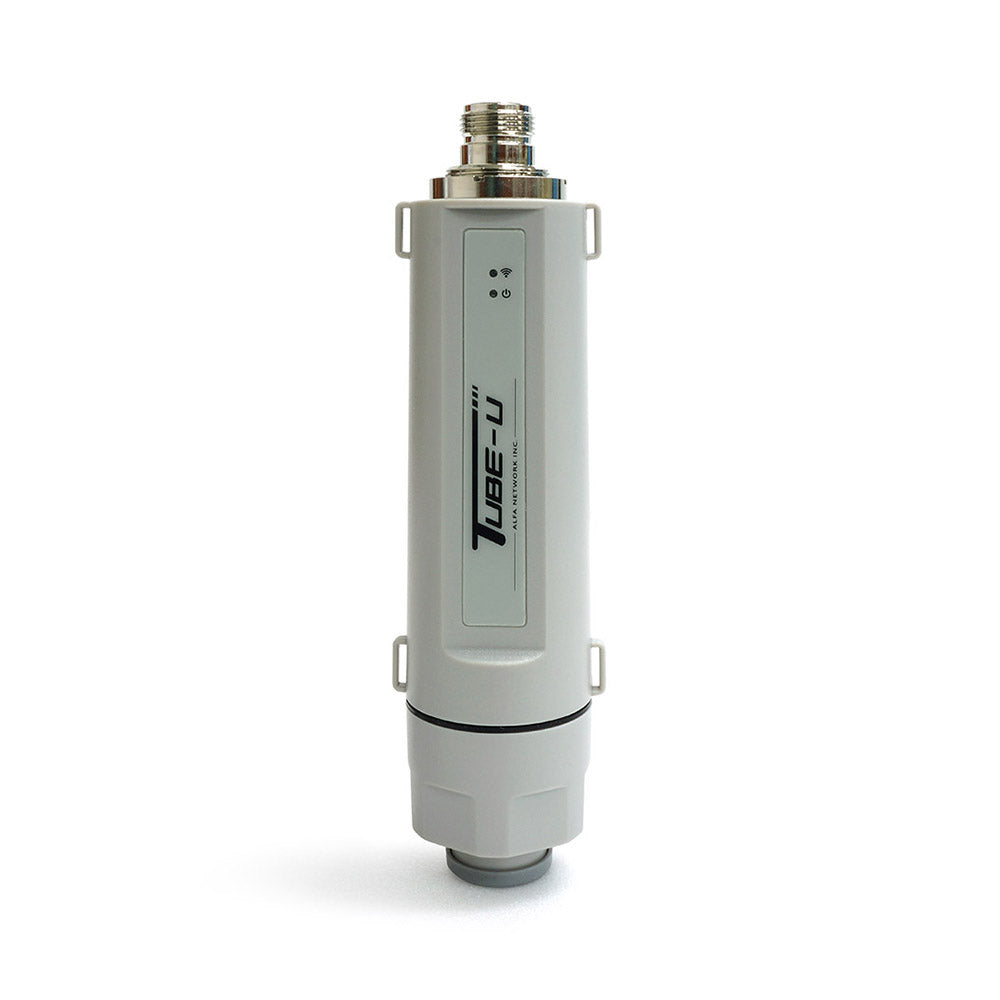

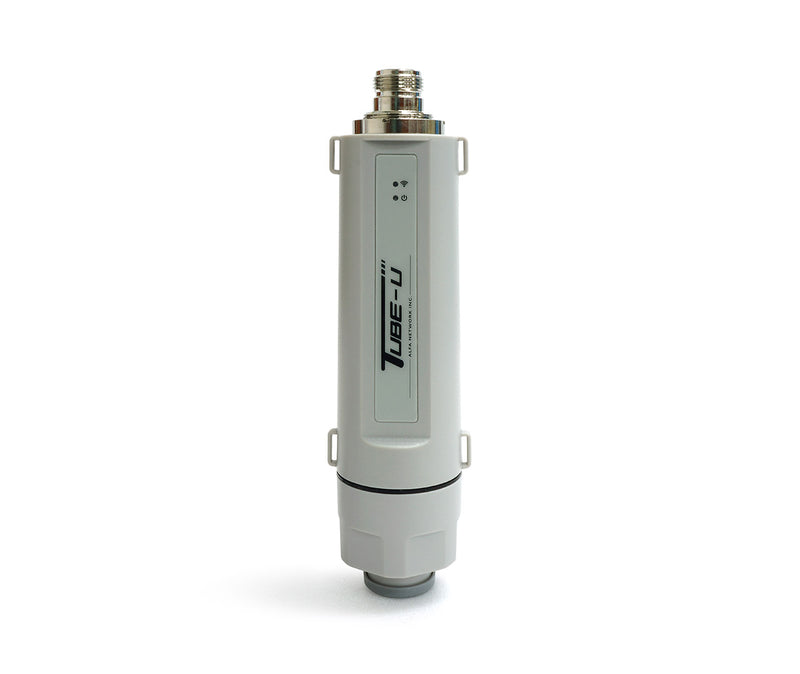

Outdoor unit (Tube-UAC2)
Antenna for outdoor unit (AOA-2458-79AM)
USB 2.0 cable (8 m length)
Wall socket and car power adapters
Installation accessories
RJ45 Ethernet patch cord
Printed installation guide

WiFi CampPro 3 LED Guide

	Power on	Amber
	No function in CampPro 3. LED will blink if Tube-UAC2 is connected to PC directly and connected to WiFi AP and transmitting data.	Yellow

LED Label	Function Definition	LED Color
PWR	Power on	Blue
LAN1	Ethernet cable connected to LAN 1	Blue
USB	Connected to Tube-UAC2	Blue
LAN2	Ethernet cable connected to LAN 2	Blue
SYS	System reset / restart	Blue
WiFi icon button	WiFi enabled: On WiFi disabled: Off WiFi connected: Blinking	Blue

Specifications

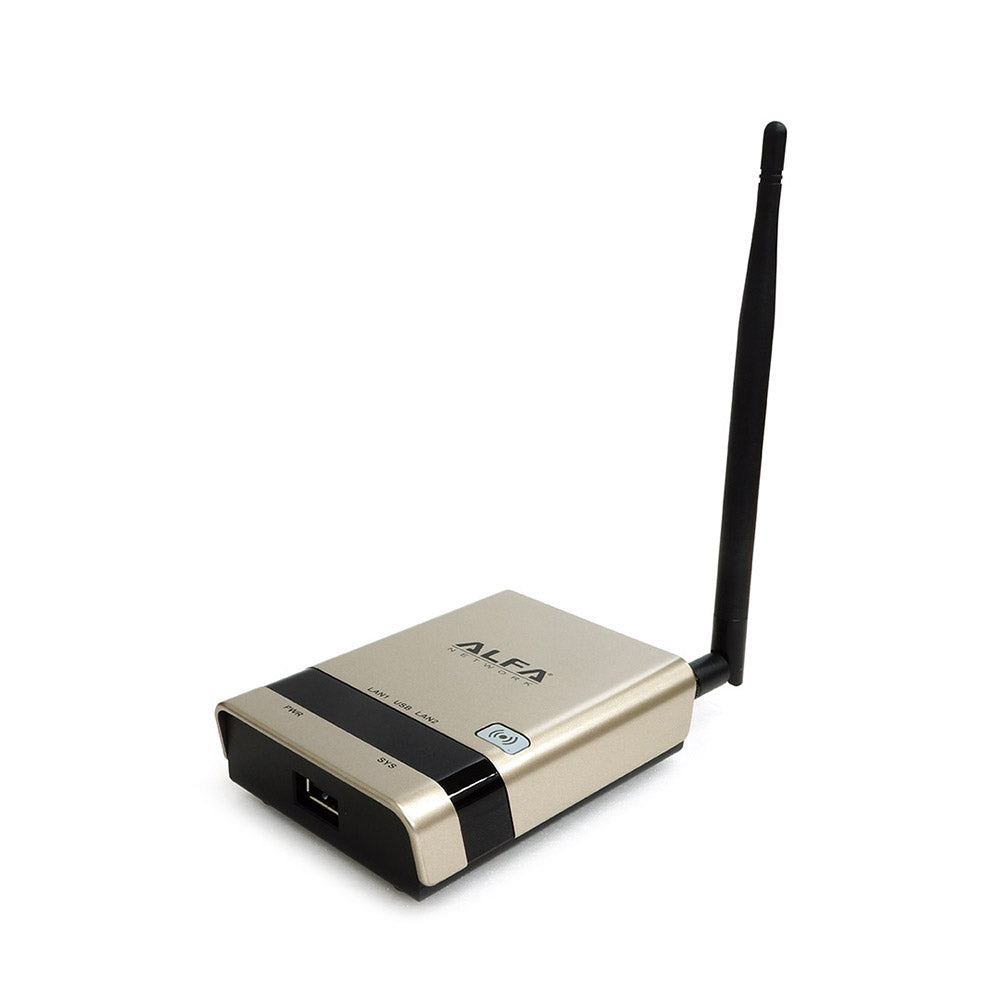

R36AH (indoor unit)

Chipset	Qualcomm™ QCA9531
RAM, flash	128 MB of DDR2, 16 MB of SPI NOR flash
IEEE 802.11 WiFi standards	b/g/n (2.4 GHz)
Data rate	300 Mbps
USB	1× USB 2.0 Type-A
Ethernet	2× Fast Ethernet with ESD protection
Button, LED	2× push-button, 6× LED
