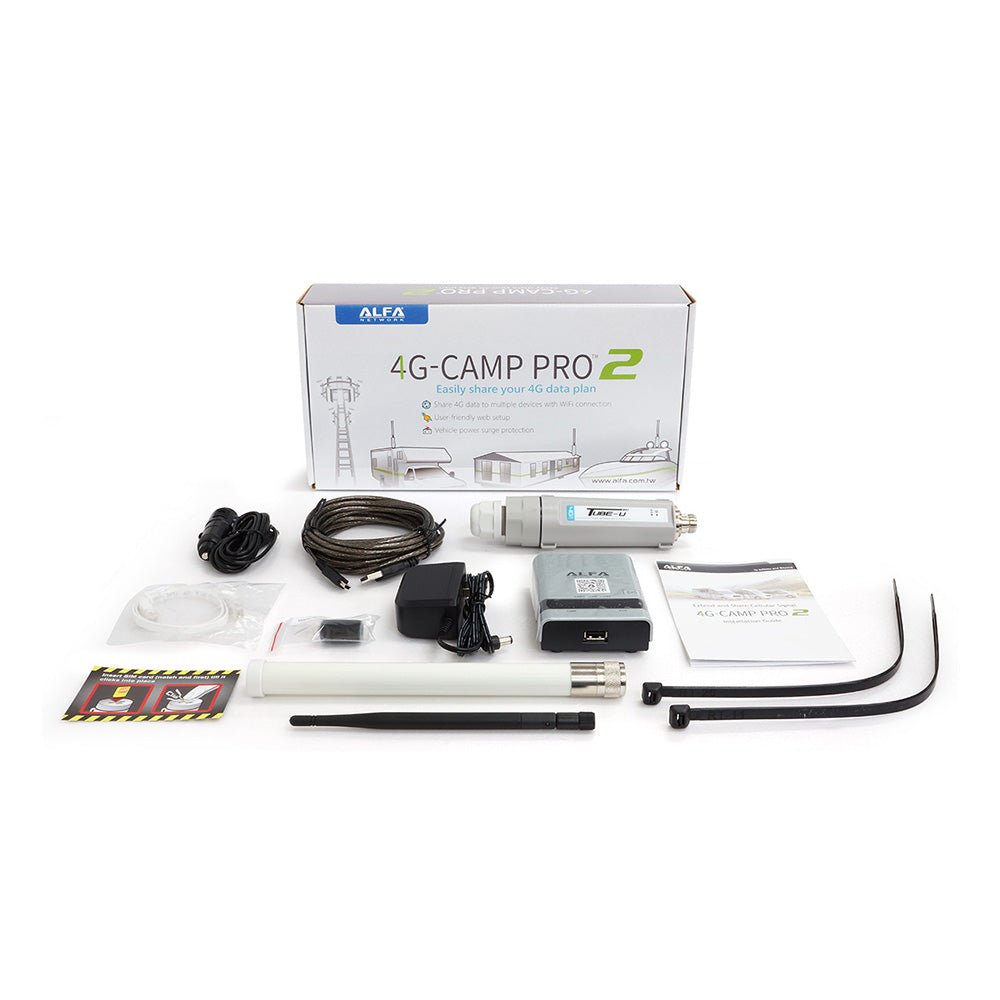

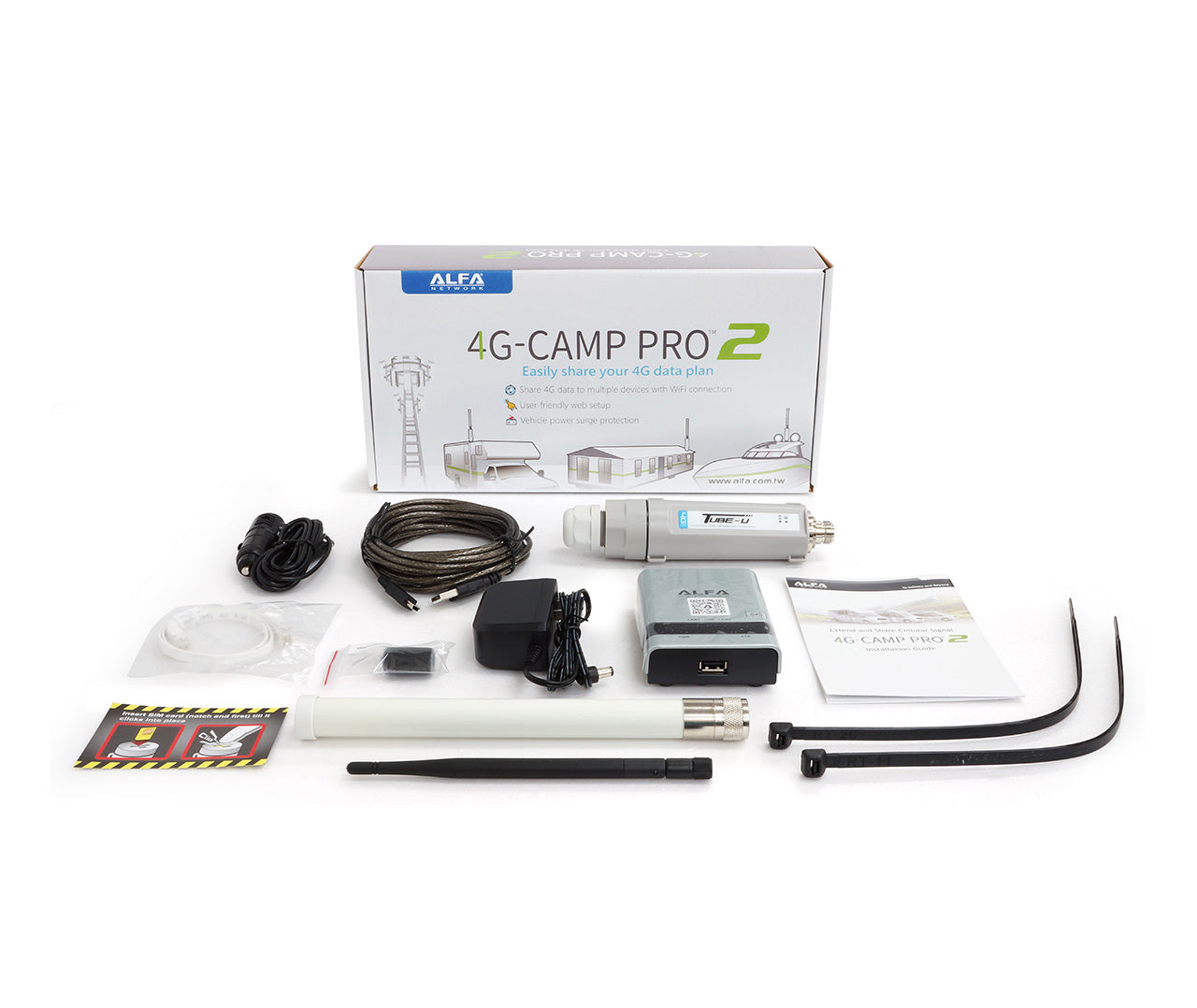

4G CampPro 2


  • Share 4G data to multi devices through WiFi
  • Friendly setup
  • Vehicle power surge protection
  • Solution for boat, RV and mobile house

4G CampPro 2 is the Global carrier version. It links to global 4G/LTE service for reliable, uninterrupted, in-motion and wide coverage for RV travellers, marine Internet access.

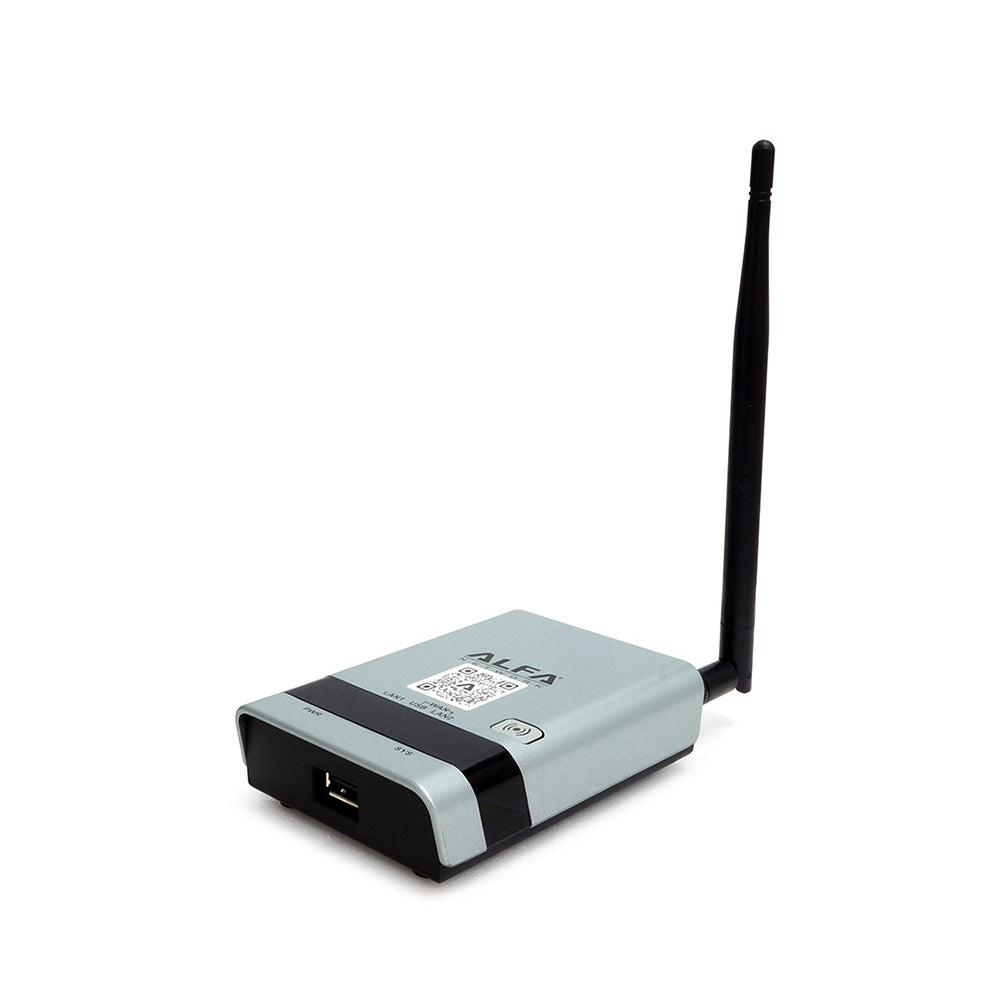

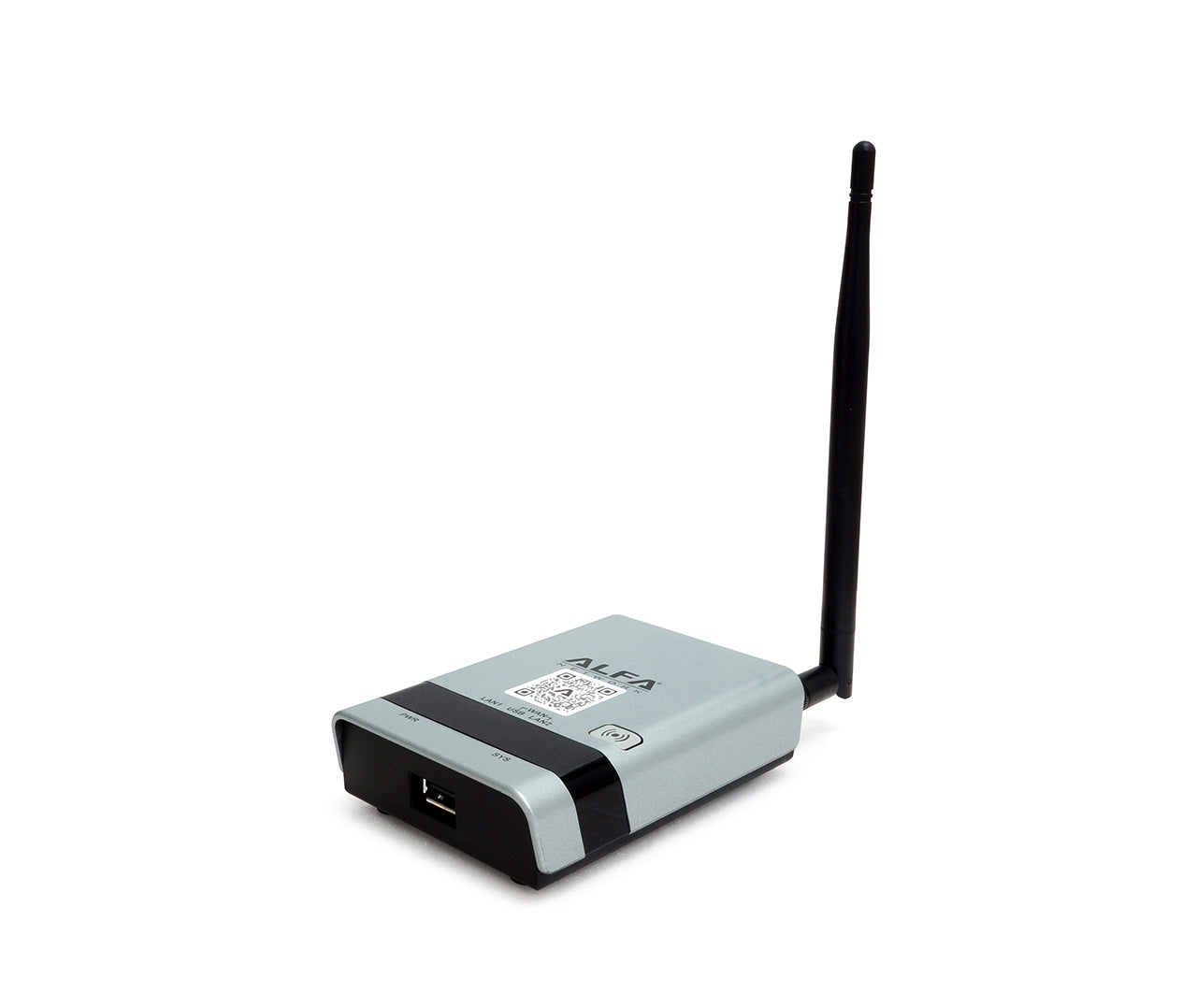

Indoor WiFi Device

Wi-Fi Standard IEEE802.11n
IEEE802.11g
IEEE802.11b
Frequency 2.142 GHz - 2.472 GHz
Channel-Width 20/40 MHz
Data Rate 802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
802.11n: up to 300 Mbps
Antenna 1x internal
1x external
LED Indicators Power, LAN, WAN, WLAN, USB
Power Requirement 12V DC
Security WEP 64/128 bit
WPA-PSK
WPA-EAP (PEAP/TTLS)
WPA2-PSK
WPA2-EAP
WPA Mixed
802.1x authentication
Operation Temperature -20 °C ~ 40 °C
Storage Humidity 10% ~ 90% (Non-conensing)
Dimension (mm) 93 x 70 x 26 mm
Weight 74g

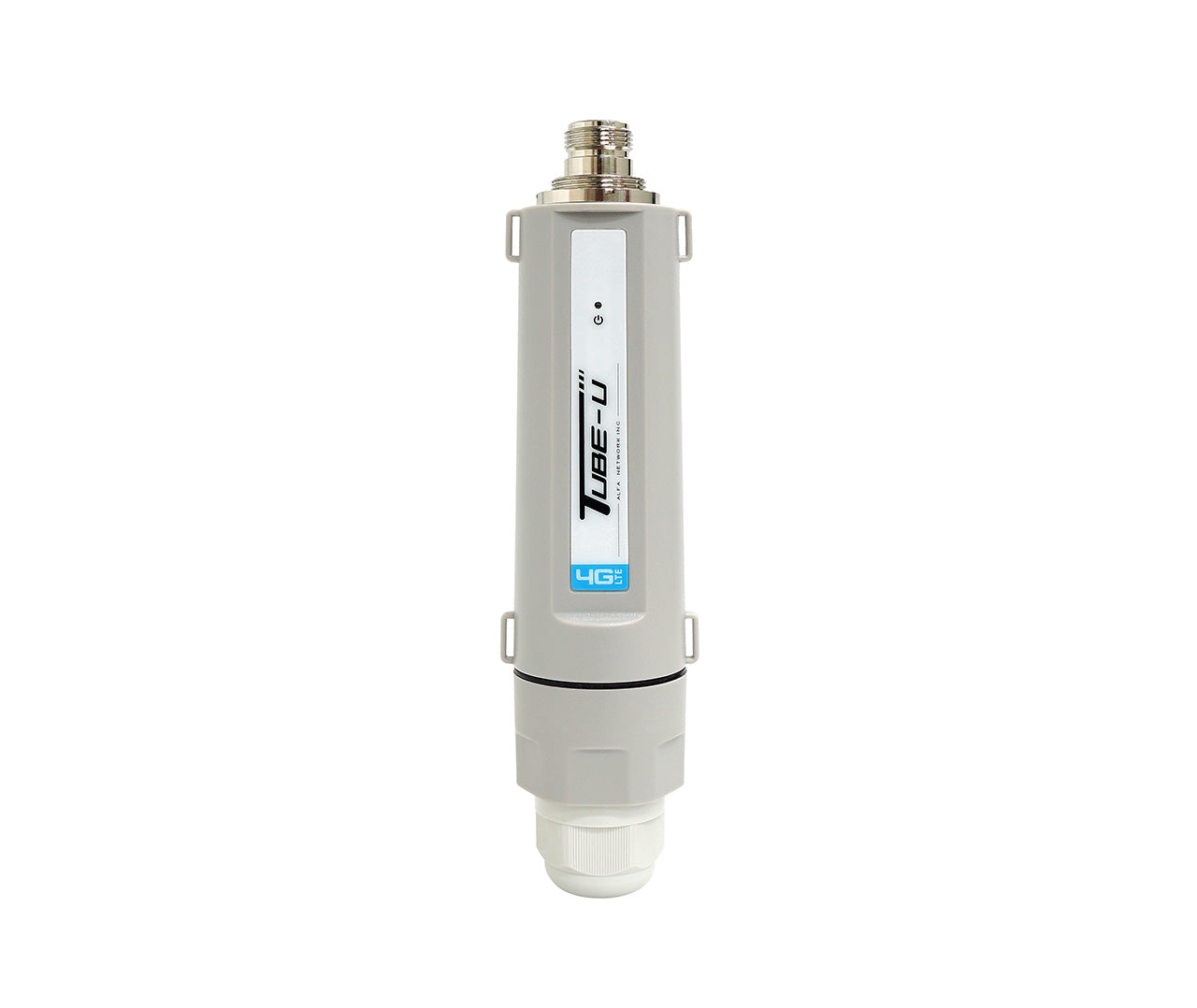

Outdoor 4G USB Device

Band LTE FDD: B1/B3/B7/B20
WCDMA:B1/B8
Speed LTE FDD: Max 100 Mbps (DL) / Max 50 Mbps (UL)
Antenna Connector N female
Interface Mini USB 2.0
Micro SIM slot
LED Indicator Power / Connection
Power Required 5VDC ± 5%

Outdoor Antenna

Frequency 791 MHz ~ 960 MHz
1710 MHz ~ 2170 MHz
2300 - 2700 MHz
Impedance 50Ω
VSWR 3.0 : 1
Radiation Omni
Connector N male
Material Fiber Glass
Length

Indoor Antenna

Frequency 2400 MHz ~ 2500 MHz
Impedance 50Ω
VSWR 2.0 : 1
Radiation Omni
Connector RP-SMA female
Material Rubber
Length 171.5 mm
