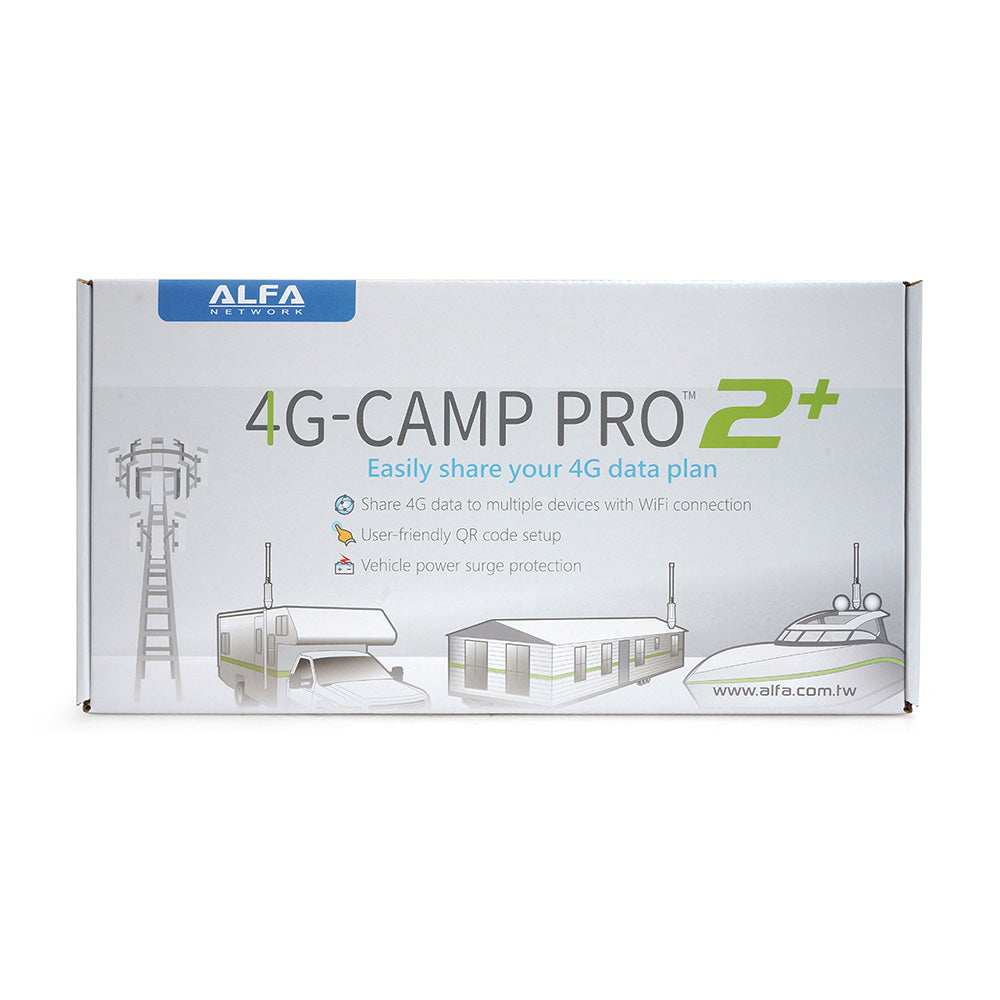

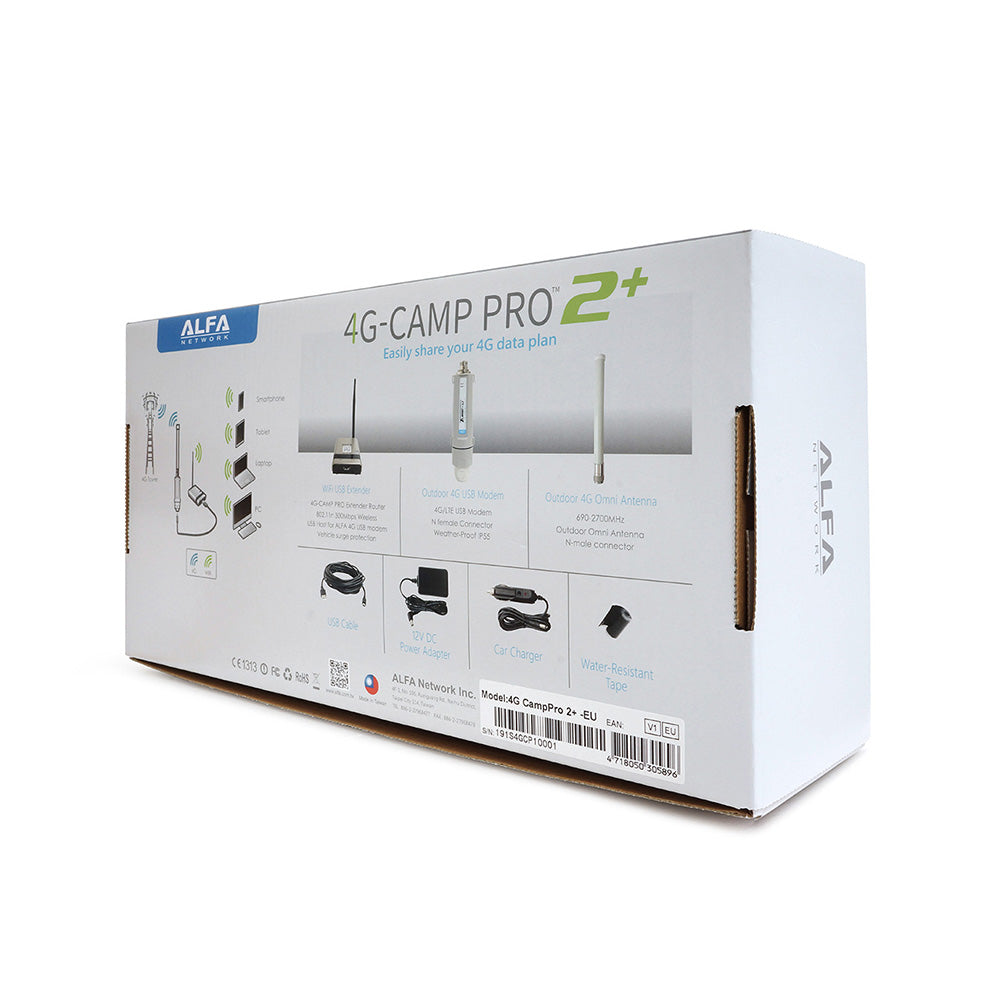

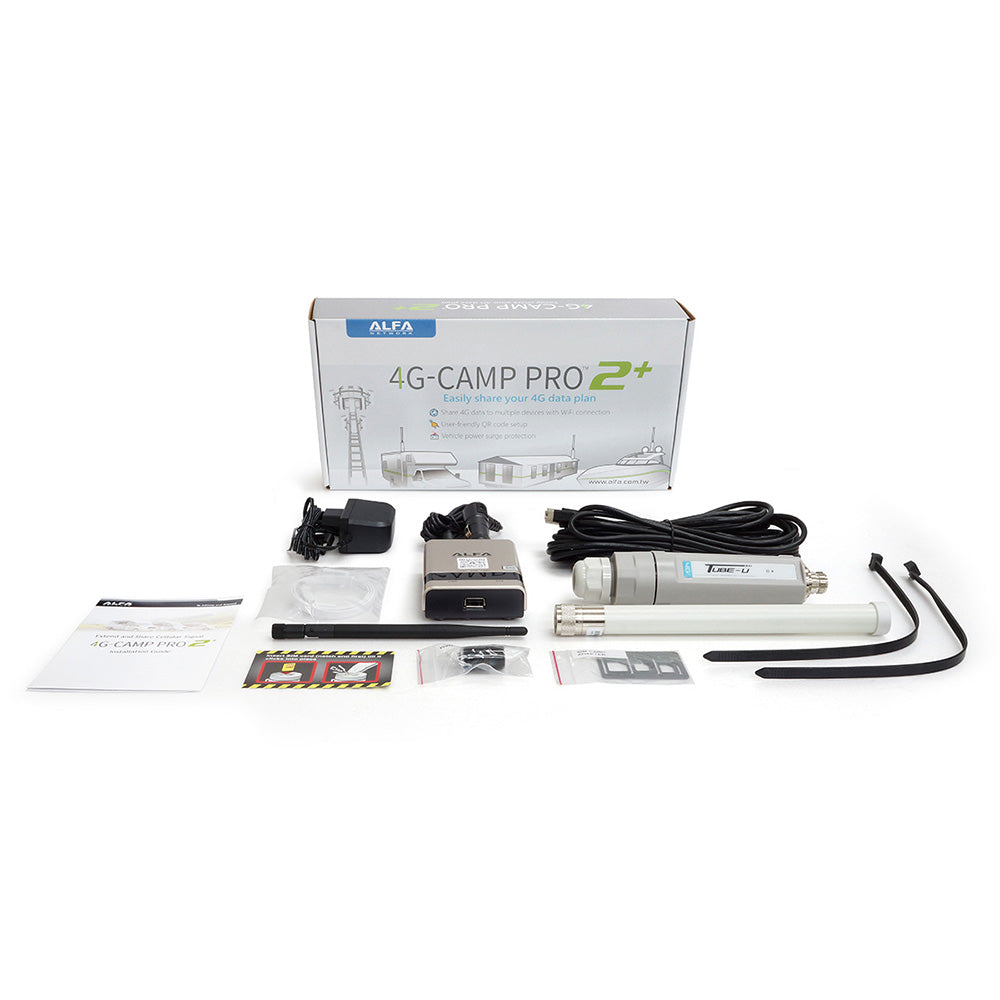

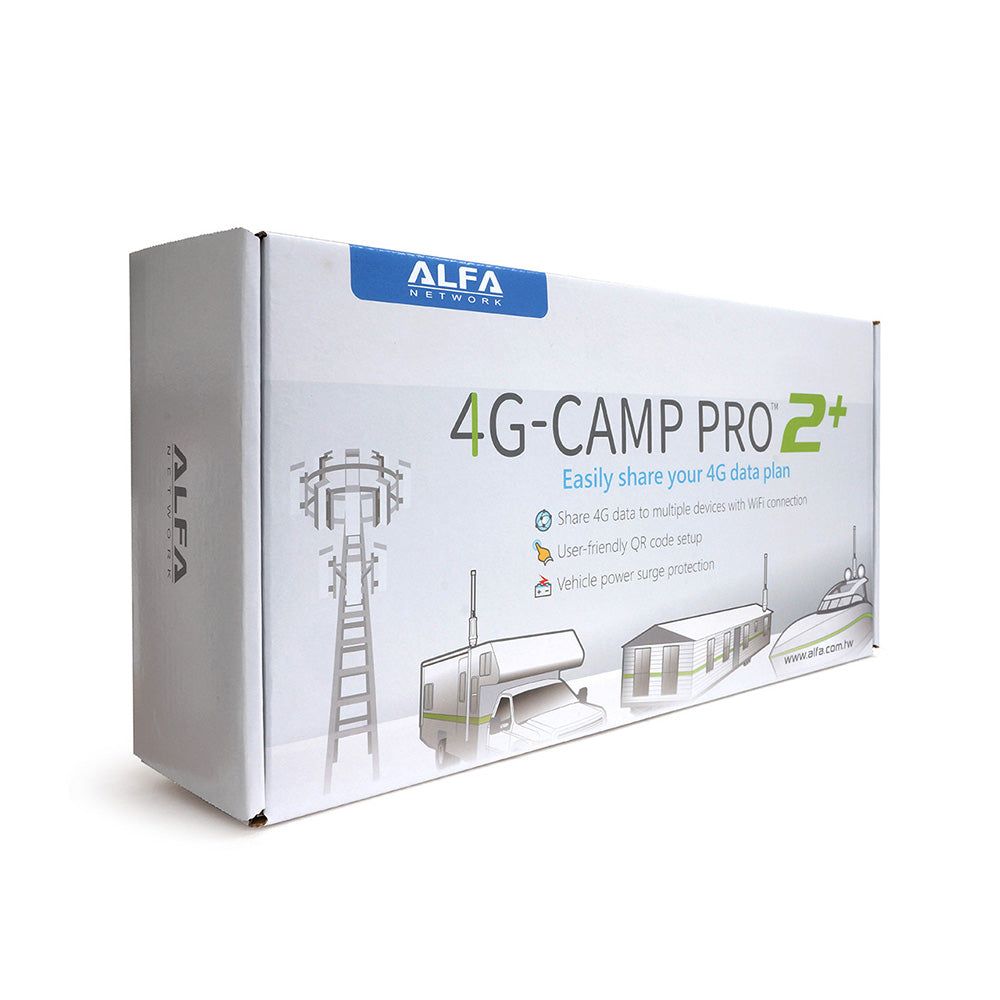

4G CampPro 2+

Share 4G data to multi devices through WiFi
Friendly setup
Vehicle power surge protection
Solution for boat, RV and mobile house

4G CampPro 2+ is the Global carrier version. It links to global 4G/LTE service for reliable, uninterrupted, in-motion and wide coverage for RV travellers, marine Internet access.

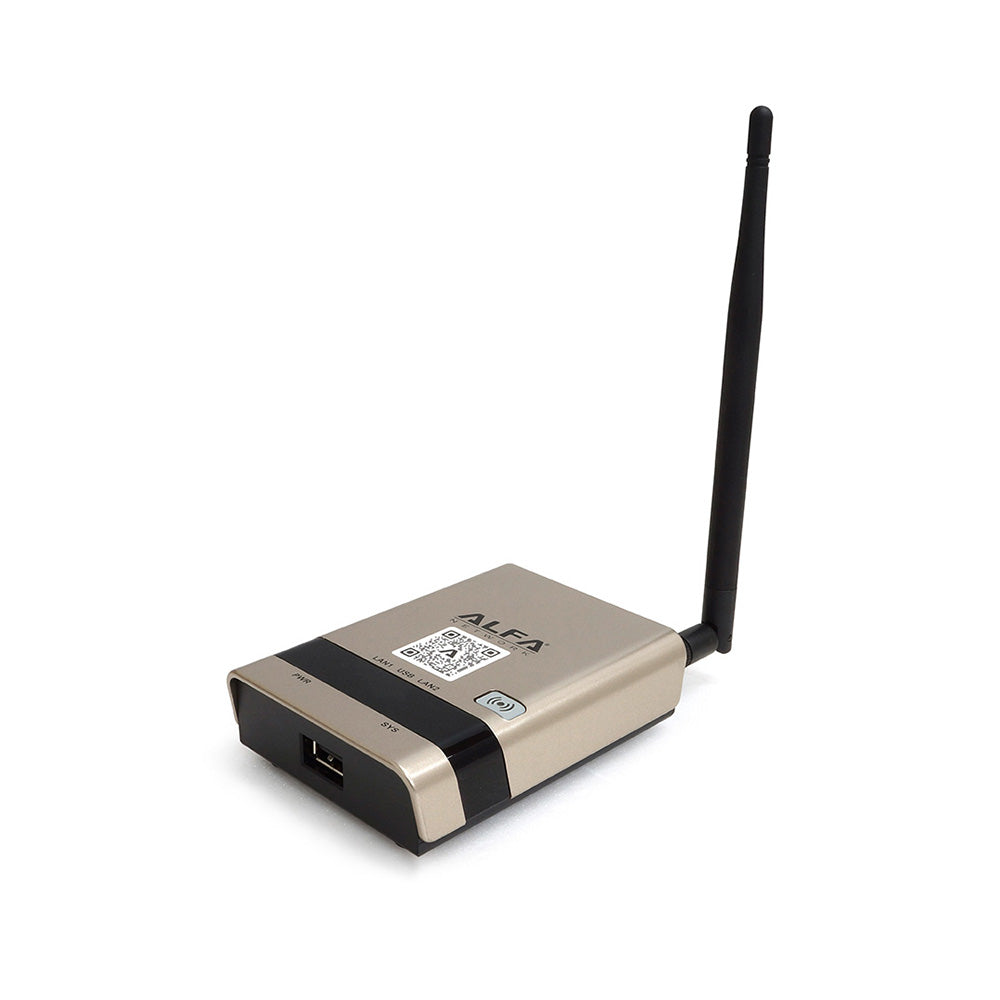

Indoor WiFi Device

Wi-Fi Standard	IEEE802.11n IEEE802.11g IEEE802.11b
Frequency	2.142 GHz - 2.472 GHz
Channel-Width	20/40 MHz
Data Rate	802.11b: up to 11 Mbps 802.11g: up to 54 Mbps 802.11n: up to 300 Mbps
Antenna	1x internal 1x external
LED Indicators	Power, LAN, WAN, WLAN, USB
Power Requirement	12V DC
Security	WEP 64/128 bit WPA-PSK WPA-EAP (PEAP/TTLS) WPA2-PSK WPA2-EAP WPA Mixed 802.1x authentication
Operation Temperature	-20 °C ~ 40 °C
Storage Humidity	10% ~ 90% (Non-conensing)
Dimension (mm)	93 x 70 x 26 mm
Weight	74g

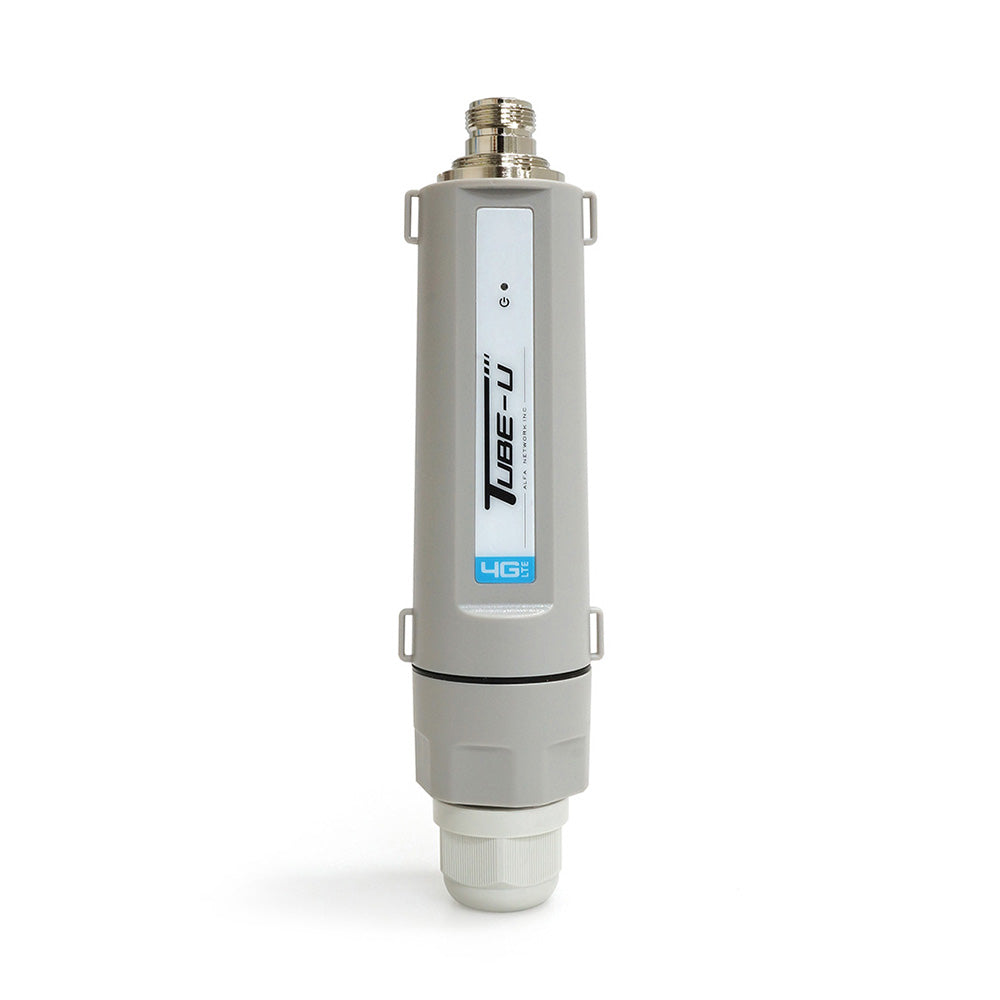

Outdoor 4G USB Device

Band	LTE FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28 LTE TDD:B38/B39/B40/B41 WCDMA:B1/B2/B4/B5/B6/B8/B19 GSM:B2/B3/B5/B8
Speed	LTE FDD: Max 150 Mbps (DL) / Max 50 Mbps (UL) LTE TDD: Max 130 Mbps (DL) /Max 35 Mbps (UL)
Antenna Connector	N female
Interface	Mini USB 2.0 Micro SIM slot
LED Indicator	Power / Connection
Power Required	5VDC ± 5%

Outdoor Antenna

Frequency	791 MHz ~ 960 MHz 1710 MHz ~ 2170 MHz 2300 - 2700 MHz
Impedance	50Ω
VSWR	3.0 : 1
Radiation	Omni
Connector	N male
Material	Fiber Glass
Length

Indoor Antenna

Frequency	2400 MHz ~ 2500 MHz
Impedance	50Ω
VSWR	2.0 : 1
Radiation	Omni
Connector	RP-SMA female
Material	Rubber
Length	171.5 mm
