HaLow-R
IEEE 802.11ah sub 1 GHz + WiFi 4Indoor IoT Router
- Chipset
- MT7628
- WiFi standard
- IEEE 802.11n (2.4 GHz)
- Antenna connector
- 2x RP-SMA
- WiFi Standard
- IEEE 802.11ah (868/915 MHz)
Overview

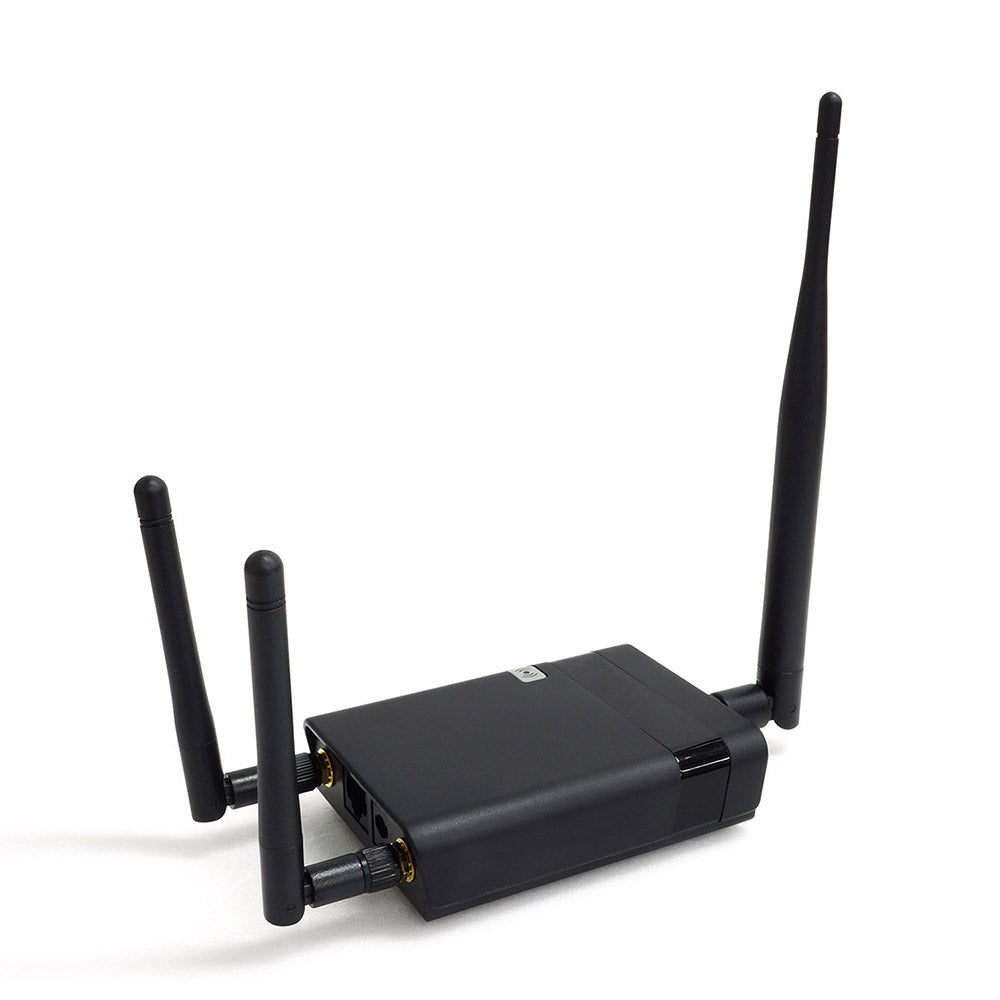

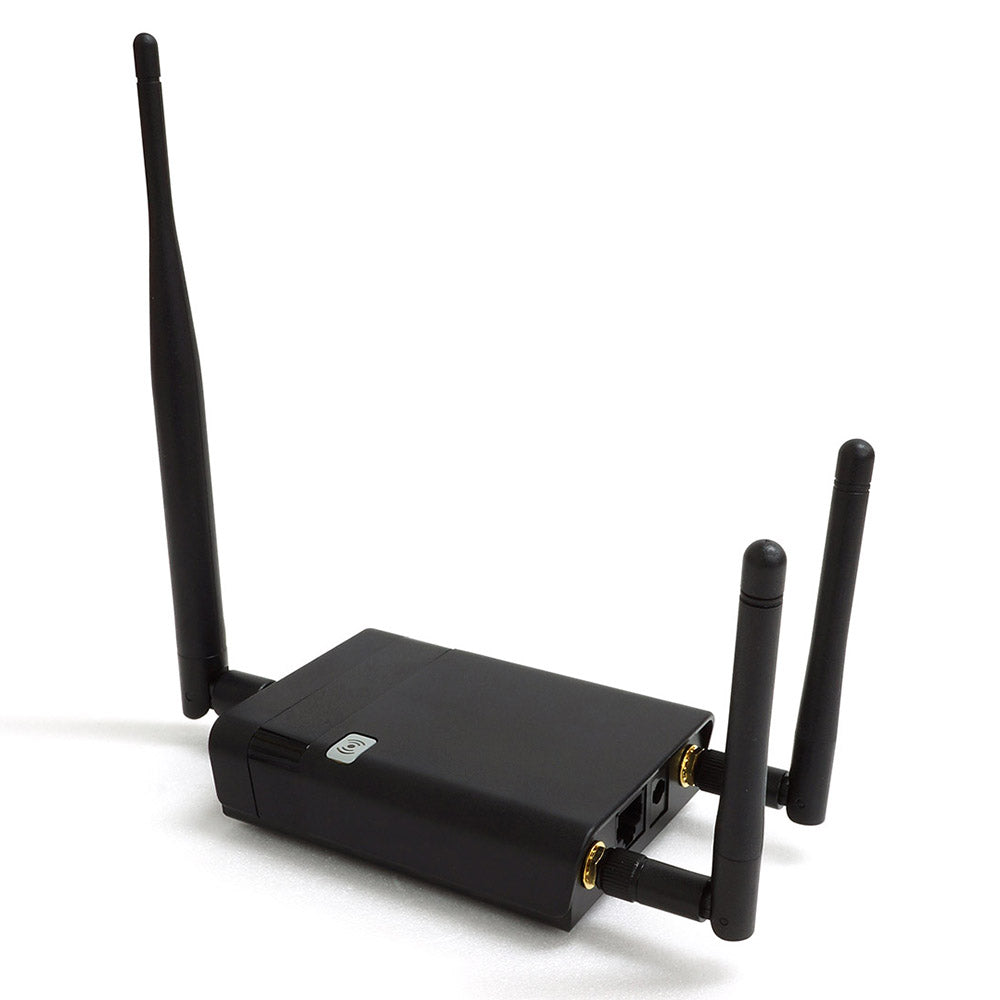

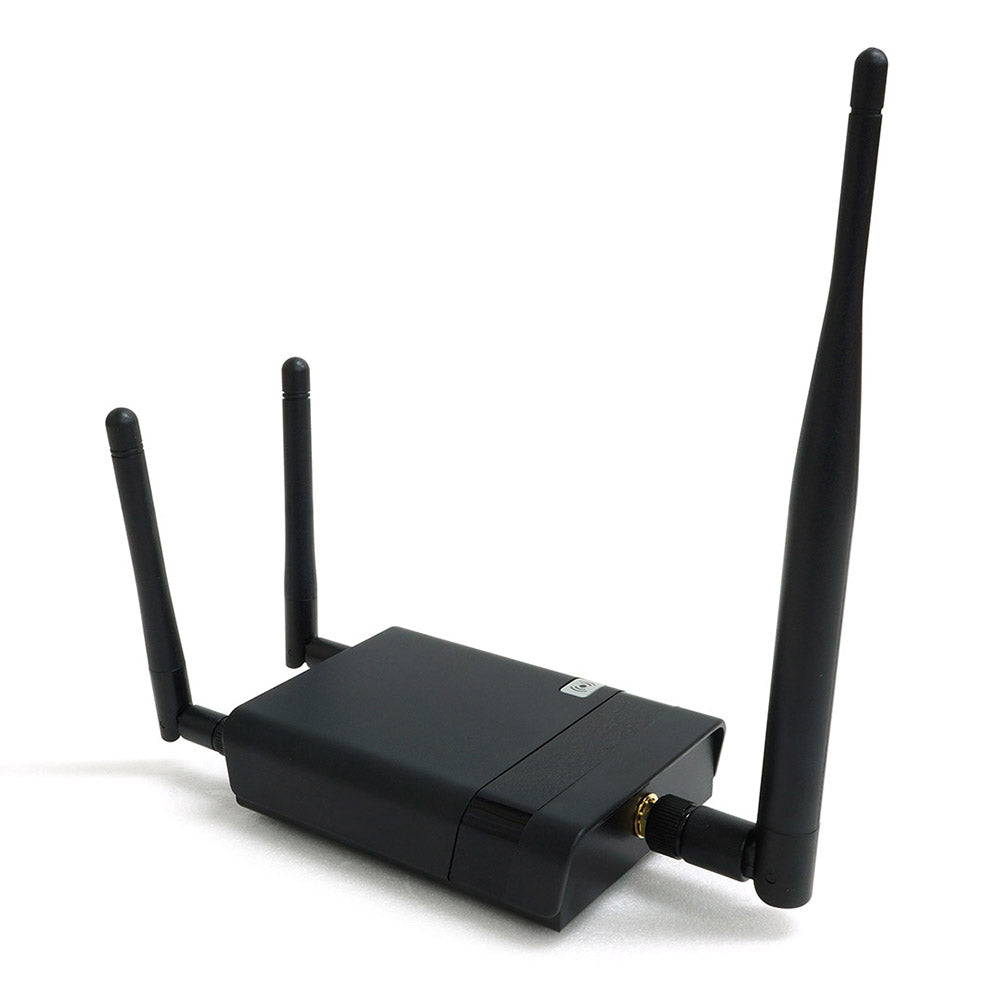

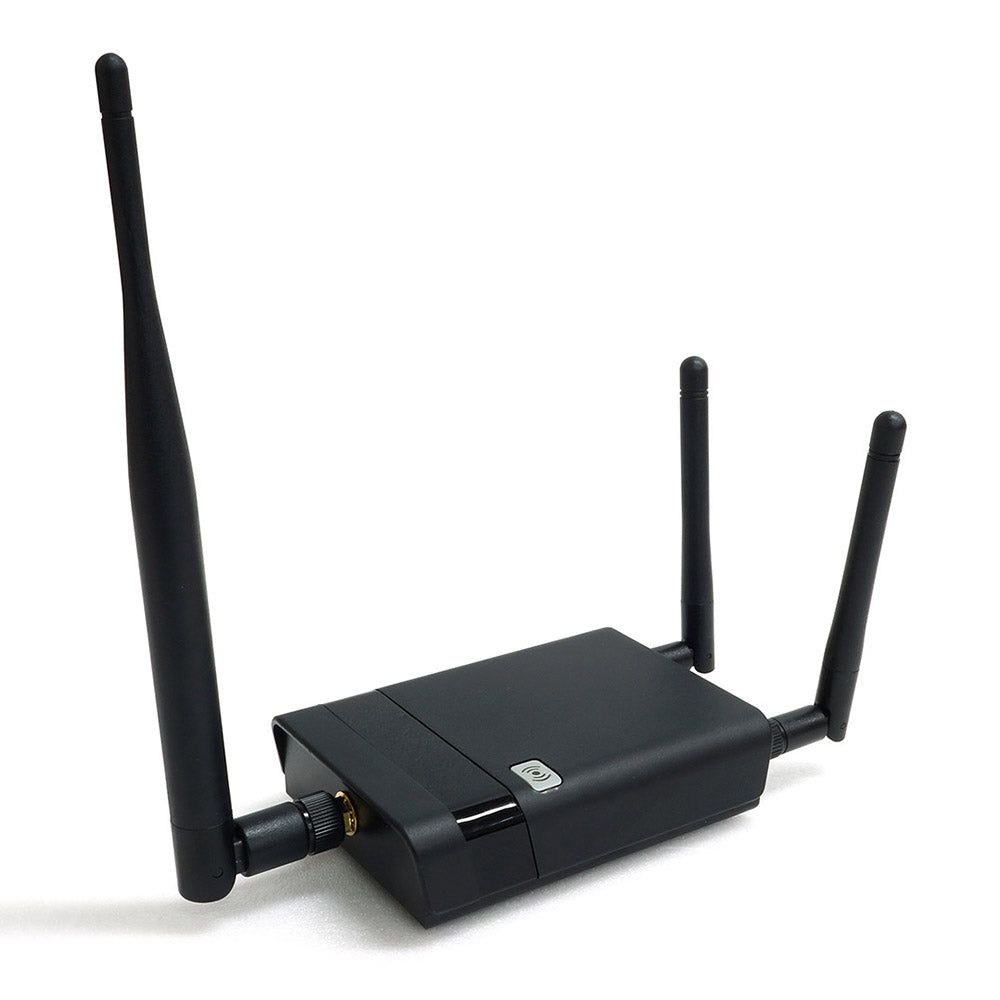

HaLow-R
IEEE 802.11ah sub 1 GHz + WiFi 4 Indoor IoT Router
- HaLow detachable dipole antenna
- HaLow antenna SMA connector
- 4x LED indicators
- MediaTek MT7628 + Morse Micro MM6108
- 1x Fast Ethernet
- 2x WiFi 4 antenna RP-SMA connector
- 2x WiFi 4 detachable dipole antenna
HaLow-R is a WiFi HaLow™ + WiFi 4 Indoor Extender / Router. It allows building long range, ultra-low power WiFi networks in sub 1 GHz license-exempt bands along with popular WiFi 2.4 GHz share Internet connection to laptop or smart phone.
• Applications
Extender Mode
Router Mode Extend existing home WiFi router signal and allow HaLow devices to connect
Router Mode
Extend existing home WiFi router signal and allow HaLow devices to connect As main home WiFi router and allow HaLow devices to connect
Specifications
WiFi 4 (IEEE 802.11n)
HaLow (IEEE 802.11ah)
General
Order Information
Specifications
HaLow-R
|
Chipset |
MT7628 |
|
Flash |
32 MB |
|
RAM |
128 MB |
|
WiFi standard |
IEEE 802.11n (2.4 GHz) |
|
Channel bandwidth |
WiFi 4: 20/40 MHz |
|
Date rate |
300 Mbps |
|
Antenna connector |
2x RP-SMA |
|
Antenna |
2x 5 dBi dipole antenna |
|
Chipse |
Morse Micro MM6108 |
|
WiFi Standard |
IEEE 802.11ah (868/915 MHz) |
|
Channel bandwidth |
1/2/4/8 MHz |
|
Date rate |
150 kbps ~ 15 Mbps |
|
Antenna connector |
1x SMA |
|
Antenna |
1x 3 dBi dipole antenna |
|
Ethernet |
1x Fast Ethernet with ESD protection |
|
Button |
1x push-button (reset) |
|
LED |
1x Power 1x Ethernet 1x WiFi 1x HaLow 1x Reset / System |
|
Power supply |
DC 12V / 1A |
|
Software |
OpenWrt-firmware with source available |
|
Order Model Information |
||
|
HaLow-R /US HaLow-R /EU HaLow-R /TW HaLow-R /KR HaLow-R /JP |
902 MHz – 928 MHz 863 MHz – 868 MHz 920.5 MHz – 924.5 MHz 917.5 MHz – 923.5 MHz 916.5 MHz – 923.5 MHz |
26 MHz 5 MHz 4 MHz 6 MHz 7 MHz |
Downloads & support
Visit our official support resources for available files and setup guidance.
