HaLow-UM

Description

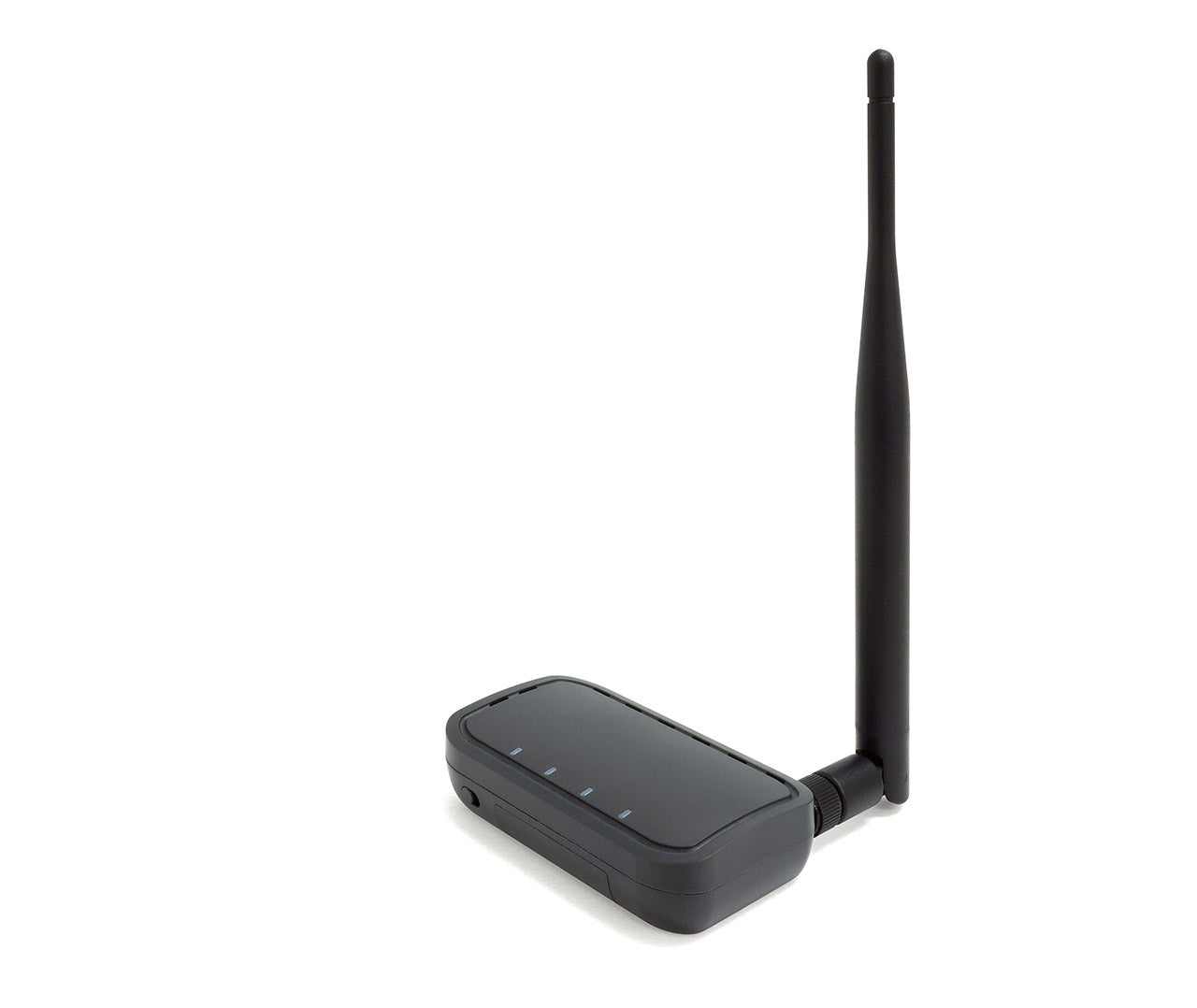

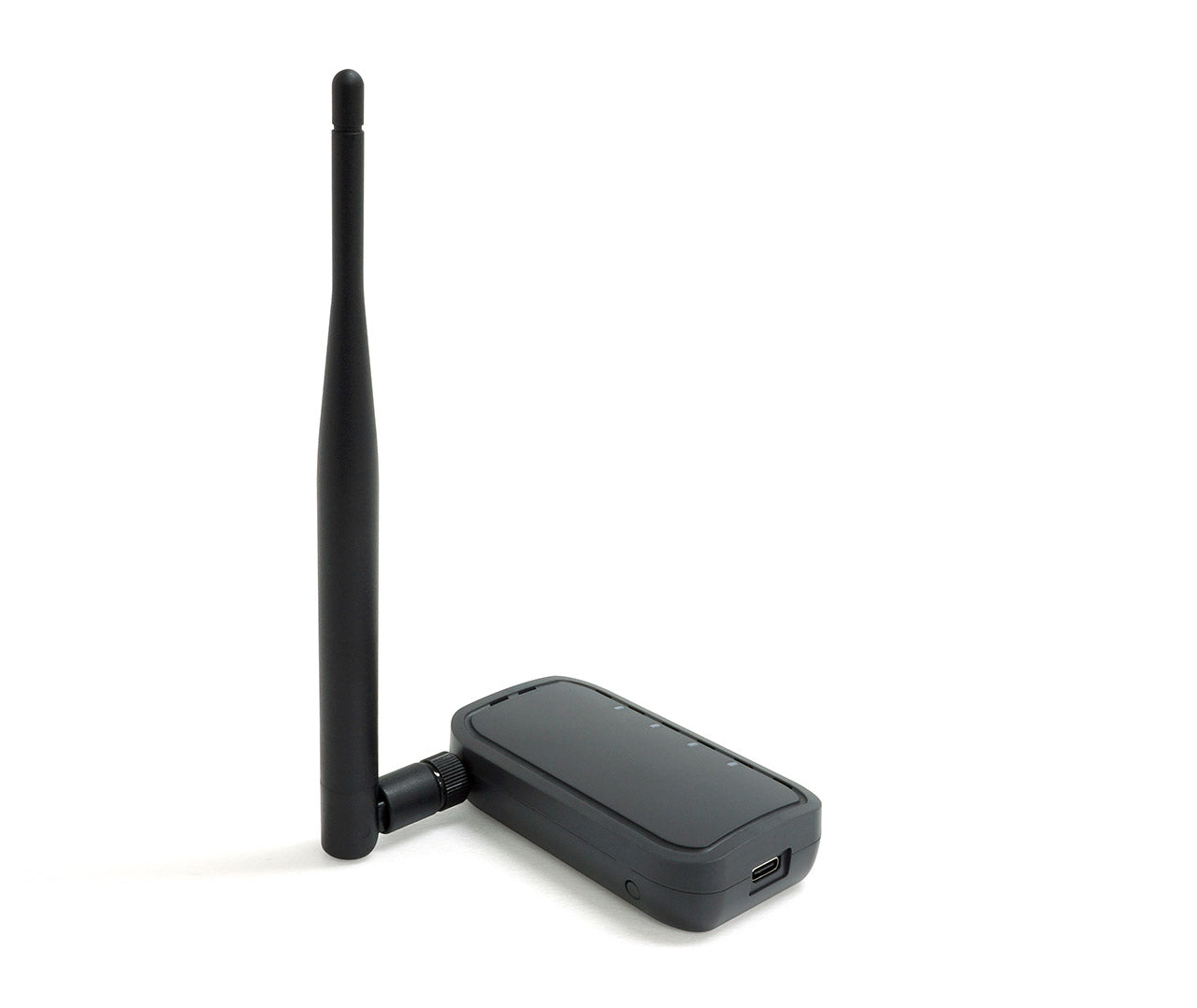

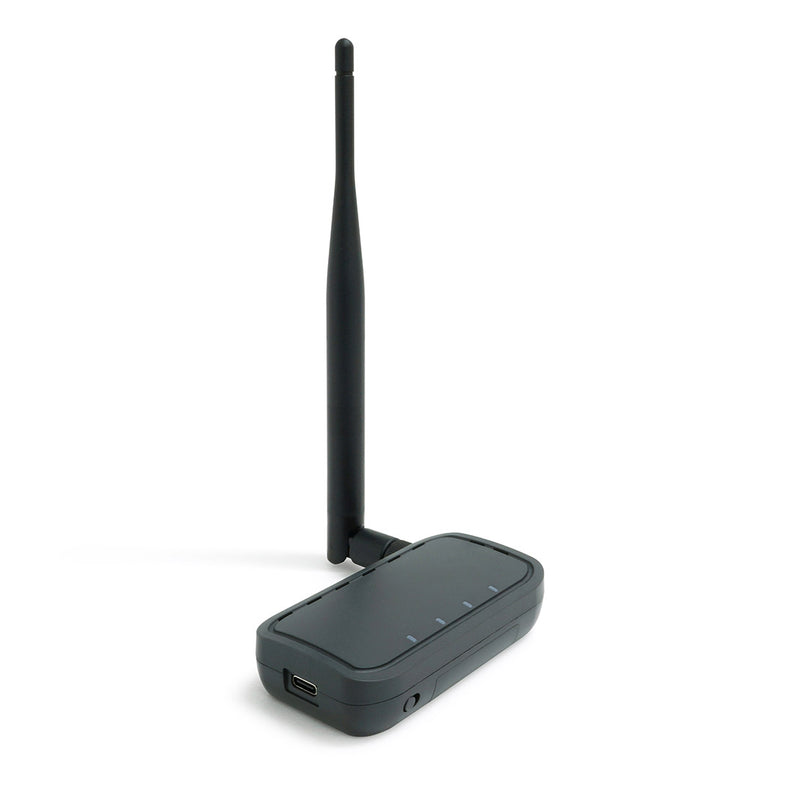

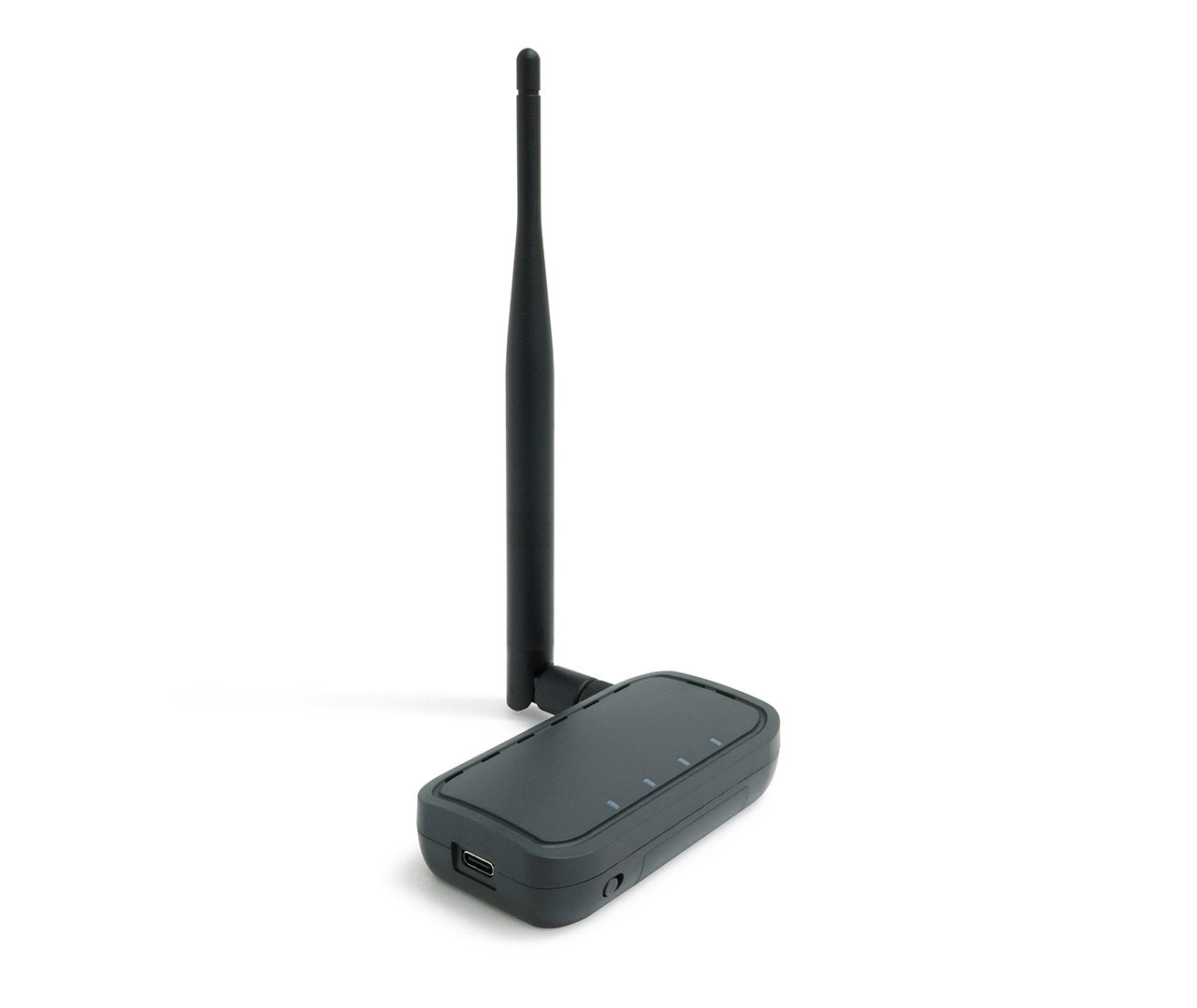

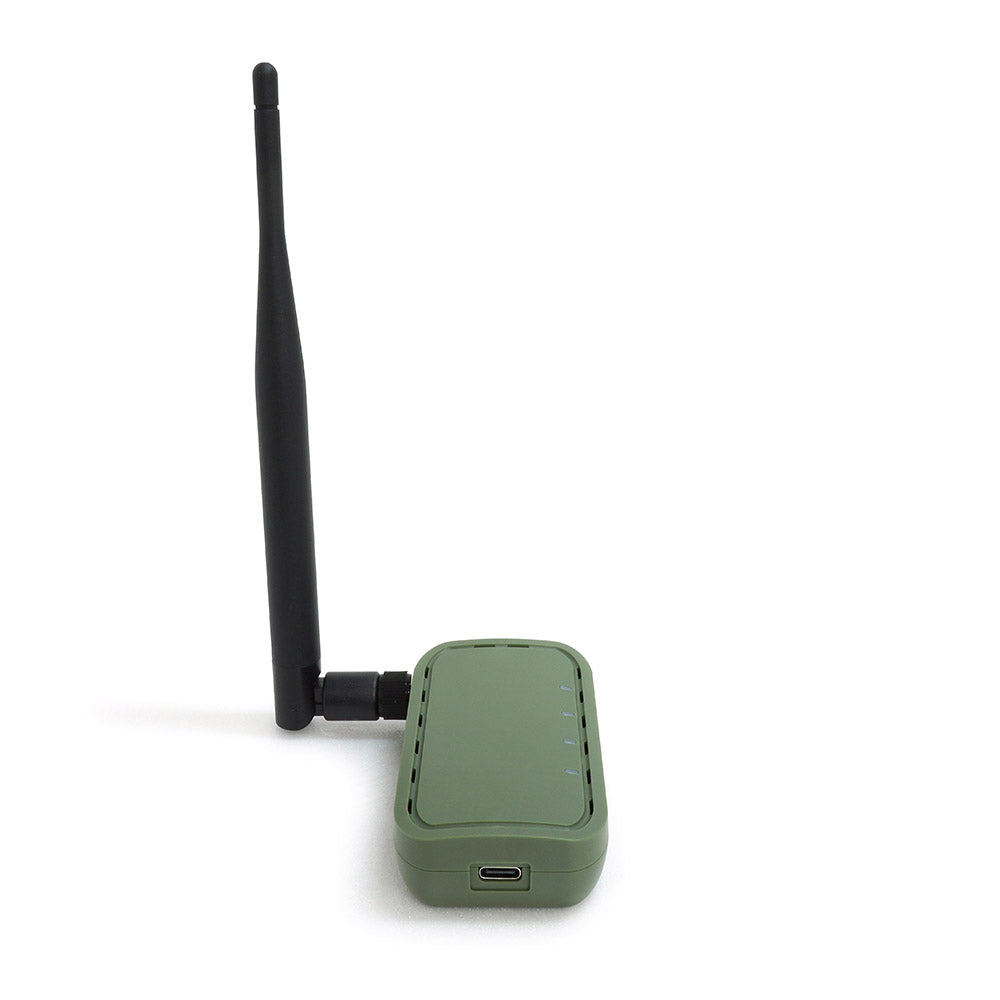

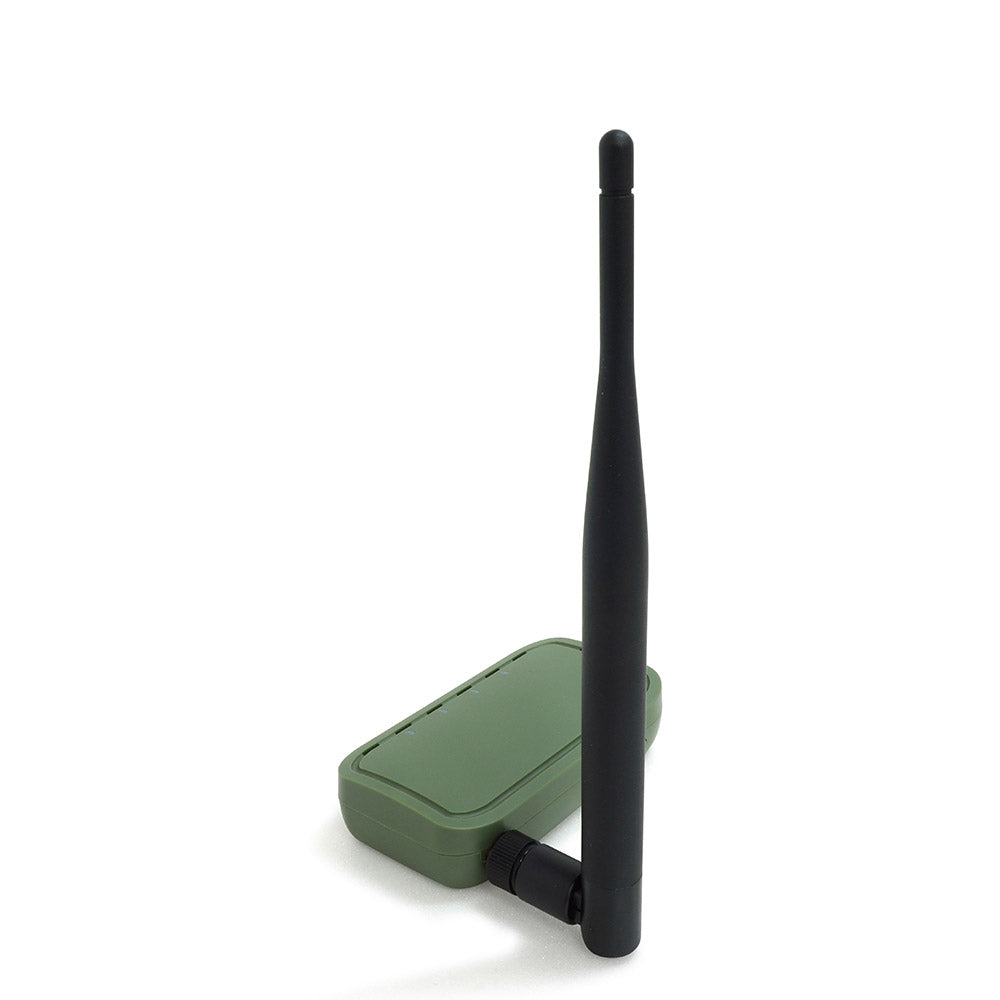

HaLow-UM is the world’s leading WiFi HaLow USB Type-C adapter

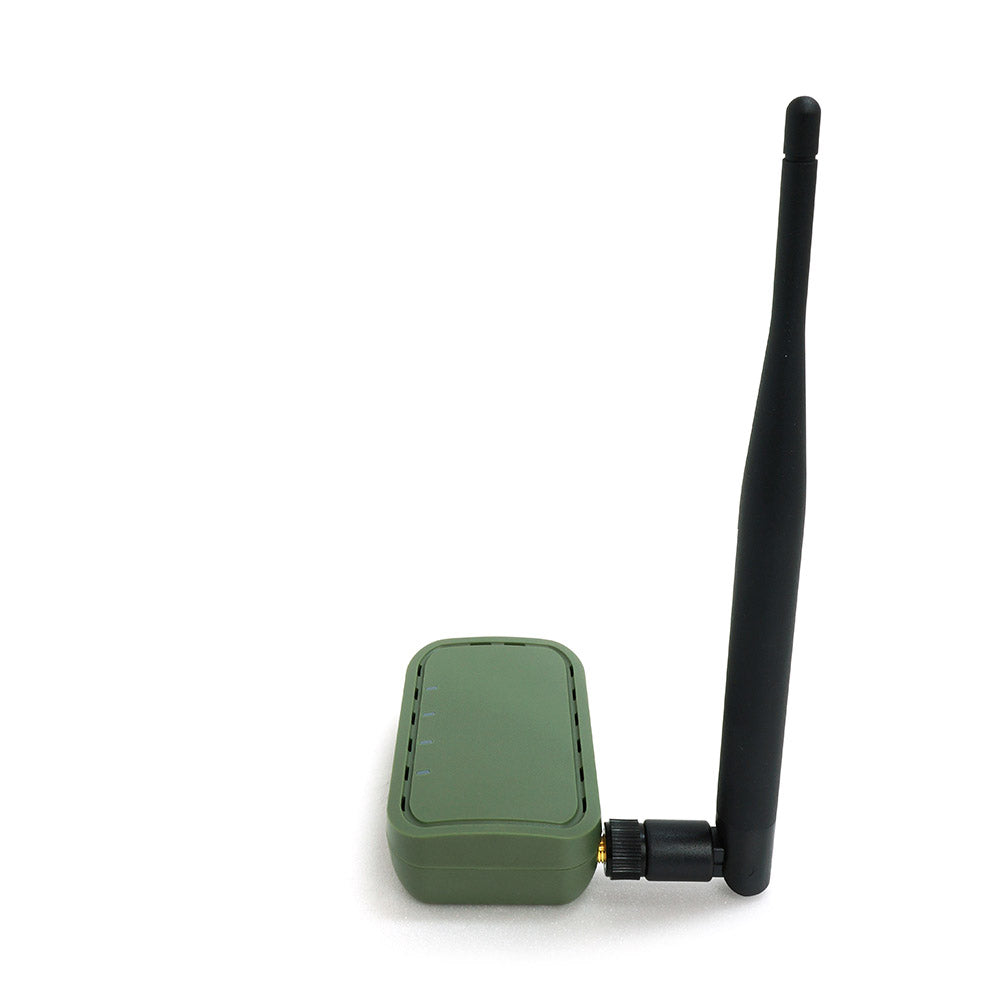

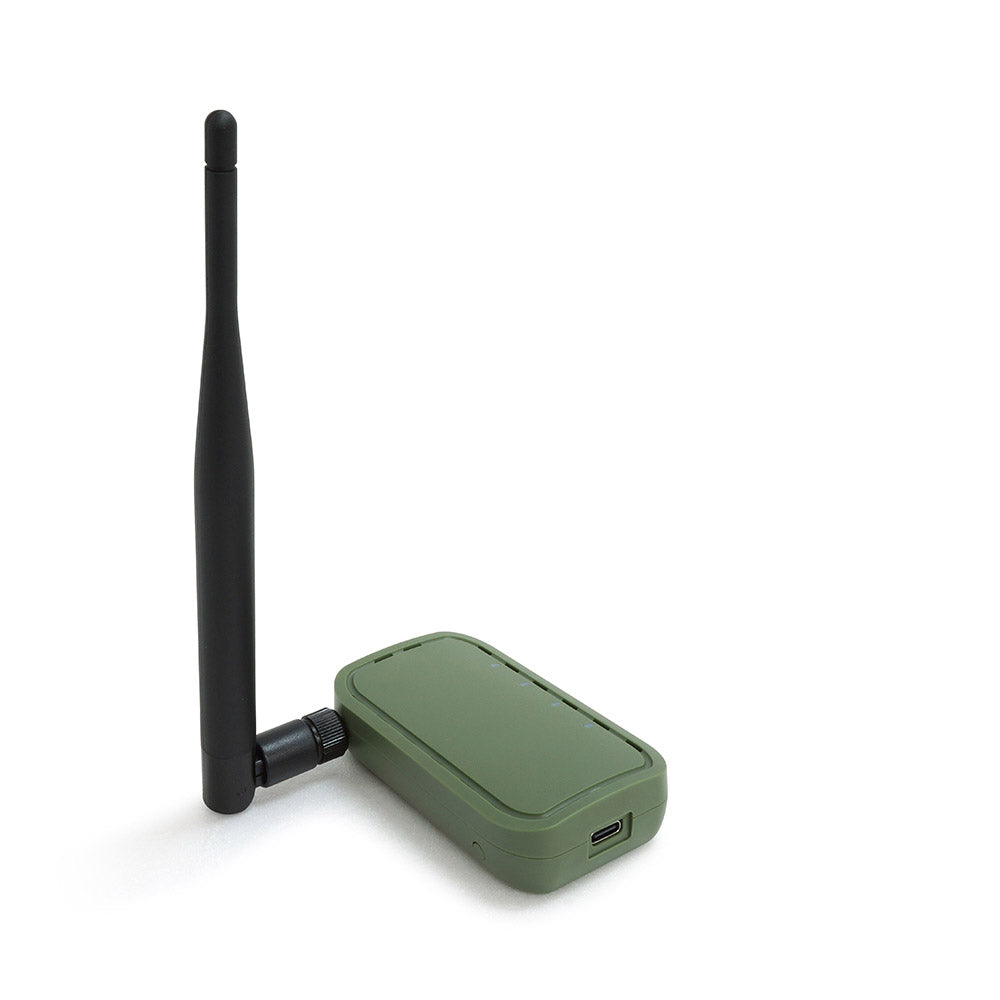

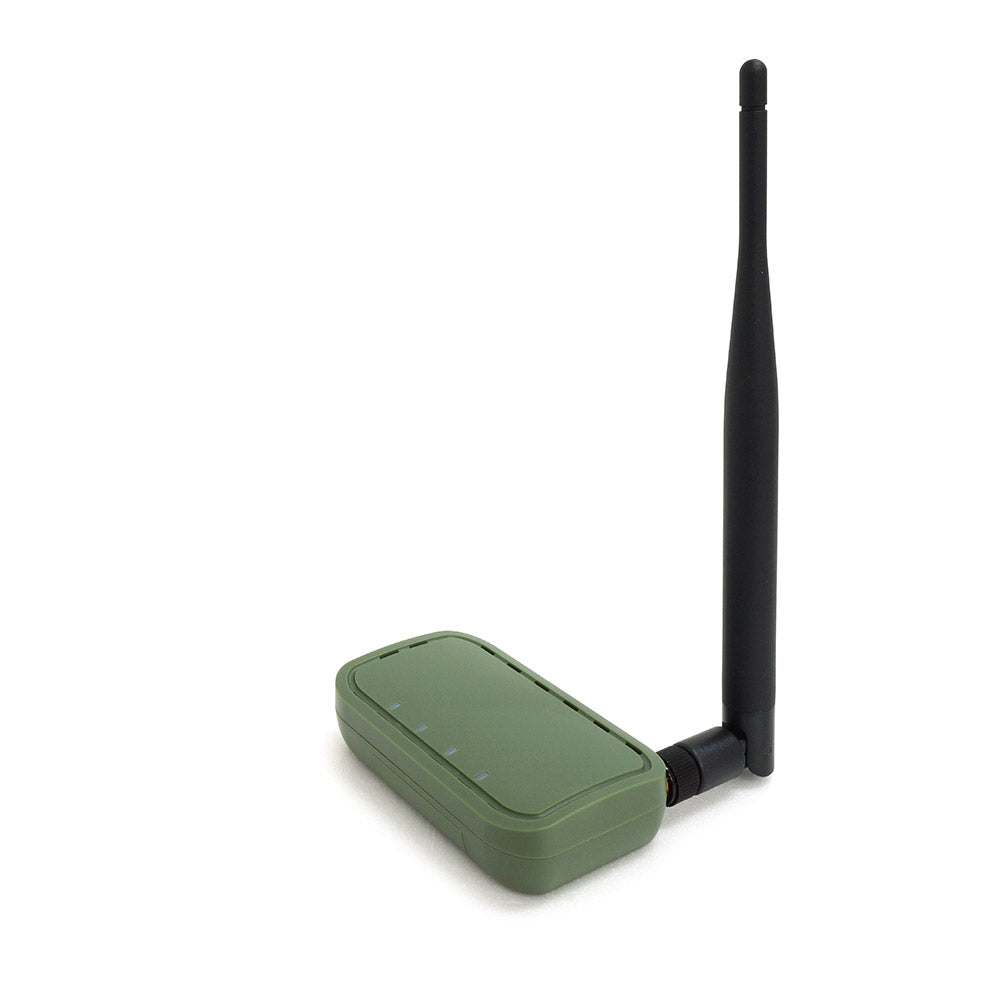

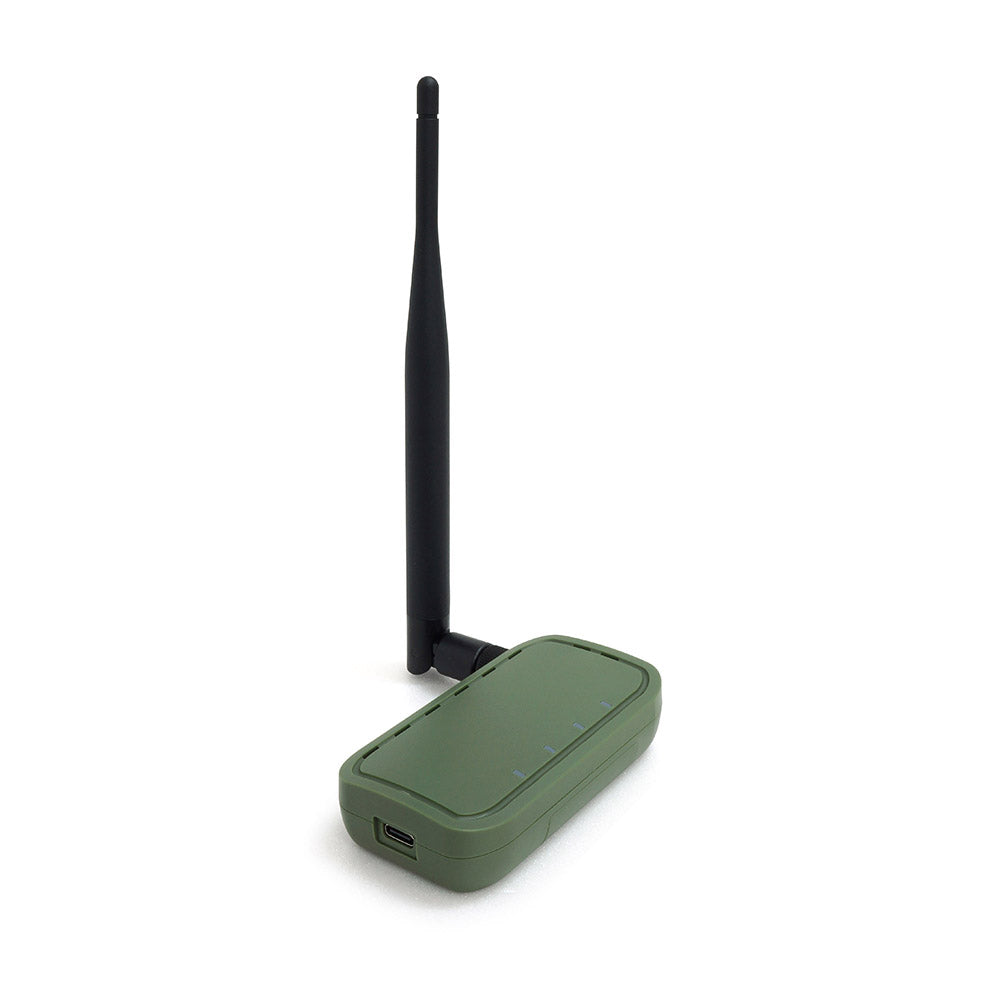

The HaLow-UM is a long-range WiFi HaLow USB Type-C adapter that supports sub-GHz unlicensed band. WiFi HaLow enables connectivity for many applications such as IP cameras、sensors、IoT, etc.
The HaLow-UM uses a USB Type-C interface, which can be easily plugged into a laptop, PC or smartphone for configuration and connection to the HaLow AP. It can also be powered by a power bank, making it convenient to carry and travel.

Key Features

MT7628 + Morse Micro MM6108
Popular USB Type-C connector

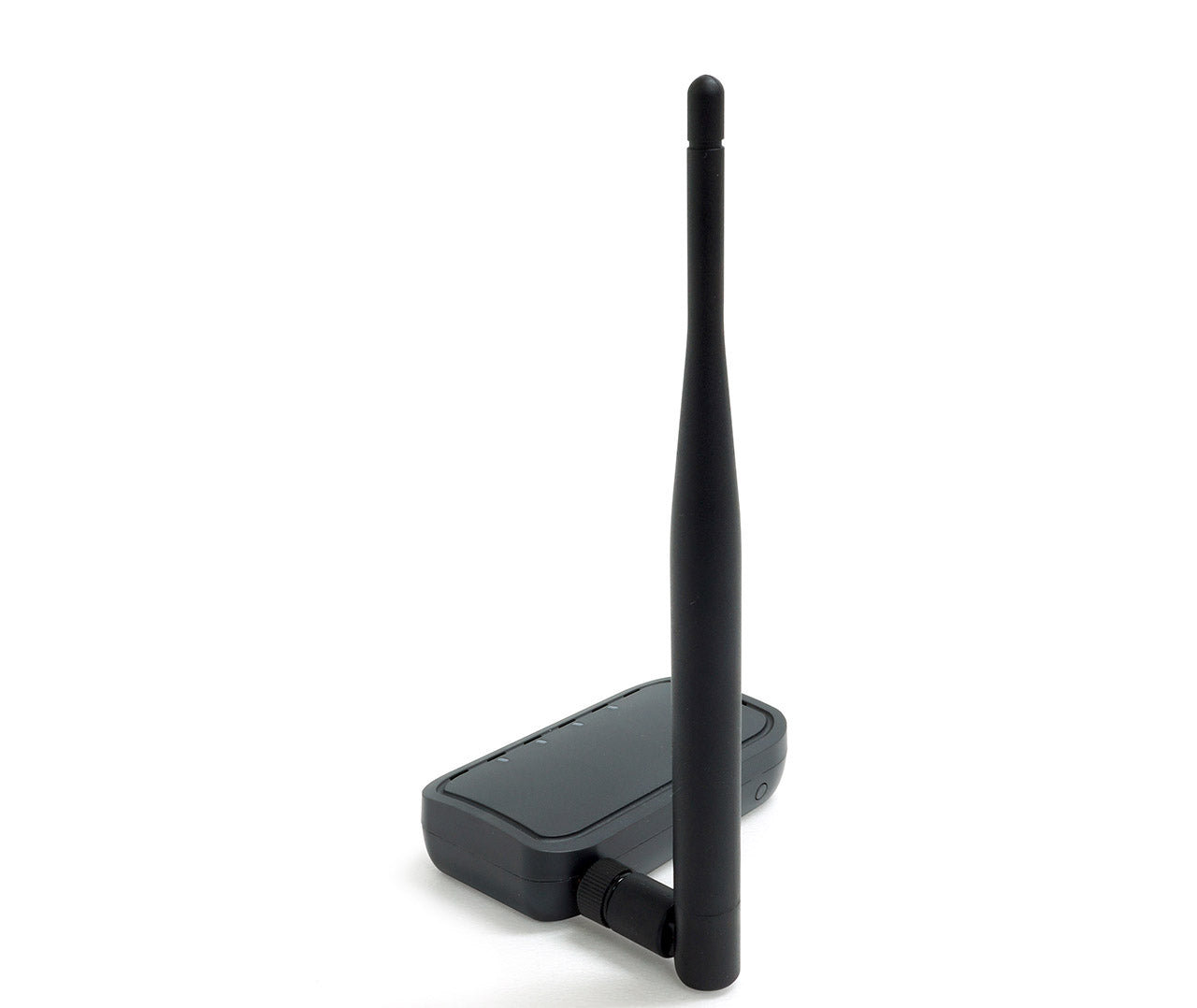

SMA external detachable antenna

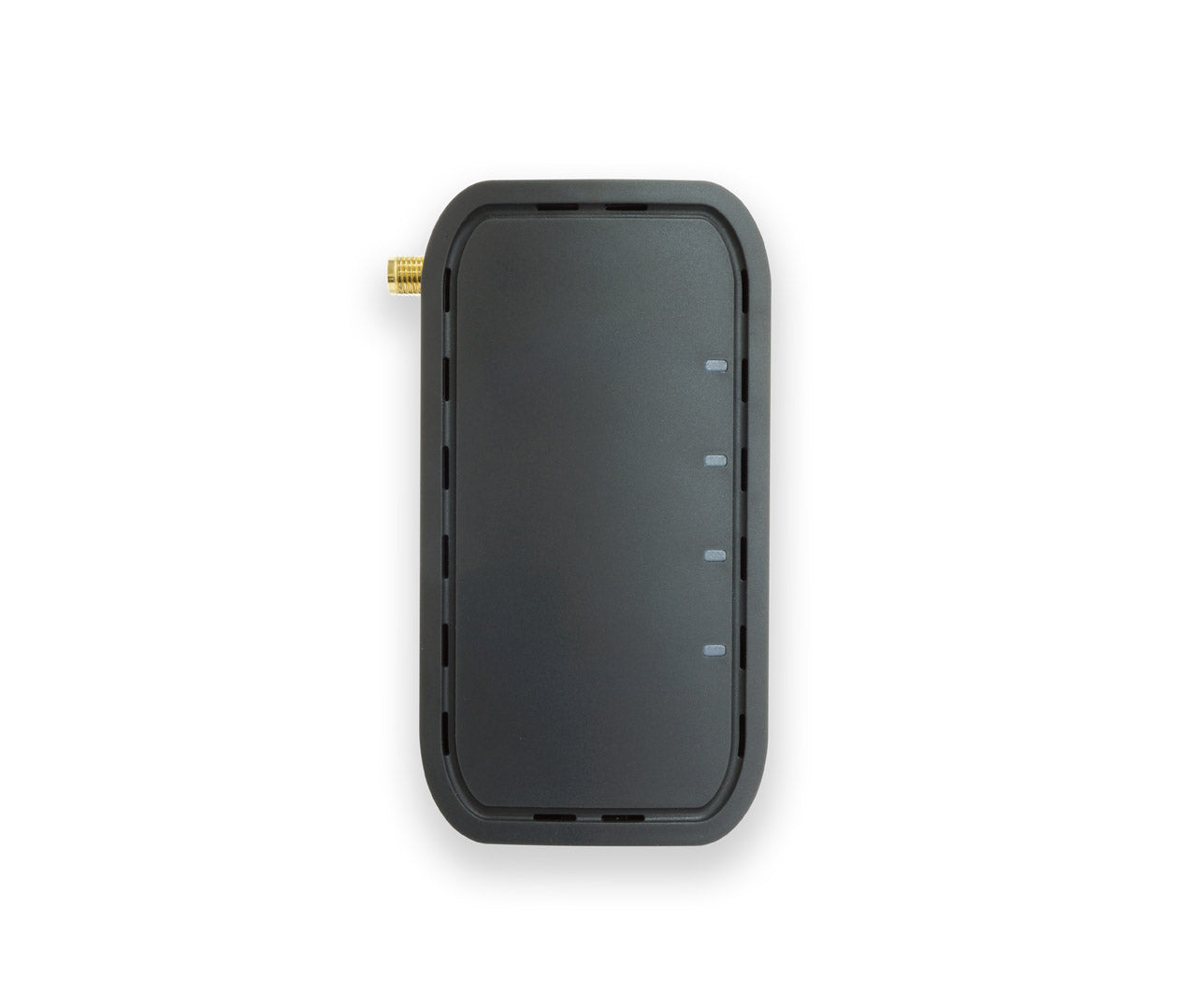

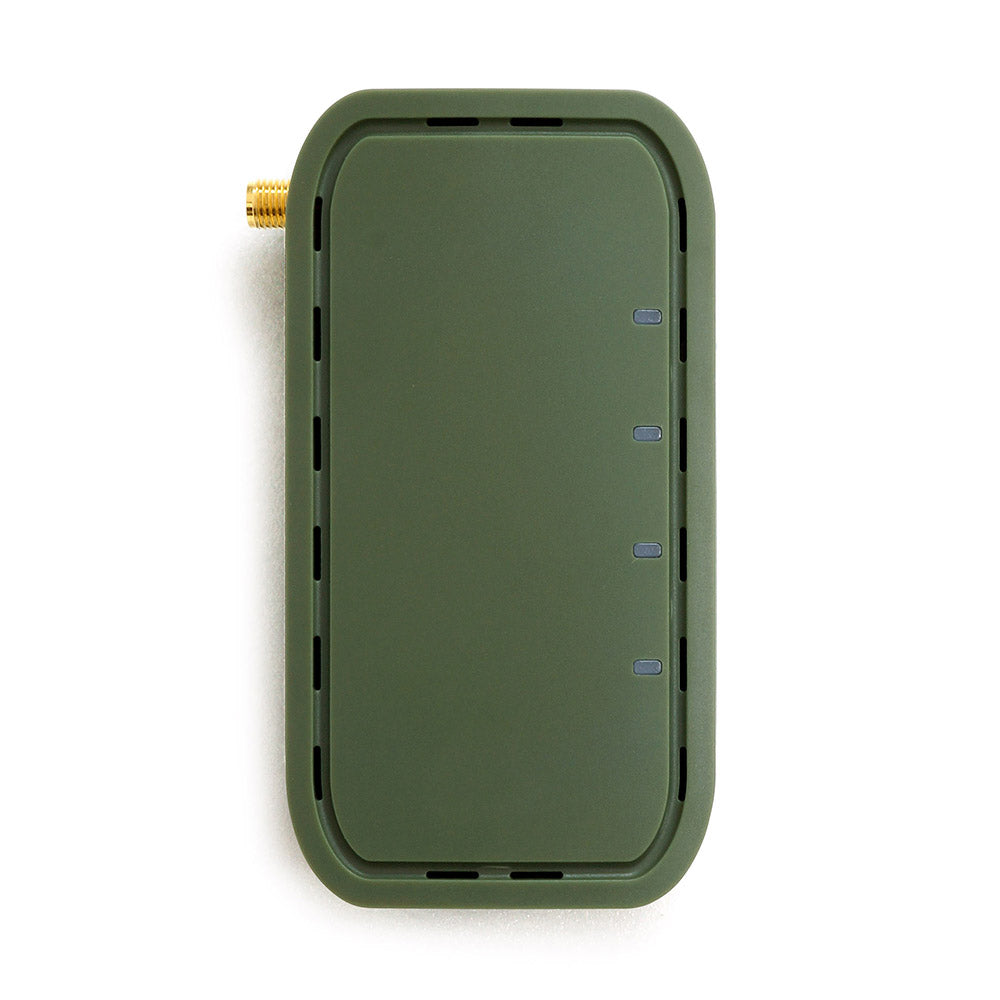

4 LED indicators

Specifications

Main Chipset & WiFi HaLow (IEEE 802.11ah)
Main Chipset	MediaTek MT7628
WiFi HaLow Chipset	Morse Micro MM6108
Flash	SPI Flash 32 MB
RAM	DDR2 SDRAM 128 MB
WiFi Standard	IEEE 802.11ah
Channel Bandwidth	1/2/4/8 MHz(US) ; 1/2/4 MHz(JP) ; 1 MHz(EU)
Max Date Rate (Phy Rate)	Up to 32.5 Mbps @ Bandwidth 8 MHz
Antenna Connector	1 x SMA female connector
Antenna	1 x 2 dBi Detachable Dipole Antenna
HaLow mode	Client(WDS), AP(WDS)
General
Interface	1 x USB Type-C
Button	1 x Push Button (Reset Default - Press for 10 seconds)
LED	1 x Power 1 x WiFi HaLow 1 x System 1 x Mode
Power Supply	USB Type-C
Dimensions	90 x 48 x 19 mm

Order Model Information

HaLow-UM (US)

HaLow-UM (EU)

HaLow-UM (JP)

902 MHz – 928 MHz

863 MHz – 868 MHz

920.5 MHz – 927.5 MHz

26 MHz

5 MHz

7 MHz

Tx transmit power / Rx receive sensitivity
Data Rate	Modulation	BW=1M			BW=2M			BW=4M			BW=8M
Data Rate	Modulation	Tx (dBm) +/-2	Rx (dBm)	IEEE spec.	Tx (dBm) +/-2	Rx (dBm)	IEEE spec.	Tx (dBm) +/-2	Rx (dBm)	IEEE spec.	Tx (dBm) +/-2	Rx (dBm)	IEEE spec.
MCS0	BPSK	21	-97	-95	21	-95	-92	21	-93	-89	21	-90	-86
MCS1	QPSK	21	-94	-92	21	-93	-89	21	-90	-86	21	-87	-83
MCS2	QPSK	20	-90	-90	20	-90	-87	20	-88	-84	20	-84	-81
MCS3	16-QAM	20	-87	-87	20	-87	-84	20	-85	-81	20	-81	-78
MCS4	16-QAM	19	-83	-83	19	-84	-80	19	-81	-77	19	-77	-74
MCS5	64-QAM	18	-79	-79	18	-79	-76	18	-77	-73	18	-73	-70
MCS6	64-QAM	17	-78	-78	17	-77	-75	17	-75	-72	17	-71	-69
MCS7	64-QAM	17	-77	-77	17	-76	-74	17	-74	-71	17	-70	-68
