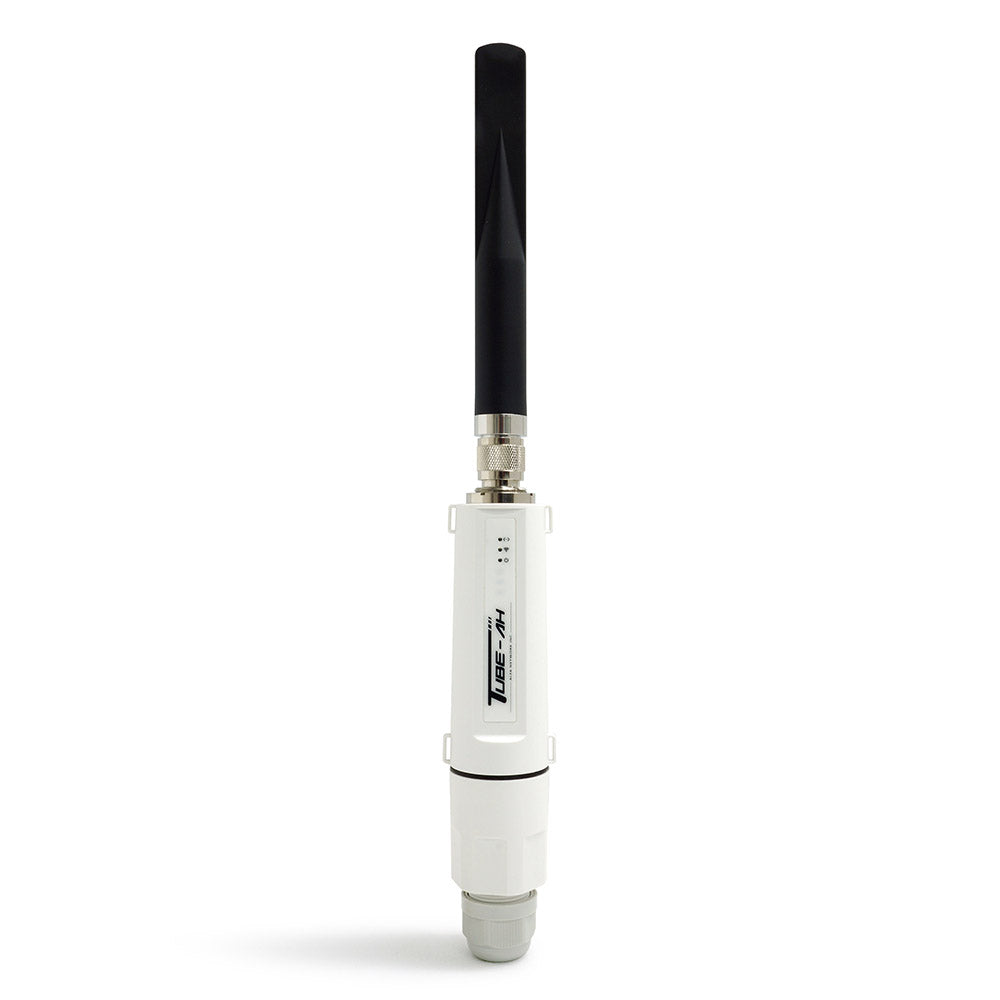

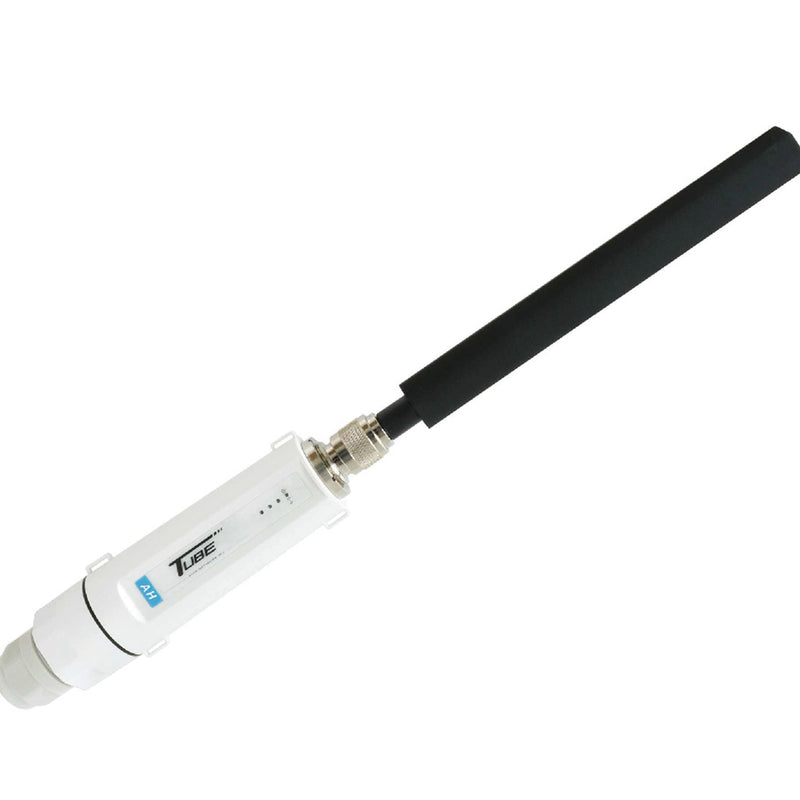

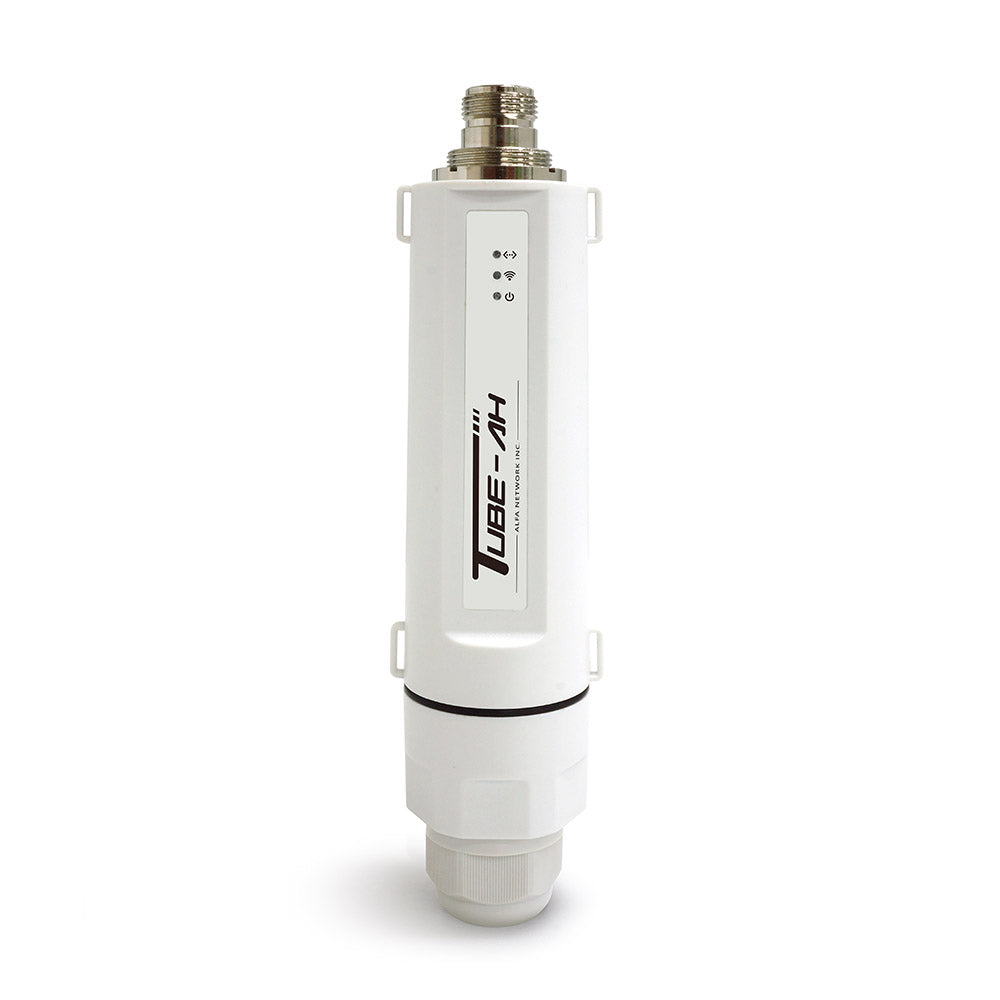

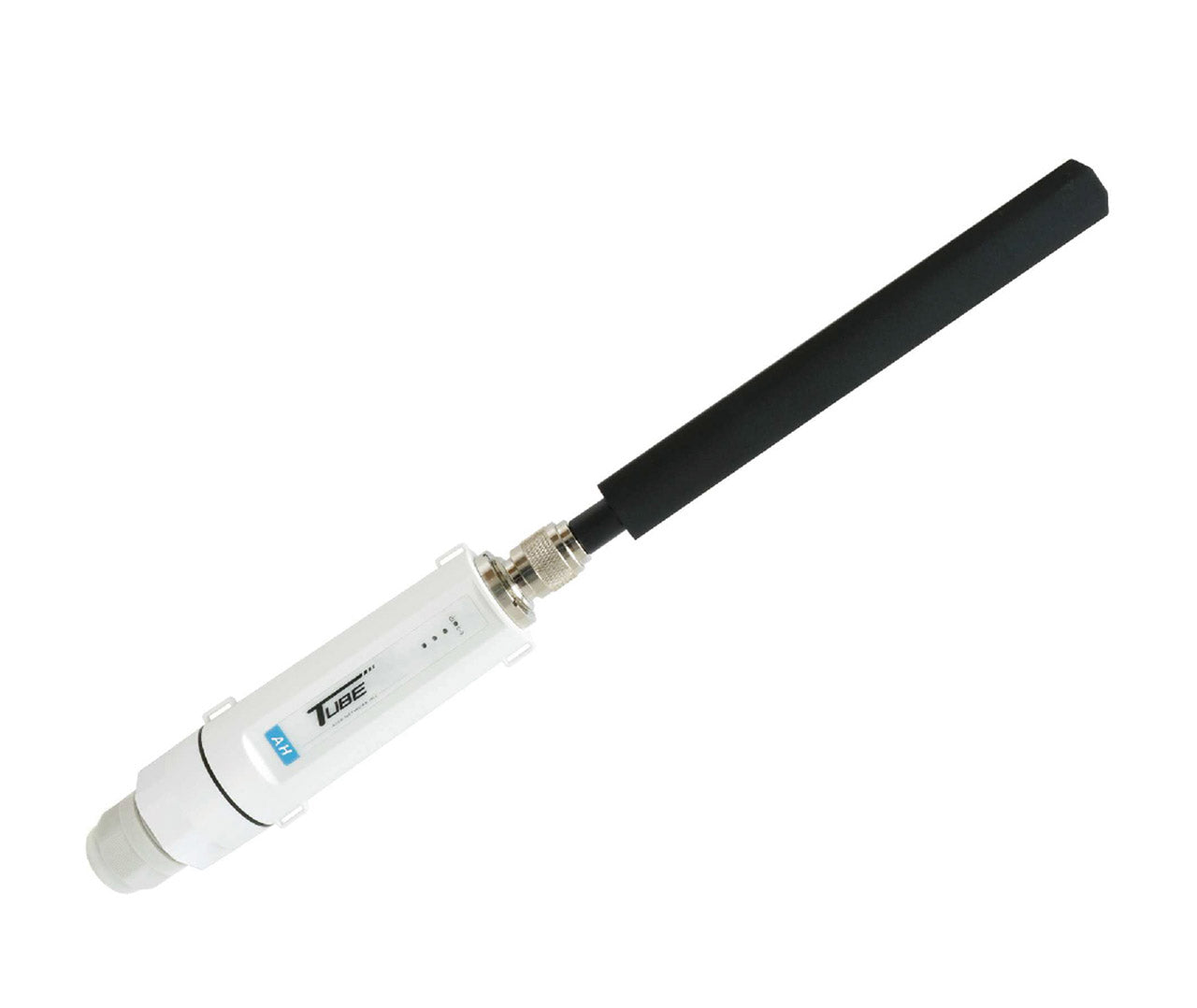

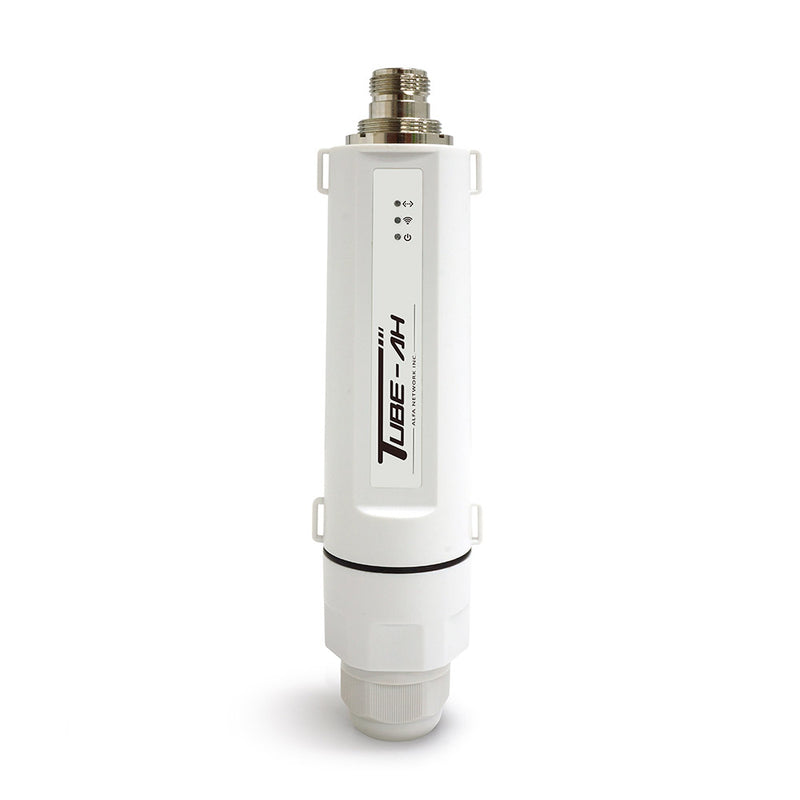

Tube-AH

IEEE 802.11ah sub 1 GHz outdoor AP/CPE with single Fast Ethernet and PoE support

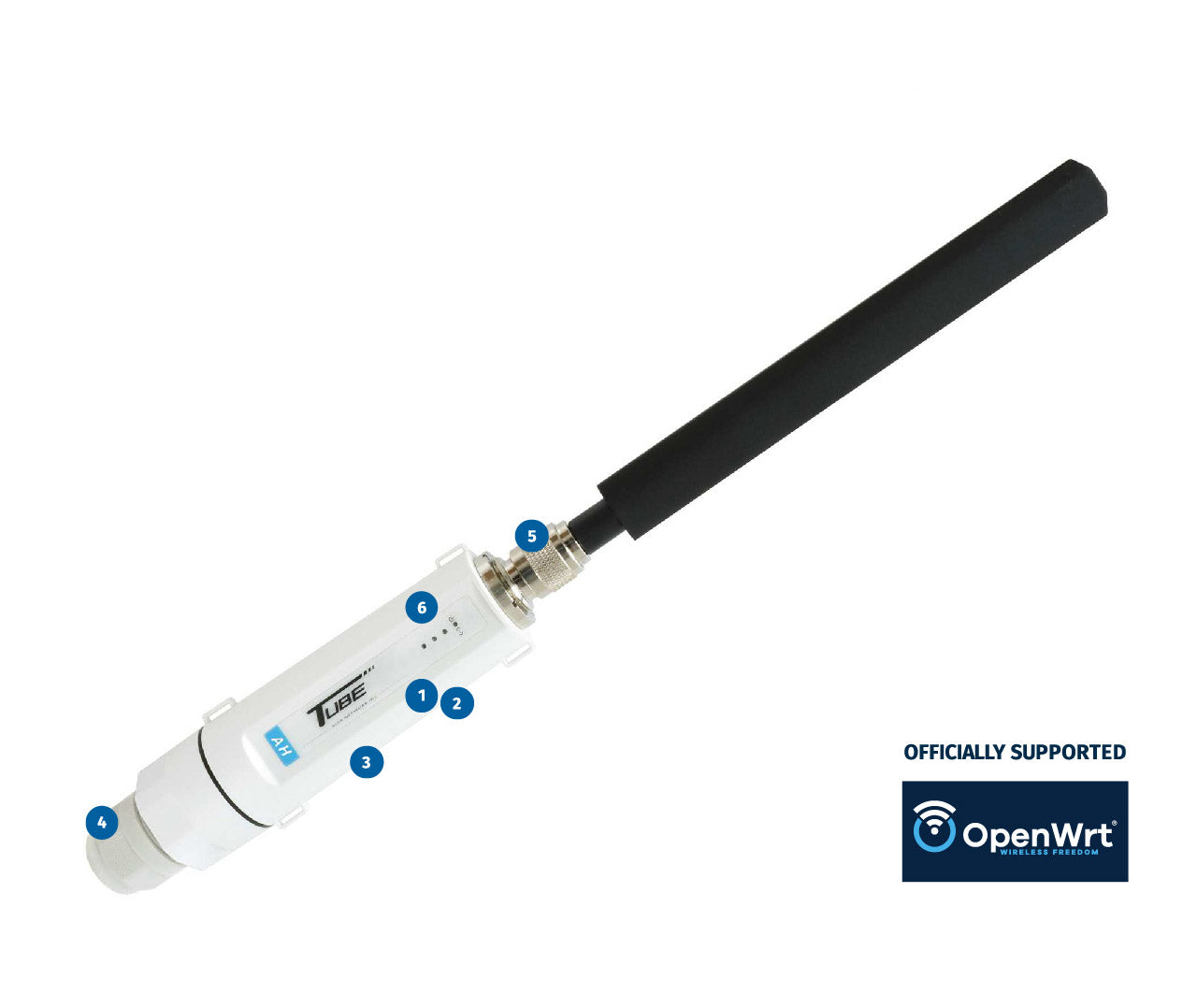

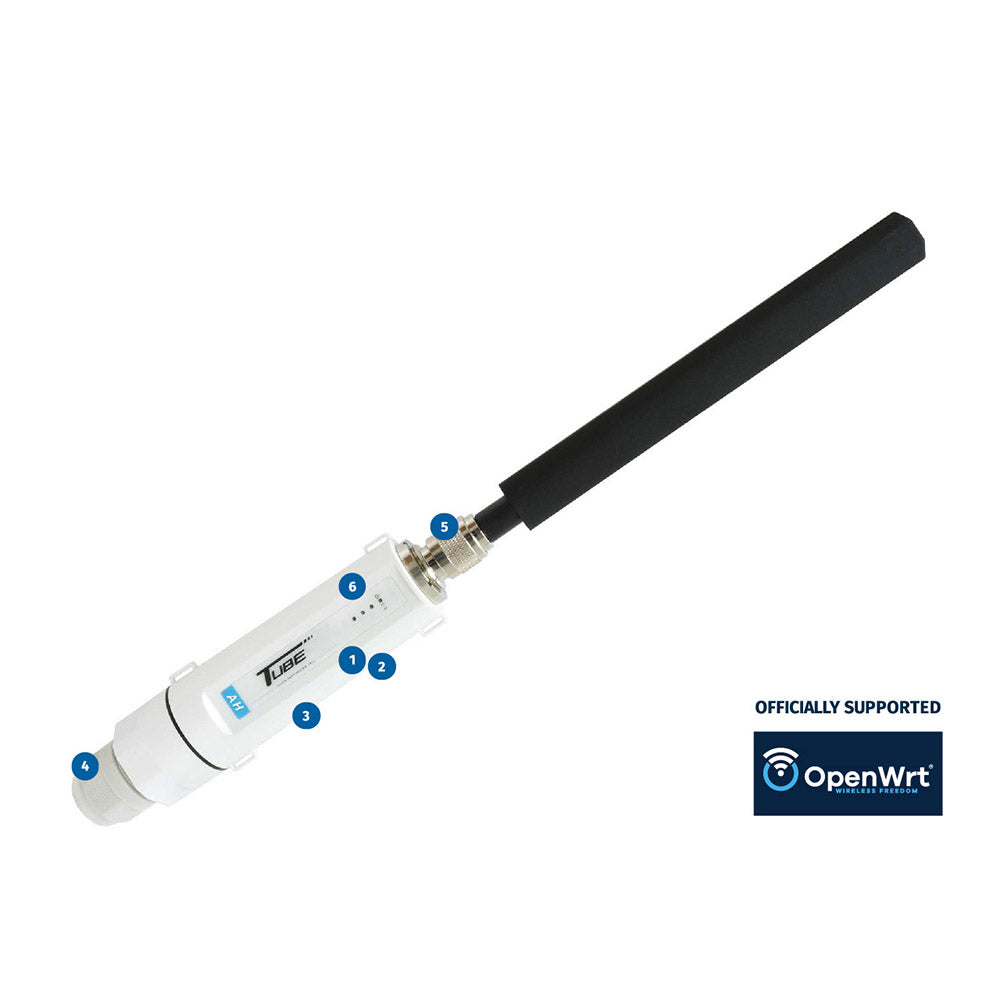

(1) NXP™ i.MX 6ULL SOC (ARM™ Cortex-A7, 528 MHz) equipped with 256 MB of DDR3L RAM
(2) Newracom™ NRC7292 WiFi HaLow™ SOC (IEEE 802.11ah draft 8.0 compliant)
(3) 32 MB of SPI NOR flash (optional 2/4/8 GB eMMC)
(4) Ethernet with passive PoE and ESD protection (with support for optional 802.3at/af module)
(5) Type-N antenna connector
(6) 4x LED

Description

Tube-AH is the world's first WiFi HaLow™ outdoor AP/CPE with PoE

The Tube-AH outdoor series allows building long range, ultra-low power WiFi networks in sub 1 GHz license-exempt bands, utilizing compact, mast mounted enclosure.

With powerful ARM Cortex-A7 based SOC clocked at 528 MHz, official OpenWrt and U-Boot support, up to 15 Mbps data throughput and complete SDK for the HaLow™ radio SOC, getting started with this new WiFi standard is straightforward.

Specifications

General specifications

Parameter	Value
Chipset	NXP .MX GULL (MCIMX6Y1CVM05AB) Newracom™ NRC7292
RAM	256 MB of DDR3L
Flash/ storage	32 MB of QSPINOR flash Optional 2/4/8 GB eMMC
Ethernet	1x Fast Ethernet with ESD protection
Frequency	847 MHz (TW) 866 MHz (EU) 915 MHz (US) 922 MHz (KR) 924 MHz (JP)
Modulation	OFDM with BPSK, QPSK, 16QAM, 64QAM
Data rate	150 Kbps-15 Mbps
Channel bandwidth	1/2/4 MHz
Antenna connector	1x Type-N
Button	1x push button (reset)
LED	1x power/status 1x LAN activity 1x WLAN TX 1x WLAN RX
Power supply	Passive PoE (12-36 V DC) input Support for optional 802.3at/af standard module
Software	Officially supported in OpenWrt (Linux Kemel 5.10+) and U-Boot 2021.x Newracom SDK available at https://github.com/newracom/
Operating humidity	TBA
Operating temperature	TBA
