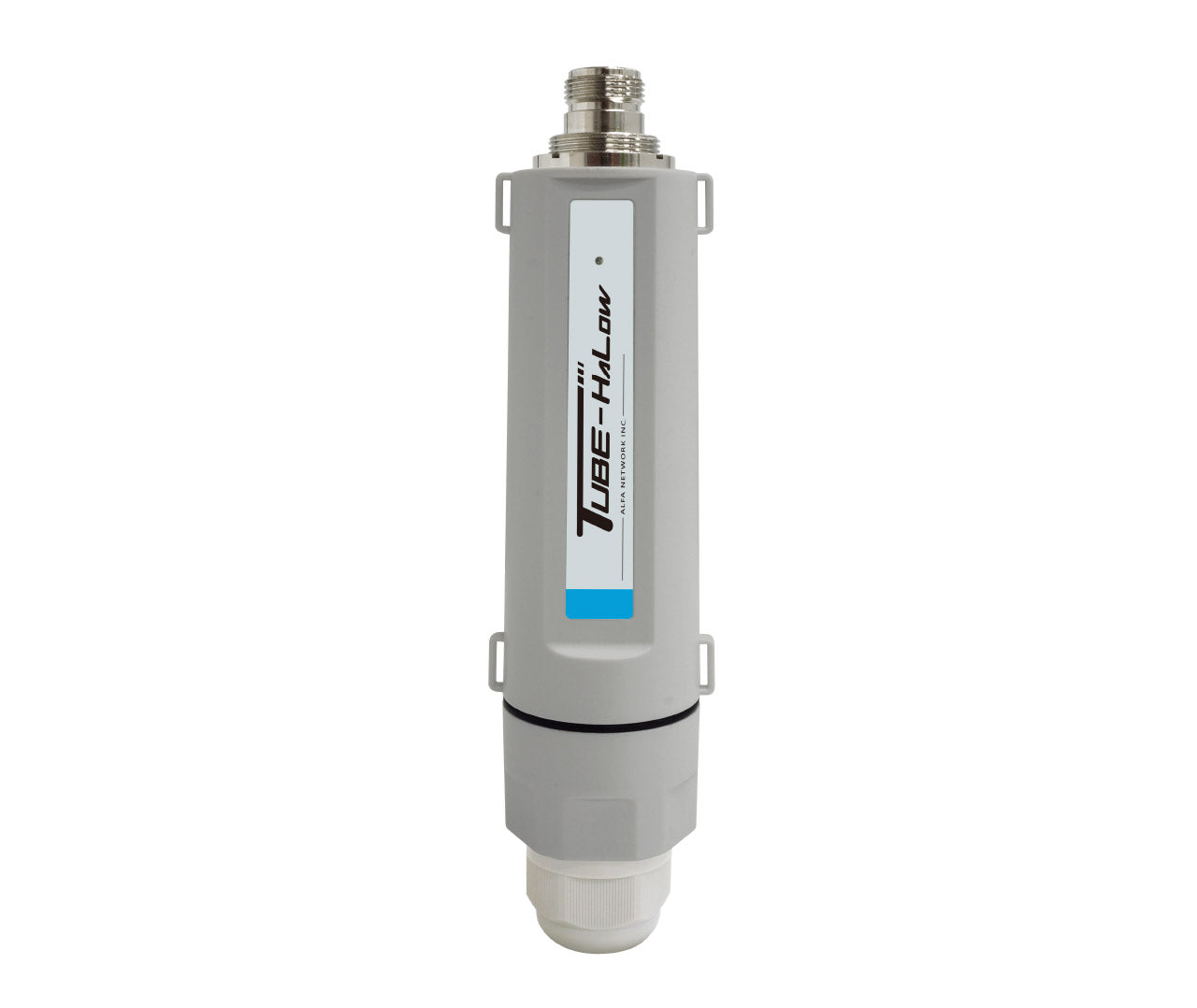

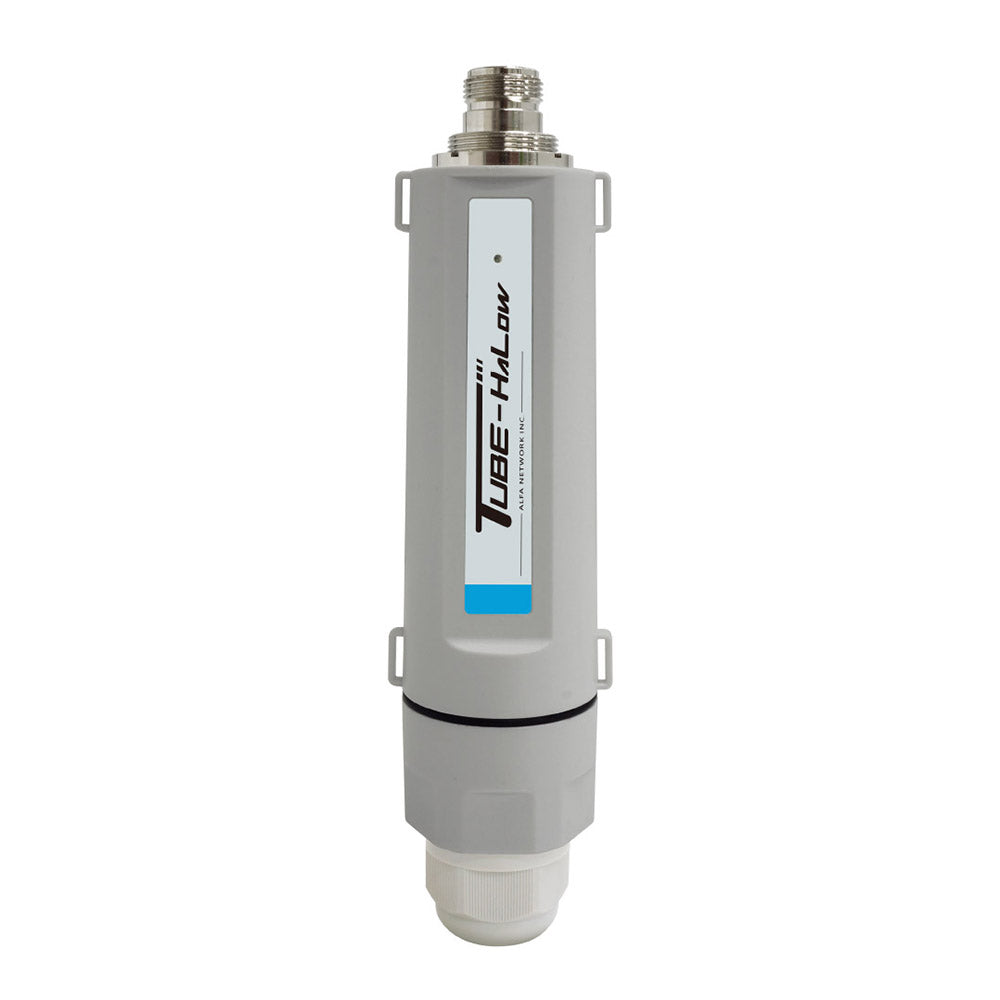

Tube-AHM is the WiFi HaLow outdoor AP/CPE with PoE
The Tube-AHM outdoor allows building long-range WiFi networks in sub 1 GHz unlicensed band, utilizing a compact, mast-mounted waterproof enclosure.
Tube-AHM is suitable for many applications such as IP cameras, sensors, etc.
Key features

Specifications
|
CPU |
MT7628 |
|
HaLow chipset |
Morse Micro MM6108 |
|
RAM |
128 MB |
|
Flash |
16 MB |
|
Frequency
|
915 MHz (US) 866 MHz (EU) 924 MHz (JP) 922 MHz (KR) 920 MHz (TW) |
|
Data rate |
Up to 32.5 Mbps |
|
Channel bandwidth |
1/2/4/8 MHz |
|
Antenna connector |
N female |
|
Ethernet |
Fast Ethernet with ESD protection |
|
Button |
Reset push-button |
|
Power supply
|
Passive PoE (12-24 V DC) input Support for optional 802.3at/af standard |
|
Operating temperature |
-20°C - 60°C |
|
Dimensions |
176 x 38 mm |
|
Weight |
125 g |
