Wi-Fi HaLow Networking Device

Tube-AHM8

Tube-AHM8 is the world’s leading WiFi HaLow + WiFi 4 Outdoor AP/CPE

Chipset
MediaTek MT7628
Flash
32 MB
RAM
128 MB
Frequency
2412 MHz to 2472 MHz
Product details

Overview

Tube-AHM8

Tube-AHM8 is the world’s leading WiFi HaLow + WiFi 4 Outdoor AP/CPE

The Tube-AHM8 is a long-range、sub-1GHz unlicensed band WiFi HaLow Outdoor AP/CPE. Since it supports both WiFi HaLow and WiFi 4 dual-band concurrent, along sharing the Internet connection with a laptop or smartphone.
The application scenarios are beyond imagination, such as IoT gateway, weather stations, industrial monitoring, medical patient monitoring, agriculture monitoring, surveillance camera.

Key Features

Tube-AHM8

  1. MT7628 + Morse Micro MM8108

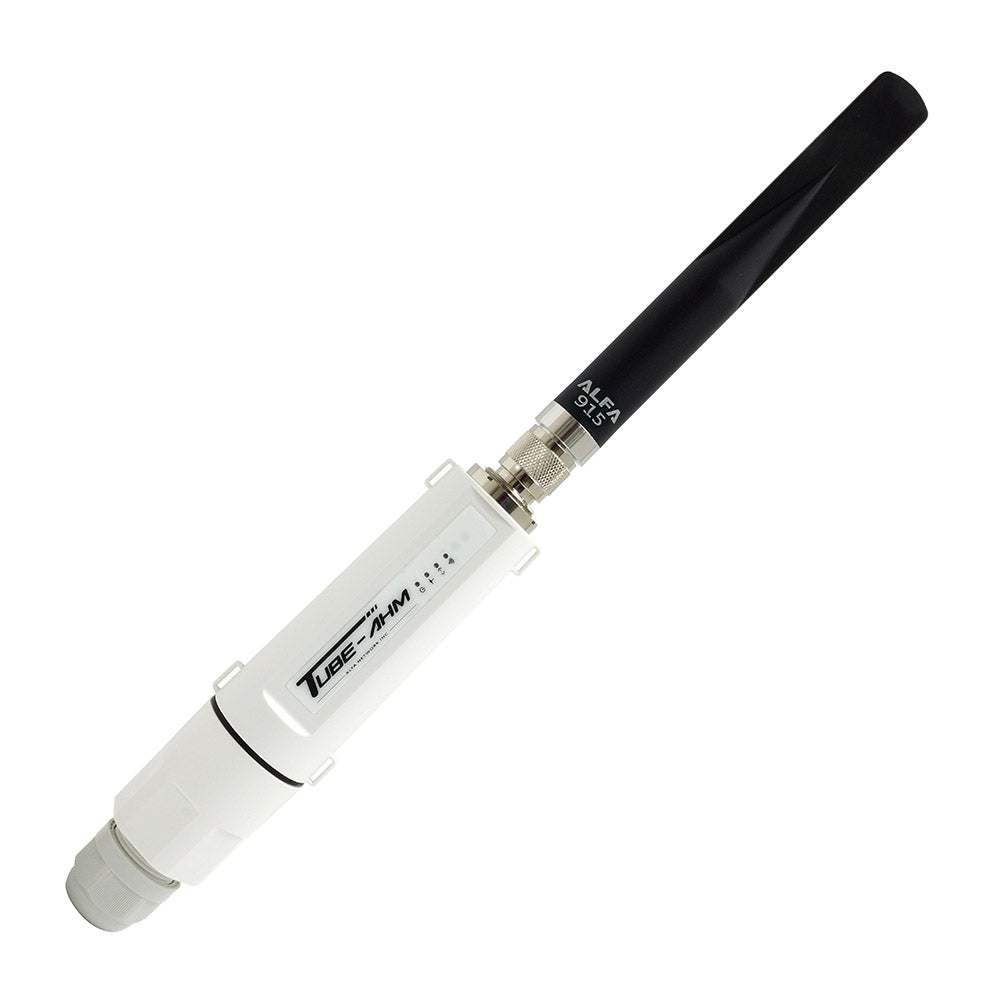

  2. Outdoor N male antennas
  3. Outdoor N female antenna connector
  4. Embedded WiFi 4 antenna x 2
  5. RJ45 Fast Ethernet port with PoE
  6. IP65 waterproof resistance
Technical details

Specifications

Tube-AHM8

WiFi4 (IEEE 802.11n)

Chipset

MediaTek MT7628

Flash

32 MB

RAM

128 MB

Frequency

2412 MHz to 2472 MHz

Channel Bandwidth

20/40 MHz

Max. Data rate

Up to 300 Mbps @ 40 MHz bandwidth (Max. Phy rate)

Antenna

2 x Embedded WiFi 4 antenna

WiFiHaLow(IEEE 802.11ah)

Chipset

Morse Micro MM8108

Frequency

Radio supporting worldwide sub 1GHz bands 850-950 MHz

Modulation

OFDM with BPSK, QPSK, 16QAM, 64QAM, 256QAM

Max. Data rate

Up to 43.3 Mbps @ 8 MHz bandwidth (Max. Phy rate)

Channel bandwidth

1/2/4/8 MHz (US)

1 MHz (EU)

1/2/4 MHz (JP)

1/2/4 MHz (TW)

Antenna connector

1 x Outdoor N female antenna connector

General

Ethernet

1 x RJ45 Fast Ethernet port

Button

1 x push-button (reset to default)

LED

1 x HaLow

1 x System

1 x WiFi

1 x Power

Power supply

Passive PoE (24 VDC) (Product Default)

802.3at/af standard PoE (Option by customer request)

Operating temperature

- 20 ℃  ~ + 60 ℃

 Supports worldwide bands from 850 MHz to 950 MHz

 Tube-AHM8 (US)

 Tube-AHM8 (EU)

 Tube-AHM8 (JP)

 Tube-AHM8 (TW)

Tube-AHM8902 MHz – 928 MHz

863 MHz – 868 MHz

920.5 – 927.5 MHz

920.5 – 924.5 MHz

26 MHz

5 MHz

7 MHz

4 MHz

RF Specifications

Tx transmit power / Rx receive sensitivity

Data Rate

Modulation

BW=1M

BW=2M

BW=4M

BW=8M

Tx (dBm)

+/-2

Rx (dBm)

PHY

rate (Mbps)

Tx (dBm)

+/-2

Rx (dBm)

PHY

rate (Mbps)

Tx (dBm)

+/-2

Rx (dBm)

PHY

rate (Mbps)

Tx (dBm)

+/-2

Rx (dBm)

PHY

rate (Mbps)

MCS0

BPSK

25

-104

0.3

24.5

-102

0.7

22.5

-99

1.5

21.5

-95

3.3

MCS1

QPSK

25

-102

0.7

24.5

-100

1.4

22

-95

3.0

20.5

-92

6.5

MCS2

QPSK

25

-100

1.0

24.5

-97

2.2

22

-93

4.5

20.5

-90

9.8

MCS3

16-QAM

24.5

-97

1.3

24.5

-94

2.9

22

-90

6.0

20.5

-87

13

MCS4

16-QAM

23.5

-94

2.0

24

-91

4.3

22

-86

9.0

20.5

-84

20

MCS5

64-QAM

21

-90

2.7

22.5

-87

5.8

21

-82

12

20

-80

26

MCS6

64-QAM

21

-88

3.0

21

-85

6.5

20

-81

14

19

-78

29

MCS7

64-QAM

18.5

-87

3.3

19.5

-83

7.2

19

-79

15

18.5

-77

33

MCS8

256-QAM

17

-83

4.0

17.75

-79

8.9

18.5

-75

18

17.5

-73

39

MCS9

256-QAM

15.75

-80

4.4

--

--

--

16.75

-74

20

16

-71

43

Note: The following transmit power levels are for IEEE compliance for 802.11ah.

They do not consider any backoffs needed for regional spectrum compliance (e.g., FCC, CE, TELEC, NCC).

TX power in edge channels will be limited by the restricted band edge in the regulatory regions.

Here to help

Downloads & support

Visit our official support resources for available files and setup guidance.

Let’s connect

Find your next connection.

Tube-AHM8

Contact ALFA ↗
FIND YOUR CONNECTION

Search ALFA products

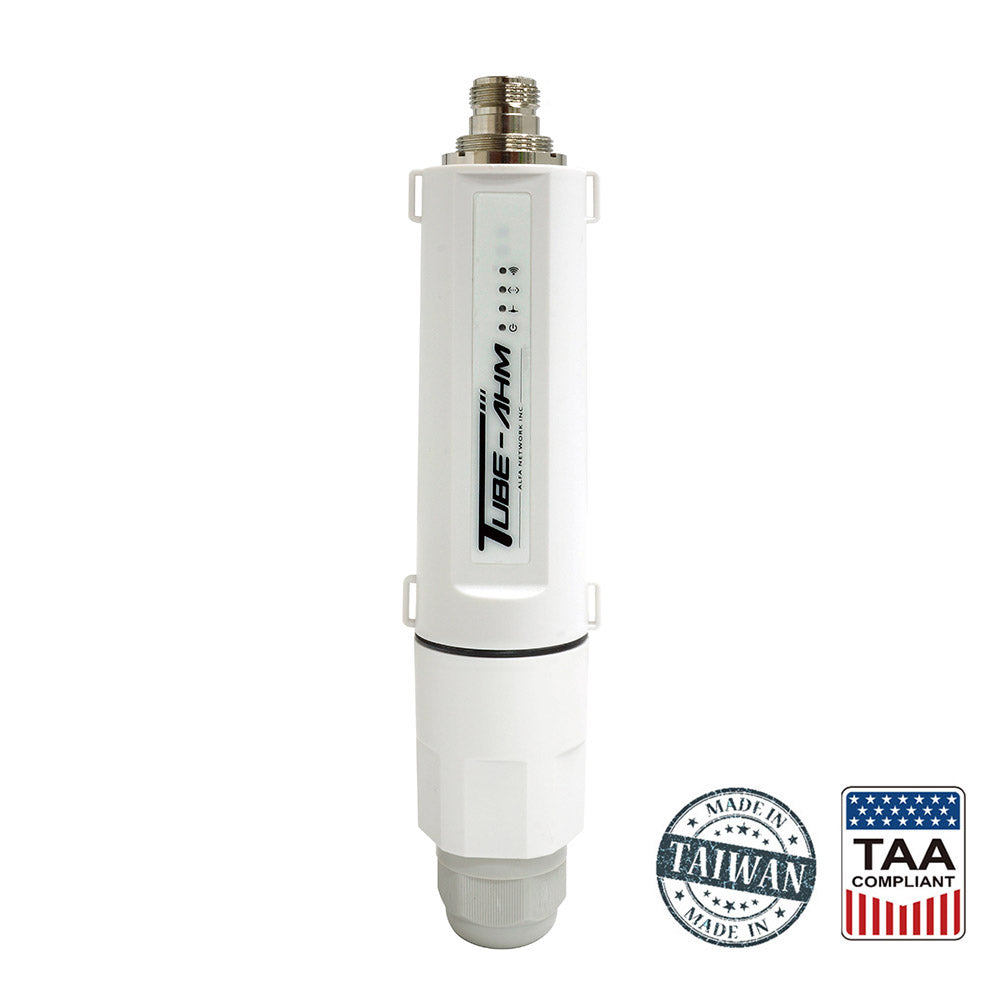

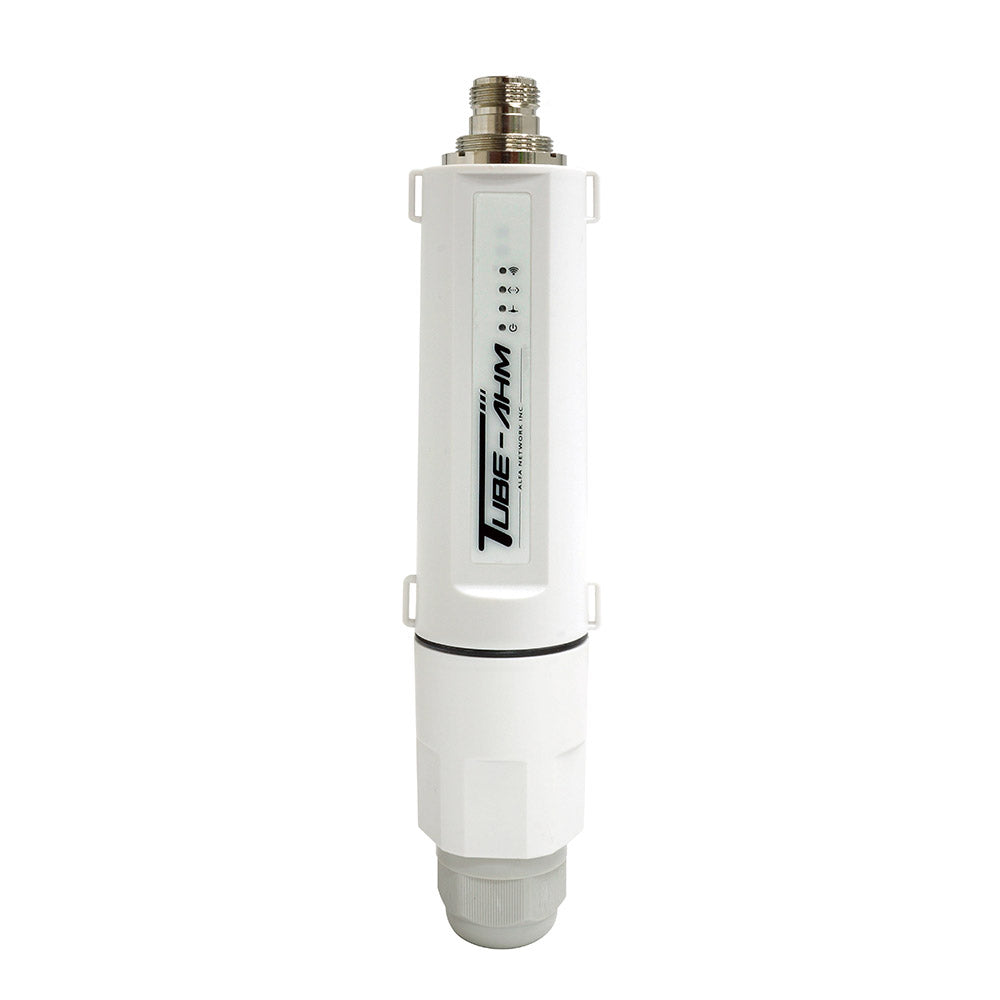

Product photograph
