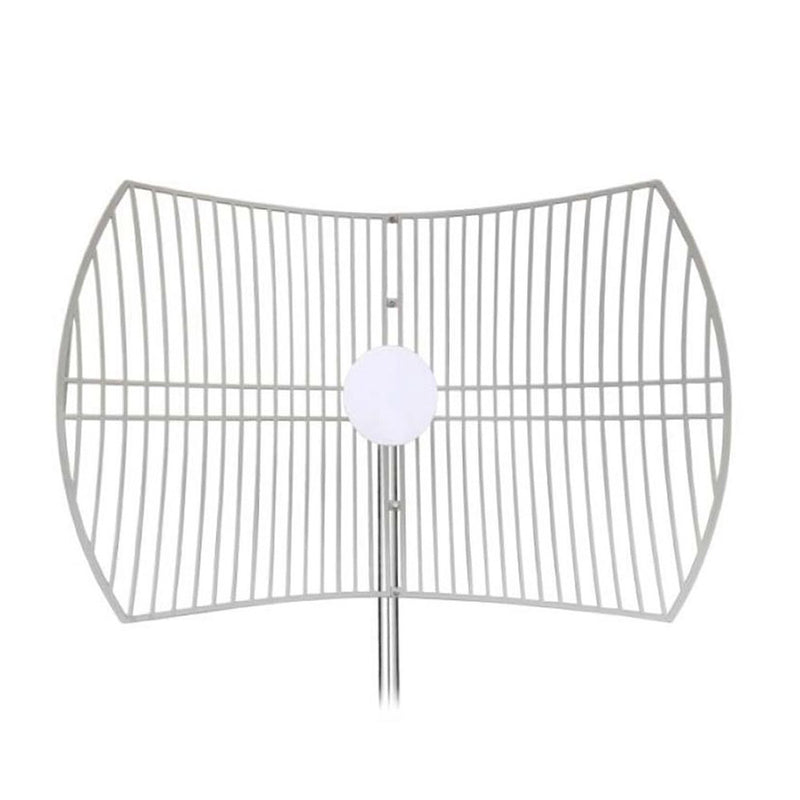

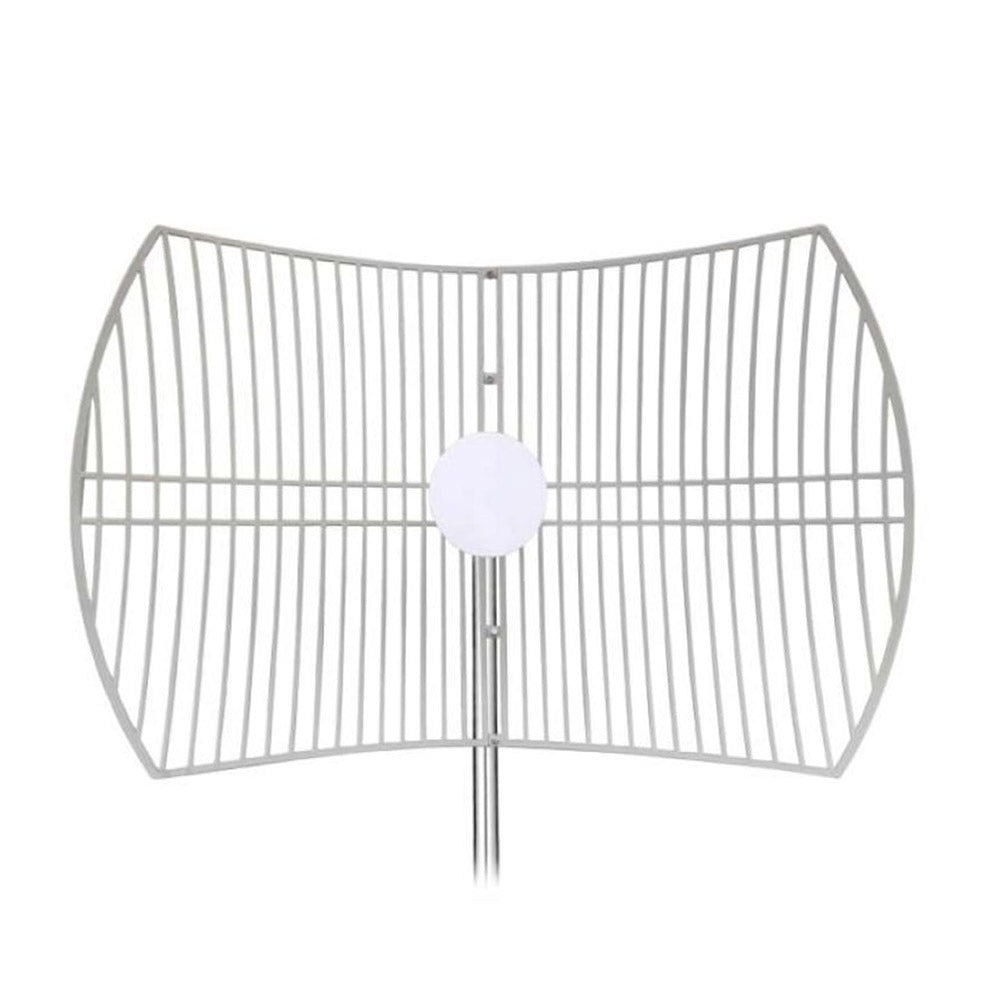

AGA-5828M

Frequency

5150 MHz ~ 58500 MHz

Gain

2x 28 dBi

V.S.W.R

≦ 2.0

F/B Ratio

≥ 25 dB

Radiation

Direction

Polarization

Vertical and Horizontal

Horizontal Beamwidth

6°

Vertical Beamwidth

4°

Impedance

50 ohm

Connector

2x N Female

Maximum Input Power

100 W

Mount type

Pole Mount

Mounting Pole Size

Ø 50 ~ Ø 70 mm

Lightning Protection

DC Grounded

Antenna Dimension

600 x 900 mm

Weight

2.5 kg

Operating Temperature

-40°C ~ 70°C

Rated Wind Velocity

60 m/s
