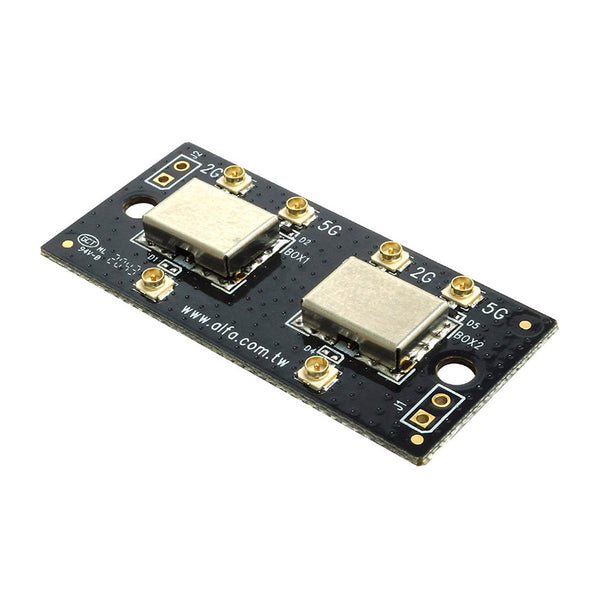

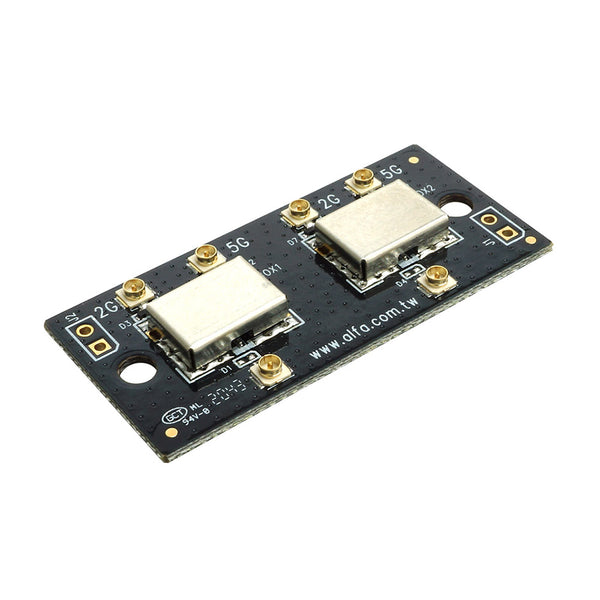

ADPX-WiFi-2UFL is a bidirectional diplexer module for WiFi systems The ADPX-WiFi-2UFL allows splitting of dual-band (2.4 and 5 GHz) WiFi signal from a single 2x2 radio into separated single-band 2.4...
** 2D Diagram **
Specifications
Parameter
Value
Connector
N male to N male
Frequency
0 ~ 7 GHz
VSWR
≦ 1.5
Weight
305 g
