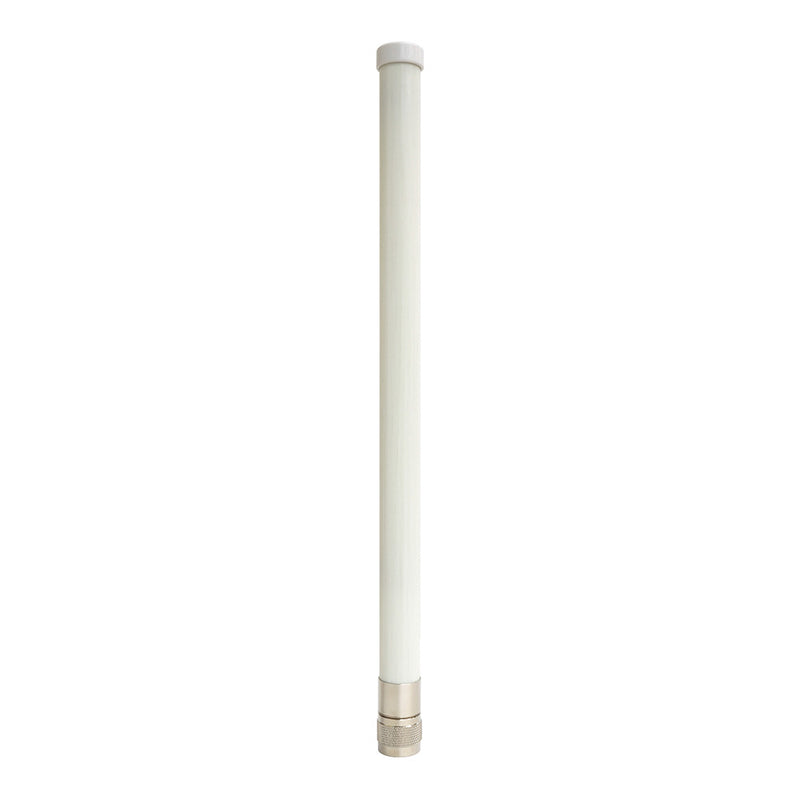

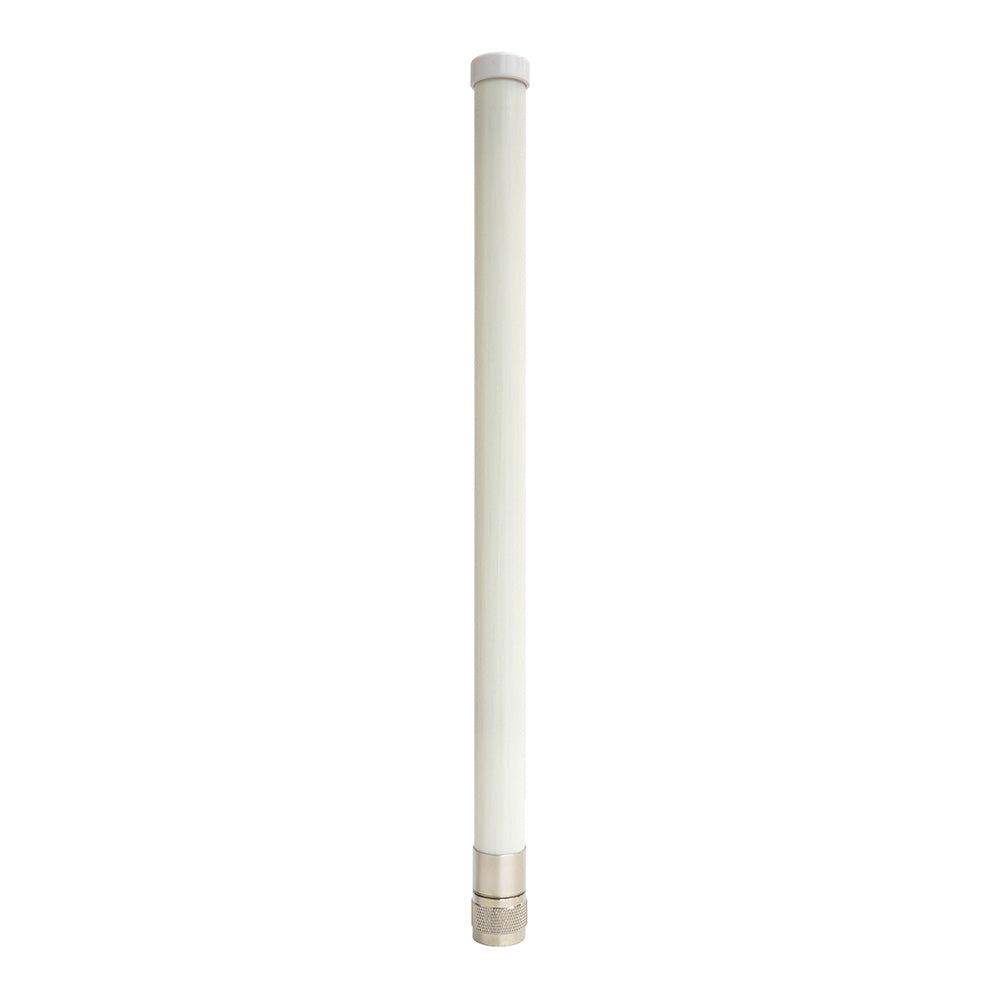

AOA-2458-79AM

AOA-2458-79AM



2D Drawing Dimension


VSWR


Radiation Pattern

image3 image4

Frequency Range 2400 – 2500 MHz
5150 – 5875 MHz
Gain 7 dBi @ 2400 – 2500 MHz
9 dBi @ 5150 – 5875 MHz
VSWR 2.0 : 1 Max.
Polarization Linear, Vertical
Power handling 2W
Impedance 50 ohm

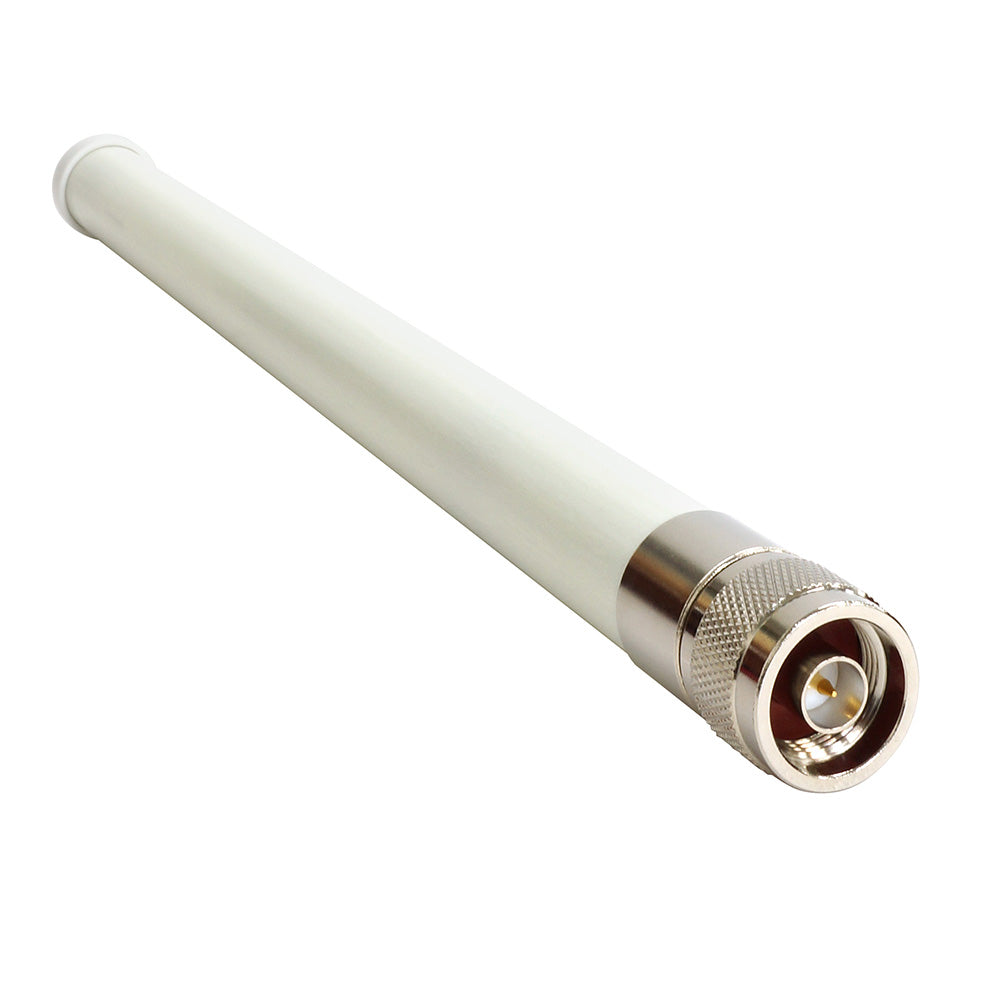

Connector N male
Antenna Length 322 mm
Operating Temperature -40 °C ~ 85 °C
Operating Humidity 5 % ~ 95 % (Non-condensing)
