ASA-5815MX4-90

ASA-5815MX4-90

ASA-5815MX4-90

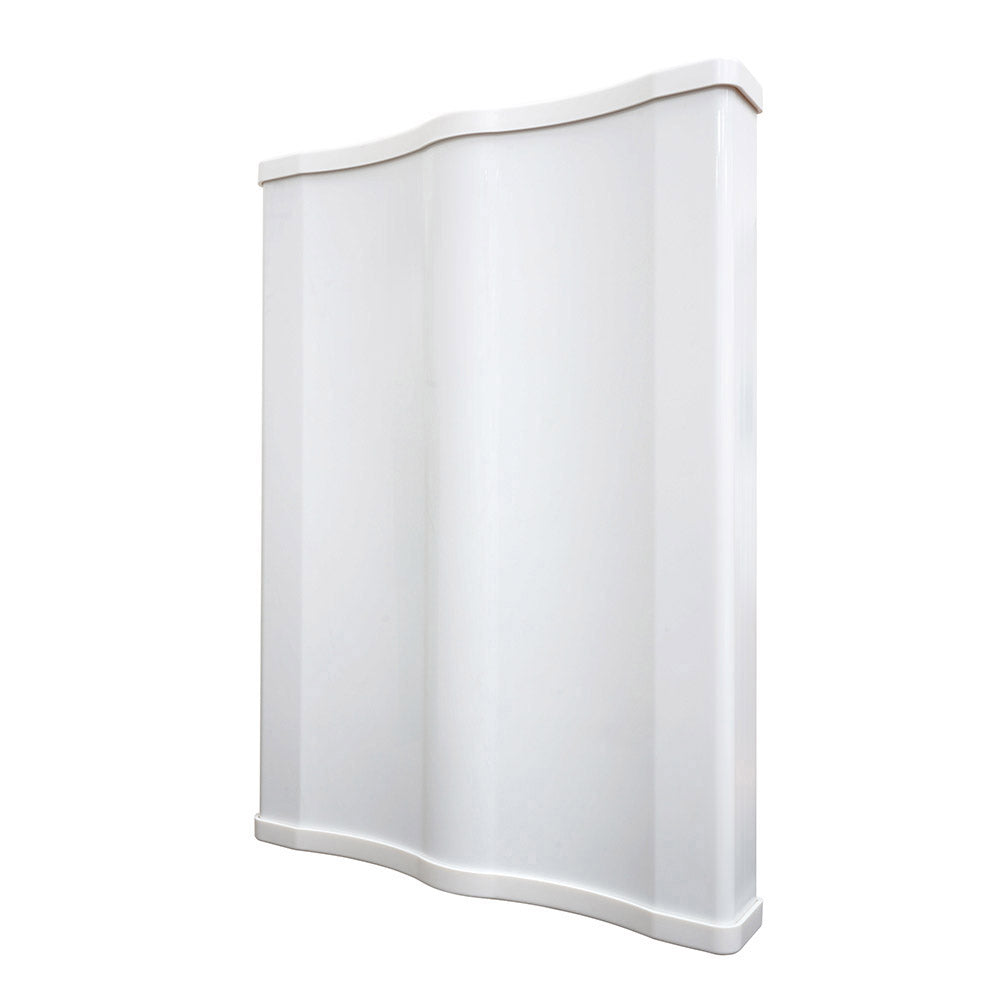

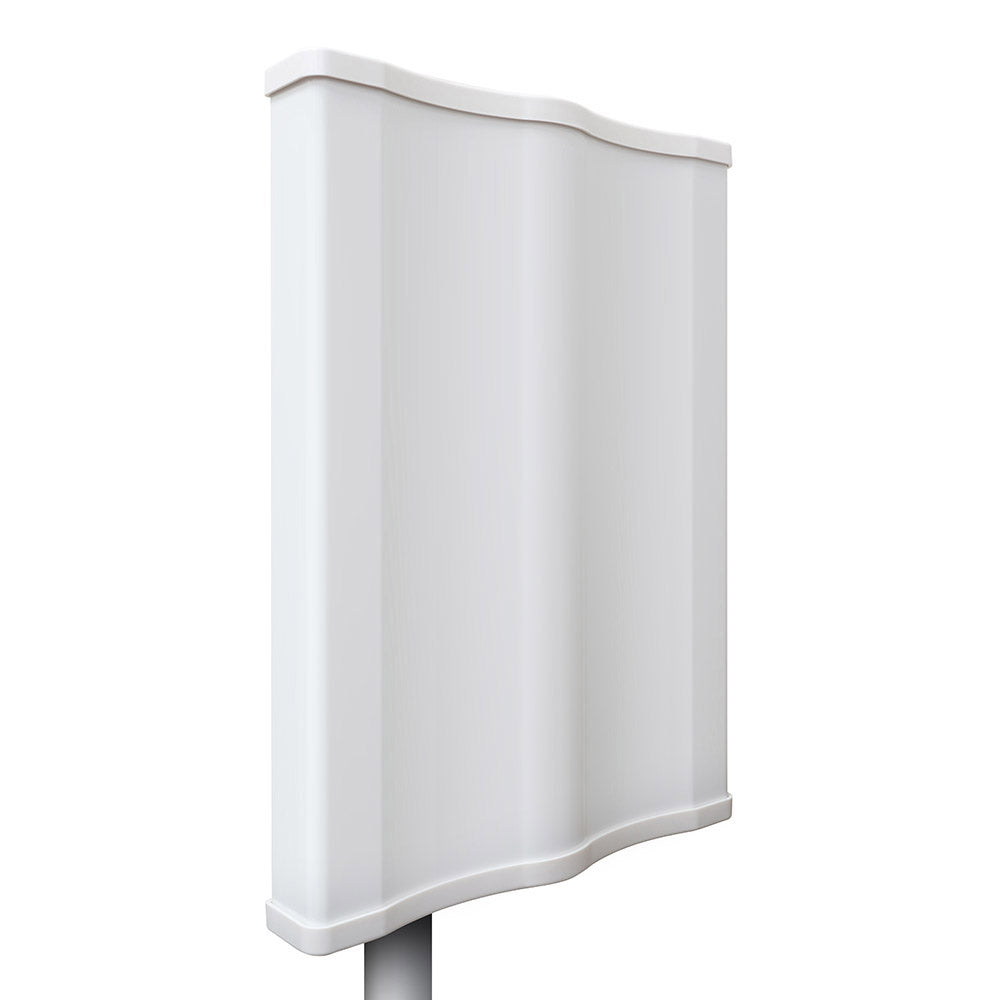

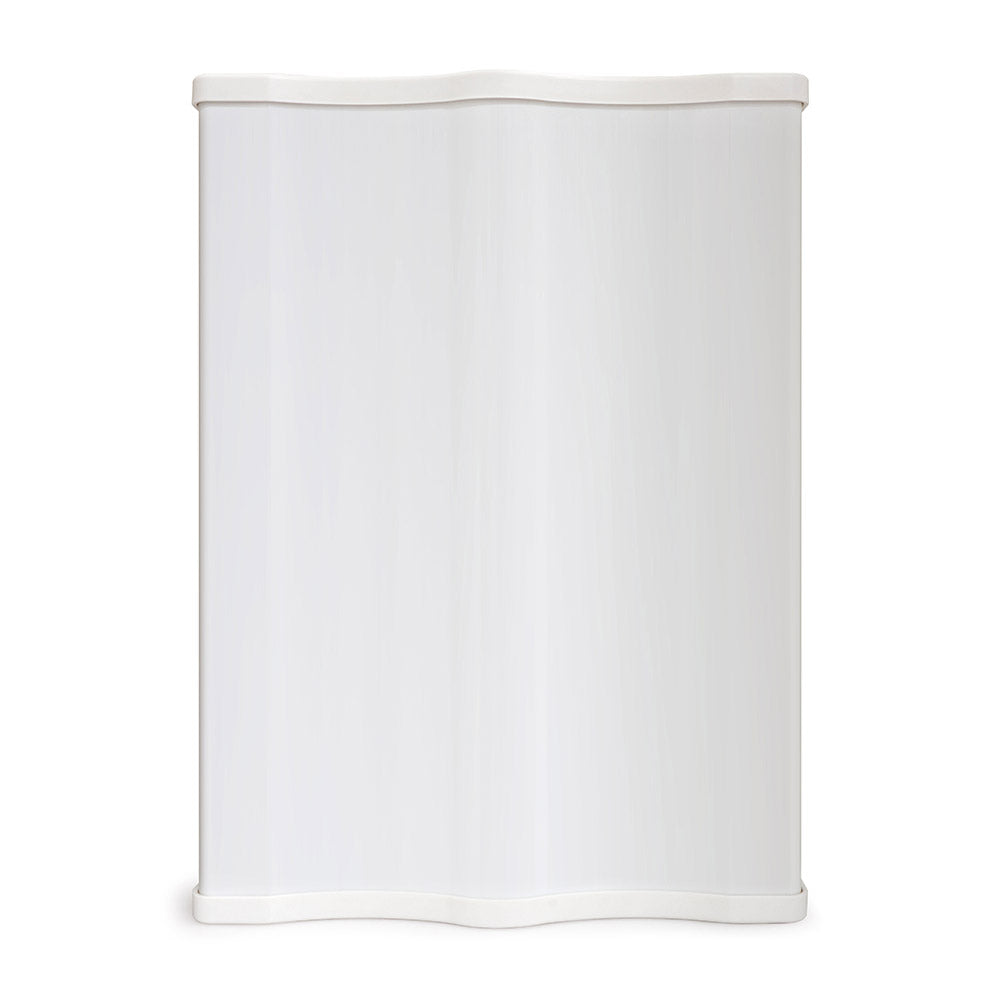

5GHz MIMO 4x4 Sector Antenna

5GHz MIMO 4x4 Sector Antenna

Frequency	4.9– 5.9 GHz
Gain	15 dBi

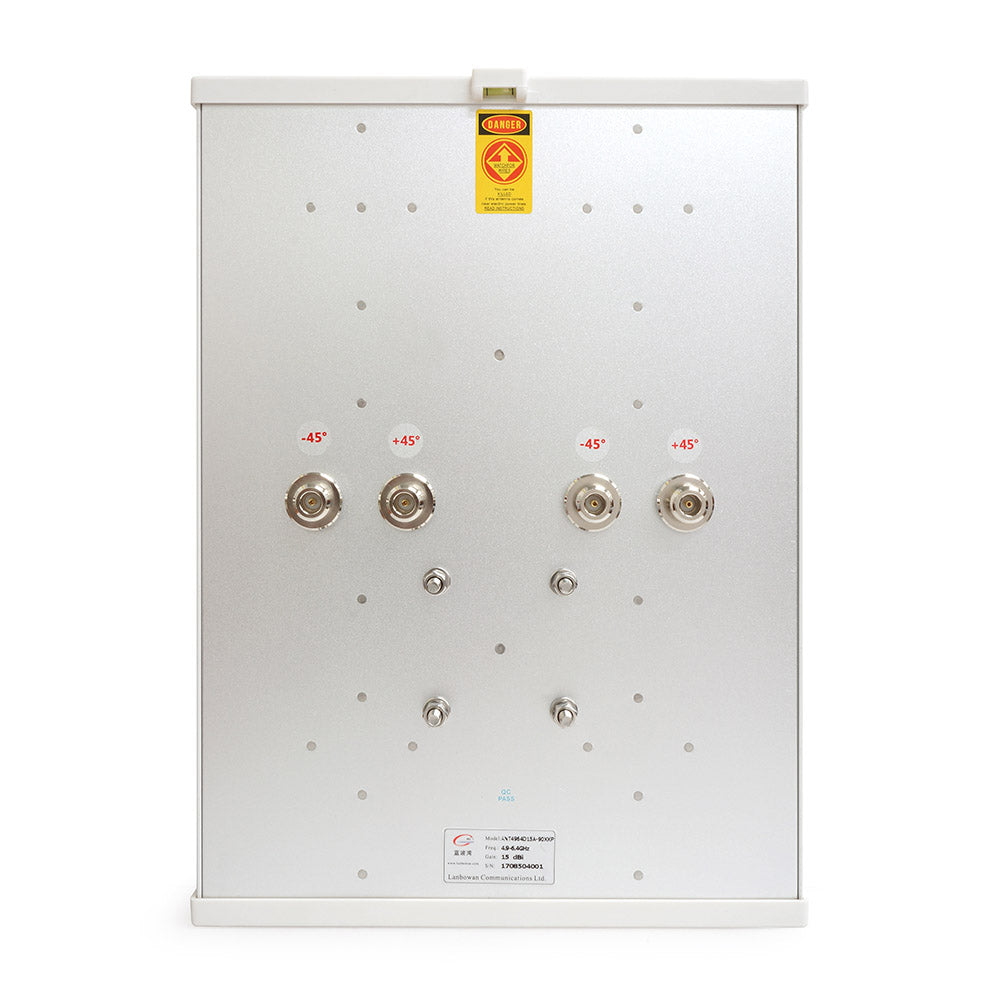

Connector Type	4xN Female
VSWR	<1.5:1
Polarization	Double Dual Slant ± 45°
Azimuth Beam-Width	90° @ -3 dB
Elevation Beam-Width	7° @ -3 dB
Frontto Back Ratio	-25 dB
Portto Port Isolation	20 dB
Cross Polarization	20 dB
Impedance	50 ohms
Dimension	380x 260 x 35 mm
Weight	3.5 kg
Operational Temperature	-45 °C to 60 °C
SurvivalWind Speed	125 mph
