AGS05-2.5GL
AGS05-2.5GL
2.5 GbE PCIe net2.5 Gbps unmanaged Ethernet switch with loop detection and fanless design

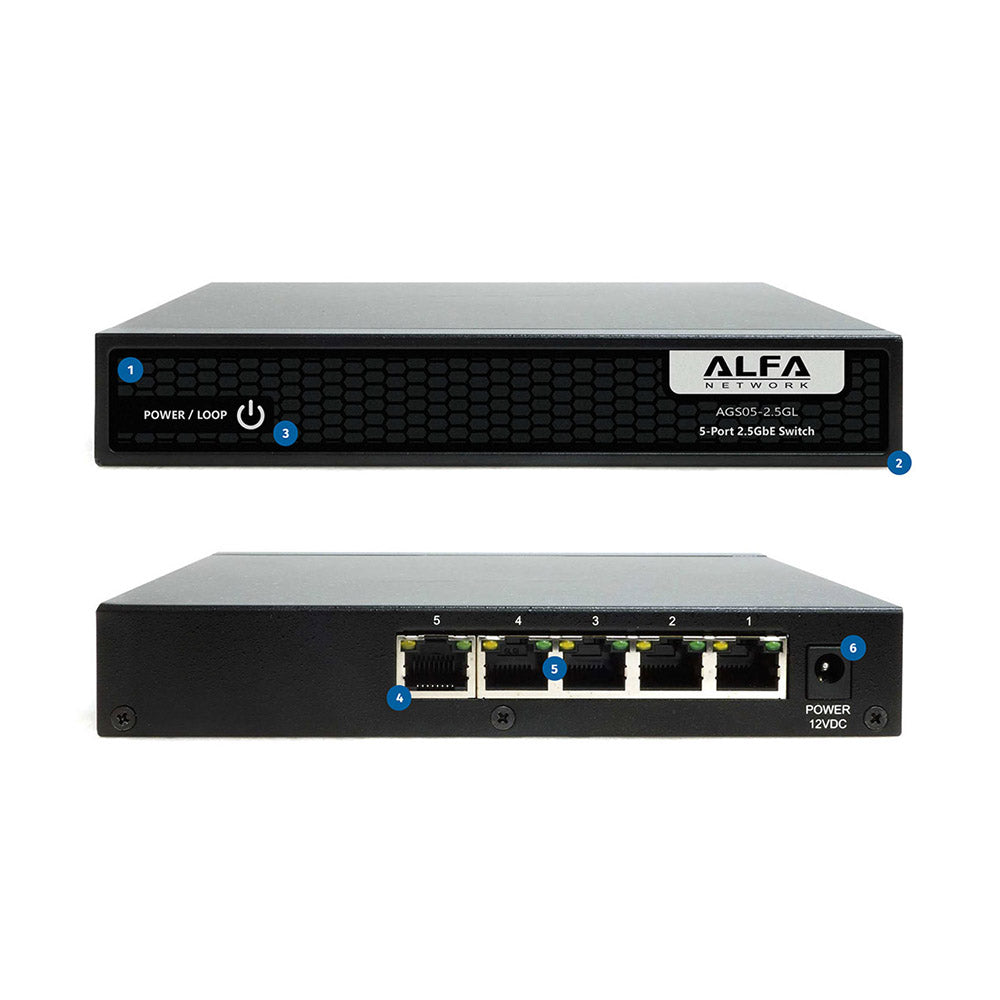

- (1) Realtek1 ™ RTL8371 chipset
- (2) Fanless metal case design
- (3) Power and loop detection indicator

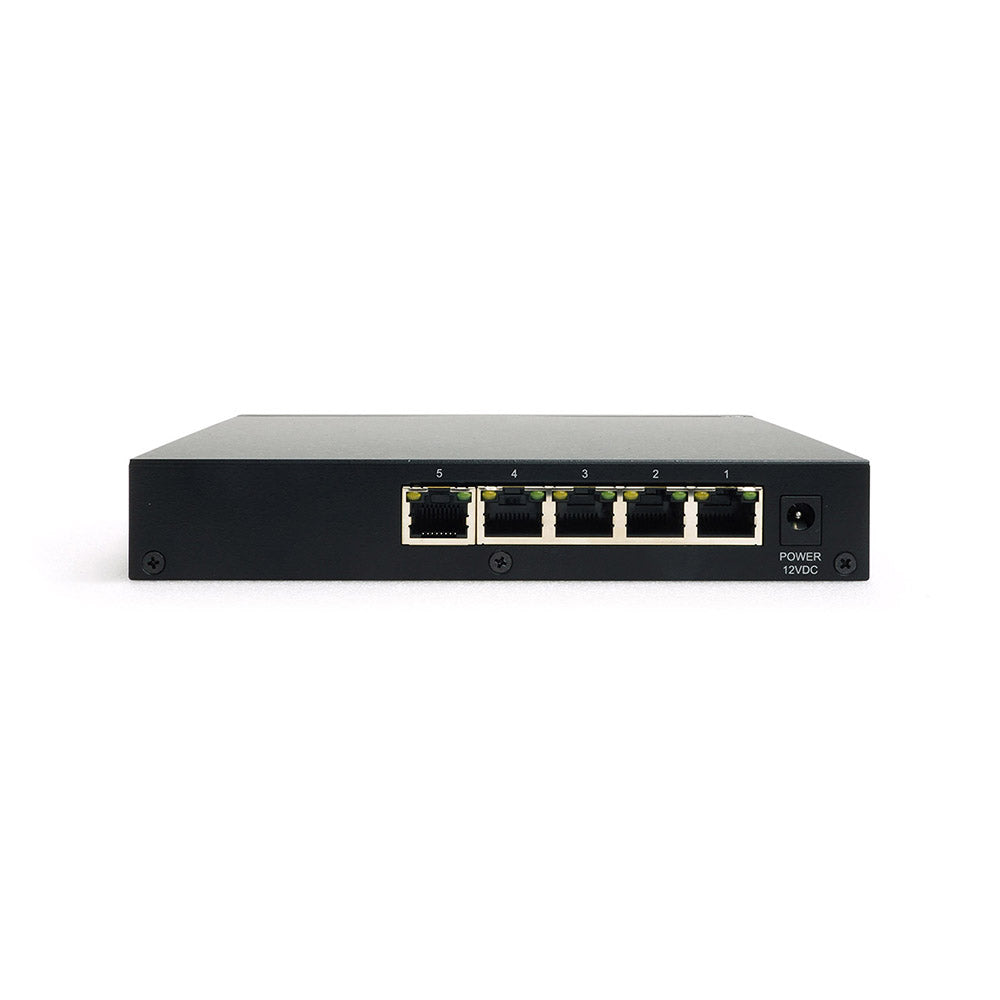

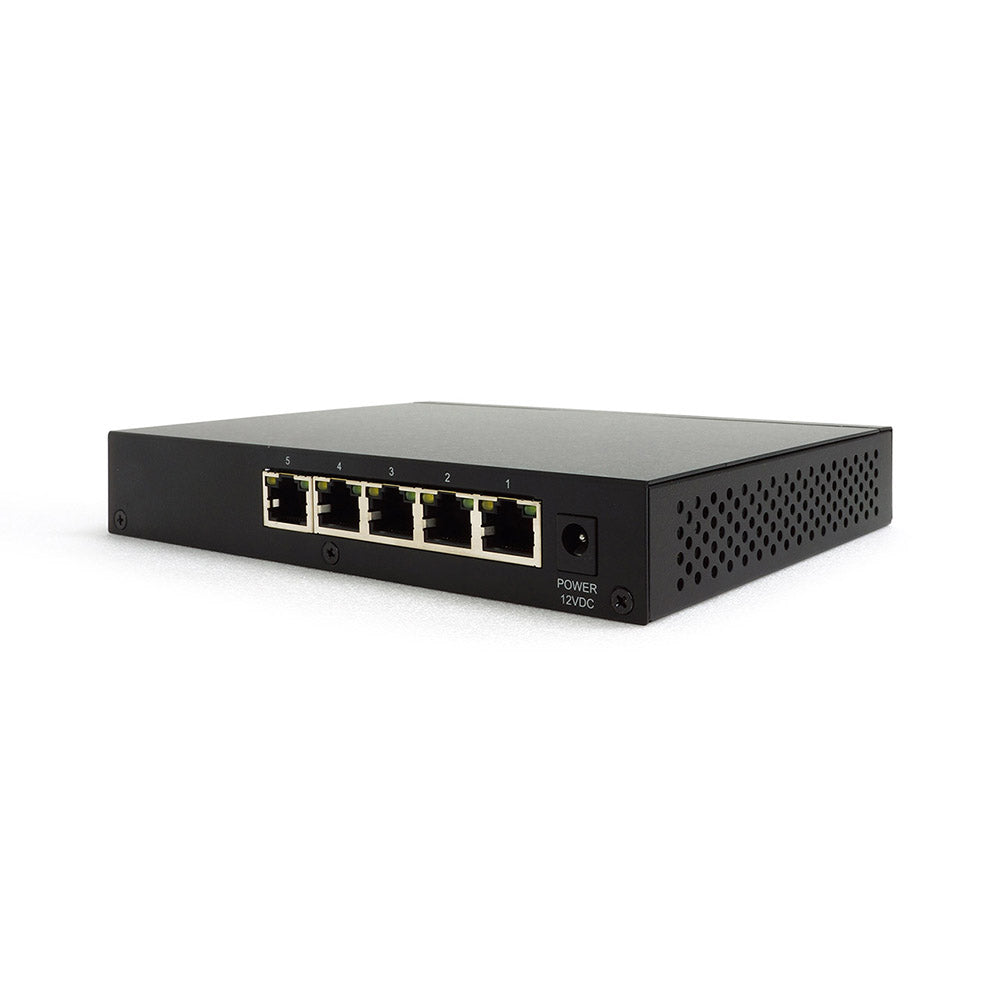

- (4) 5× 10/100/1000/2500 Mbps RJ45 ports
- (5) Link and activity LED indicators on each port
- (6) DC jack (5.5/2.1 mm) for 12 V DC input

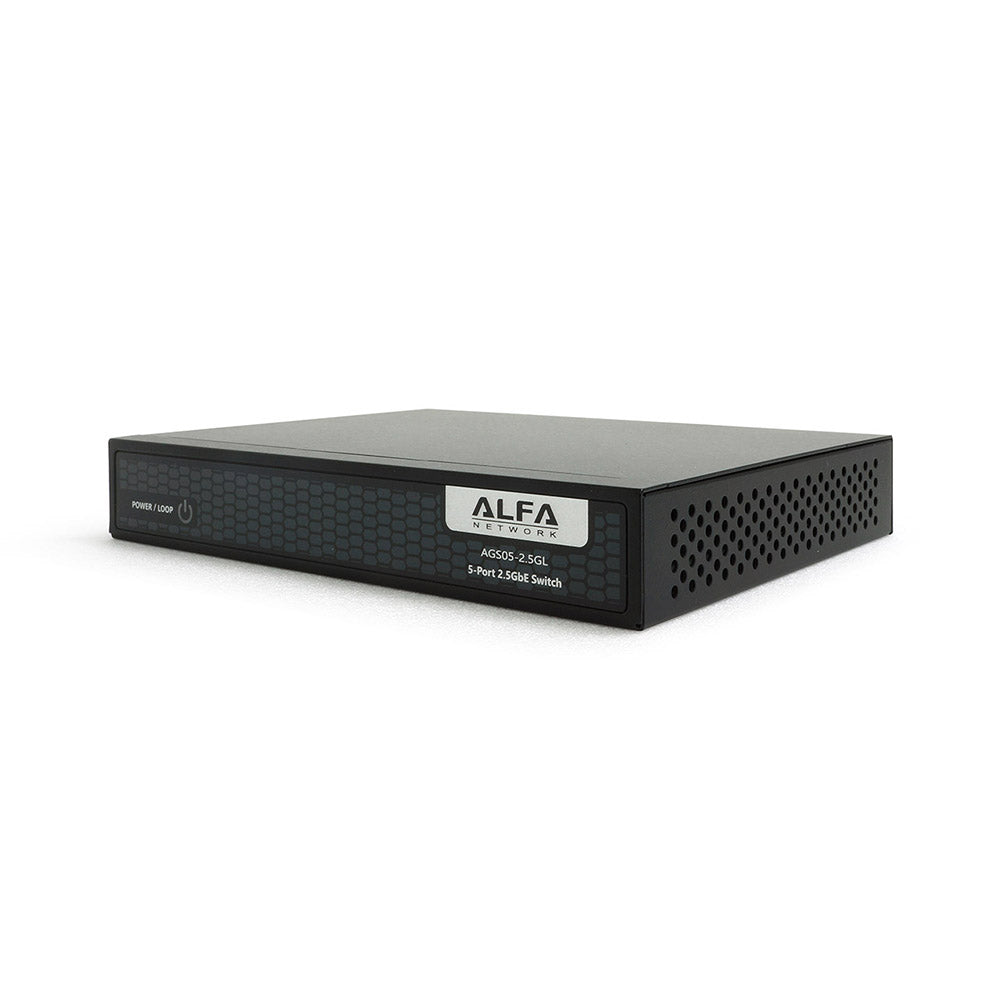

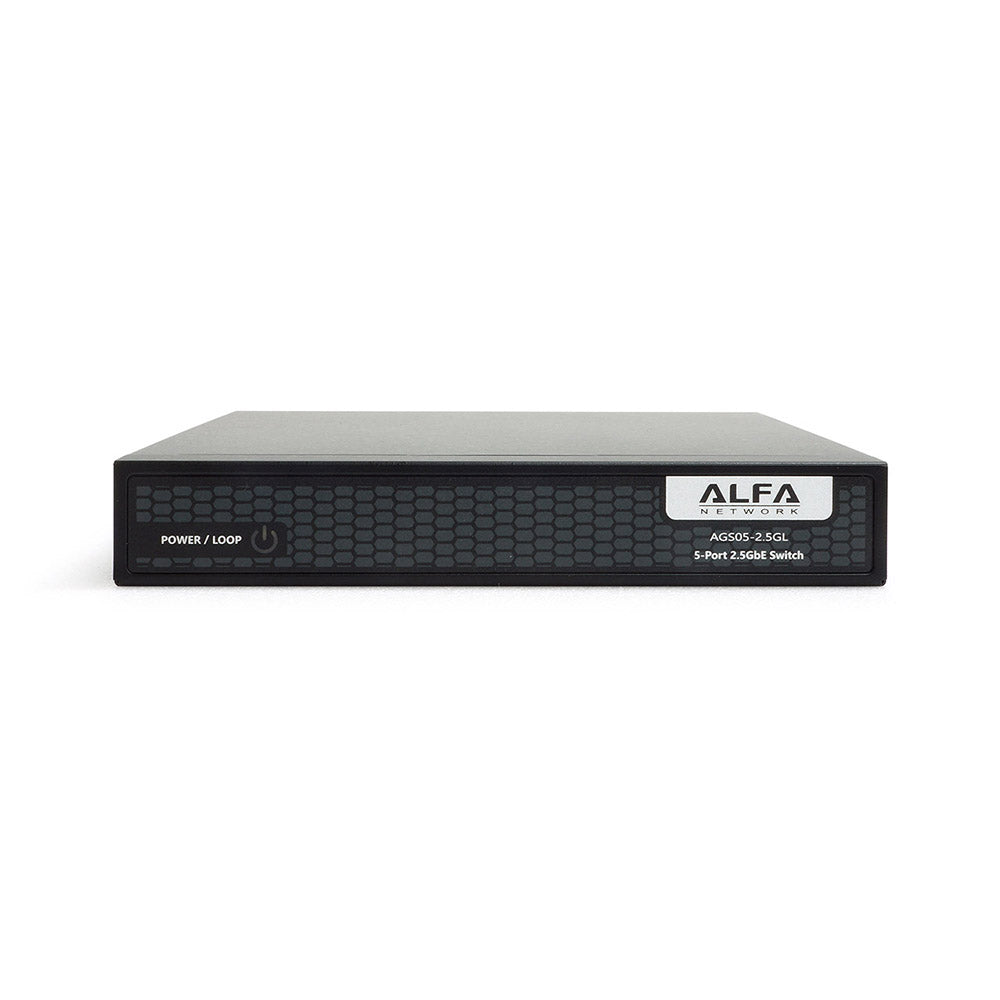

AGS05-2.5GL is a 5-port 2.5 Gbps Ethernet switch with loop detection
This multi-gigabit unmanaged Ethernet switch is a plug and play device with enterprise-level quality features. As a cost-effective solution, it allows to increase network bandwidth by more than twice (from 1 to 2.5 Gbps), using existing Cat5e (or better) cabling infrastructure.
Thanks to highly reliable internal components, features like auto-negotiation, non-blocking 25 Gbps switching capacity, flow control and fanless case design, this device will be perfect choice for SMB or home users.
General specifications
| Parameter | Value |
|---|---|
| Chipset | Realtek™ RTL8371 and 5× RTL8221B |
| IEEE 802.3 standards | IEEE 802.3ab IEEE 802.3az IEEE 802.3bz (NBASE-T) IEEE 802.3u IEEE 802.3x (flow control) |
| Jumbo frames | Up to 12 KB |
| MAC address table | 16 K |
| Packet buffer memory | 12 Mb |
| Switching capacity | 25 Gbps |
| Loop detection | Yes, with LED indicator |
| Interface | 5× 2.5GBaseT RJ45 |
| LED | 1× power (white) 1× loop detection (amber) 5× 2.5 GbE link/activity (green) 5× 10/100/1000 Mbps link/activity (amber) |
| Power supply | DC jack (5.5/2.1 mm) for 12 V DC input |
| Operating humidity | 10 % ~ 90 % RH, non-condensing |
| Operating temperature | 0 ° ~ 50 ° C |
| Dimensions | 165 × 130 × 27 mm |
