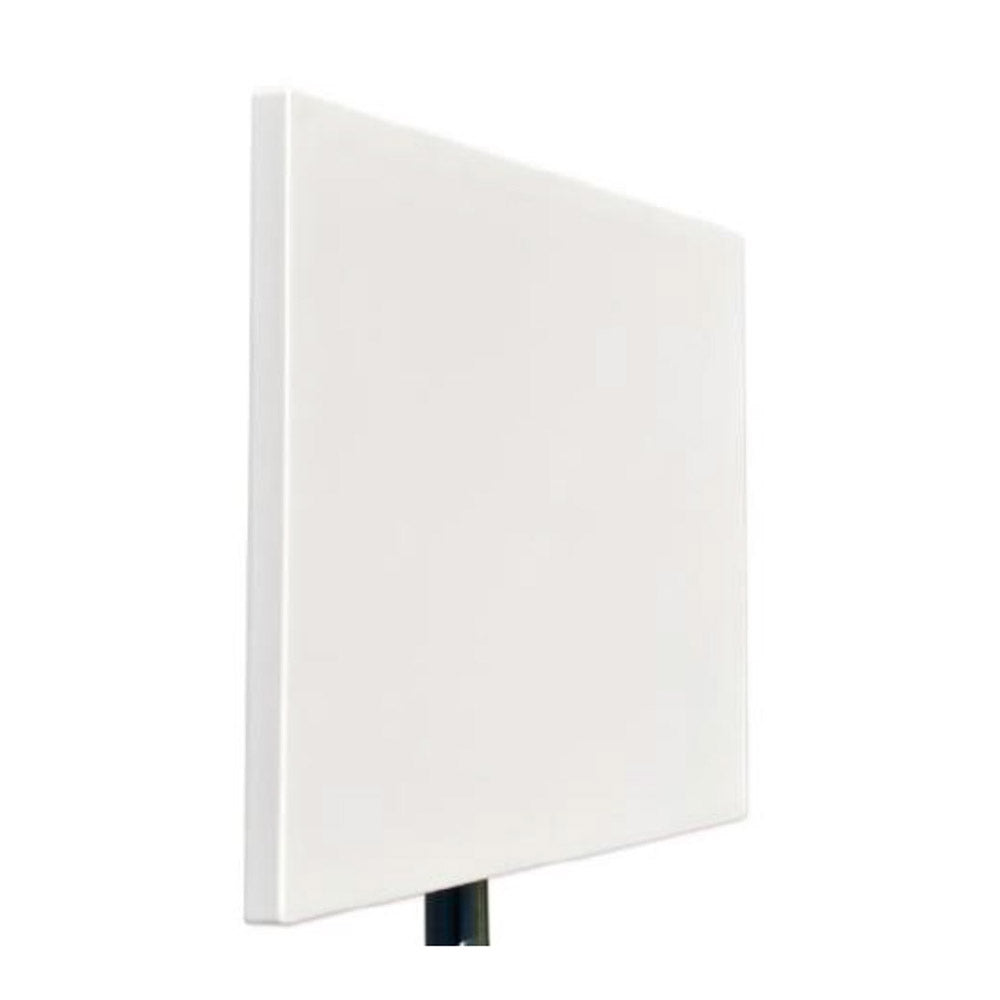

APA-L2458M1316

Frequency

2400 – 2500 MHz

5150 – 5850 MHz

Gain

13 dBi @ 2400 – 2500 MHz

16 dBi @ 5150 – 5850 MHz

V.S.W.R

≦ 1.5

F/B Ratio

≥ 25 dB

Radiation

Direction

Connector

2x N female

Polarization

Vertical

Horizontal Beamwidth

50°

Vertical Beamwidth

30°

Impedance 50 Ω

50 Ω

Maximum Input Power

50 W

Material

ABS

Dimensions

385 x 385 x 35 mm (15.16 x 15.16 x 1.38 inches)

Weight

1.38 kg

Operating Temperature

-40°F ~ 176°F (-40°C ~ 80°C)

Rated Wind Velocity

60 m/s

Mounting

Pole mount

Supported Pole Diameter

Ø 30 ~ Ø 50 mm
