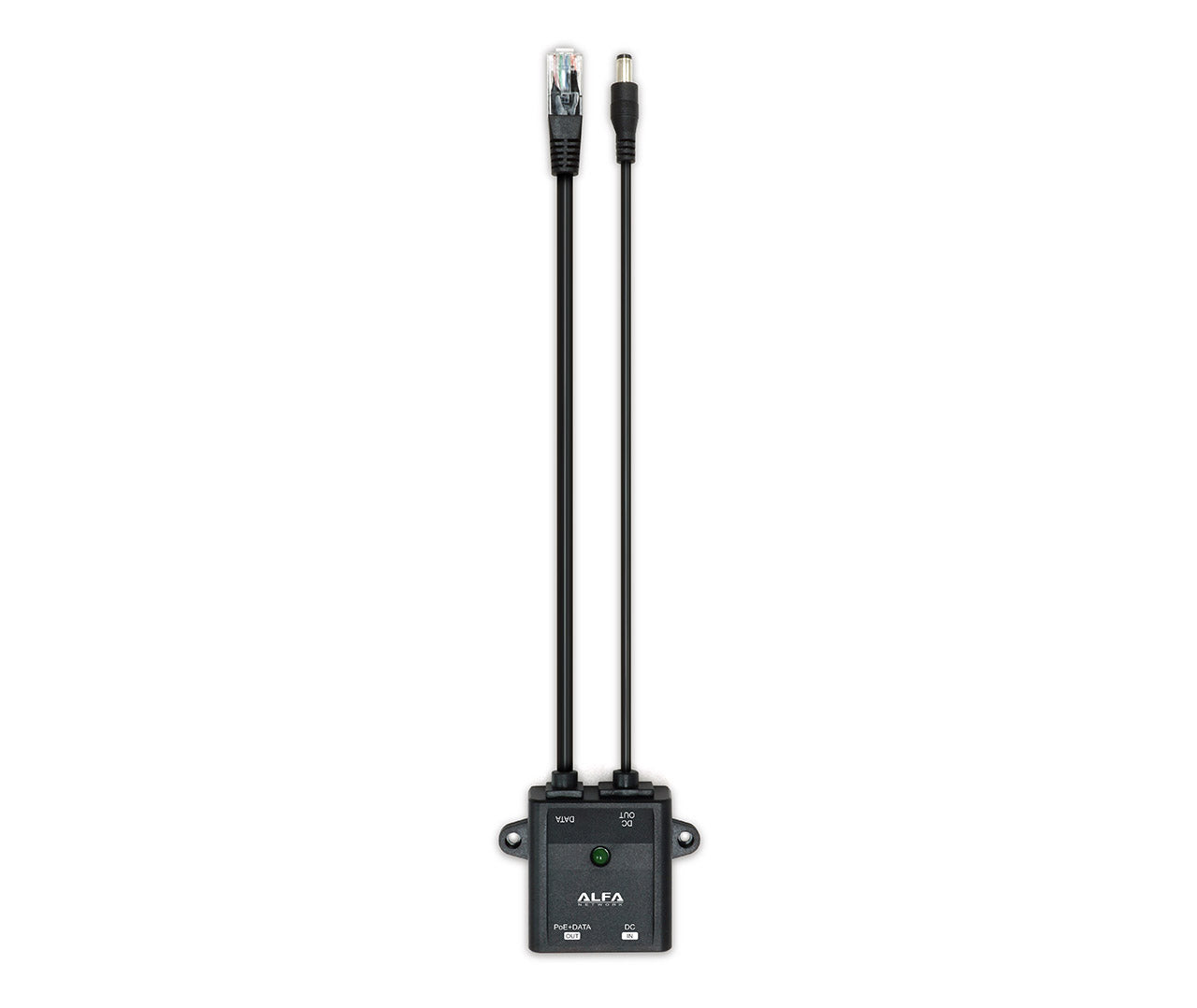

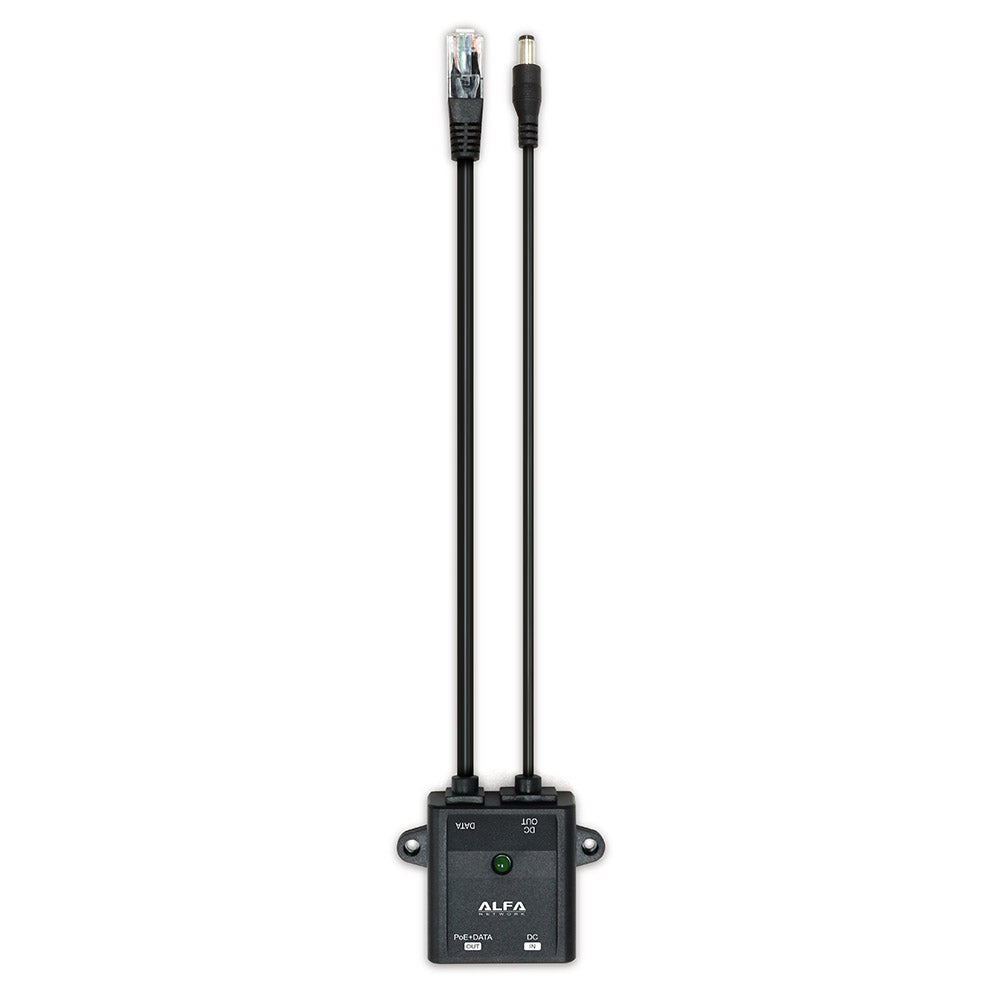

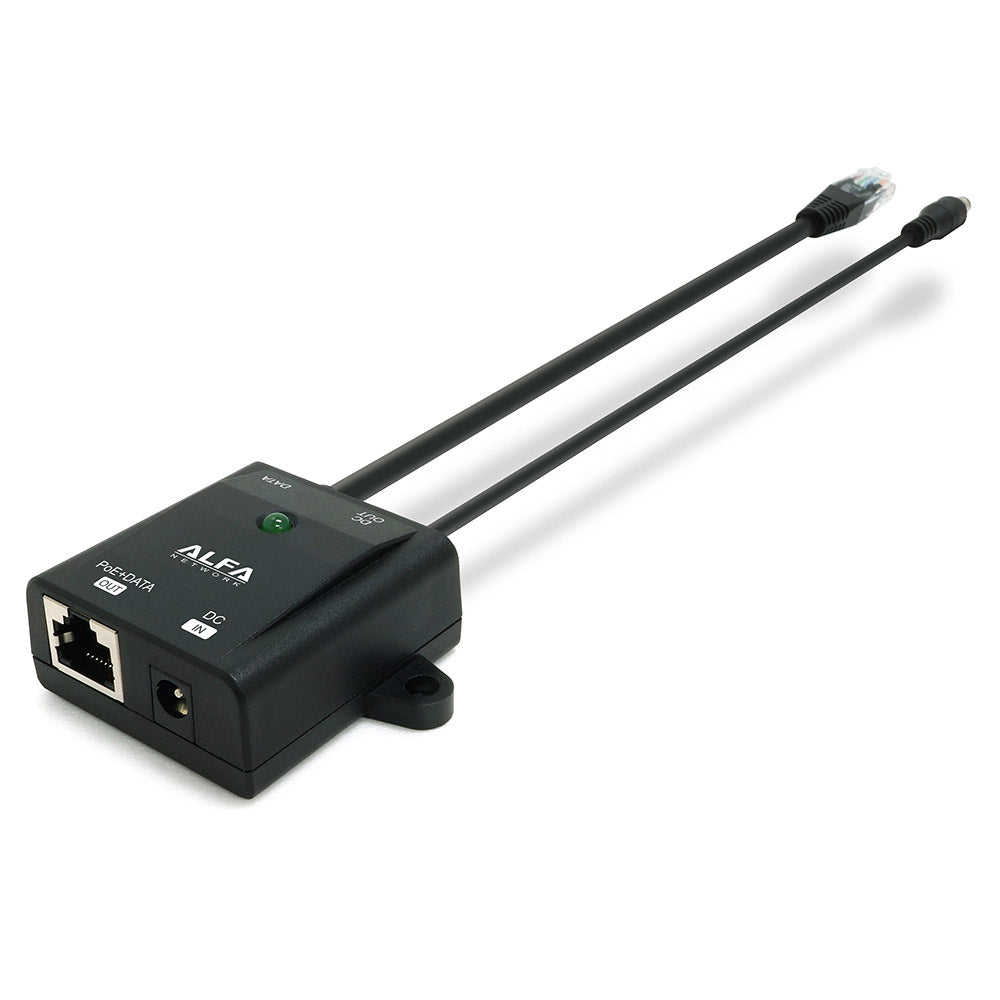

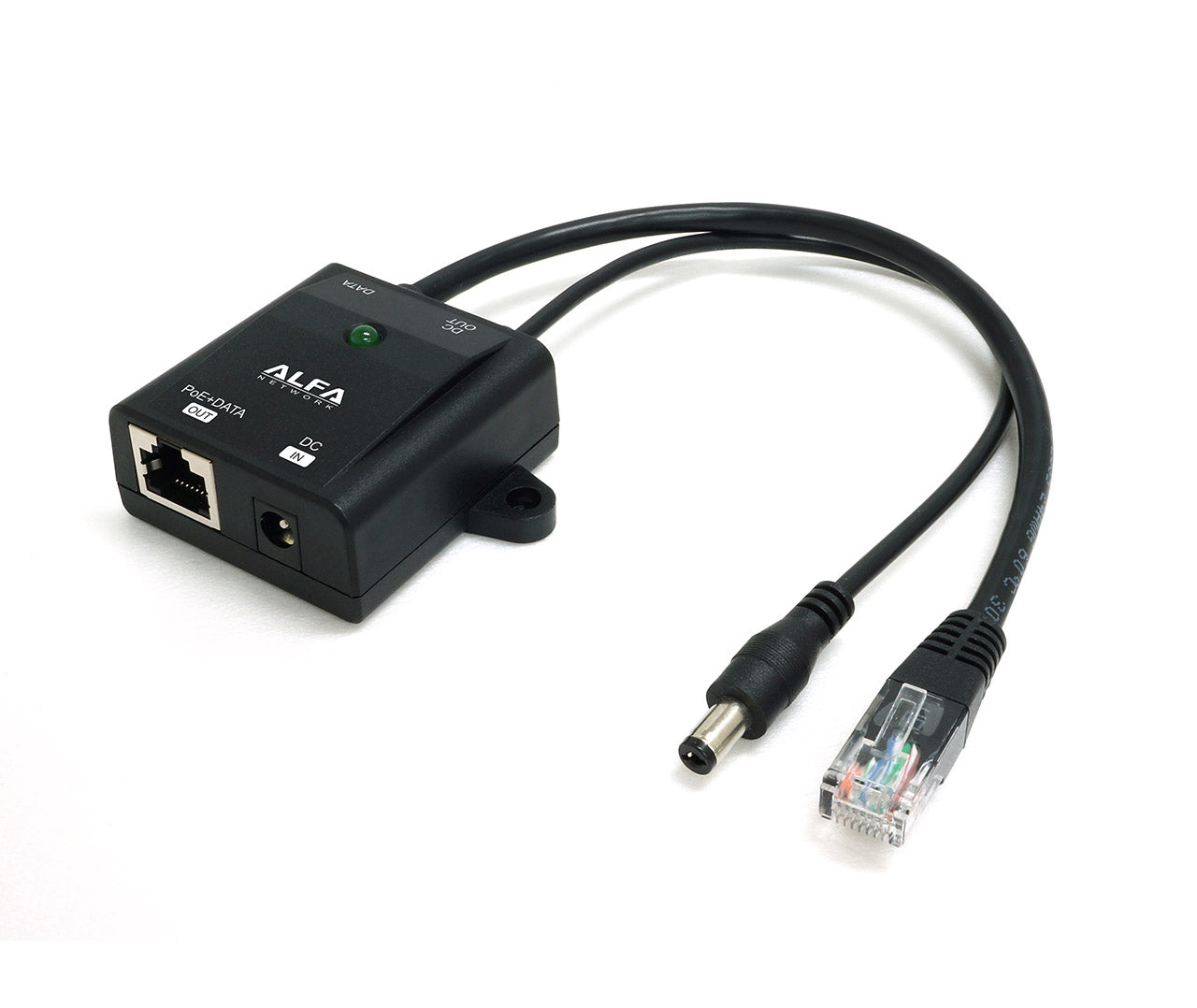

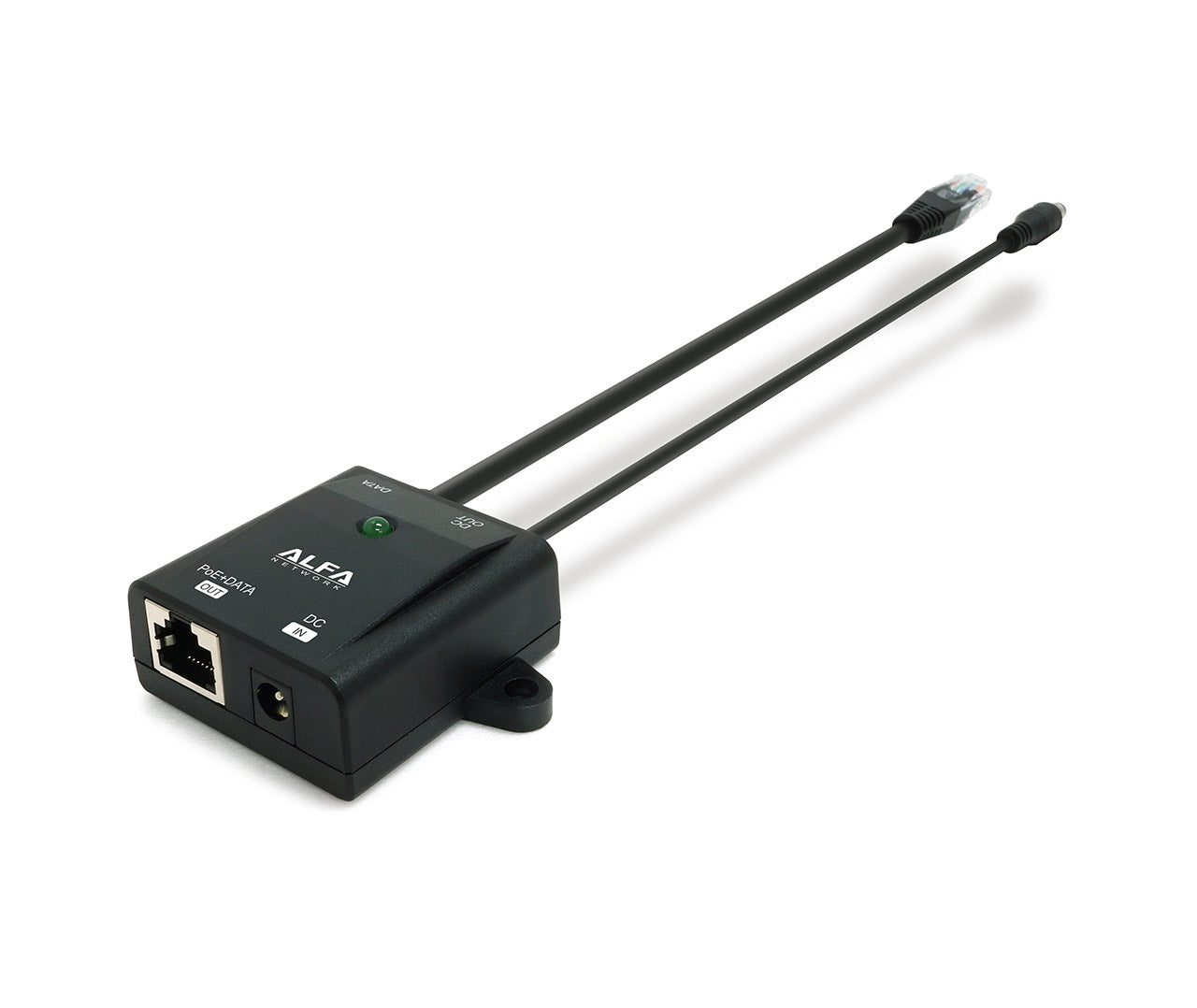

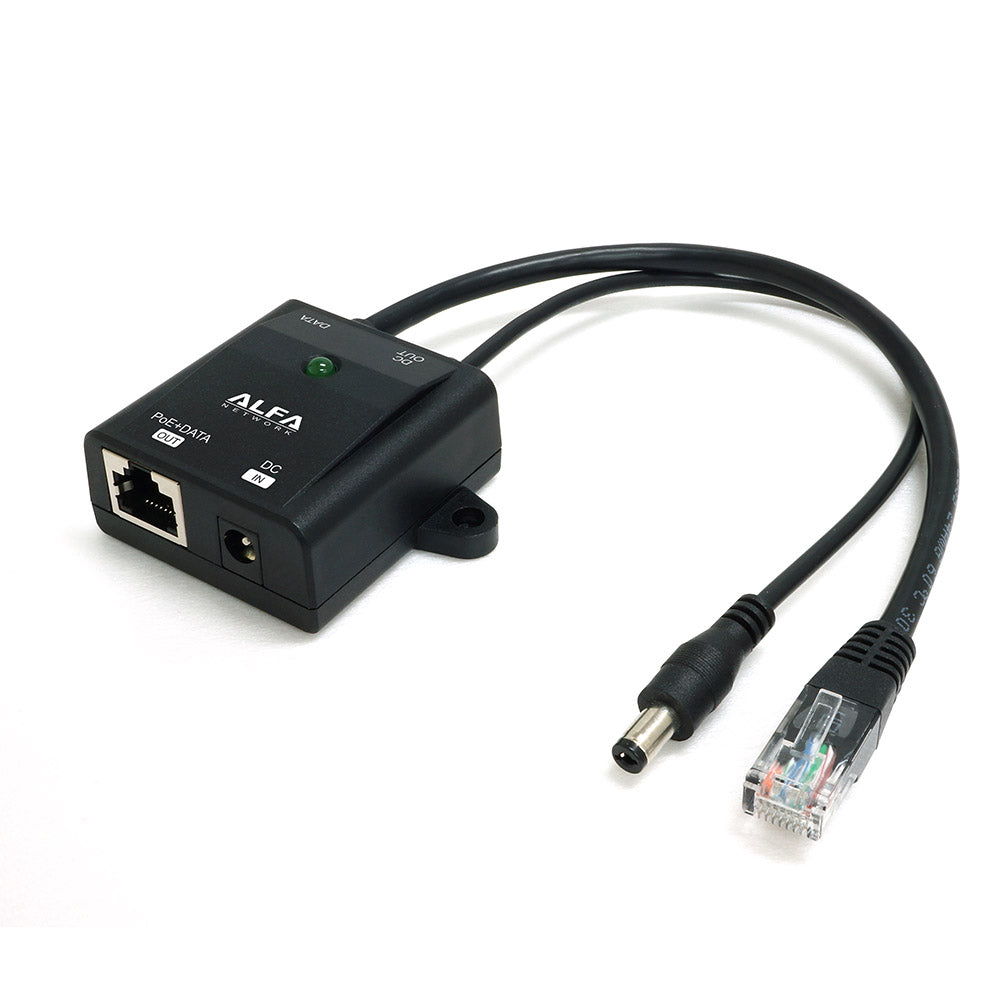

APOE03-C is the passive PoE adapter to power both R36A and Tube ethernet series through the single power source. With Tube ethernet series, it give install flexible that can run 100 meters ethernet cable not like Tube USB series limit by 5-8 meters USB cable length.



LAN Port

10/100 Ethernet

DC Jack Input


DC Output for Indoor Device

200 mm length DC plug cable

Data for Indoor Device

200 mm length ethernet cat5e cable

PoE Power Output for Outdoor Device

LAN Pins 4 , 5 (+) and Pins 7 , 8 (-)

PoE Data for Outdoor Device

LAN 2-Pair

Operation Temperature

-35° C~ 60° C (-31° F~ 140° F)

Storage Temperature

-45° C~ 70° C (-49° F~ 158° F)

Operation Humidity

10%~90% Non-Condensing

Maxima Amp

5 Amp


48 x 50 x 24 mm


40 g
